◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11105 - FVM(RHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#36039) — 35 parça

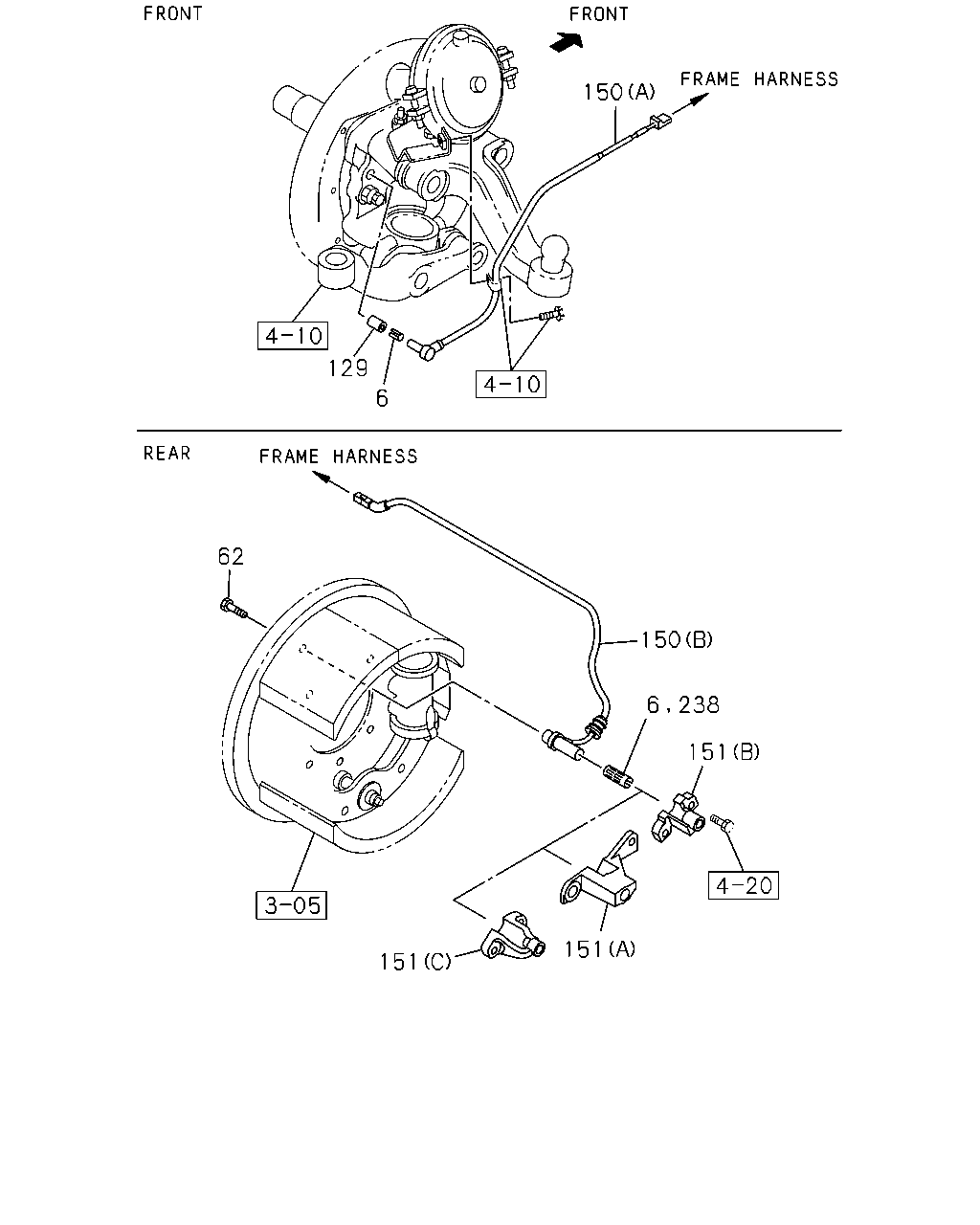

çizim 179067
150 129 6 62 151 151 151 6 238 150
BalonParca AdiParca NoAdetTipApplied Date A B
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0710- ●
6 HOLDER; SPD SENSOR
ANTI LOCK BRAKE<JE5> 		1-83129-260-1 02 1 0710- ●
62 BOLT; SENSOR
M8X16 		9-05820-816-0 02 1 0710-0808 ●
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> M8X16 		9-05820-816-0 02 1 0809-1506 ●
62 BOLT; SENSOR
ANTI LOCK BRAKE<JE5> M8X16 HEX SOCKET 		0-58330-816-0 02 1 1507- ●
129 COLLAR 1-83129-471-0 02 1 0710-0808 ●
129 COLLAR
ANTI LOCK BRAKE<JE5> 		1-83129-471-0 02 1 0809- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-288-1 01 1 0710- ●
150 SENSOR; SPEED,ABS
(B) 		8-98076-289-1 01 1 0710- ●
150 SENSOR; SPEED,ABS
(A) 		8-98037-375-0 02 1 0710- ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-989-0 01 1 0710-0808 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (B) 		1-83127-989-0 01 1 0809-0809 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (B) 		8-98128-606-0 01 1 0810- ●
150 SENSOR; SPEED,ABS
(B) 		1-83127-990-0 01 1 0710-0808 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (B) 		1-83127-990-0 01 1 0809-0809 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (B) 		8-98128-607-0 01 1 0810- ●
150 SENSOR; SPEED,ABS
(A) 		1-83227-024-1 02 1 0710-0808 ●
150 SENSOR; SPEED,ABS
ANTI LOCK BRAKE<JE5> (A) 		1-83227-024-1 02 1 0809- ●
151 BRACKET; SPD SENSOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-83129-405-0 01 1 0809-0809 ●
151 BRACKET; SPD SENSOR
ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (B) 		1-83129-405-0 01 1 0810-1504 ●
151 BRACKET; SPD SENSOR
ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C) 		8-98299-398-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 43/7 17.5"(W3Y) ANTI LOCK BRAKE<JE5> EXC. AUSTRALIA EQUIPMENT(B13) (B) 		1-83129-406-0 01 1 0809-0809 ●
151 BRACKET; SPD SENSOR
ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (B) 		1-83129-406-0 01 1 0810-1504 ●
151 BRACKET; SPD SENSOR
ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (C) 		8-98299-399-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-210-0 01 1 0710-1306 ●
151 BRACKET; SPD SENSOR
(A) 		1-42319-211-0 01 1 0710-1306 ●
151 BRACKET; SPD SENSOR
(B) 		1-83129-403-0 01 1 0710-0808 ●
151 BRACKET; SPD SENSOR
AUSTRALIA EQUIPMENT(B13) (B) 		1-83129-403-0 01 1 0809-0809 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (B) 		1-83129-403-0 01 1 0810-1504 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C) 		8-98299-396-0 01 1 1505- ●
151 BRACKET; SPD SENSOR
(B) 		1-83129-404-0 01 1 0710-0808 ●
151 BRACKET; SPD SENSOR
AUSTRALIA EQUIPMENT(B13) (B) 		1-83129-404-0 01 1 0809-0809 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (B) 		1-83129-404-0 01 1 0810-1504 ●
151 BRACKET; SPD SENSOR
ZF9S1110 M/T(Y5E) ANTI LOCK BRAKE<JE5> (C) 		8-98299-397-0 01 1 1505- ●
238 BUSHING; BRKT 1-42319-213-0 02 1 0710- ●
