Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#36038) — 998 parça

139 127 524 294 219 525 184 47 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-	●	●
127	SCREW; FACIA HARNESS CLIP EXC. IMMOBILIZER SYSTEM<7KC> M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0801-0808	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0710-0808	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0809-0809	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	06	1	0809-0809		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-		●
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0710-0802	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-0809	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-		●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-	●	●
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	0810-		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-0809	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0810-1008	●
184	WASHER; PL,STARTER EARTH EURO4 SPECIFICATION<NT4> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0810-1008		●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1009-	●
184	WASHER; PL,STARTER EARTH EURO4 SPECIFICATION<NT4> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1009-		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●
219	NUT M8 FLANGE	0-91180-108-0	05	1	0710-0802	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0803-0808	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0809-	●
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	04	1	0809-		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0808	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-0808		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0809-	●	●
219	NUT ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0809-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0808	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0809-0809	●
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	06	1	0809-0809		●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0810-	●
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	04	1	0810-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0712-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT EURO2 SPECIFICATION<NT2> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809	●
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT EURO2 SPECIFICATION<NT2> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT ZF6S1000 M/T(Y5D) (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	0-91180-108-0	01	1	0809-0809		●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0810-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0810-	●
294	NUT AUTO CAB TILT<WV2> (A) M8 FLANGE	0-91180-108-0	01	1	0810-		●
294	NUT EURO2 SPECIFICATION<NT2> (A) M8 FLANGE	0-91180-108-0	01	1	0810-		●
294	NUT (A) M8 FLANGE	0-91180-108-0	07	1	0710-0710	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	09	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0712-0808	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0809-0809	●
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0809-0809		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901	●
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901		●
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905		●
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905		●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●
294	NUT CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE	0-91180-108-0	02	1	0906-		●
294	NUT ANTI LOCK BRAKE<JE5> (A) M8 FLANGE	0-91180-108-0	02	1	0906-		●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0710-0808	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0809-	●
525	NUT; CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	0809-		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-0808	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0809-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0809-	●
525	NUT; CLIP AUTO CAB TILT<WV2> T=8.0 M8 FLANGE	0-91180-108-0	01	1	0809-		●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●

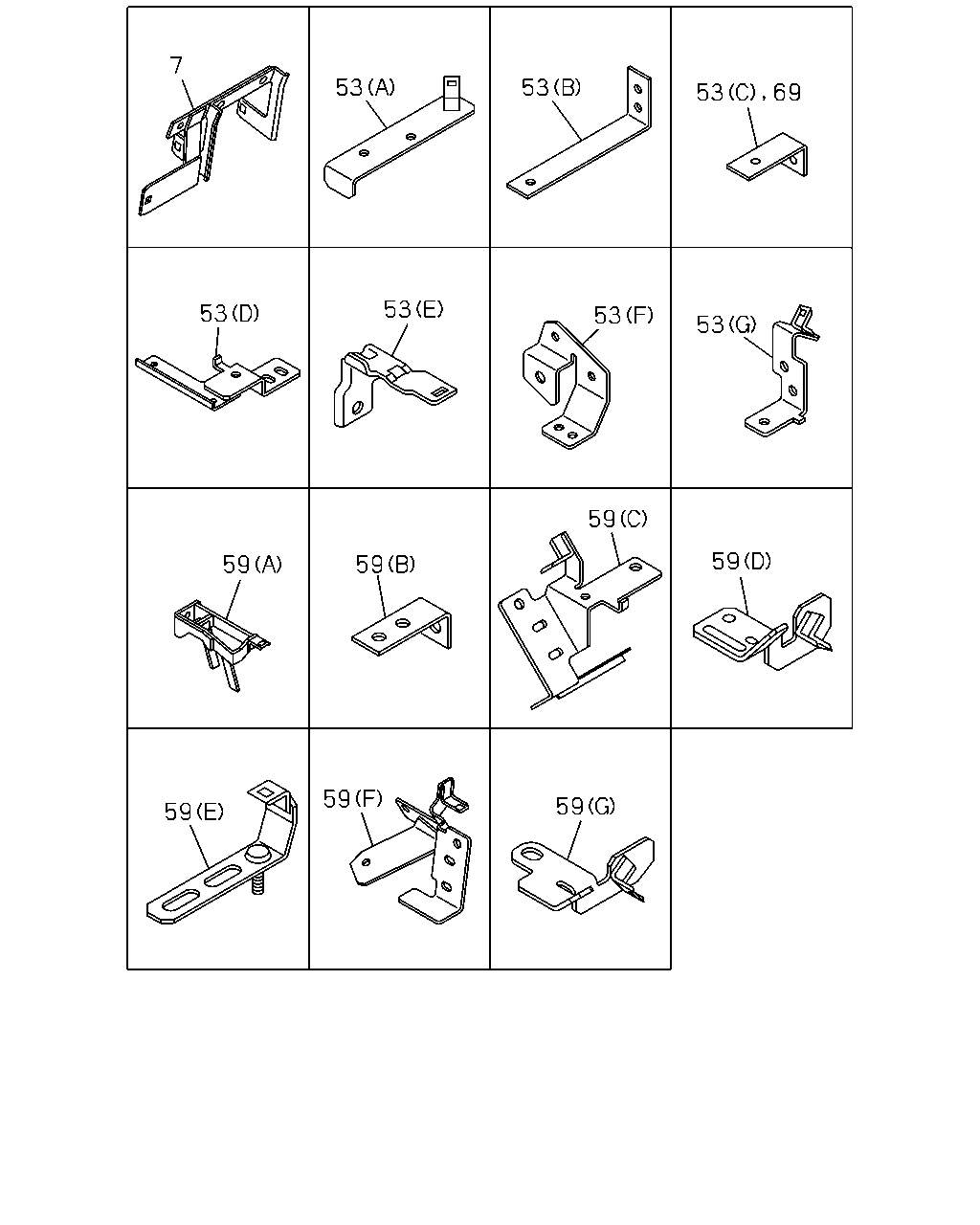

7 53 53 53 69 53 53 53 53 59 59 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0710-	●	●
53	BRACKET; HARNESS ZF6S1000 M/T(Y5D) (G)	8-98129-543-0	01	1	0809-0809		●
53	BRACKET; HARNESS ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (G)	8-98129-543-0	01	1	0809-0809		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98084-590-0	01	1	0801-0808	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98084-590-0	01	1	0809-	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F)	8-98084-590-0	01	1	0809-		●
53	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	0710-0711	●	●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	0710-0808	●	●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	0809-	●
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (B)	1-47479-674-0	01	1	0809-		●
53	BRACKET; HARNESS (A)	8-97616-959-0	01	1	0710-0808	●	●
53	BRACKET; HARNESS (A)	8-97616-959-0	01	1	0809-	●
53	BRACKET; HARNESS CAB SUSPENSION FULL FLOATING<W16> (A)	8-97616-959-0	01	1	0809-		●
53	BRACKET; HARNESS ZF9S1110 M/T(Y5E) (D)	8-97620-485-0	01	1	0710-0808	●	●
53	BRACKET; HARNESS ZF9S1110 M/T(Y5E) (D)	8-97620-485-0	01	1	0809-	●
53	BRACKET; HARNESS CATALYSIS CONTROL WITH DPD<8JM> (D)	8-97620-485-0	01	1	0809-		●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0710-	●	●
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0710-1502	●	●
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0710-0905	●	●
59	BRACKET; FRAME HARNESS (F)	8-98107-611-0	01	1	0906-	●	●
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0712-	●	●

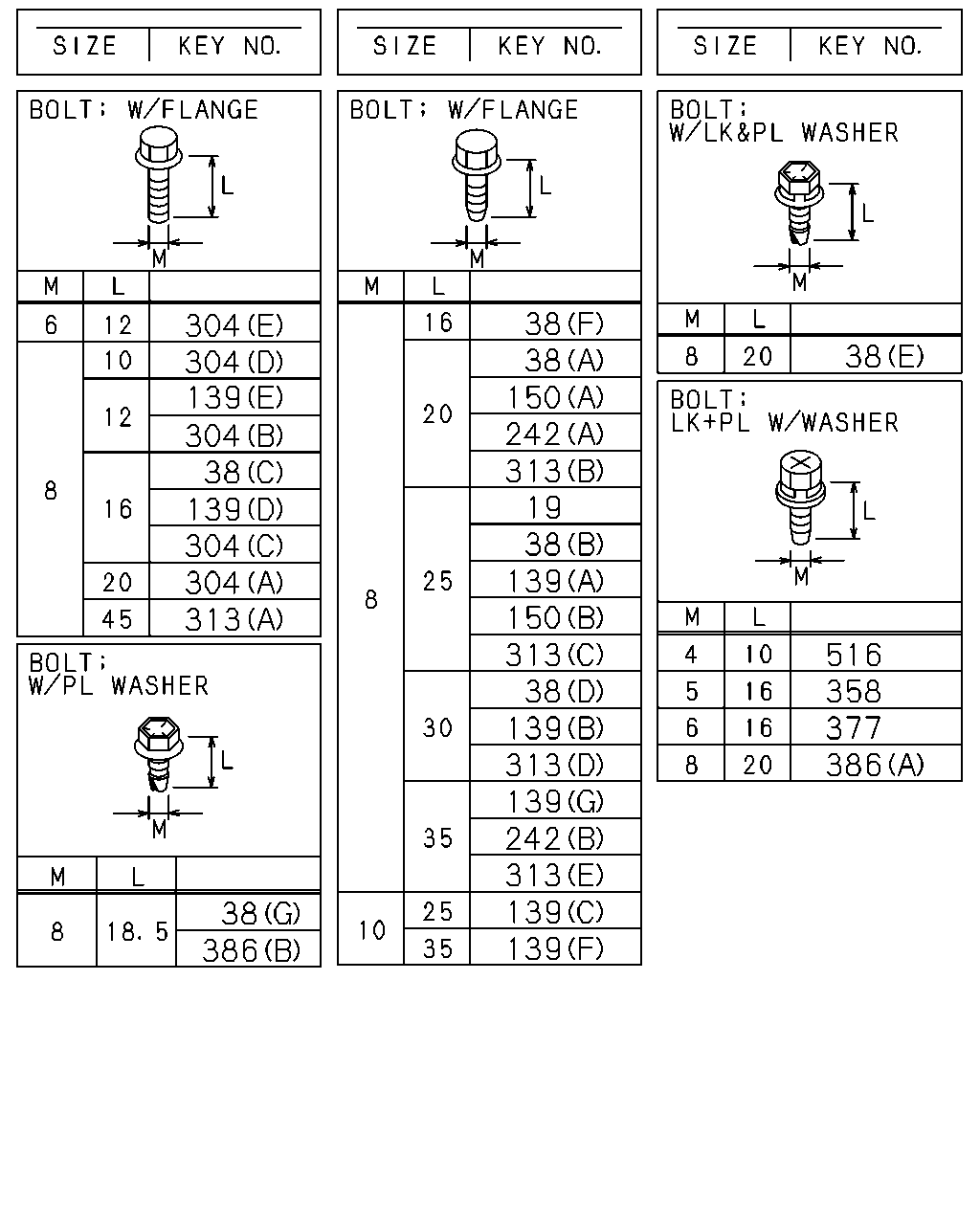

38 38 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 139 304 304 139 304 38 139 304 304 313 38 516 358 377 386 38 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0710-0801	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-0808	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-0808	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-0808		●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
38	BOLT; CLIP,HARNESS (F) M8X16 FLANGE	8-98076-109-0	01	1	0710-0710	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE	0-28650-830-0	02	1	0809-		●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0806	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0710-0808	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-	●
38	BOLT; CLIP,HARNESS AUTO CAB TILT<WV2> (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-		●
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-1201	●	●
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0801-0808	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68), VENTILATOR & DEFROSTER WO/HEATER(SAZ) (H) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0710-0808	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0809-0809	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	06	1	0809-0809		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-		●
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0710-0802	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-0809	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810		●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-	●
139	BOLT; BRKT ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-		●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-	●	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
242	BOLT; BRKT,HARNESS ZF6S1000 M/T(Y5D) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-0809		●
242	BOLT; BRKT,HARNESS ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-0809		●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0808	●	●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-	●
242	BOLT; BRKT,HARNESS CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-		●
242	BOLT; BRKT,HARNESS ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-0808	●	●
242	BOLT; BRKT,HARNESS ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-	●
242	BOLT; BRKT,HARNESS CATALYSIS CONTROL WITH DPD<8JM> (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	0911-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	05	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	0911-		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-0910		●
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	0911-1404		●
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1405-		●
304	BOLT; ENG HARNESS CLIP GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	02	1	1405-		●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0710-0808	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0809-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	03	1	0809-		●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-0808	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0809-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	03	1	0809-		●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0710-0808	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0809-1404	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	0809-1404		●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	1405-	●	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	01	1	1405-		●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0710-0808	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0809-	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	01	1	0809-		●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0710-0808	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0809-1010	●
304	BOLT; ENG HARNESS CLIP 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE	0-28050-810-0	01	1	0809-1010		●
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	0710-	●	●
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-0808	●	●
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-	●
313	BOLT; BRKT AUTO CAB TILT<WV2> (B) M8X20 FLANGE	0-28650-820-0	01	1	0809-		●
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0710-0808	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0809-	●	●
313	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M8X35 FLANGE	0-28650-835-0	01	1	0809-		●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0710-0808	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0809-	●
358	BOLT; EARTH AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0809-		●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0710-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0710-	●	●

14 48 16 612 369 235 225 217 206 194 183 102 37 16 14 530 14 503 503 538 14 48 14 16 14 612 1 1 1 185 1 178 596 178 596 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (D) ID=62 OD=69 L=70	8-98254-614-0	01	1	1405-		●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0710-0808	●	●
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0809-	●
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0809-		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0710-0808	●	●
1	SLEEVE; RUBBER 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-0910		●
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-0910		●
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0911-		●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-	●	●

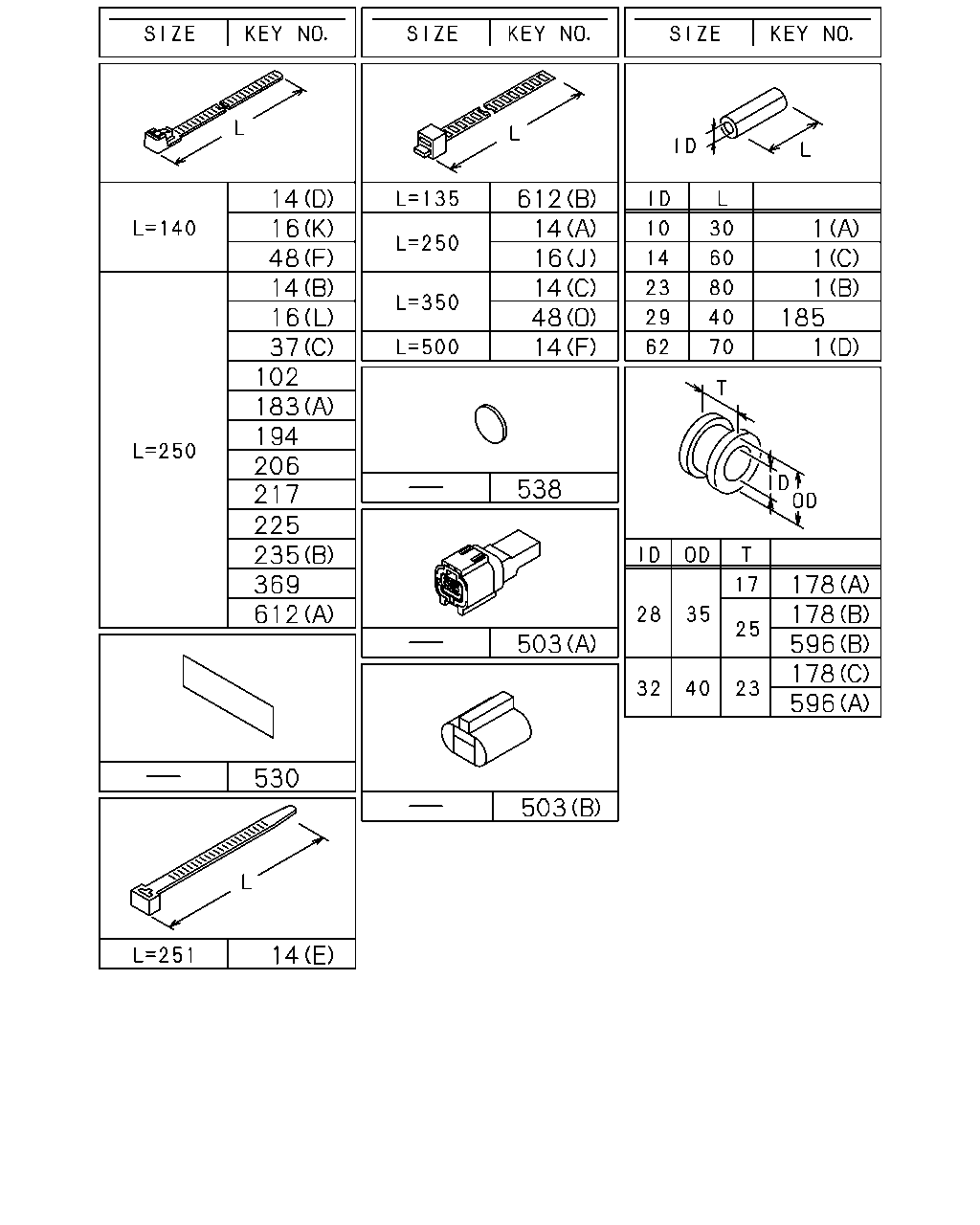

14	CLIP; BAND,HARNESS GENERATOR 24V90A(K44) EURO2 SPECIFICATION<NT2> (F) L=500	8-98216-422-0	01	1	1405-		●
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=250	8-98216-430-0	01	1	1312-		●
14	CLIP; BAND,HARNESS (E) L=251	8-97619-917-0	01	1	0910-	●
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (E) L=251	8-97619-917-0	01	1	0910-		●
14	CLIP; BAND,HARNESS ZF6S1000 M/T(Y5D) ANTI LOCK BRAKE<JE5> (D) L=140	5-09707-031-1	01	1	0810-		●
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (B) L=250	5-09707-030-1	08	1	0809-0910		●
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=250	5-09707-030-1	08	1	0809-0910		●
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	5-09707-030-1	08	1	0911-1205		●
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (B) L=250	8-98216-430-0	08	1	1206-		●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0710-0712	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	14	1	0801-0808	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	14	1	0809-0909	●
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=250	5-09707-030-1	14	1	0809-0909		●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0910-1205	●
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=250	5-09707-030-1	13	1	0910-1205		●
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-	●
14	CLIP; BAND,HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) L=250	8-98216-430-0	13	1	1206-		●
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0710-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0710-0808		●
14	CLIP; BAND,HARNESS ANTI LOCK BRAKE<JE5> (A) L=250	1-09707-126-0	02	1	0809-		●

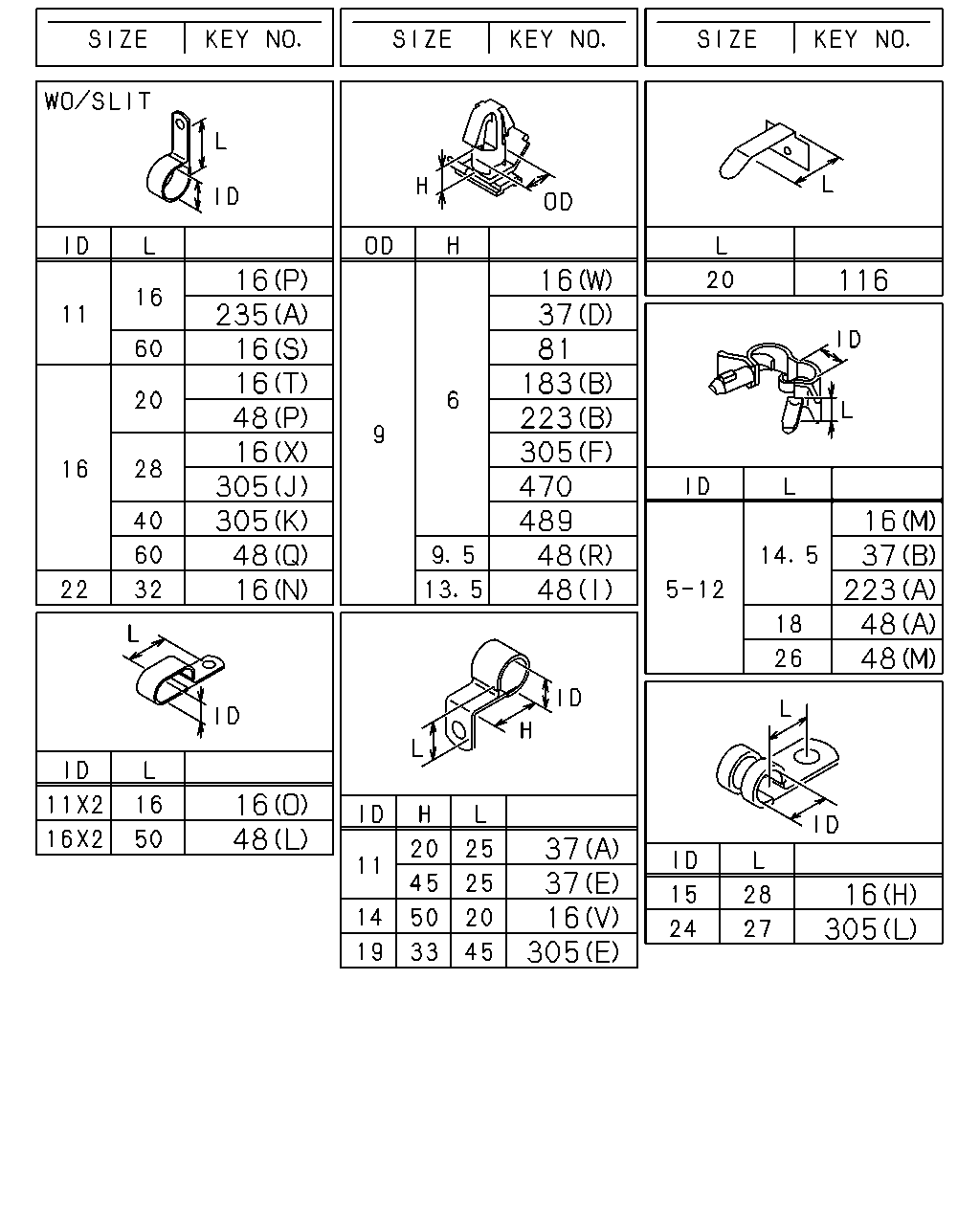

16	CLIP; HARNESS EXC. AIR DRYER<PS7> (W) OD=9 H=6	1-09709-178-0	01	1	0809-1405		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	0809-		●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (X) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-0808	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●

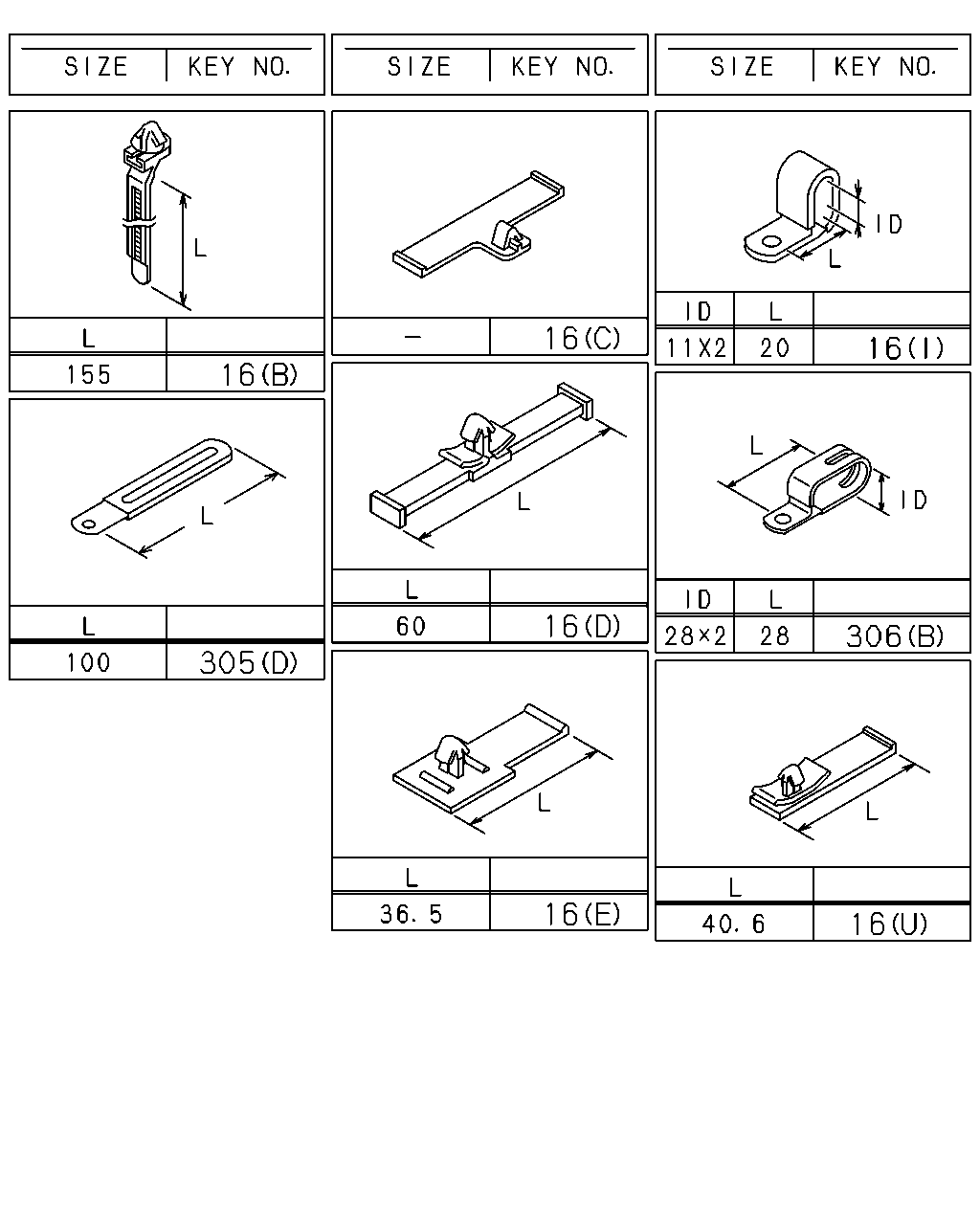

16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0808	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11X2 L=20	1-09700-871-0	03	1	0809-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) L=250	1-09707-126-0	01	1	0809-0809		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0802	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0803-0808	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0809-		●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0809-		●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0809-		●

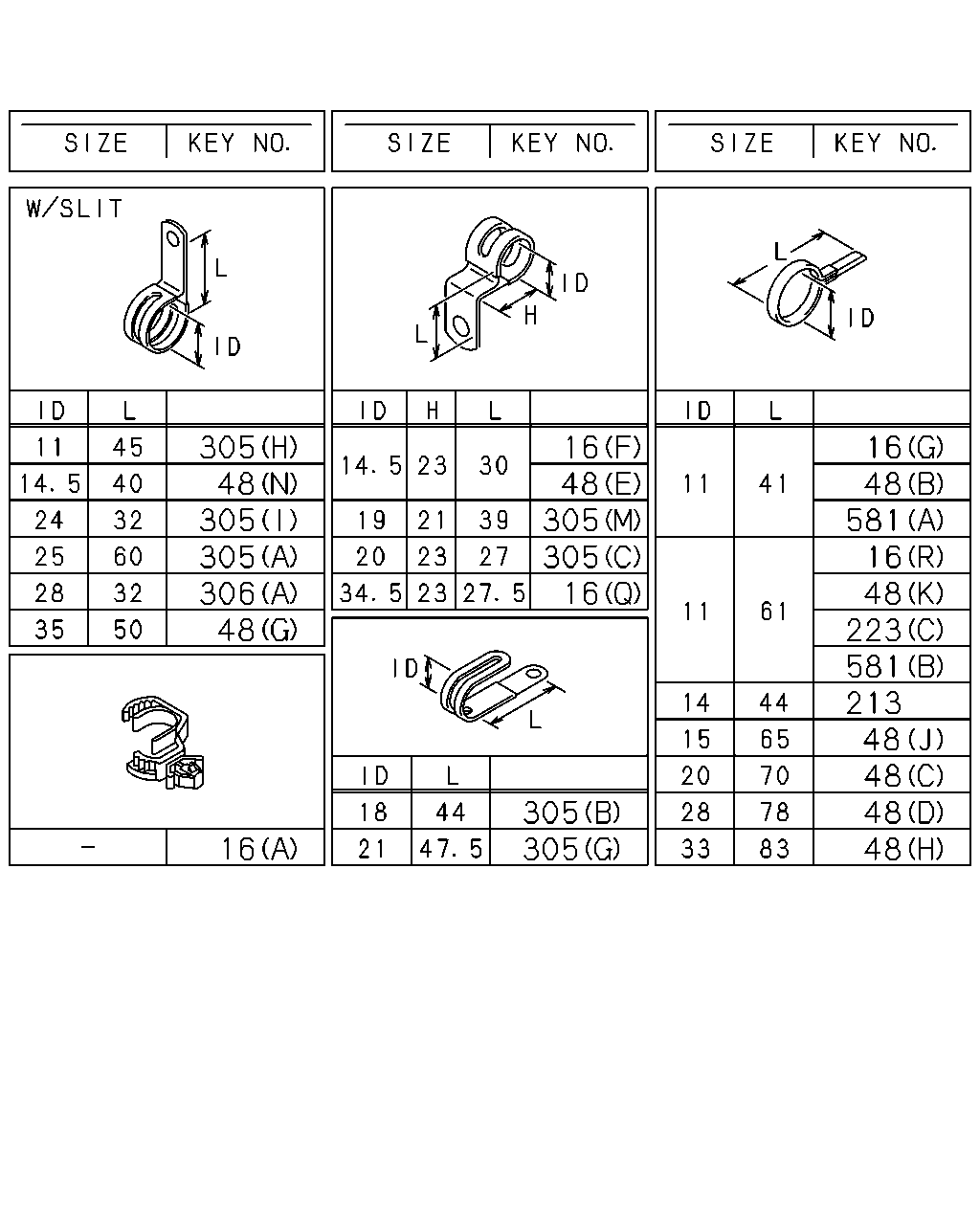

48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-0808		●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	0809-		●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0809-0909		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	1111-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (P) ID=16 L=20	0-95235-536-0	01	1	0809-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (Q) ID=16 L=60	0-95235-596-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (R) OD=9 H=9.5	1-09709-179-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	31	1	0806-1001		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	31	1	1002-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-1011	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1012-	●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0809-	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
102	CLIP; BAND H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0710-0901	●	●
178	GROMMET; HARNESS EXC. AUSTRALIA EQUIPMENT(B13) (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0712-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-0808	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-0808	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-	●
178	GROMMET; HARNESS AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-		●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	0710-0711	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0712-0808	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-	●
178	GROMMET; HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-		●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-0808	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-	●
178	GROMMET; HARNESS ANTI LOCK BRAKE<JE5> (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0809-		●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0710-	●	●
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0710-0810	●	●
185	SLEEVE; RUBBER WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> ID=29 OD=39 L=40	1-09337-013-0	01	1	0910-1110		●
194	CLIP; BAND L=250	5-09707-030-1	02	1	0710-0808	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	0809-	●
194	CLIP; BAND AUTO CAB TILT<WV2> L=250	5-09707-030-1	02	1	0809-		●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0710-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0710-	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	0710-0808	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	0809-	●
225	CLIP; AIR TANK HARNESS AUSTRALIA EQUIPMENT(B13) L=250	5-09707-030-1	03	1	0809-		●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	0710-1011	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	1012-	●	●
225	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1012-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0809-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	0809-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0710-0808	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0809-0909	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) L=250	5-09707-030-1	01	1	0809-0909		●
369	CLIP; BAND EDS HARNESS L=250	5-09707-030-1	02	1	0710-0802	●	●
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	0809-1405		●
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	0710-0808	●	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-82690-668-0	01	1	0809-0910	●	●
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	0911-	●
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	1-82690-668-0	01	1	0911-		●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0710-0810	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-		●
530	SEAL; HARNESS O/SIDE MIRROR RR VIEW FLAT<YS1> 180X40	1-72498-019-1	01	1	1306-		●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0710-	●	●
596	GROMMET CATALYSIS CONTROL WITH DPD<8JM> EXC. AUSTRALIA EQUIPMENT(B13) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-		●
596	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0710-0808	●	●
596	GROMMET (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-	●
596	GROMMET AUSTRALIA EQUIPMENT(B13) CATALYSIS CONTROL WITH DPD<8JM> (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-		●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	0911-	●
612	CLIP; HARNESS DPD ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) CATALYSIS CONTROL WITH DPD<8JM> (A) L=250	5-09707-030-1	01	1	0911-		●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	02	1	0710-0802	●	●
612	CLIP; HARNESS DPD ZF9S1110 M/T(Y5E) (B) L=135	1-09987-143-1	02	1	0710-0808	●	●
612	CLIP; HARNESS DPD ZF9S1110 M/T(Y5E) (B) L=135	1-09987-143-1	02	1	0809-	●
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=135	1-09987-143-1	02	1	0809-		●

16 16 16 16 306 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (W) OD=9 H=6	1-09709-178-0	01	1	0809-1405		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	0809-		●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (X) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-0808	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0808	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11X2 L=20	1-09700-871-0	03	1	0809-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) L=250	1-09707-126-0	01	1	0809-0809		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0911-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0911-		●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-1310	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (D) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-	●	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-		●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-0808	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●

16 235 16 16 48 16 305 305 48 16 16 37 81 183 223 305 470 489 48 48 116 16 37 223 48 48 16 48 37 37 16 305 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (W) OD=9 H=6	1-09709-178-0	01	1	0809-1405		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	0809-		●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (X) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-0808	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0808	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11X2 L=20	1-09700-871-0	03	1	0809-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) L=250	1-09707-126-0	01	1	0809-0809		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0802	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0803-0808	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0809-		●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (C) L=250	5-09707-030-1	01	1	0809-		●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0710-0808	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0809-	●
37	CLIP; HARNESS,POWER TILT AUTO CAB TILT<WV2> (D) OD=9 H=6	8-97368-793-0	02	1	0809-		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-0808		●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	0809-		●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0809-0909		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	1111-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (P) ID=16 L=20	0-95235-536-0	01	1	0809-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (Q) ID=16 L=60	0-95235-596-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (R) OD=9 H=9.5	1-09709-179-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	31	1	0806-1001		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	31	1	1002-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-1011	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1012-	●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0809-	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0712-1010	●	●
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-		●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-0808	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0809-	●
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0809-		●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0710-	●	●
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0710-0810	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0710-1011	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1012-	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-		●
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0710-0808	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0809-	●
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-		●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0902	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011		●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0809-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (A) ID=11 L=16	0-95235-025-0	02	1	0809-		●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0710-0808	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0809-0909	●
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE<JE5> (B) L=250	5-09707-030-1	01	1	0809-0909		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0911-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0911-		●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-1310	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (D) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-	●	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-		●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-0808	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-		●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0710-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●
470	CLIP; HARNESS,LICENSE LAMP AUSTRALIA EQUIPMENT(B13) COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-		●
470	CLIP; HARNESS,LICENSE LAMP EXC. AUSTRALIA EQUIPMENT(B13) OD=9 H=6	1-09709-178-0	01	1	1206-		●
489	CLIP; HARNESS,OIL PRESS SW H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0710-0711	●	●

305 48 305 305 306 48 16 48 305 305 16 16 48 581 16 48 223 581 213 48 48 48 48 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (W) OD=9 H=6	1-09709-178-0	01	1	0809-1405		●
16	CLIP; HARNESS ZF9S1110 M/T(Y5E) (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (P) ID=11 L=16	0-95235-025-0	02	1	0809-		●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (X) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-	●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-		●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-0808	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	0809-0912		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (U) L=40.6	8-97229-357-0	02	1	1001-1202		●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (U) L=40.6	8-97229-357-0	02	1	1203-		●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-0808	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-0912		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	1001-1202		●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-0808	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0809-0912	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13),MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-0912		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-1202	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,AUSTRALIA EQUIPMENT(B13) (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-1202		●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1203-	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-		●
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (I) ID=11X2 L=20	1-09700-871-0	03	1	0809-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0808		●
16	CLIP; HARNESS ANTI LOCK BRAKE<JE5> (J) L=250	1-09707-126-0	01	1	0809-0809		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-0808		●
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE<JE5> (K) ID=11 L=61	1-09700-484-0	02	1	0809-		●
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0809-0909		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EURO2 SPECIFICATION<NT2> (O) L=350	1-09707-183-0	01	1	0910-1110		●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (O) L=350	1-09707-183-0	01	1	1111-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (P) ID=16 L=20	0-95235-536-0	01	1	0809-		●
48	CLIP; FRAME HARNESS ZF6S1000 M/T(Y5D) (Q) ID=16 L=60	0-95235-596-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (C) ID=20 L=70	1-09700-485-0	19	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (J) ID=15 L=65	1-09700-466-0	17	1	1008-		●
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) AUSTRALIA EQUIPMENT(B13) (R) OD=9 H=9.5	1-09709-179-0	01	1	0809-		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (C) ID=20 L=70	1-09700-485-0	26	1	0809-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 6300MM(63W) (J) ID=15 L=65	1-09700-466-0	24	1	1008-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	31	1	0806-1001		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (C) ID=20 L=70	1-09700-485-0	31	1	1002-1007		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) EURO4 SPECIFICATION<NT4> (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0808	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0809-0902		●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0903-	●
48	CLIP; FRAME HARNESS AUTO CAB TILT<WV2> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS AUSTRALIA EQUIPMENT(B13) (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (B) ID=11 L=41	1-09700-403-0	01	1	0903-		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-1011	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1012-	●
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-		●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS ZF9S1110 M/T(Y5E) (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0809-	●
48	CLIP; FRAME HARNESS CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION FULL FLOATING<W16>,CAB SUSPENSION RIGID<W71> (G) ID=35 L=50	1-09701-214-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-0808	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-	●
48	CLIP; FRAME HARNESS WHEEL BASE 7100MM(71W) AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS EXC. AUSTRALIA EQUIPMENT(B13) (I) OD=9 H=13.5	1-09709-180-0	01	1	0809-		●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0710-1011	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1012-	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-		●
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-		●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0710-0808	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0809-	●
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-		●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0902	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011		●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-	●
223	CLIP; AIR TANK HARNESS EURO4 SPECIFICATION<NT4> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011		●
223	CLIP; AIR TANK HARNESS EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (D) L=100	8-94443-021-1	02	1	1311-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (L) ID=24 L=27	1-09700-809-0	03	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=24 L=27	1-09700-809-0	03	1	0911-		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0910		●
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (M) ID=19 L=39 H=21	1-09700-972-1	01	1	0911-		●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-1310	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1311-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (D) L=100	8-94443-021-1	01	1	1311-		●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1404		●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-	●	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1405-		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-		●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-0808	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-		●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-0808	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0809-	●
305	CLIP; ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-		●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0710-0711	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0710-0711	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0712-0801	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=61	1-09700-484-0	02	1	0802-0802	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0803-	●

137 137 137 137 137 308 308 308 308 308 308 335 324 428 600 312 312 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (D)	8-97622-657-0	01	1	0710-0710	●	●
137	BRACKET; HARNESS CLAMP (E)	8-97624-013-0	01	1	0711-	●	●
137	BRACKET; HARNESS CLAMP (A)	1-82698-140-0	01	1	0710-0802	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0710-0808	●	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0809-	●
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE<JE5> (B)	8-97609-797-1	02	1	0809-		●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	0911-1010		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (E)	8-98032-178-0	01	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	0911-		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (F)	8-98075-824-0	01	1	0809-0910		●
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	0911-		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0710-0808	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0809-1010	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (A)	8-97601-310-0	03	1	0809-1010		●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0710-0808	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0809-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (B)	8-97614-078-0	01	1	0809-		●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0710-0808	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0809-	●
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCS ENG(80L) EURO4 SPECIFICATION<NT4> (C)	8-98021-291-2	01	1	0809-		●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	0710-0808	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	0809-	●
312	BRACKET; CLIP HARNESS AUTO CAB TILT<WV2> (A)	8-97620-519-0	01	1	0809-		●
324	BRACKET; CLIP	1-47479-430-0	02	1	0710-0808	●	●
324	BRACKET; CLIP	1-47479-430-0	02	1	0809-1211	●
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47479-430-0	02	1	0809-1211		●
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-1212	●	●
324	BRACKET; CLIP	1-47479-430-0	02	1	1212-	●
324	BRACKET; CLIP ANTI LOCK BRAKE<JE5>	1-47479-430-0	02	1	1212-		●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0710-	●	●
428	BRACKET EURO2 SPECIFICATION<NT2> (A)	1-47476-658-0	01	1	0809-		●
428	BRACKET (B)	8-97620-514-0	01	1	0710-	●	●
600	PROTECTOR; HEAT	8-98073-436-0	01	1	0710-0801	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
