2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#36036) — 122 parça

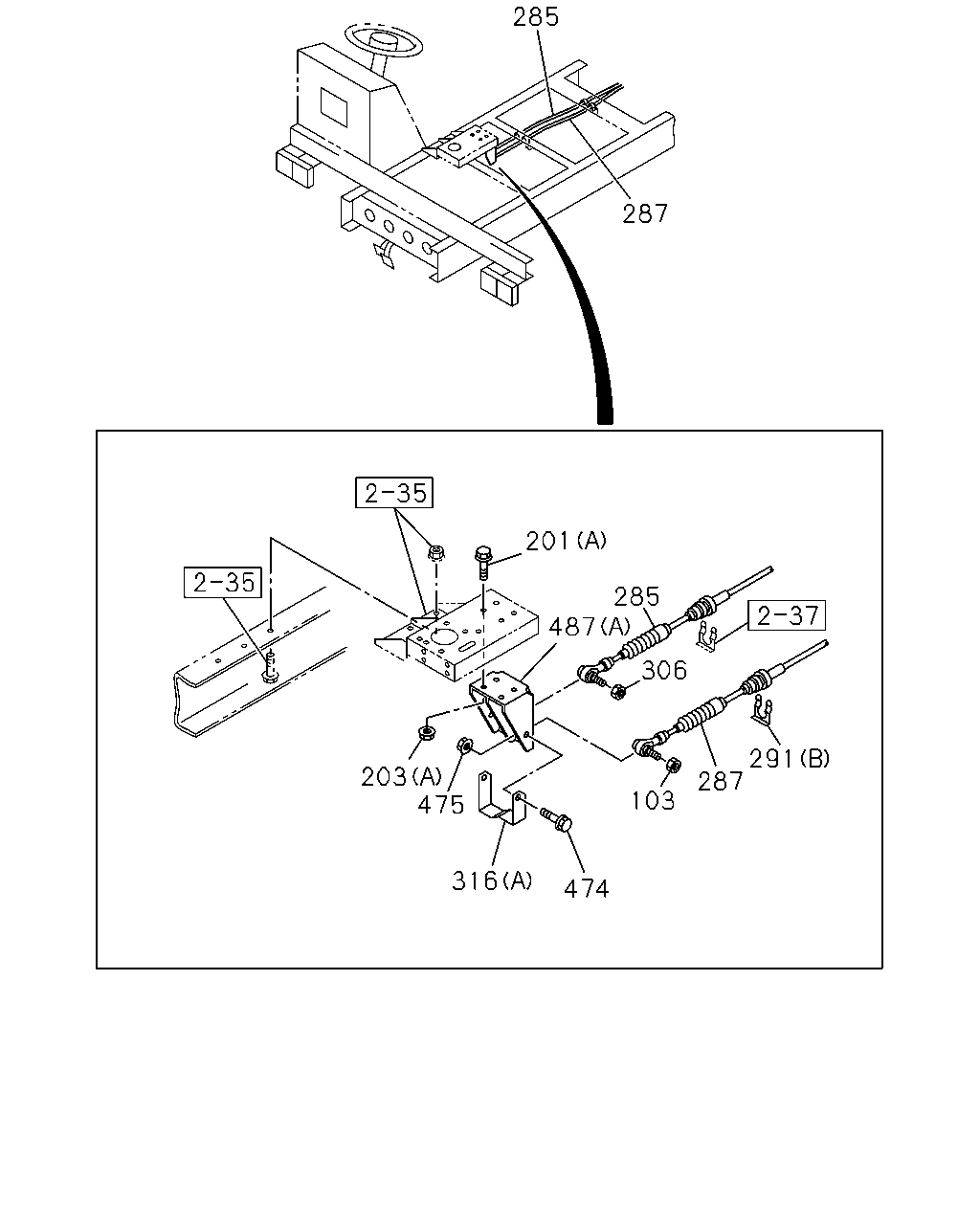

285 287 201 285 487 306 291 287 203 475 103 316 474

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	NUT M8 FLANGE	1-09440-062-1	01	1	0610-
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0707-
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	0610-0706
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0707-
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0610-
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0610-0905
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0906-
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0906-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> ASSISTOR SHIFT CONTROL<WX8>	8-98131-350-1	01	1	0809-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98131-345-1	01	1	0809-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-117-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-048-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-118-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-010-1	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> ASSISTOR SHIFT CONTROL<WX8>	8-98131-351-0	01	1	0809-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98131-348-0	01	1	0809-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-119-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-049-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5700MM(57W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-120-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5700MM(57W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-011-0	01	1	0610-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0610-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=22.2	1-09701-209-1	01	1	0610-
306	NUT; WIRE BRKT M10 FLANGE	1-09440-061-0	01	1	0610-
316	BRACKET; CLIP WHEEL BASE 5000MM(50W) (B)	1-47479-729-0	09	1	0610-
316	BRACKET; CLIP WHEEL BASE 5700MM(57W) (B)	1-47479-729-0	10	1	0610-
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0610-
474	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	18	1	0610-
474	BOLT; BRKT WHEEL BASE 5700MM(57W) M8X25 FLANGE	0-28650-825-0	20	1	0610-
474	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0610-
474	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0610-
474	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-0610
474	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0610-
475	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	18	1	0610-
475	NUT; BRKT WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	20	1	0610-
475	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0610-0707
475	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0708-
475	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0708-
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0610-
487	BRACKET; CONT CABLE (B)	1-33657-803-0	01	1	0610-

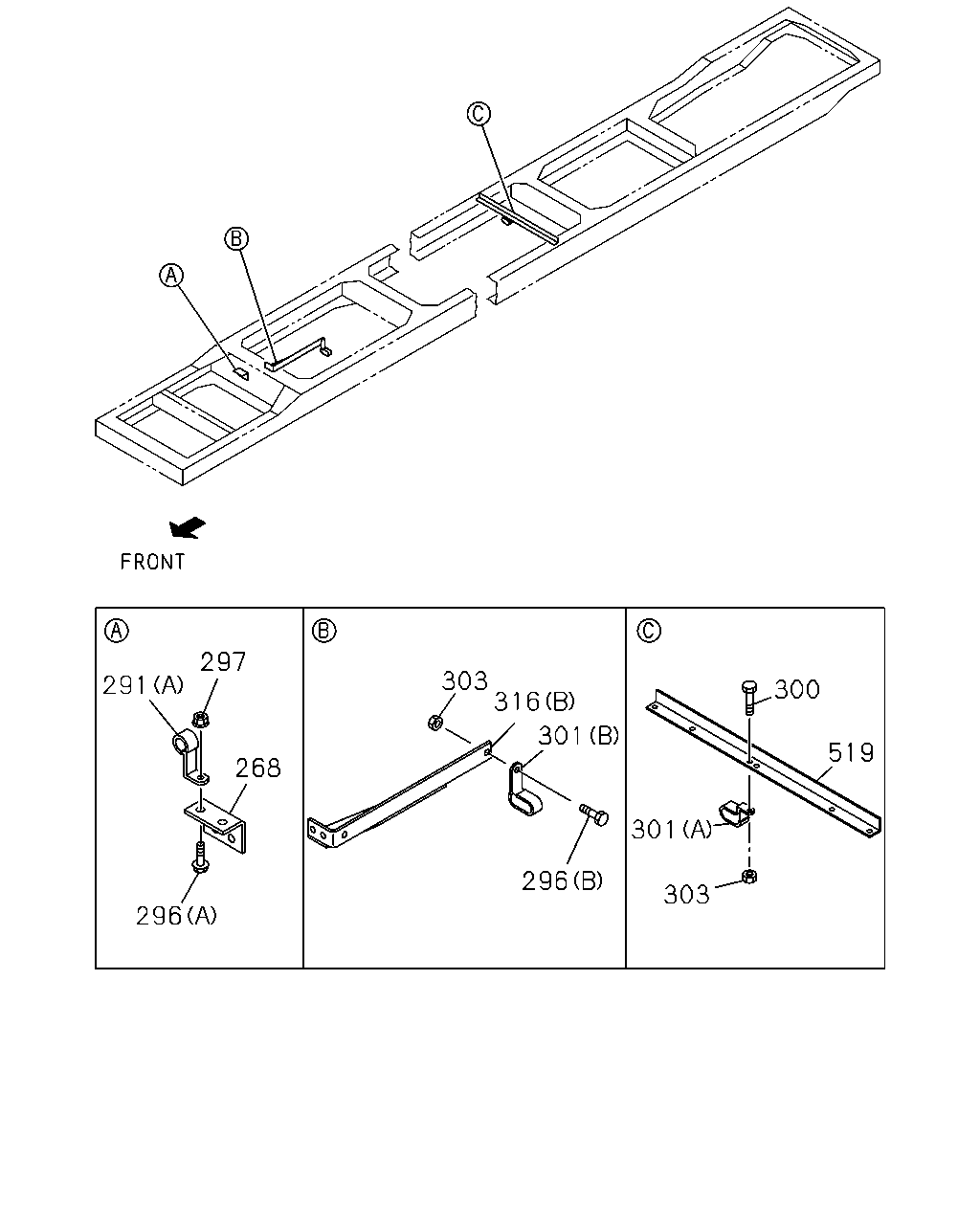

297 303 316 291 300 301 519 268 301 296 303 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
268	BRACKET; LINK ROD	1-47479-107-0	01	1	0610-
291	CLIP; SHIFT TO SELECT,FRAME (A) ID=13 H=29 L=30	1-09700-001-0	02	1	0610-
291	CLIP; SHIFT TO SELECT,FRAME (B) ID=22.2	1-09701-209-1	01	1	0610-
296	BOLT; CLIP,SHIFT & SELECT WHEEL BASE 5000MM(50W) (B) M8X20 FLANGE	0-28650-820-0	13	1	0610-
296	BOLT; CLIP,SHIFT & SELECT WHEEL BASE 5700MM(57W) (B) M8X20 FLANGE	0-28650-820-0	15	1	0610-
296	BOLT; CLIP,SHIFT & SELECT (A) M10X20 FLANGE	0-28651-020-0	02	1	0610-
297	NUT; CLIP M10 FLANGE	0-91180-210-0	02	1	0610-
300	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0610-
301	CLIP; WIRE WHEEL BASE 5000MM(50W) (B) ID=13X2 L=32	1-09701-245-0	13	1	0610-
301	CLIP; WIRE WHEEL BASE 5700MM(57W) (B) ID=13X2 L=32	1-09701-245-0	15	1	0610-
301	CLIP; WIRE (A) ID=13 & 13 L=20 H=21.5	1-09700-975-0	01	1	0610-0906
301	CLIP; WIRE (A) ID=13 & 13 L=20 H=21.5	8-98033-769-0	01	1	0907-
303	NUT; CLIP WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	13	1	0610-
303	NUT; CLIP WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	15	1	0610-
303	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0610-
316	BRACKET; CLIP WHEEL BASE 5000MM(50W) (B)	1-47479-729-0	09	1	0610-
316	BRACKET; CLIP WHEEL BASE 5700MM(57W) (B)	1-47479-729-0	10	1	0610-
316	BRACKET; CLIP (A)	1-33657-736-0	01	1	0610-
519	BRACKET; FRAME	1-47479-486-0	01	1	0610-

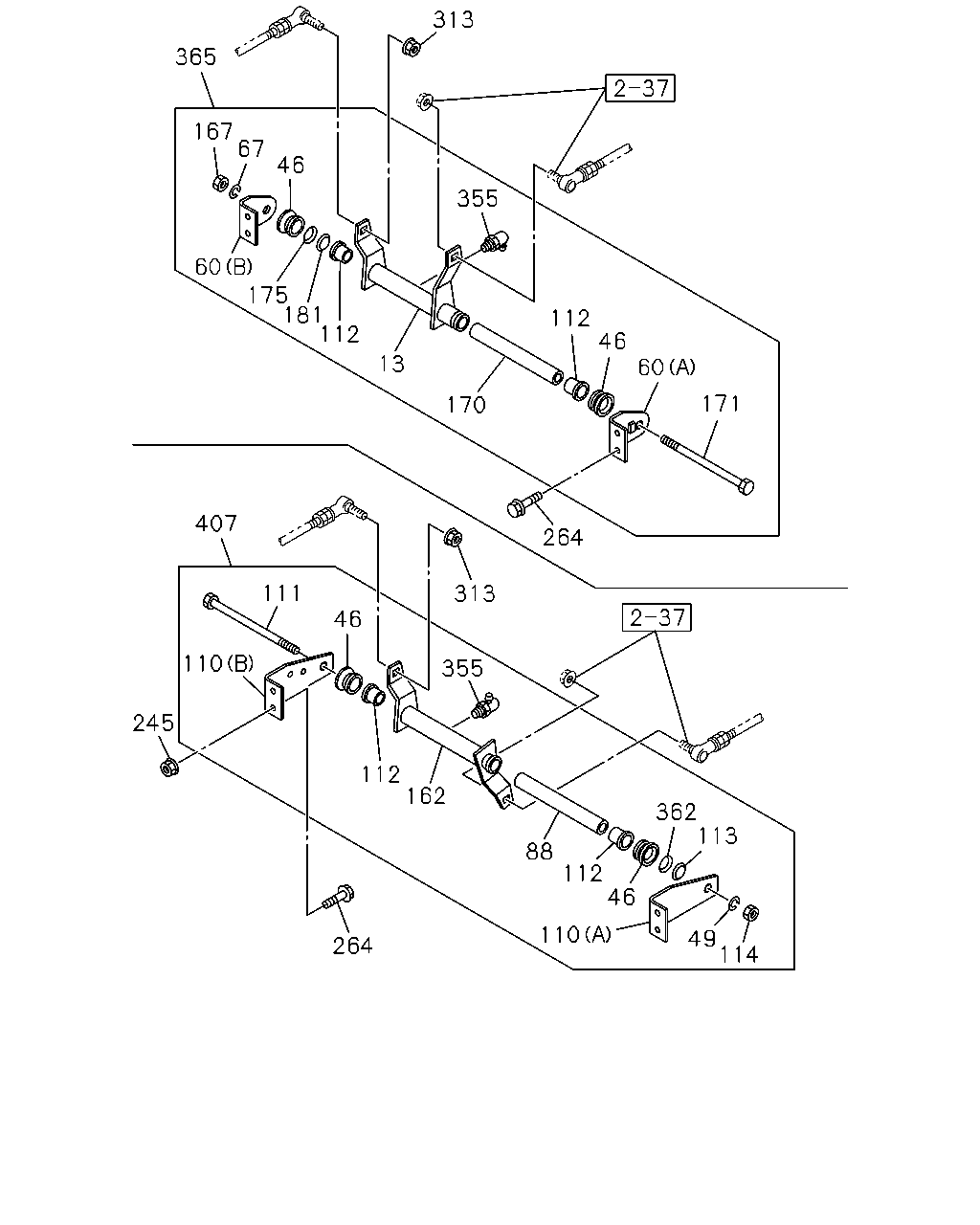

313 365 167 67 46 355 60 175 181 112 112 46 13 60 171 170 407 264 111 313 46 110 355 245 112 162 362 113 88 112 46 110 49 114 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	LEVER; RELAY,1ST SELECT INNER ASSISTOR SHIFT CONTROL<WX8>	1-33651-800-1	01	1	0610-
13	LEVER; RELAY,1ST SELECT INNER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-818-0	01	1	0610-
46	SEAL; DUST,RELAY LEVER	1-33659-113-0	04	1	0610-
49	WASHER; LK ID=14.2	0-91510-514-0	01	1	0610-
60	BRACKET; RELAY LEVER,SELECT ROD ASSISTOR SHIFT CONTROL<WX8> (A)	1-33657-800-0	01	1	0610-
60	BRACKET; RELAY LEVER,SELECT ROD ASSISTOR SHIFT CONTROL<WX8> (B)	1-33657-801-0	01	1	0610-
60	BRACKET; RELAY LEVER,SELECT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-33657-833-0	01	1	0610-
60	BRACKET; RELAY LEVER,SELECT ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33657-834-0	01	1	0610-
67	WASHER; LK,RELAY LEVER,SELECT ROD ID=14.2	0-91510-514-0	01	1	0610-
88	COLLAR; RELAY LEVER	1-33659-154-0	01	1	0610-
110	BRACKET; RELAY LEVER,1ST ASSISTOR SHIFT CONTROL<WX8> (B)	1-33657-798-0	01	1	0610-
110	BRACKET; RELAY LEVER,1ST (A)	1-33657-797-1	01	1	0610-
110	BRACKET; RELAY LEVER,1ST EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33657-835-0	01	1	0610-
111	SHAFT; RELAY LEVER,1ST	1-33619-508-0	01	1	0610-
112	BUSHING; RELAY LEVER L=24	5-33659-054-0	04	1	0610-
113	WASHER; RELAY LEVER	1-33659-093-0	01	1	0610-
114	NUT; RELAY LEVER M14	0-91111-514-0	01	1	0610-
162	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-799-1	01	1	0610-
162	LEVER; RELAY EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-817-0	01	1	0610-
167	NUT; RELAY LEVER,SELECT ROD M14	0-91111-514-0	01	1	0610-
170	COLLAR; RELAY LEVER,SELECT ROD,1ST	1-33659-154-0	01	1	0610-
171	SHAFT; RELAY LEVER,SELECT ROD,1ST	1-33619-508-0	01	1	0610-
175	WASHER; RELAY LEVER,SELECT CONT ROD	1-33659-093-0	01	1	0610-
181	SHIM; RELAY LEVER,SELECT ROD	1-33659-092-0	01	1	0610-
245	NUT; BRKT,RELAY LEVER M8 FLANGE	0-91180-108-0	04	1	0610-
264	BOLT; BRKT,RELAY LEVER M8X30 FLANGE	0-28650-830-0	08	1	0610-0706
264	BOLT; BRKT,RELAY LEVER M8X30 FLANGE	0-28650-830-0	04	1	0707-
264	BOLT; BRKT,RELAY LEVER M8X30 FLANGE	0-28650-830-0	04	1	0707-
313	NUT; CLIP BRKT M10 FLANGE	1-09440-061-0	01	1	0610-
313	NUT; CLIP BRKT M8 FLANGE	1-09440-062-1	01	1	0610-
355	NIPPLE; GREASE,RELAY LEVER PT1/8 ELBOW	0-90301-610-0	02	1	0610-
362	SHIM	1-33659-092-0	01	1	0610-
365	LEVER; RELAY,SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33671-739-0	01	1	0610-
365	LEVER; RELAY,SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33671-915-0	01	1	0610-
407	LEVER; RELAY,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33671-734-1	01	1	0610-
407	LEVER; RELAY,SHIFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33671-914-1	01	1	0610-

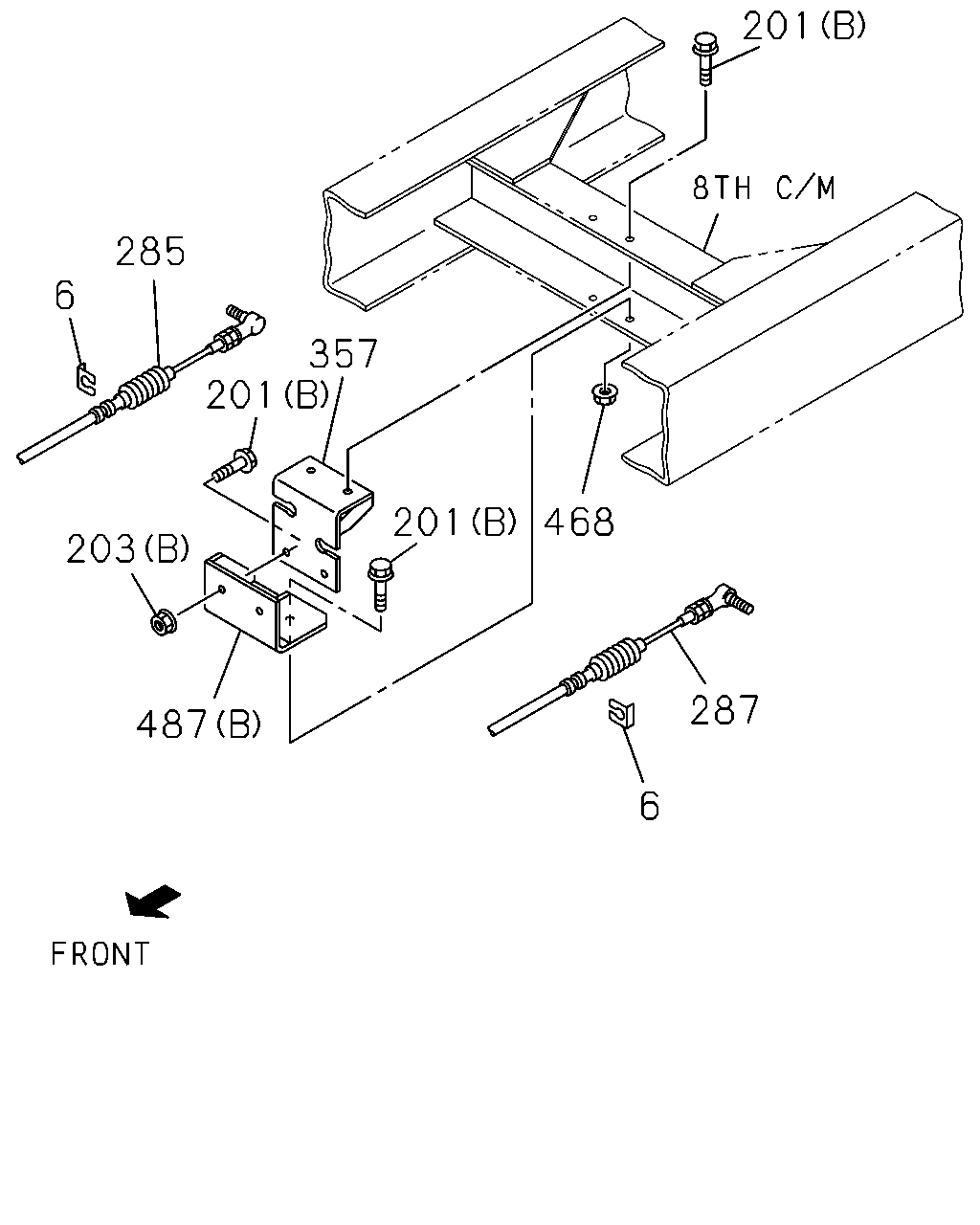

201 285 6 357 201 201 468 203 287 487 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	CLIP; CABLE ID=22.2	1-09701-209-1	02	1	0610-
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0707-
201	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	04	1	0610-
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	06	1	0610-0706
201	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0707-
203	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	04	1	0610-
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0610-0905
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0906-
203	NUT; BRKT FIX (B) M10 FLANGE	0-91180-210-0	02	1	0906-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> ASSISTOR SHIFT CONTROL<WX8>	8-98131-350-1	01	1	0809-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98131-345-1	01	1	0809-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-117-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5000MM(50W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-048-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-118-1	01	1	0610-
285	WIRE; SHIFT,TRANS CONT WHEEL BASE 5700MM(57W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-010-1	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> ASSISTOR SHIFT CONTROL<WX8>	8-98131-351-0	01	1	0809-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98131-348-0	01	1	0809-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-119-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5000MM(50W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-049-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5700MM(57W) ASSISTOR SHIFT CONTROL<WX8>	8-98056-120-0	01	1	0610-
287	WIRE; SELECT,TRANS CONT WHEEL BASE 5700MM(57W) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33672-011-0	01	1	0610-
357	BRACKET; RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-802-1	01	1	0610-
357	BRACKET; RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-832-0	01	1	0610-
468	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0610-0610
468	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0610-
487	BRACKET; CONT CABLE (A)	1-33657-725-0	01	1	0610-
487	BRACKET; CONT CABLE (B)	1-33657-803-0	01	1	0610-
