2-30 — GEAR SHIFTER AND QUADRANT BOX (#36034) — 152 parça

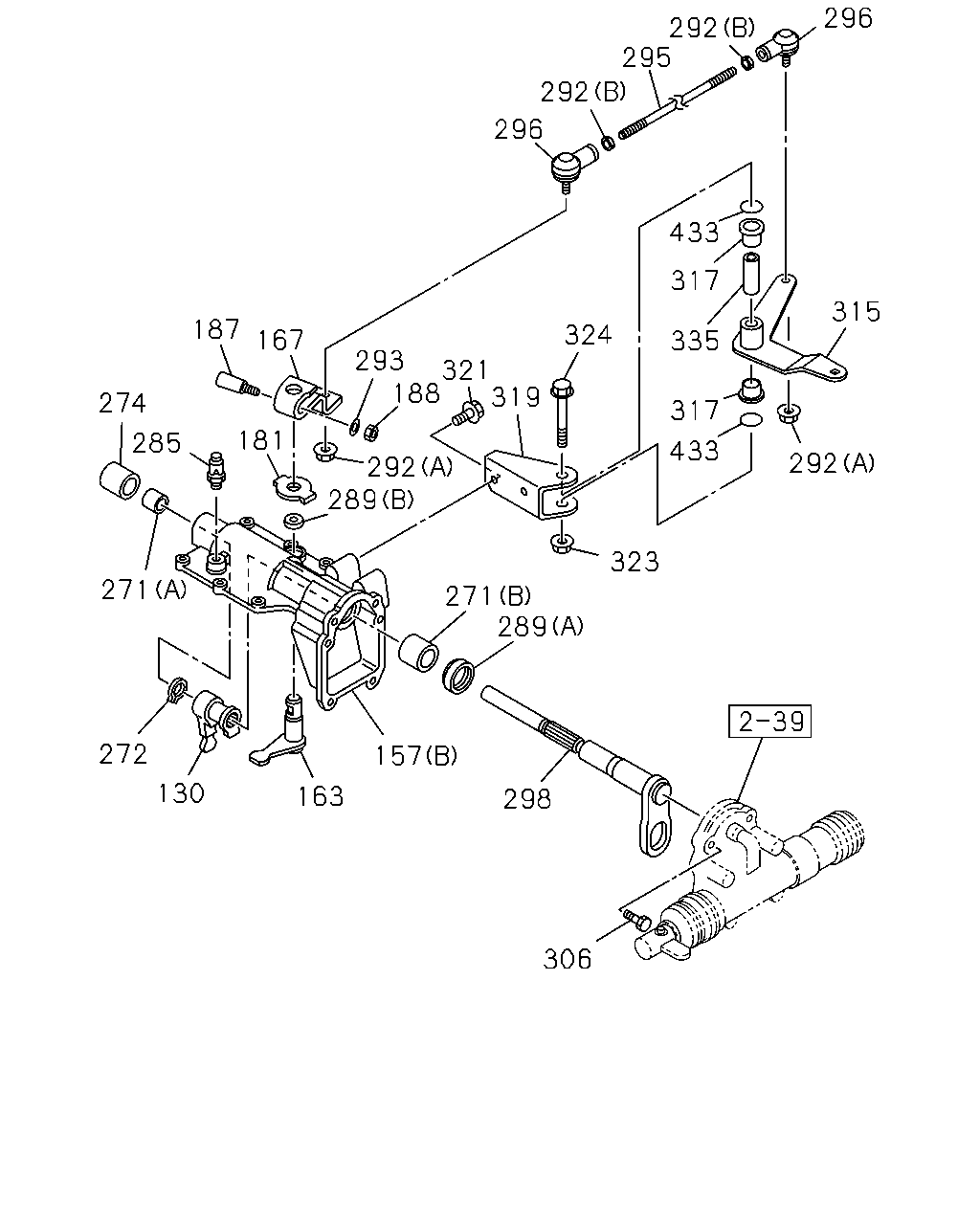

296 292 295 292 296 433 317 315 187 324 167 335 293 321 188 319 274 317 181 285 433 292 292 289 323 271 271 289 272 157 130 163 298 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0610-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-349-1	01	1	0610-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0610-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0610-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0610-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0610-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0610-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0610-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0610-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0610-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0610-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0610-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0610-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0610-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0610-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0610-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0610-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0610-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0610-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0610-
296	ROD END L=45.5	1-09760-118-1	02	1	0610-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-182-0	01	1	0610-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-186-0	01	1	0610-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28151-045-0	02	1	0610-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X70 FLANGE	0-28151-070-0	04	1	0610-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-795-0	01	1	0610-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-487-0	01	1	0610-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	0610-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> ID=16 OD=18 H=16	1-09503-151-0	02	1	0610-
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	0610-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-412-0	01	1	0610-
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0610-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0610-
323	NUT; LK,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0610-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	0610-
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0610-
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0610-
433	GASKET; BUSHING ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	0610-

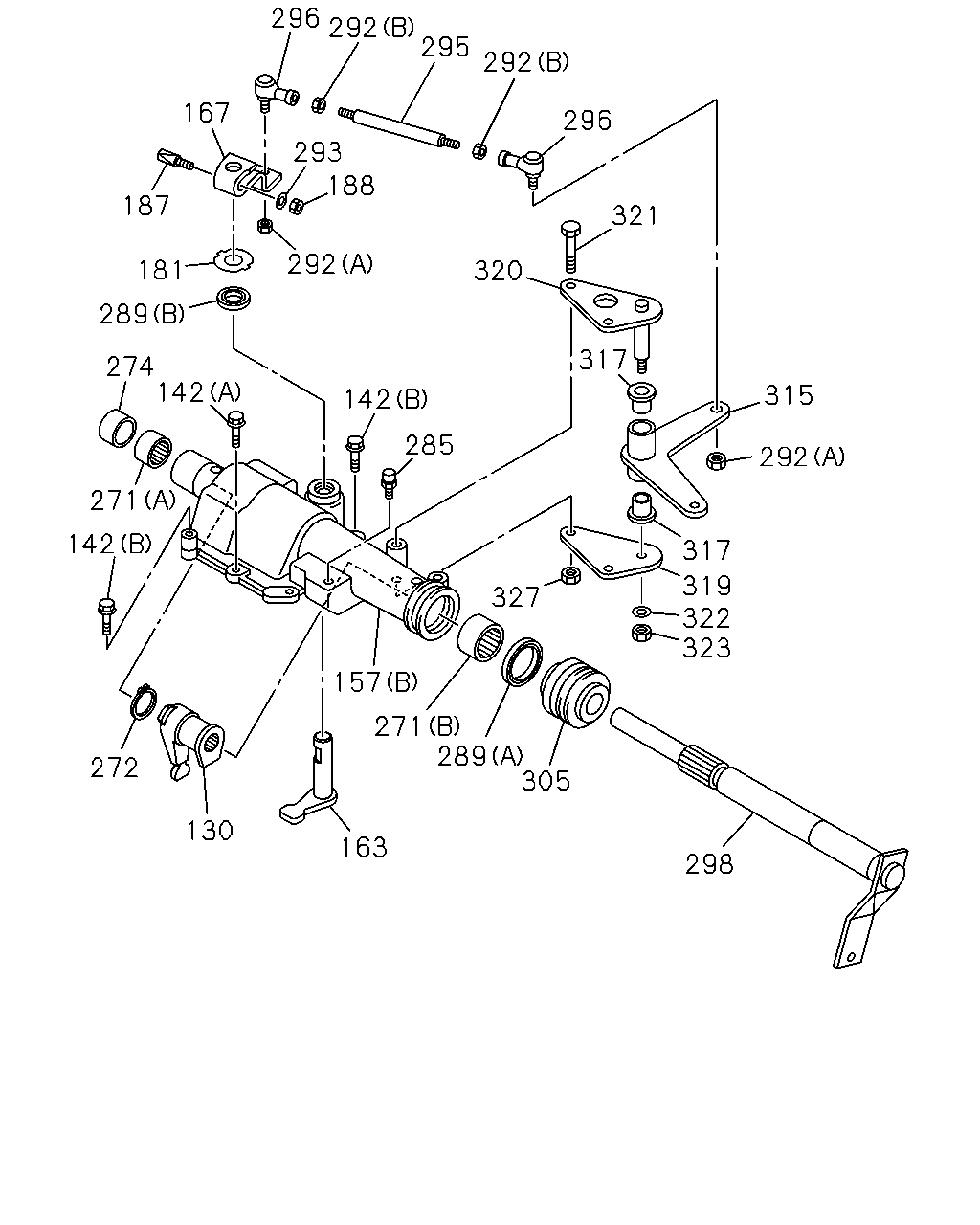

296 292 295 292 167 296 293 188 187 321 292 181 320 289 317 274 142 315 142 285 292 271 142 317 319 322 323 327 157 271 289 305 272 130 163 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL	1-33521-111-1	01	1	0610-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0610-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0610-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0610-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0610-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-349-1	01	1	0610-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0610-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0610-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0610-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0610-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0610-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0610-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0610-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0610-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0610-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0610-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0610-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0610-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0610-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0610-
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0610-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0610-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0610-
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0610-
296	ROD END L=45.5	1-09760-118-1	02	1	0610-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-182-0	01	1	0610-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-186-0	01	1	0610-
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	0610-
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-795-0	01	1	0610-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-487-0	01	1	0610-
317	BUSHING; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09330-119-0	02	1	0610-
317	BUSHING; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> ID=16 OD=18 H=16	1-09503-151-0	02	1	0610-
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-603-0	01	1	0610-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-412-0	01	1	0610-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-413-0	01	1	0610-
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0610-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	0610-
322	WASHER; LK EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	01	1	0610-
323	NUT; LK,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	0610-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	0610-
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-210-0	02	1	0610-

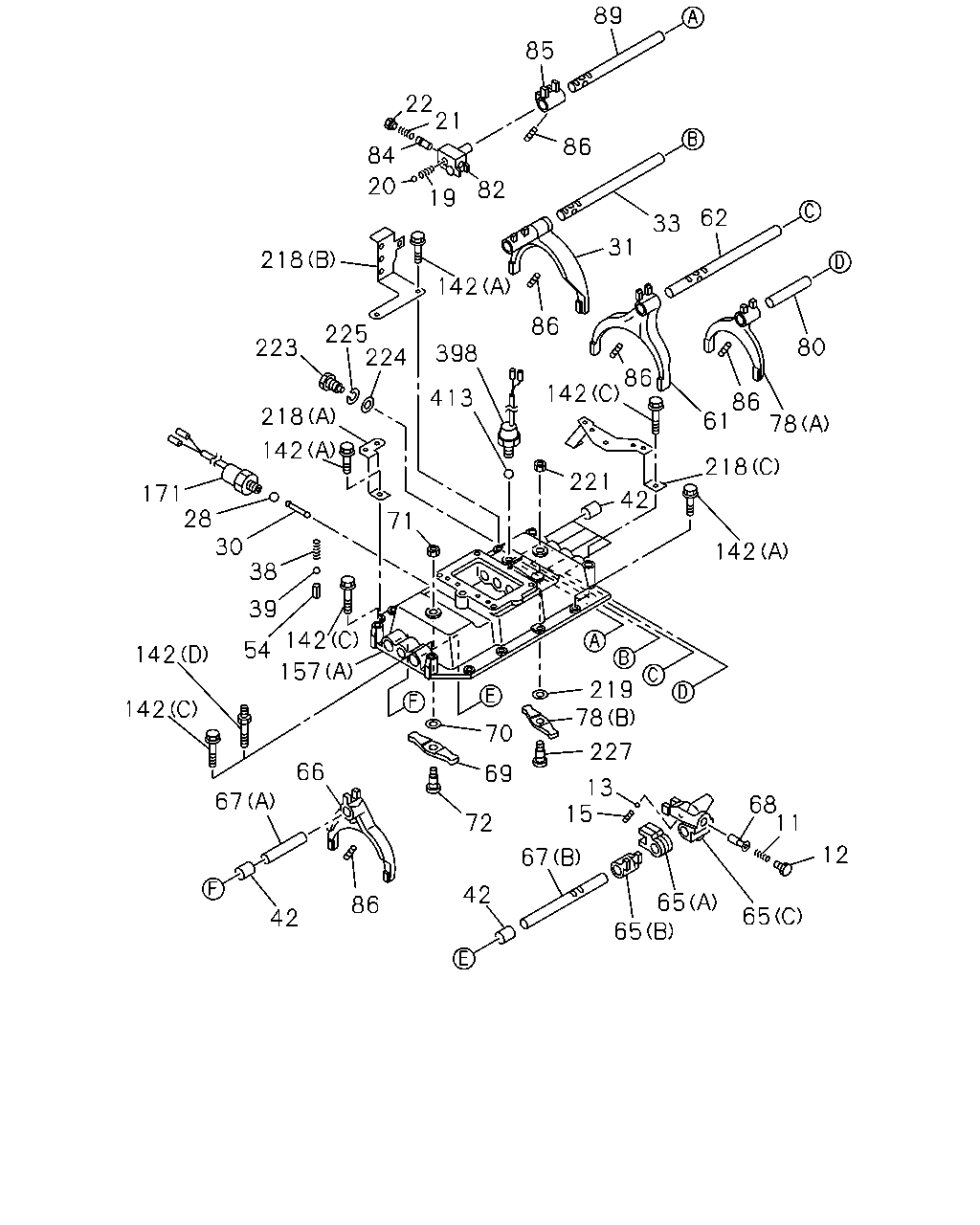

89 85 22 21 84 86 19 20 82 62 33 31 218 142 225 224 86 80 223 398 86 142 413 86 61 78 218 142 218 221 42 171 28 30 38 71 142 39 142 54 142 157 219 78 142 70 227 66 69 13 15 67 68 11 72 12 67 42 65 65 86 65 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	0610-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0610-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0610-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	0610-
19	SPRING; COIL COMP	1-09580-441-0	01	1	0610-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0610-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	0610-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0610-
28	BALL; INTER LK	9-00097-501-0	04	1	0610-
30	PIN; INTER LK	9-33534-003-0	03	1	0610-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	0610-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	0610-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0610-
39	BALL; DETENT	1-09843-012-0	04	1	0610-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	0610-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0610-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	0610-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	0610-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH (A)	1-33511-202-3	01	1	0610-
65	BLOCK ASM; SHIFT,5TH & 6TH (B)	1-33511-208-3	01	1	0610-
65	BLOCK ASM; SHIFT,5TH & 6TH (C)	1-33511-513-0	01	1	0610-
66	ARM; SHIFT,5TH & 6TH	1-33511-505-0	01	1	0610-
67	ROD; SHIFT,5TH & 6TH (A) L=122	1-33531-235-1	01	1	0610-1202
67	ROD; SHIFT,5TH & 6TH (A) L=122	8-98207-587-0	01	1	1203-
67	ROD; SHIFT,5TH & 6TH (B) L=278	1-33531-255-1	01	1	0610-1202
67	ROD; SHIFT,5TH & 6TH (B) L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	0610-
69	LEVER; SHIFT,5TH & 6TH	1-33511-082-0	01	1	0610-
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0610-
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0610-
72	SPINDLE; 5TH & 6TH	1-33519-012-0	01	1	0610-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0610-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	0610-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	0610-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	0610-
84	SLEEVE; REV	1-33516-025-0	01	1	0610-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	0610-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0610-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	0610-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX (C) M10X60 FLANGE	0-28151-060-0	03	1	0610-
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0610-0805
142	BOLT; QUAD BOX (A) M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0610-0805
142	BOLT; QUAD BOX (B) M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX (D) M10X20,M10X60 L=90	1-09049-020-0	01	1	0610-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-349-1	01	1	0610-
157	BOX; QUAD,TRANS (A)	1-33541-481-0	01	1	0610-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	0610-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0610-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A)	1-47475-689-0	02	1	0610-
218	BRACKET; HARNESS CLIP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B)	1-47476-812-1	01	1	0610-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0610-
218	BRACKET; HARNESS CLIP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A)	1-82699-639-1	01	1	0610-
218	BRACKET; HARNESS CLIP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-82699-663-1	01	1	0610-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0610-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	0610-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0610-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	0610-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	0610-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0610-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0610-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0610-
