Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#36027) — 62 parça

57 86 24 86 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0610-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0610-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0610-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0610-

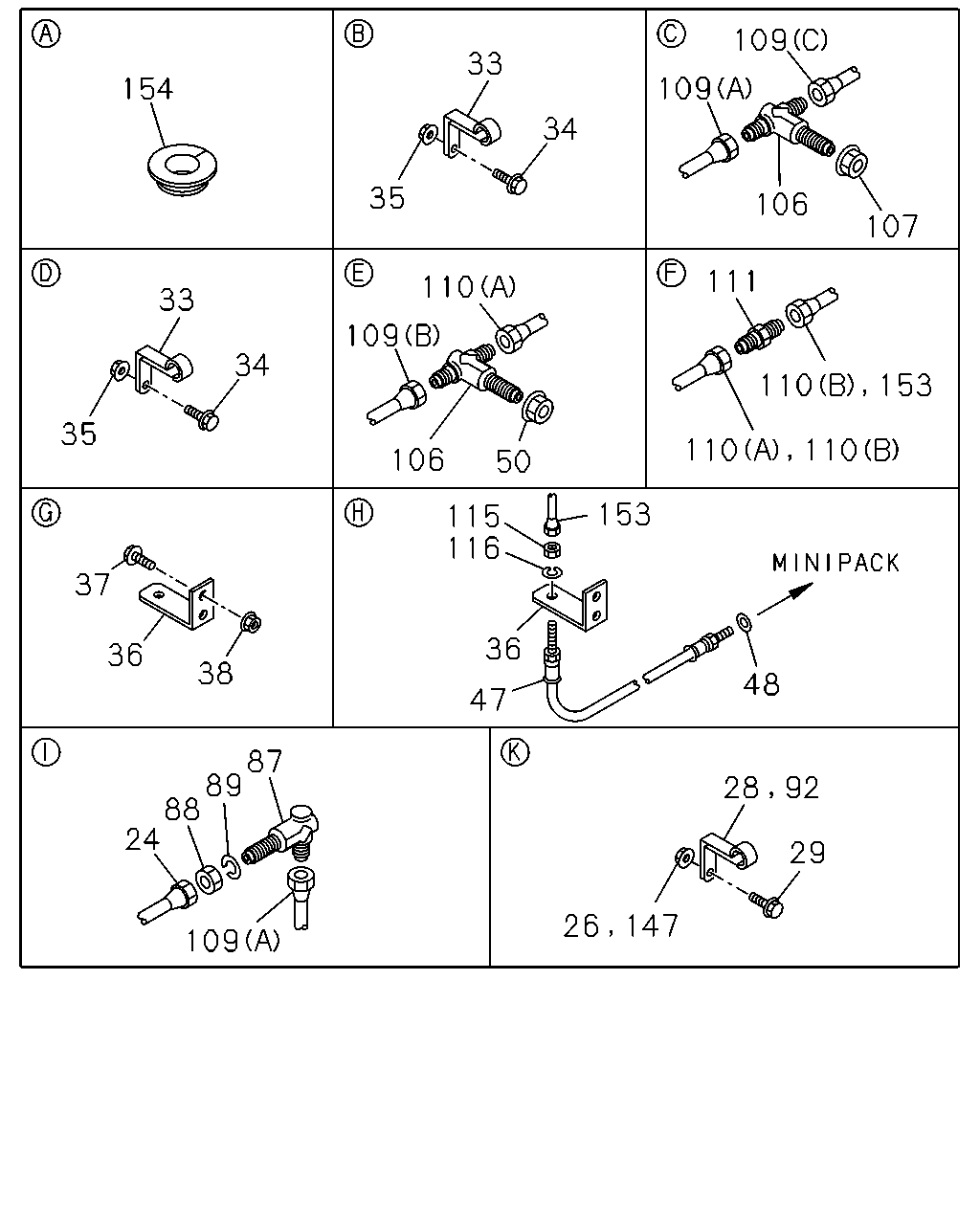

109 33 109 154 34 35 106 107 111 110 33 109 34 110 153 35 110 110 106 50 153 115 116 37 36 36 38 48 47 87 89 88 24 28 29 26 147 109 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0610-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0610-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0610-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0610-
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0610-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	07	1	0707-
33	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) ID=8 H=20 L=20	1-09700-604-0	03	1	0610-
33	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) ID=8 H=20 L=20	1-09700-604-0	05	1	0610-
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	13	1	0610-0706
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0707-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	07	1	0707-
34	BOLT; PIPE CLIP WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	03	1	0610-
34	BOLT; PIPE CLIP WHEEL BASE 5700MM(57W) M8X30 FLANGE	0-28650-830-0	05	1	0610-
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	13	1	0610-0706
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	06	1	0707-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	07	1	0707-
35	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	03	1	0610-
35	NUT; PIPE CLIP WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	05	1	0610-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	13	1	0610-0706
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	0707-
36	BRACKET; CLIP	1-47477-865-0	01	1	0610-
37	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	0610-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0610-
47	HOSE; FLEX,CLU CONT L=500	1-09364-329-0	01	1	0610-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0610-
50	NUT; UNION M12 FLANGE	0-91180-212-0	02	1	0610-0706
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	0707-
50	NUT; UNION M12 FLANGE	0-91180-212-0	01	1	0707-
87	UNION; OIL PIPE M14	0-92125-108-0	01	1	0610-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0610-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0610-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0610-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0610-
106	UNION; OIL PIPE M14 2WAY	1-09654-176-2	02	1	0610-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	01	1	0610-
107	NUT; UNION,OIL PIPE M12 FLANGE	0-91180-212-0	02	1	0610-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION (A) L=1132 SERVICED BY L=1250	1-47428-764-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0610-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0610-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0610-
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	02	1	0610-0706
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0707-
111	UNION; OIL PIPE M14 2WAY	1-09654-176-2	01	1	0707-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0610-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0610-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0610-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0610-

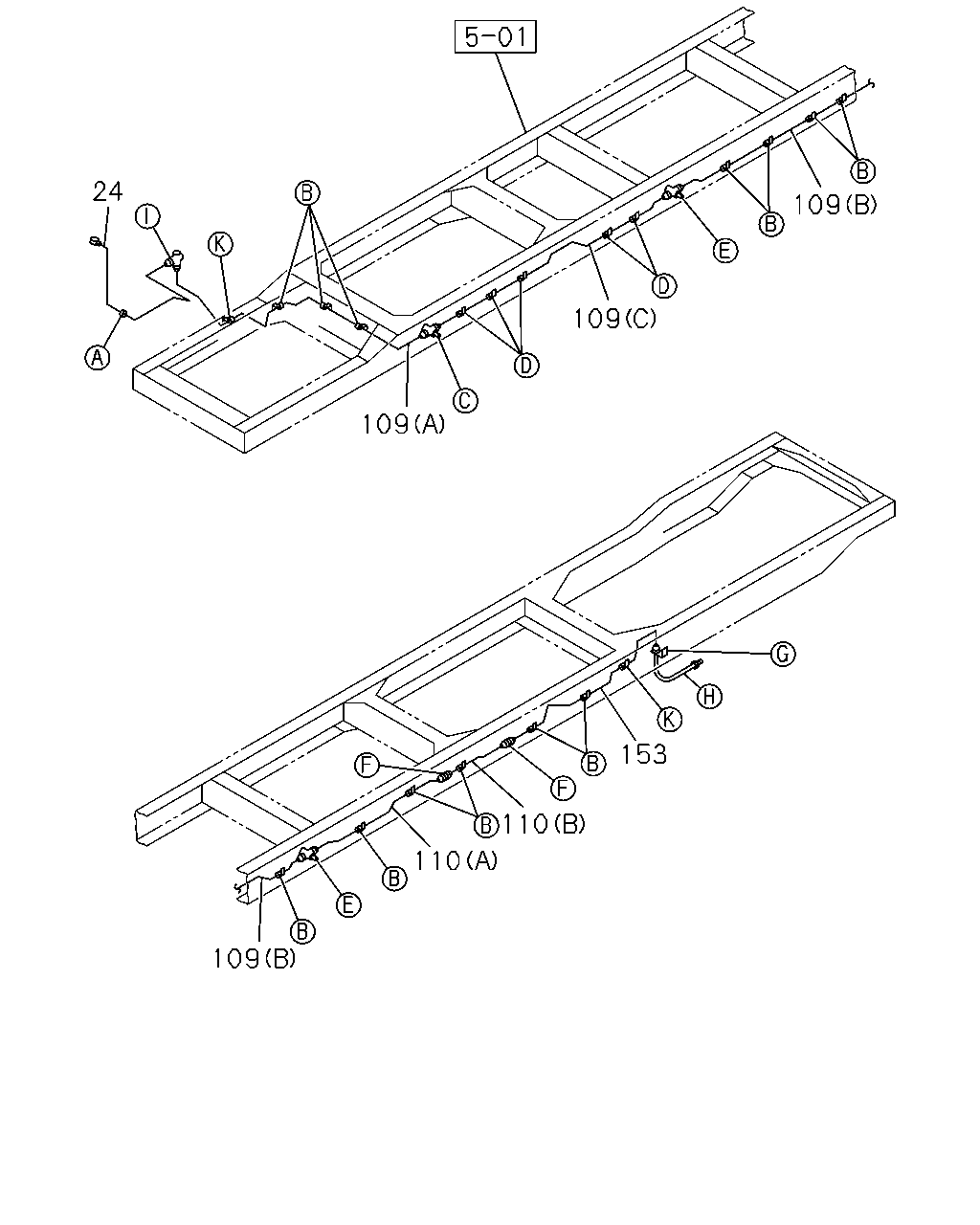

24 109 109 109 153 110 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION	1-49167-507-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5000MM(50W) (B) L=1355 SERVICED BY L=1400	1-47428-765-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION WHEEL BASE 5700MM(57W) (B) L=2059 SERVICED BY L=2150	1-47428-770-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION (A) L=1132 SERVICED BY L=1250	1-47428-764-0	01	1	0610-
109	PIPE; AIR,UNION TO UNION (C) L=1071 SERVICED BY L=1100	1-47426-387-0	01	1	0610-
110	PIPE; OIL,UNION TO UNION (A) L=1935 SERVICED BY L=1950	1-47428-769-0	01	1	0610-
110	PIPE; OIL,UNION TO UNION (B) L=1017 SERVICED BY L=1100	1-47428-763-0	01	1	0610-
153	PIPE ASM; CLU,UNION TO FLEX L=2249 SERVICED BY L=2400	1-47428-771-0	01	1	0610-
