◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11031 - LT134-RHD EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56 - EXHAUST BRAKE SYSTEM ▶
1-56 — EXHAUST BRAKE SYSTEM (#36024) — 17 parça

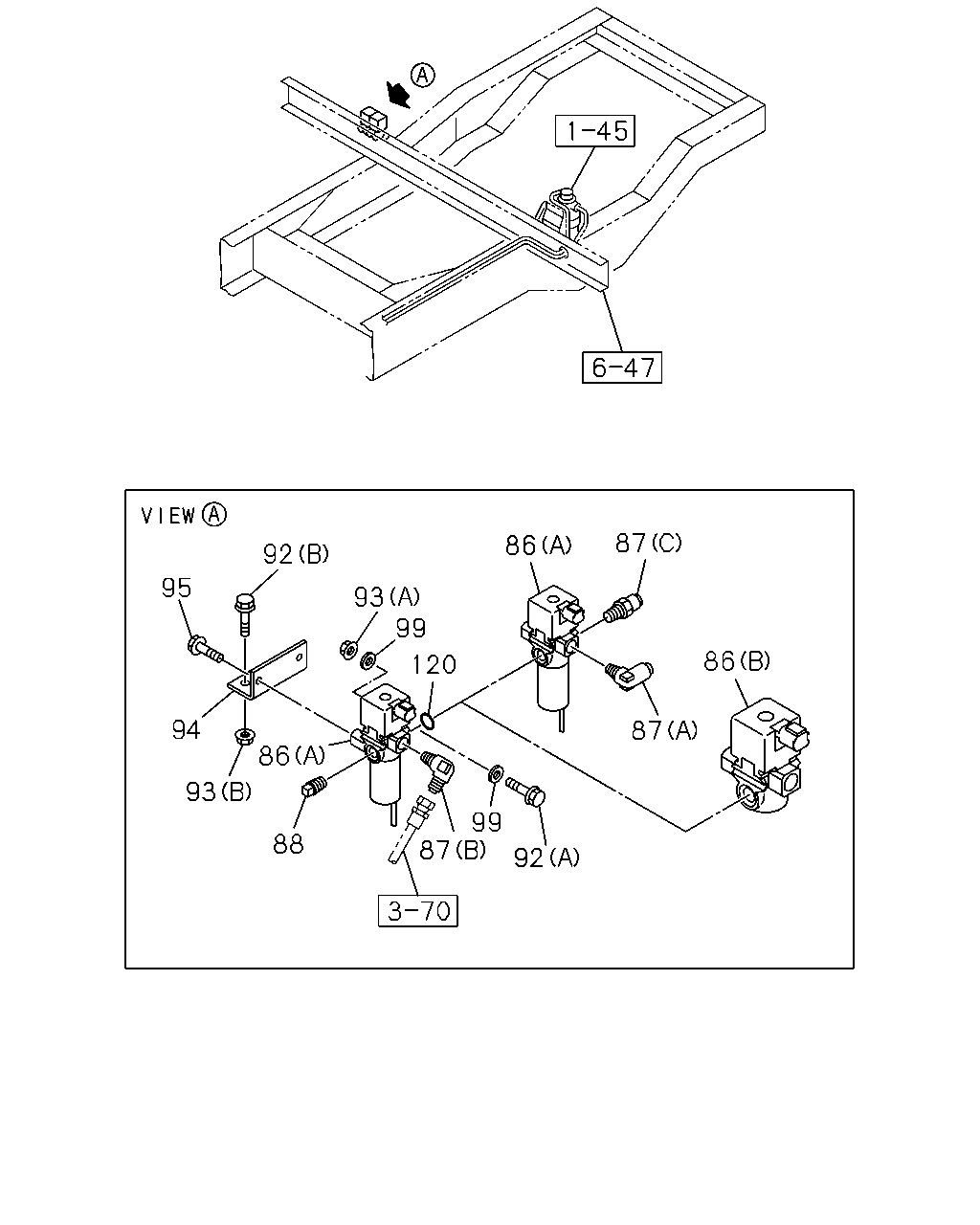

çizim 177708
87 86 92 95 93 99 86 120 94 87 86 93 99 87 88 92
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK
(B) 		1-82563-871-2 01 1 0612-
86 VALVE; MAG,EXH BRK
(A) 		8-97376-939-2 02 1 0610-0611
86 VALVE; MAG,EXH BRK
(A) 		8-97376-939-3 01 1 0612-0910
86 VALVE; MAG,EXH BRK
(A) 		8-97633-075-0 01 1 0911-
87 CONNECTOR
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0610-
87 CONNECTOR
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0610-
87 CONNECTOR
(C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0610-
88 PLUG
PT1/4 		9-99204-513-0 01 1 0610-
92 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28050-650-0 01 1 0610-
92 BOLT; MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
93 NUT; MAG VLV
(A) M6 FLANGE 		8-97065-431-0 01 1 0610-0610
93 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0610-
93 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0610-
94 BRACKET; MAG VLV,EXH BRAKE 8-98055-755-0 01 1 0610-
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0610-
99 WASHER; MAG VLV 1-82569-266-0 02 1 0610-
120 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0610-
