◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11031 - LT134-RHD EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#36022) — 240 parça

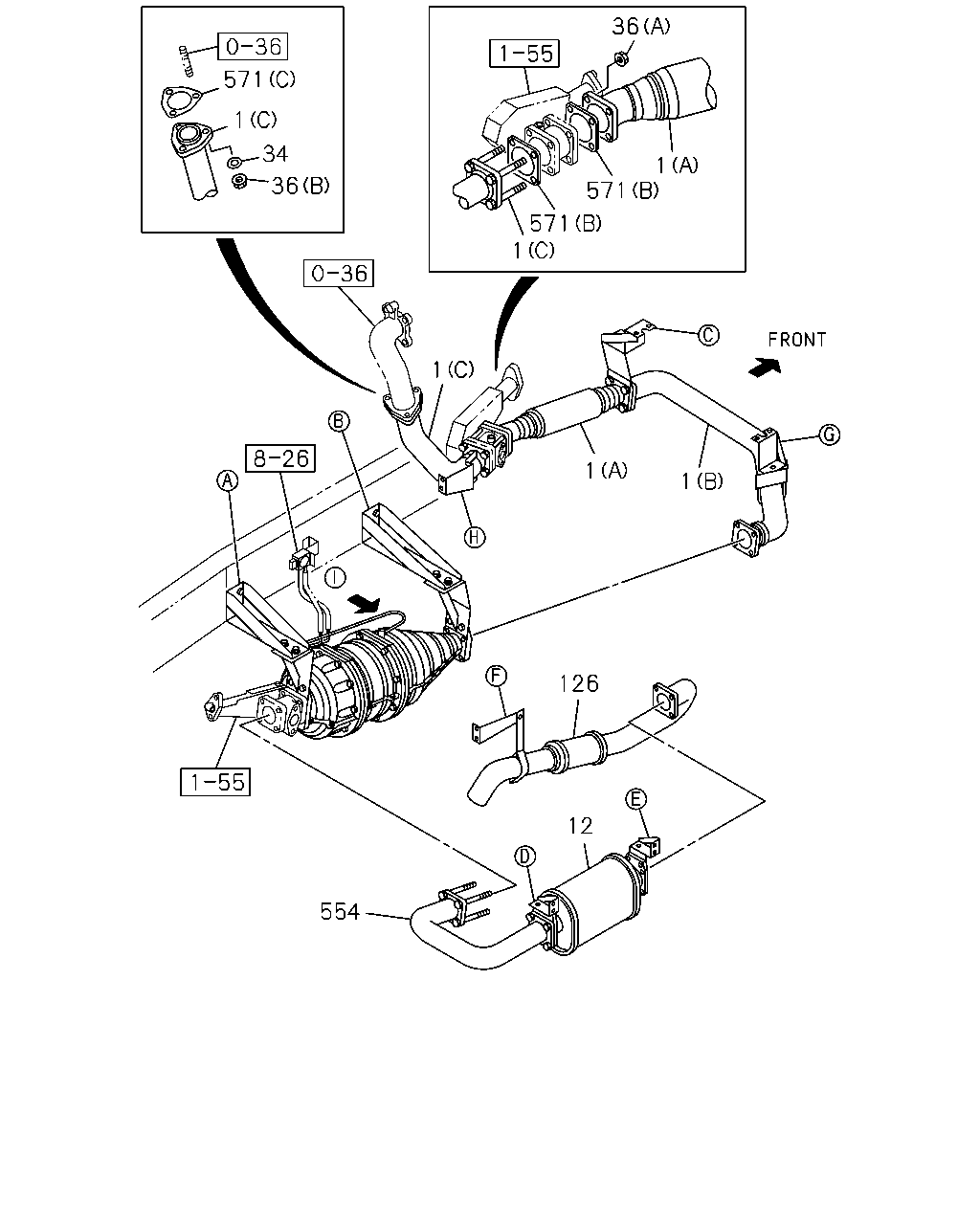

çizim 177702
36 571 1 34 1 571 36 571 1 1 1 1 126 12 554
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (A) 		8-98053-009-0 01 1 0610-
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (B) 		8-98053-010-0 01 1 0610-
1 PIPE; EXH
(C) 		8-98053-008-1 01 1 0610-0611
1 PIPE; EXH
(C) 		8-98070-357-0 01 1 0612-0807
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (C) 		8-98127-078-0 01 1 0808-
12 SILENCER ASM; EXH
EURO4 SPECIFICATION(KBT) 		1-22141-201-1 01 1 0610-
34 WASHER; EXH PIPE
EURO4 SPECIFICATION(KBT) ID=13 OD=24 DISH 		1-09500-030-0 03 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) M10 		0-91110-510-0 04 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) M12 FLANGE 		0-91180-212-0 08 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (B) M12 		1-09400-010-0 03 1 0610-
126 PIPE; EXH,RR
EURO4 SPECIFICATION(KBT) 		8-98053-012-2 01 1 0610-
554 PIPE; EXH,SILENCER
EURO4 SPECIFICATION(KBT) 		8-98053-011-0 01 1 0610-
571 GASKET
EURO4 SPECIFICATION(KBT) (A) 		1-22116-040-0 01 1 0610-
571 GASKET
EURO4 SPECIFICATION(KBT) (B) ID=85.8 		1-22116-043-0 02 1 0610-
571 GASKET
EURO4 SPECIFICATION(KBT) (C) ID=81 		8-98043-481-0 01 1 0610-

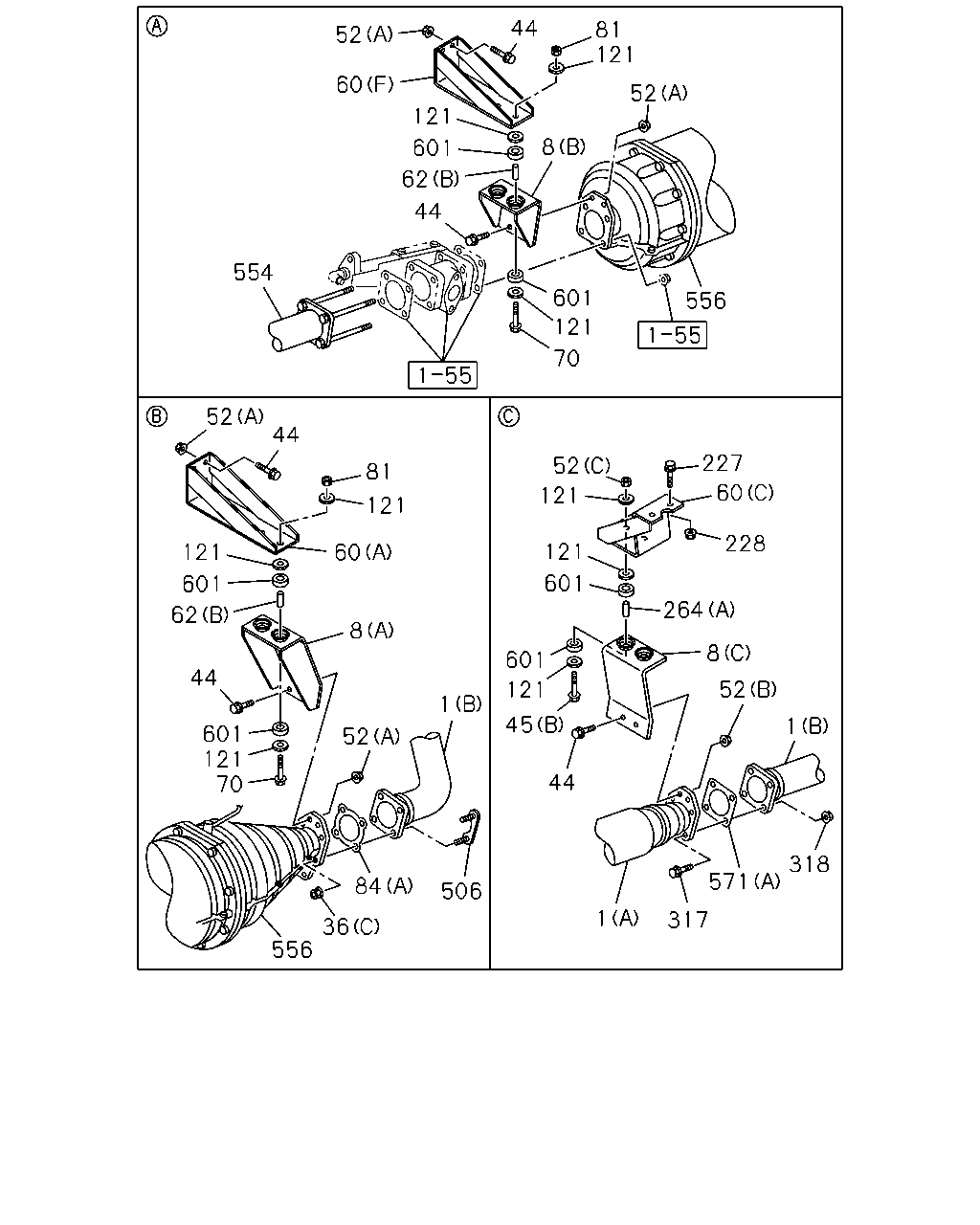

çizim 177703
44 81 121 52 60 52 121 8 601 62 44 554 601 556 121 70 52 44 227 52 81 60 121 121 228 121 121 60 601 601 264 62 8 8 601 44 52 121 1 45 1 601 121 70 52 44 318 571 84 506 1 317 36 556
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (A) 		8-98053-009-0 01 1 0610-
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (B) 		8-98053-010-0 01 1 0610-
1 PIPE; EXH
(C) 		8-98053-008-1 01 1 0610-0611
1 PIPE; EXH
(C) 		8-98070-357-0 01 1 0612-0807
1 PIPE; EXH
EURO4 SPECIFICATION(KBT) (C) 		8-98127-078-0 01 1 0808-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (F) 		8-98125-921-0 01 1 0808-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (E) 		8-98125-922-0 01 1 0808-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) 		8-98055-633-0 01 1 0610-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (D) 		8-98055-634-0 01 1 0610-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) 		1-22152-394-1 01 1 0610-
8 BRACKET; EXH PIPE
(B) 		1-22152-395-1 01 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) M10 		0-91110-510-0 04 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) M12 FLANGE 		0-91180-212-0 08 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (B) M12 		1-09400-010-0 03 1 0610-
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X30 FLANGE 		0-28651-030-0 12 1 0610-
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X35 FLANGE 		0-28651-035-0 02 1 0610-0807
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X35 FLANGE 		0-28651-035-0 04 1 0808-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10X50 		0-10856-050-0 01 1 0610-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10X60 FLANGE 		0-28051-060-0 03 1 0610-
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 03 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 07 1 0703-
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (C) M10 LOCK NUT 		0-91370-010-0 03 1 0610-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 08 1 0610-0702
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0703-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (A) 		1-22152-390-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (B) 		1-22152-392-0 02 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (C) 		8-98055-632-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (D) 		8-98055-635-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (E) 		8-98055-700-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0610-
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (A) L=25 		1-14234-083-0 02 1 0610-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 02 1 0610-0909
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (B) L=22 		1-22159-392-0 02 1 0610-0909
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 02 1 0910-
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (B) L=22 		9-22159-024-0 02 1 0910-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M8X30 FLANGE 		0-28650-830-0 02 1 0703-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X60 FLANGE 		0-28051-060-0 04 1 0610-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 02 1 0610-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0610-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-210-0 04 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-208-0 02 1 0703-0801
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0802-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 02 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 LOCK NUT 		0-91370-010-0 04 1 0610-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0610-
84 GASKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) 		1-22116-040-0 01 1 0610-
84 GASKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (B) 		1-22116-042-0 01 1 0610-
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0610-0610
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0610-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0610-
227 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M8X25 FLANGE 		0-28650-825-0 02 1 0610-0702
227 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M8X30 FLANGE 		0-28650-830-0 02 1 0703-
228 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0610-0702
228 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-208-0 02 1 0703-0801
228 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0802-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (A) L=25 		1-14234-083-0 02 1 0610-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		1-22159-392-0 02 1 0610-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		9-22159-024-0 02 1 0910-
317 BOLT; EXH PIPE,FRT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 04 1 0610-
318 NUT; EXH PIPE,FRT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 04 1 0610-
506 BRACKET; STUD
EURO4 SPECIFICATION(KBT) M12X35 		1-22131-963-0 02 1 0610-
554 PIPE; EXH,SILENCER
EURO4 SPECIFICATION(KBT) 		8-98053-011-0 01 1 0610-
556 DPD ASM 8-97610-536-6 01 1 0610-1010
556 DPD ASM 8-97622-891-4 01 1 1011-
571 GASKET
EURO4 SPECIFICATION(KBT) (A) 		1-22116-040-0 01 1 0610-
571 GASKET
EURO4 SPECIFICATION(KBT) (B) ID=85.8 		1-22116-043-0 02 1 0610-
571 GASKET
EURO4 SPECIFICATION(KBT) (C) ID=81 		8-98043-481-0 01 1 0610-
601 MOUNTING
EURO4 SPECIFICATION(KBT) 		8-98055-817-0 16 1 0610-
601 MOUNTING 8-98055-817-0 04 1 0610-

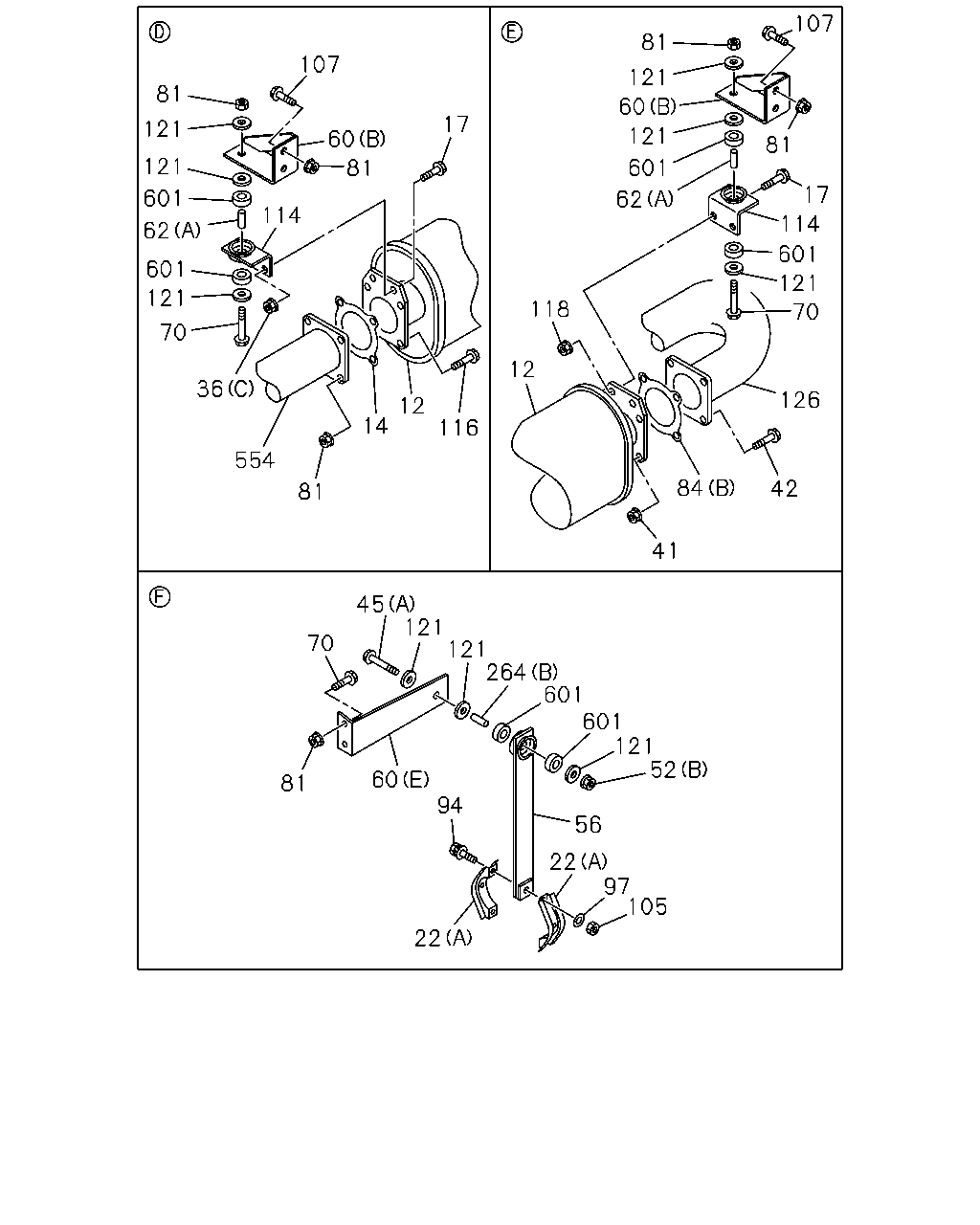

çizim 177709
107 81 107 121 81 60 17 121 121 60 81 121 601 81 17 601 62 114 14 62 601 601 121 121 118 70 70 12 36 126 12 14 116 554 84 42 81 41 45 121 121 264 601 601 121 52 70 60 94 81 56 22 97 105 22
BalonParca AdiParca NoAdetTipApplied Date
12 SILENCER ASM; EXH
EURO4 SPECIFICATION(KBT) 		1-22141-201-1 01 1 0610-
14 GASKET; SILENCER TO EXH PIPE
EURO4 SPECIFICATION(KBT) 		1-22116-042-0 01 1 0610-
17 BOLT; EXH PIPE
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 04 1 0610-
22 CLAMP; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) ID=80-84 		1-22133-233-0 02 1 0610-
22 CLAMP; EXH PIPE
(B) 		1-22133-295-0 01 1 0610-0807
22 CLAMP; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) 		8-98073-250-0 02 1 0808-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) M10 		0-91110-510-0 04 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) M12 FLANGE 		0-91180-212-0 08 1 0610-
36 NUT; EXH PIPE
EURO4 SPECIFICATION(KBT) (B) M12 		1-09400-010-0 03 1 0610-
41 NUT; EXH PIPE TO EXH SILENCER
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 04 1 0610-
42 BOLT; EXH PIPE TO EXH SILENCER
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 04 1 0610-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10X50 		0-10856-050-0 01 1 0610-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10X60 FLANGE 		0-28051-060-0 03 1 0610-
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 03 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 07 1 0703-
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (C) M10 LOCK NUT 		0-91370-010-0 03 1 0610-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 08 1 0610-0702
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0703-
56 BRACKET; CLAMP,EXH PIPE
EURO4 SPECIFICATION(KBT) 		1-22131-629-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (A) 		1-22152-390-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (B) 		1-22152-392-0 02 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (C) 		8-98055-632-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (D) 		8-98055-635-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (E) 		8-98055-700-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0610-
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (A) L=25 		1-14234-083-0 02 1 0610-
62 TUBE; DIST,BRKT
(B) L=22 		1-22159-392-0 02 1 0610-0909
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (B) L=22 		1-22159-392-0 02 1 0610-0909
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 02 1 0910-
62 TUBE; DIST,BRKT
EURO4 SPECIFICATION(KBT) (B) L=22 		9-22159-024-0 02 1 0910-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M8X30 FLANGE 		0-28650-830-0 02 1 0703-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X60 FLANGE 		0-28051-060-0 04 1 0610-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 02 1 0610-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0610-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-210-0 04 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-208-0 02 1 0703-0801
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0802-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 02 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 LOCK NUT 		0-91370-010-0 04 1 0610-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0610-
84 GASKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) 		1-22116-040-0 01 1 0610-
84 GASKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (B) 		1-22116-042-0 01 1 0610-
94 BOLT; CLAMP
EURO4 SPECIFICATION(KBT) M10X45 W/LK&PL WASHER 		0-50141-045-0 02 1 0610-0805
94 BOLT; CLAMP
EURO4 SPECIFICATION(KBT) M10X45 W/LK&PL WASHER 		8-98055-085-0 02 1 0806-
97 WASHER; PL,CLAMP
EURO4 SPECIFICATION(KBT) ID=10.5 		9-09164-510-0 02 1 0610-0909
97 WASHER; PL,CLAMP
EURO4 SPECIFICATION(KBT) ID=10.5 		0-91614-510-0 02 1 0910-
105 NUT; CLAMP
EURO4 SPECIFICATION(KBT) M10 		0-91110-510-0 02 1 0610-
107 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X30 FLANGE 		0-28651-030-0 04 1 0610-
114 BRACKET; EXH SILENCER
EURO4 SPECIFICATION(KBT) 		1-22139-348-0 02 1 0610-
116 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 04 1 0610-0702
116 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 02 1 0703-
118 NUT; SILENCER MTG BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 02 1 0610-
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0610-0610
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0610-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0610-
126 PIPE; EXH,RR
EURO4 SPECIFICATION(KBT) 		8-98053-012-2 01 1 0610-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (A) L=25 		1-14234-083-0 02 1 0610-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		1-22159-392-0 02 1 0610-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		9-22159-024-0 02 1 0910-
554 PIPE; EXH,SILENCER
EURO4 SPECIFICATION(KBT) 		8-98053-011-0 01 1 0610-
601 MOUNTING
EURO4 SPECIFICATION(KBT) 		8-98055-817-0 16 1 0610-
601 MOUNTING 8-98055-817-0 04 1 0610-

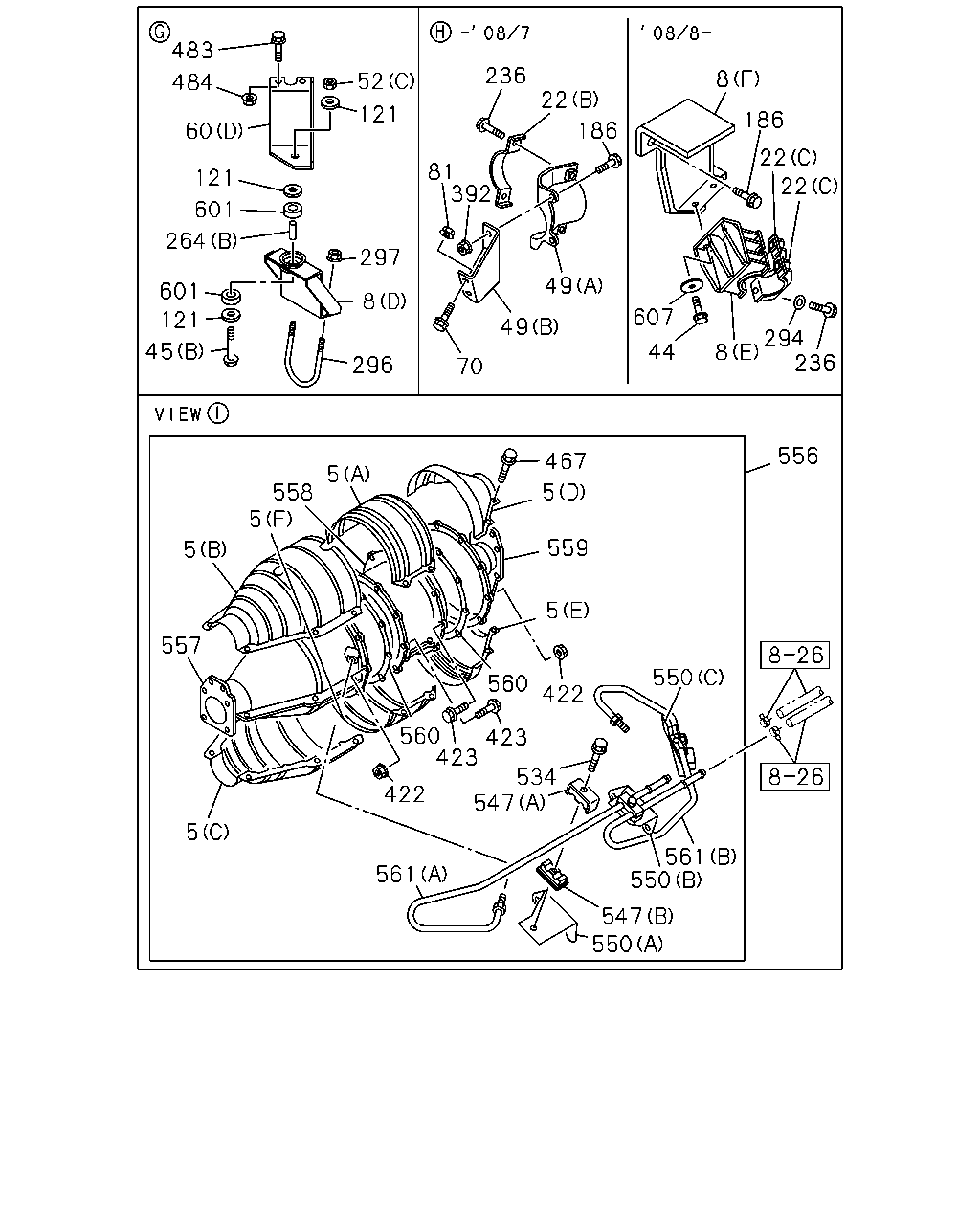

çizim 177716
483 236 8 52 484 22 121 186 186 60 22 81 392 121 22 601 264 297 49 601 8 607 121 49 294 8 236 45 44 296 70 556 467 5 5 558 5 559 5 5 557 550 560 422 560 423 423 534 547 422 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0610-
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0610-
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0610-
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0610-
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0610-
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0610-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (F) 		8-98125-921-0 01 1 0808-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (E) 		8-98125-922-0 01 1 0808-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) 		8-98055-633-0 01 1 0610-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (D) 		8-98055-634-0 01 1 0610-
8 BRACKET; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) 		1-22152-394-1 01 1 0610-
8 BRACKET; EXH PIPE
(B) 		1-22152-395-1 01 1 0610-
22 CLAMP; EXH PIPE
EURO4 SPECIFICATION(KBT) (A) ID=80-84 		1-22133-233-0 02 1 0610-
22 CLAMP; EXH PIPE
(B) 		1-22133-295-0 01 1 0610-0807
22 CLAMP; EXH PIPE
EURO4 SPECIFICATION(KBT) (C) 		8-98073-250-0 02 1 0808-
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X30 FLANGE 		0-28651-030-0 12 1 0610-
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X35 FLANGE 		0-28651-035-0 02 1 0610-0807
44 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X35 FLANGE 		0-28651-035-0 04 1 0808-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10X50 		0-10856-050-0 01 1 0610-
45 BOLT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10X60 FLANGE 		0-28051-060-0 03 1 0610-
49 BRACKET; EXH PIPE TO TRANS
(A) 		8-98042-786-0 01 1 0610-0807
49 BRACKET; EXH PIPE TO TRANS
(B) 		8-98055-742-0 01 1 0610-0807
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (A) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 03 1 0610-0702
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (B) M10 FLANGE 		0-91180-210-0 07 1 0703-
52 NUT; BRKT
EURO4 SPECIFICATION(KBT) (C) M10 LOCK NUT 		0-91370-010-0 03 1 0610-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 08 1 0610-0702
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 08 1 0703-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (A) 		1-22152-390-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (B) 		1-22152-392-0 02 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (C) 		8-98055-632-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (D) 		8-98055-635-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
EURO4 SPECIFICATION(KBT) (E) 		8-98055-700-0 01 1 0610-
60 BRACKET; FRAME TO BRKT
(F) 		1-22152-391-0 01 1 0610-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M8X30 FLANGE 		0-28650-830-0 02 1 0703-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M10X60 FLANGE 		0-28051-060-0 04 1 0610-
70 BOLT; BRKT
EURO4 SPECIFICATION(KBT) M12X35 FLANGE 		0-28651-235-0 02 1 0610-
70 BOLT; BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0610-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-210-0 04 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 FLANGE 		0-91180-110-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-208-0 02 1 0703-0801
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0802-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 04 1 0610-0702
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M12 FLANGE 		0-91180-212-0 02 1 0703-
81 NUT; BRKT
EURO4 SPECIFICATION(KBT) M10 LOCK NUT 		0-91370-010-0 04 1 0610-
81 NUT; BRKT
M10 LOCK NUT 		0-91370-010-0 02 1 0610-
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 21 1 0610-0610
121 WASHER; PL,BRKT
EURO4 SPECIFICATION(KBT) ID=10.5 OD=40 T=3.2 		8-98010-405-0 24 1 0610-
121 WASHER; PL,BRKT
ID=10.5 OD=40 T=3.2 		8-98010-405-0 06 1 0610-
186 BOLT; BRKT TO ENG
M10X20 FLANGE 		0-28151-020-0 02 1 0610-0807
186 BOLT; BRKT TO ENG
EURO4 SPECIFICATION(KBT) M10X25 FLANGE 		0-28151-025-0 03 1 0808-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0610-0610
236 BOLT; PIPE CLAMP TO BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0610-0807
236 BOLT; PIPE CLAMP TO BRKT
EURO4 SPECIFICATION(KBT) M10X35 		0-20851-035-0 04 1 0808-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (A) L=25 		1-14234-083-0 02 1 0610-
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		1-22159-392-0 02 1 0610-0909
264 TUBE; DIST,SUPPORT RUBBER
EURO4 SPECIFICATION(KBT) (B) L=22 		9-22159-024-0 02 1 0910-
294 WASHER; PL,CLAMP TO BRKT,EXH PIPE
EURO4 SPECIFICATION(KBT) ID=10.5 		0-91610-510-0 04 1 0808-
296 U-BOLT; FRT EXH PIPE
EURO4 SPECIFICATION(KBT) 		1-22113-009-0 01 1 0610-
297 NUT; U-BOLT,FRT EXH PIPE
EURO4 SPECIFICATION(KBT) M8 		0-91110-508-0 04 1 0610-
392 NUT; CLAMP BRKT
M10 FLANGE 		0-91180-210-0 02 1 0610-0807
422 NUT; PIPE
M8 FLANGE 		0-91180-208-0 20 1 0610-0702
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0703-
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0610-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0610-
483 BOLT; BRKT,HEAT PROTECTOR
EURO4 SPECIFICATION(KBT) M8X30 FLANGE 		0-28650-830-0 02 1 0610-
484 NUT; BRKT,HEAT PROTECTOR
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-208-0 02 1 0610-0801
484 NUT; BRKT,HEAT PROTECTOR
EURO4 SPECIFICATION(KBT) M8 FLANGE 		0-91180-108-0 02 1 0802-
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0610-
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0610-
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0610-
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0610-
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0610-
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0610-
556 DPD ASM 8-97610-536-6 01 1 0610-1010
556 DPD ASM 8-97622-891-4 01 1 1011-
557 CATALYST ASM 8-97608-055-8 01 1 0610-
558 FILTER ASM 8-97608-057-3 01 1 0610-
559 COVER; RR 8-97611-078-0 01 1 0610-1010
559 COVER; RR 8-97622-887-0 01 1 1011-
560 GASKET; DPD 8-97611-080-0 02 1 0610-
561 PIPE; DPD
(A) 		8-97613-324-0 01 1 0610-1010
561 PIPE; DPD
(A) 		8-97622-892-0 01 1 1011-
561 PIPE; DPD
(B) 		8-97613-325-0 01 1 0610-1010
561 PIPE; DPD
(B) 		8-97622-893-0 01 1 1011-
601 MOUNTING
EURO4 SPECIFICATION(KBT) 		8-98055-817-0 16 1 0610-
601 MOUNTING 8-98055-817-0 04 1 0610-
607 WASHER; BRKT
EURO4 SPECIFICATION(KBT) OD=32 T=6.0 		8-94416-693-0 02 1 0808-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
