11031 - LT134-RHD EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

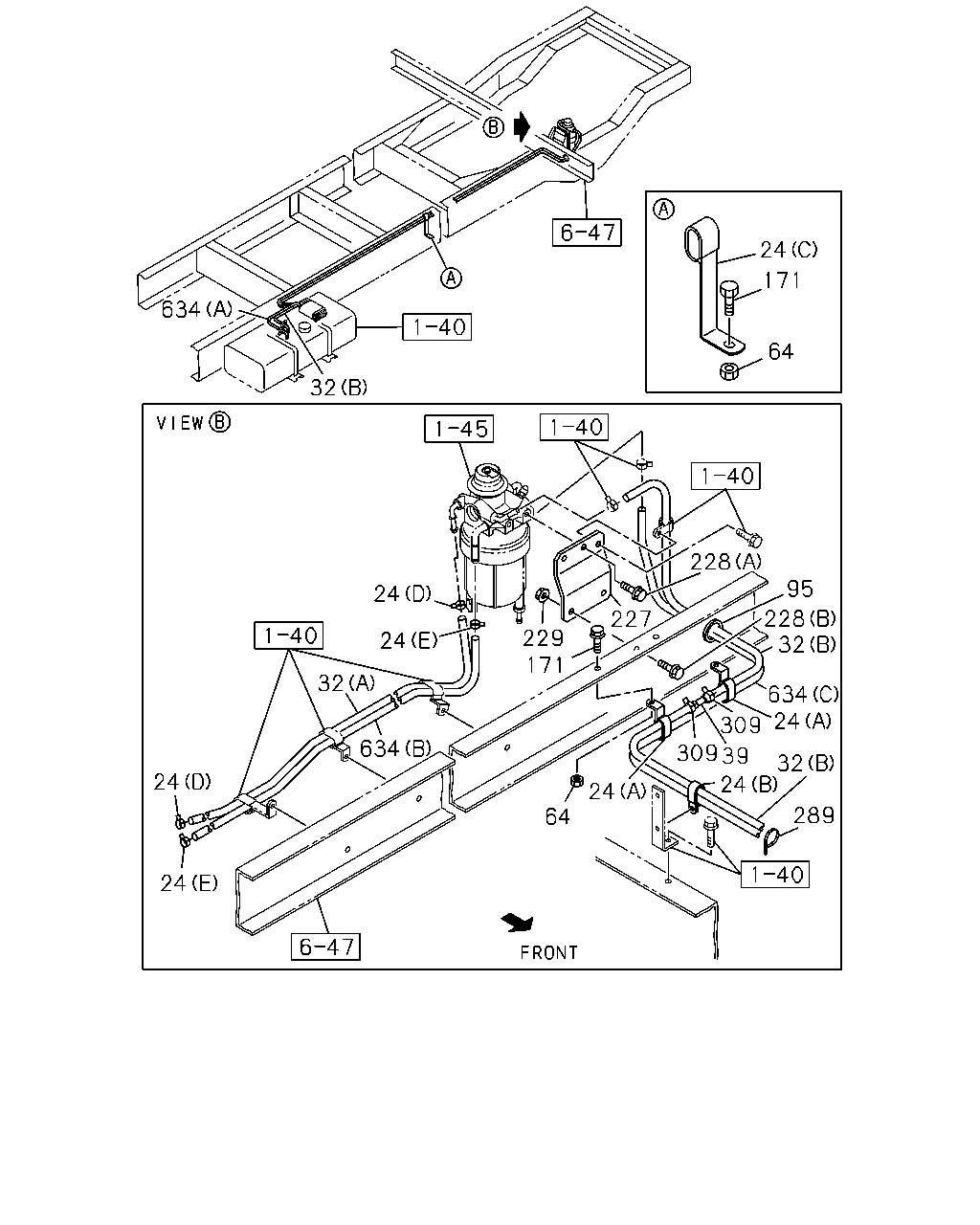

1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#36020) — 24 parça
24
171
634
64
32
227
228
95
24
228
32
229
171
24
32
634
24
309
309
39
634
32
24
24
24
289
64
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
CLIP; FUEL HOSE
(B) ID=16X2 L=20
0-95325-536-0
01
1
0610-
24
CLIP; FUEL HOSE
(C) ID=14X2 H=85 L=30
1-09701-062-0
01
1
0610-
24
CLIP; FUEL HOSE
(A) ID=14X29 H=30 L=25
1-09701-101-0
12
1
0610-
24
CLIP; FUEL HOSE
(D) ID=14
1-09704-102-0
02
1
0610-
24
CLIP; FUEL HOSE
(E) ID=13
8-94238-571-0
02
1
0610-
32
PIPE; DELIVERY,FUEL TANK
(A) L=1200 SERVICED BY L=3000
0-01260-300-0
01
1
0610-0808
32
PIPE; DELIVERY,FUEL TANK
(A) L=1200
8-98130-493-0
01
1
0809-
32
PIPE; DELIVERY,FUEL TANK
(B) L=7000 SERVICED BY L=8000
0-01260-800-0
01
1
0610-
39
PIPE; FUEL
8-98009-438-1
01
1
0610-
64
NUT; CLIP
M8 FLANGE
0-91180-108-0
14
1
0610-
95
BUSHING; PIPE,FUEL TANK
9-09575-632-0
01
1
0610-
171
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0610-
171
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
11
1
0610-
227
BRACKET; FUEL SEDIMENTER
1-19755-234-1
01
1
0610-
228
BOLT; BRKT,SEDIMENTER
(A) M8X20 FLANGE
0-28650-820-0
02
1
0610-
228
BOLT; BRKT,SEDIMENTER
(B) M10X30 FLANGE
0-28651-030-0
02
1
0610-
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91180-210-0
02
1
0610-
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
02
1
0610-
309
CLIP; PIPE
ID=14
1-09704-102-0
01
1
0610-
309
CLIP; PIPE
ID=13
8-94238-571-0
01
1
0610-
634
HOSE; RUBBER RETURN
(B) L=1200 SERVICED BY L=3000
0-01558-300-0
01
1
0610-
634
HOSE; RUBBER RETURN
(C) SERVICED BY L=7000
0-01558-700-0
01
1
0610-
634
HOSE; RUBBER RETURN
(A) L=60 SERVICED BY L=3000
0-01259-300-0
01
1
0610-0702
634
HOSE; RUBBER RETURN
(A) L=100 SERVICED BY L=3000
0-01260-300-0
01
1
0703-
