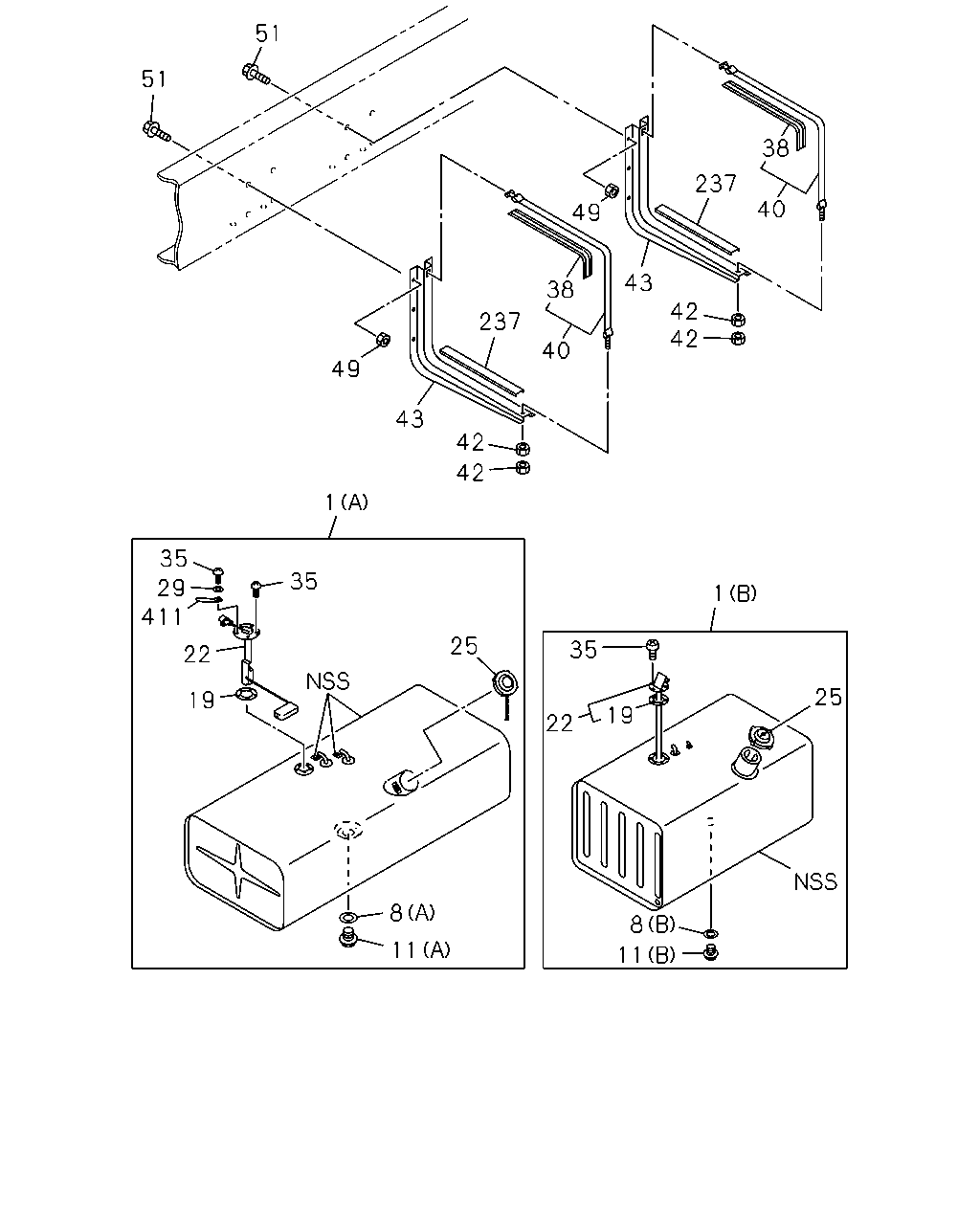

1-40 — FUEL TANK (#36019) — 42 parça

51 51 38 237 40 49 43 38 42 42 237 40 49 43 42 42 1 35 35 29 1 411 25 35 22 25 19 19 22 8 8 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> (A) 1220X533X323 200L	1-22400-995-2	01	1	0610-
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	1-22401-108-2	01	1	0610-1505
1	TANK; FUEL FUEL TANK 280L<RF4> (B) 880X649X549 300L	8-98298-799-0	01	1	1506-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) T=2.0	8-98030-375-0	01	1	0610-
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 280L<RF4> (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	0610-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> (A) M36	1-09604-052-0	01	1	0610-
11	PLUG; DRAIN,FUEL TANK FUEL TANK 280L<RF4> (B) M14X14	9-09862-156-0	01	1	0610-
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42 OD=71	5-83148-001-0	01	1	0610-
19	GASKET; FUEL TANK UNIT FUEL TANK 280L<RF4> ID=45 OD=67	1-83149-003-0	01	1	0610-
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-084-1	01	1	0610-
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	1-83141-118-0	01	1	0610-1505
22	UNIT; FUEL TANK FUEL TANK 280L<RF4>	8-98296-673-0	01	1	1506-
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	0610-
25	CAP; FILLER,FUEL TANK FUEL TANK 280L<RF4>	1-22440-046-1	01	1	0610-
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	0-91610-505-0	01	1	0610-
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10 W/LK WASHER	0-36220-510-0	05	1	0610-
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/PL WASHER	0-36210-410-0	05	1	0610-1505
35	SCREW; FUEL TANK UNIT FUEL TANK 280L<RF4> M4X10 W/LK WASHER	0-36220-410-0	05	1	1506-
38	INSULATION; SUPPORT BELT FUEL TANK 200L FRAME SIDE<N20> L=540	1-22553-014-2	02	1	0802-
38	INSULATION; SUPPORT BELT FUEL TANK 280L<RF4> L=650	1-22553-022-1	02	1	0610-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=790	1-22550-186-2	02	1	0610-
40	BELT; SUPPORT,FUEL TANK FUEL TANK 280L<RF4>	1-22550-222-3	02	1	0610-
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	0610-
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	0610-
43	BRACKET; FUEL TANK FUEL TANK 280L<RF4>	1-53461-544-0	02	1	0610-
49	NUT; BRKT M12	0-91110-512-0	08	1	0610-
51	BOLT; BRKT TO FRAME M12X35 FLANGE	0-28651-235-0	08	1	0610-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=480	1-22553-002-0	02	1	0610-
237	GASKET; BRKT TO FUEL TANK FUEL TANK 280L<RF4> L=580	1-22553-003-0	02	1	0610-
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	0610-

466 267 466 287 55 286 286 286 55 286 55 342 55 287 285 287 72 287

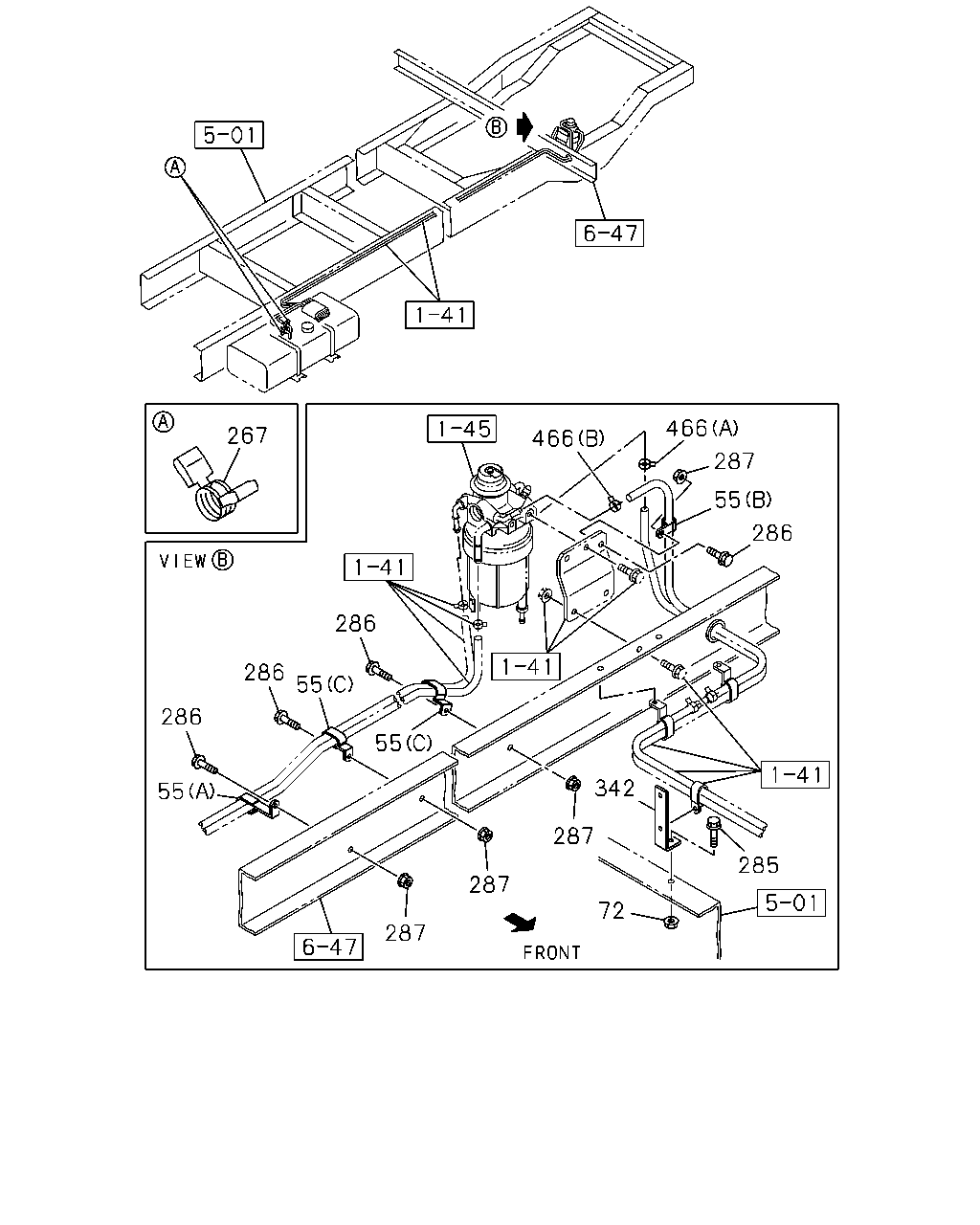

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	CLIP; FUEL PIPE (A) ID=20 L=60	1-09700-901-0	01	1	0610-
55	CLIP; FUEL PIPE (B) ID=14.5 L=20	1-09701-012-0	01	1	0610-
55	CLIP; FUEL PIPE (C) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0610-
72	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0610-
267	CLIP; BAND,VINYL PIPE ID=14	1-09704-102-0	02	1	0610-
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0610-
286	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	0610-
286	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0610-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	0610-
342	BRACKET; FUEL HOSE L=120 H=35	1-82698-088-0	01	1	0610-
466	CLIP (A) ID=14	1-09704-102-0	01	1	0610-
466	CLIP (B) ID=13	8-94238-571-0	01	1	0610-
