1-11 — RADIATOR HOSE AND SUB TANK (#36014) — 28 parça
çizim 177693
1 12 2 4 20 68 18 67 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD 1-21480-078-1 01 1 0610-
2 CAP; SURGE TANK
OD=51 NO-HOLE 		1-22440-039-0 01 1 0610-
4 GASKET; SURGE TANK
D=43 T=1.2 		1-21489-093-0 01 1 0610-
12 HOSE; SURGE TANK
L=300 		1-09366-199-0 01 1 0610-
18 HOSE; RAD TO SURGE TANK
(B) L=600 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-
18 HOSE; RAD TO SURGE TANK
(A) L=200 SERVICED BY L=3000 		0-03557-300-0 01 1 0610-
18 HOSE; RAD TO SURGE TANK
(C) 		1-21437-914-0 01 1 0610-
20 CLIP; HOSE,RAD
(A) ID=48 		1-09704-064-0 02 1 0610-
20 CLIP; HOSE,RAD
(B) ID=14 		1-09704-102-0 02 1 0610-
20 CLIP; HOSE,RAD
(C) ID=12 		8-94238-610-0 02 1 0610-
20 CLIP; HOSE,RAD
(D) ID=16 L=46 		9-09917-428-0 01 1 0610-
67 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0610-
68 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0610-

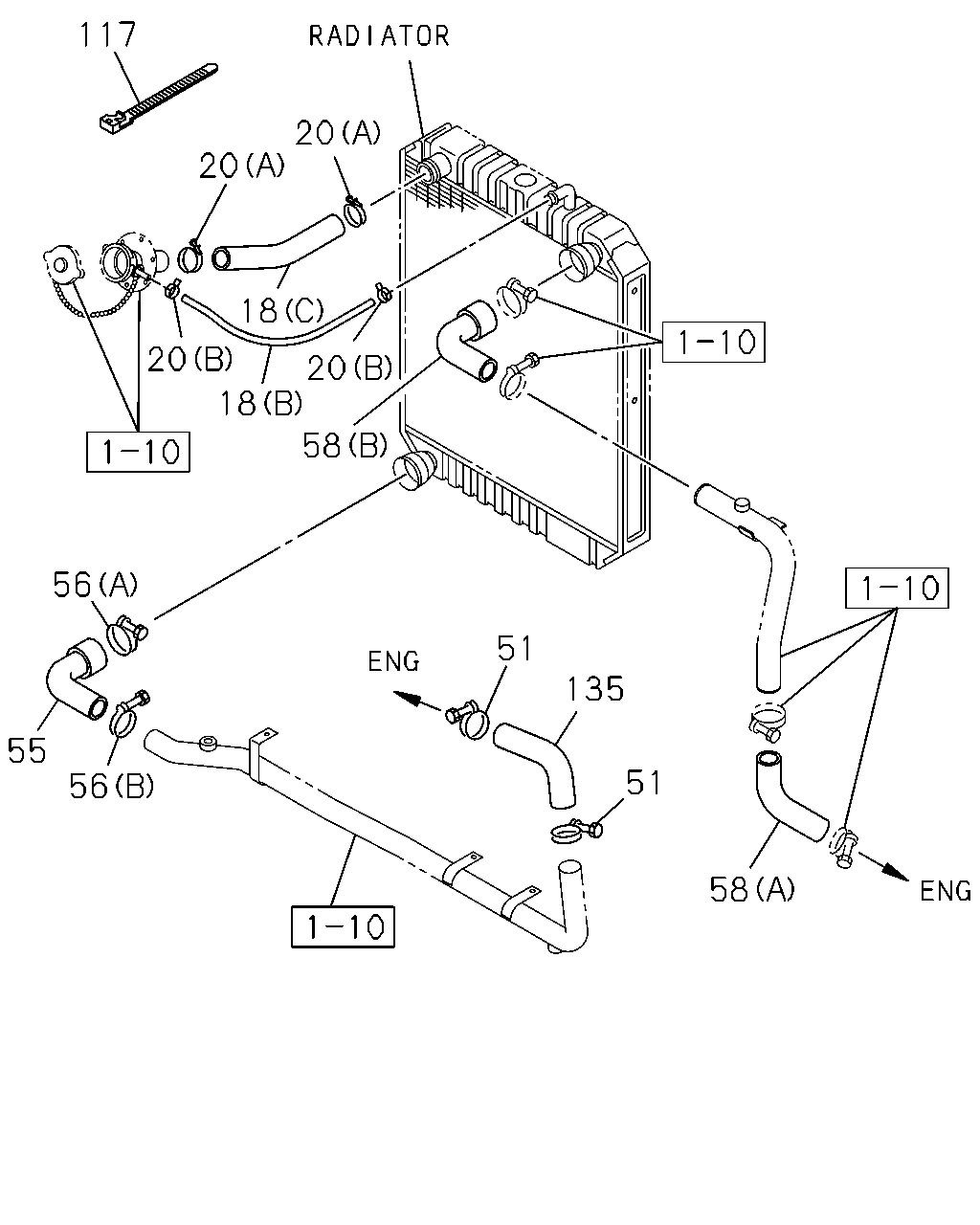

çizim 177694
117 20 20 18 20 20 18 58 56 51 135 55 51 56 58
BalonParca AdiParca NoAdetTipApplied Date
18 HOSE; RAD TO SURGE TANK
(B) L=600 SERVICED BY L=3000 		0-03559-300-0 01 1 0610-
18 HOSE; RAD TO SURGE TANK
(A) L=200 SERVICED BY L=3000 		0-03557-300-0 01 1 0610-
18 HOSE; RAD TO SURGE TANK
(C) 		1-21437-914-0 01 1 0610-
20 CLIP; HOSE,RAD
(A) ID=48 		1-09704-064-0 02 1 0610-
20 CLIP; HOSE,RAD
(B) ID=14 		1-09704-102-0 02 1 0610-
20 CLIP; HOSE,RAD
(C) ID=12 		8-94238-610-0 02 1 0610-
20 CLIP; HOSE,RAD
(D) ID=16 L=46 		9-09917-428-0 01 1 0610-
51 CLIP; WATER HOSE,RAD
ID=63 		1-09704-106-0 02 1 0610-
55 HOSE; WATER,RAD OUTLET 1-21437-773-1 01 1 0610-
56 CLIP; WATER HOSE,RAD
(A) ID=72 		1-09704-068-0 01 1 0610-
56 CLIP; WATER HOSE,RAD
(B) ID=63 		1-09704-106-0 01 1 0610-
58 HOSE; WATER,RAD TO PIPE
(A) L=130 		1-09360-578-1 01 1 0610-
58 HOSE; WATER,RAD TO PIPE
(B) 		1-21437-774-1 01 1 0610-
117 CLIP; BAND
L=250 		5-09707-030-1 01 1 0610-
135 HOSE; WATER,ENG TO CONN
L=130 		1-09360-578-1 01 1 0610-
