11031 - LT134-RHD EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶
1-10 — RADIATOR
(#36013) — 73 parça
◀
[110A] NO.3 (2 parça)
[110A] NO.2 (23 parça)
[110A] NO.1 (48 parça)
▶
371
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
371
GROMMET
ID=16
9-09575-116-0
01
1
0610-
371
GROMMET
ID=20
9-09575-520-0
02
1
0610-

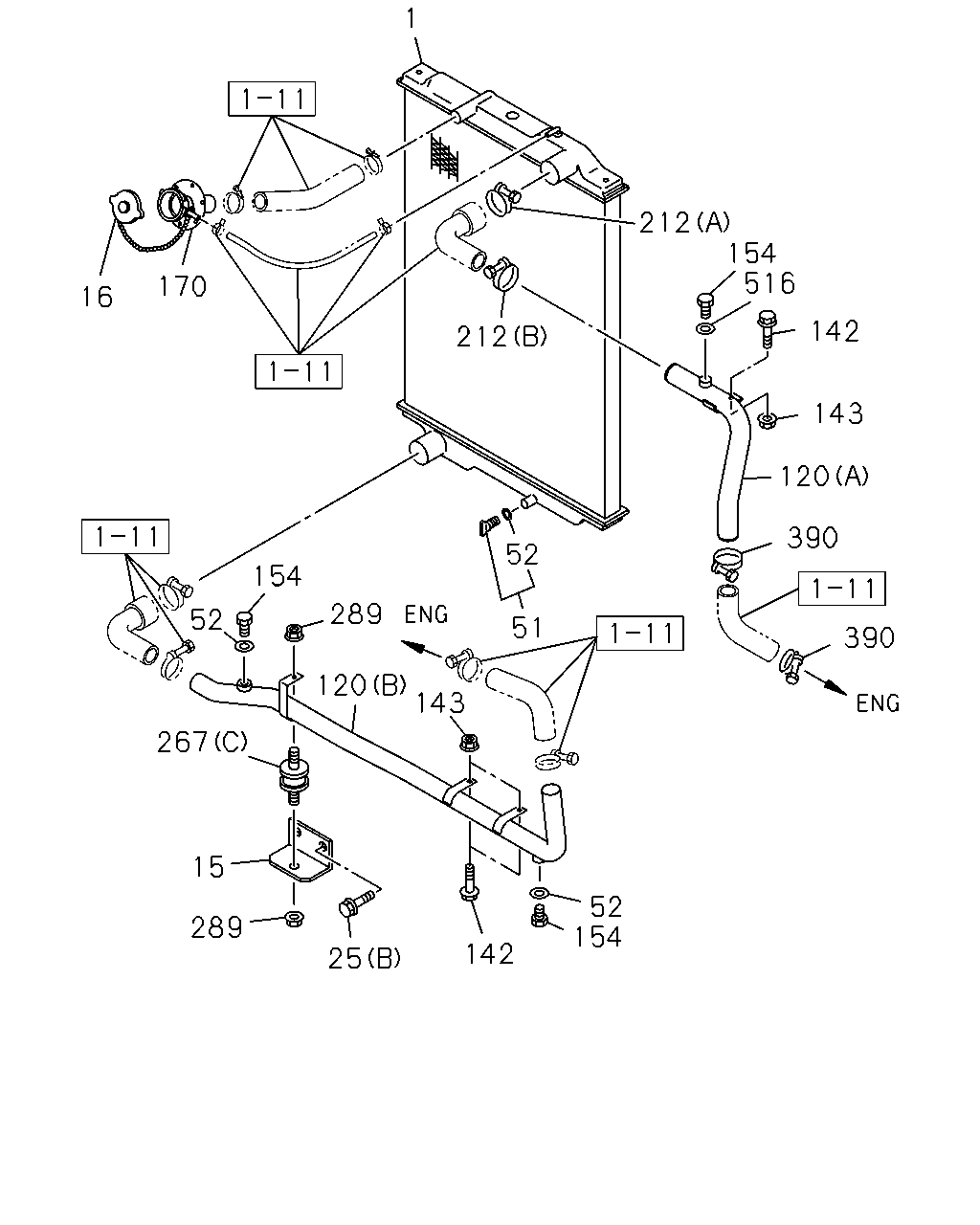

1
212
154
516
170
16
142
212
143
120
390
52
154
52
289
51
390
120
143
267
15
52
154
289
142
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-837-0
01
1
0610-
15
BRACKET; PIPE,RAD
1-21439-132-0
01
1
0610-
16
CAP; RAD
1-21450-123-0
01
1
0610-
25
BOLT; BRKT
(C) M6X12 FLANGE
0-28050-612-0
04
1
0610-
25
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
08
1
0610-
25
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0610-
51
PLUG; DRAIN
W/GASKET
1-09609-023-0
01
1
0610-1205
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1206-
52
GASKET; DRAIN PLUG
ID=14.2 OD=20.0
9-09571-414-0
02
1
0610-
120
PIPE; HOSE TO HOSE,RAD OUTLET
(A)
1-21431-578-0
01
1
0610-
120
PIPE; HOSE TO HOSE,RAD OUTLET
(B)
1-21431-579-1
01
1
0610-
142
BOLT; PIPE
M8X25 FLANGE
0-28650-825-0
02
1
0610-
143
NUT; PIPE
M8 FLANGE
0-91180-108-0
04
1
0610-
154
PLUG; SCREW,WATER PIPE
M14X14
8-94152-613-0
03
1
0610-
170
PIPE; FILLER
1-21450-125-1
01
1
0610-
212
CLIP; HOSE
(A) ID=72
1-09704-068-0
01
1
0610-
212
CLIP; HOSE
(B) ID=63
1-09704-106-0
01
1
0610-
267
RUBBER; CUSHION
(A)
1-21469-145-0
04
1
0610-
267
RUBBER; CUSHION
(B)
1-21469-146-0
04
1
0610-
267
RUBBER; CUSHION
(C)
8-94394-268-1
02
1
0610-
289
NUT
M8 FLANGE
0-91180-108-0
02
1
0610-
390
CLIP; RUBBER HOSE
ID=63
1-09704-106-0
02
1
0610-
516
GASKET; PLUG
ID=14.2 OD=20.0
9-09571-414-0
01
1
0610-

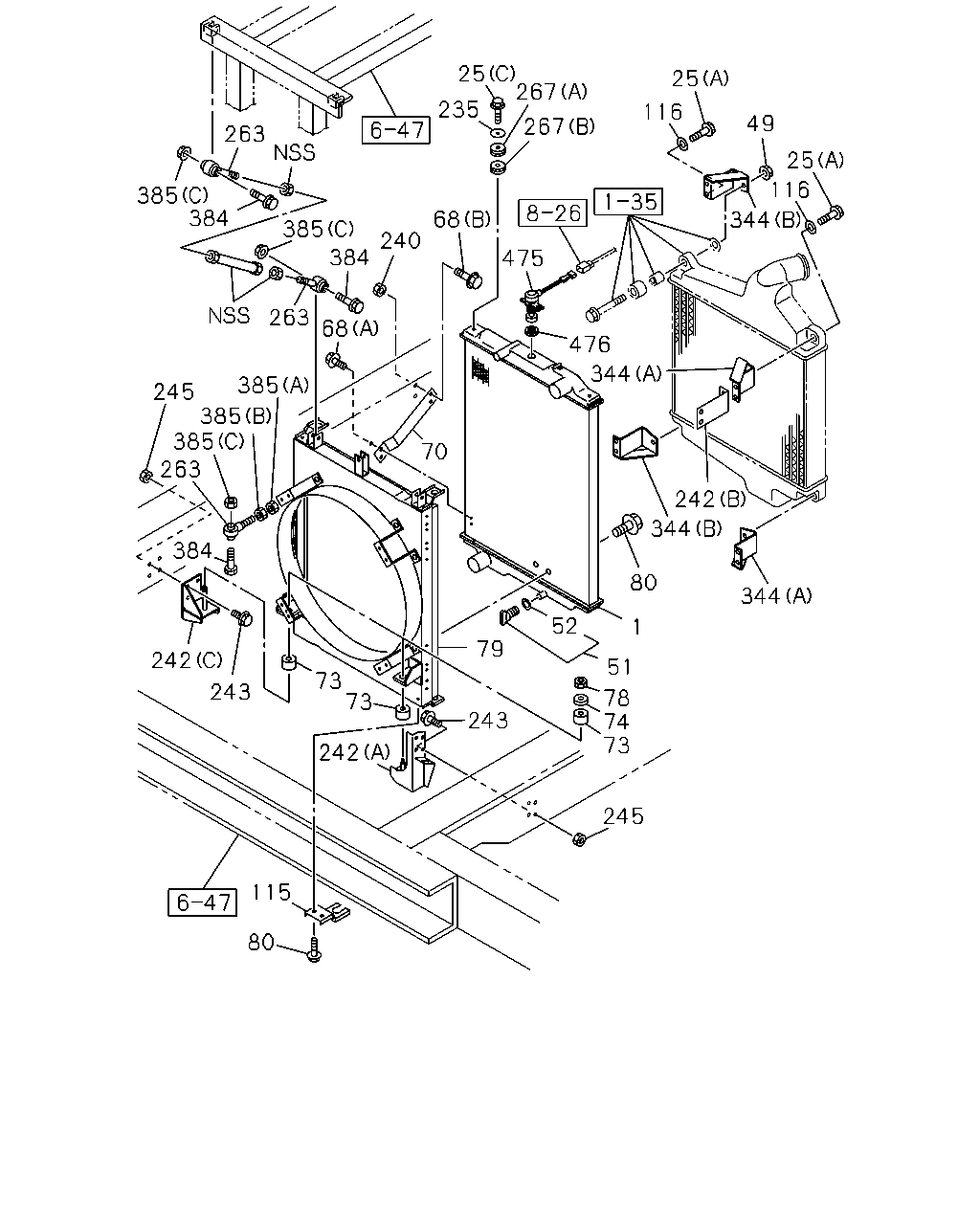

245
73
74
78
51
1
80
344
344
242
344
116
25
49
25
116
267
267
475
476
344
25
235
68
52
243
79
70
240
263
385
384
263
68
385
245
385
385
263
384
242
243
73
73
242
115
80
384
385
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
1-21410-837-0
01
1
0610-
25
BOLT; BRKT
(C) M6X12 FLANGE
0-28050-612-0
04
1
0610-
25
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
08
1
0610-
25
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
02
1
0610-
49
NUT; CHARGE AIR COOLER
M8 FLANGE
0-91180-108-0
04
1
1206-
51
PLUG; DRAIN
W/GASKET
1-09609-023-0
01
1
0610-1205
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1206-
52
GASKET; DRAIN PLUG
ID=14.2 OD=20.0
9-09571-414-0
02
1
0610-
68
BOLT; STAY TO BRKT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0610-
68
BOLT; STAY TO BRKT
(B) M8X20 FLANGE
0-28650-820-0
02
1
0610-
70
STAY; RAD
1-21464-744-0
01
1
0610-
73
RUBBER; CUSHION,RAD MTG
T=24
1-21467-011-1
04
1
0610-
74
WASHER; PL,CUSHION RUBBER
8-97205-139-0
02
1
0610-
78
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
02
1
0610-
79
GUIDE; FAN,RAD
1-21570-092-0
01
1
0610-
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28050-812-0
08
1
0610-1205
80
BOLT; FAN GUIDE
M8X12 FLANGE
0-28050-812-0
04
1
1206-
80
BOLT; FAN GUIDE
M8X20 FLANGE
0-28050-820-0
08
1
0610-
115
BRACKET; FAN GUIDE
1-21469-135-0
02
1
0610-
116
WASHER; PL,BRKT
ID=8.4 OD=18
9-09160-608-0
08
1
0610-1205
116
WASHER; PL,BRKT
ID=8.4 OD=18
0-91610-608-0
08
1
1206-
235
WASHER; CUSHION RUBBER
1-21469-133-0
04
1
0610-
240
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
0610-
242
BRACKET; RAD
(B)
1-21469-163-0
04
1
0610-
242
BRACKET; RAD
(A)
1-21469-155-2
01
1
0610-
242
BRACKET; RAD
(C)
1-21469-162-0
01
1
0610-
243
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
08
1
0610-0610
243
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
10
1
0610-
245
NUT; BRKT
M10 FLANGE
0-91180-210-0
08
1
0610-0610
245
NUT; BRKT
M10 FLANGE
0-91180-210-0
10
1
0610-
263
END ASM; RAD TIE ROD
RH THREAD
9-21460-134-1
06
1
0610-0610
263
END ASM; RAD TIE ROD
RH THREAD
9-21460-134-1
03
1
0611-
263
END ASM; RAD TIE ROD
LH THREAD
9-21460-135-1
06
1
0610-0610
263
END ASM; RAD TIE ROD
LH THREAD
9-21460-135-1
03
1
0611-
267
RUBBER; CUSHION
(A)
1-21469-145-0
04
1
0610-
267
RUBBER; CUSHION
(B)
1-21469-146-0
04
1
0610-
267
RUBBER; CUSHION
(C)
8-94394-268-1
02
1
0610-
344
BRACKET; CHARGE AIR COOLER
(A)
1-21402-381-0
02
1
0610-
344
BRACKET; CHARGE AIR COOLER
(B)
1-21402-382-0
02
1
0610-
384
BOLT; ROD
M12X45 W/LK WASHER
0-50041-245-0
12
1
0610-0610
384
BOLT; ROD
M12X45 W/LK WASHER
0-50041-245-0
06
1
0611-0906
384
BOLT; ROD
M12X45 W/LK WASHER
0-50541-245-0
06
1
0907-
385
NUT; ROD
(C) M12
0-91110-512-0
12
1
0610-
385
NUT; ROD
(A) M10 FLANGE
0-91180-210-0
12
1
0610-
385
NUT; ROD
(B) M10 LH THREAD
1-09400-025-0
12
1
0610-
475
SWITCH; WATER LEVEL
1-82480-091-1
01
1
0610-1205
475
SWITCH; WATER LEVEL
8-97640-798-0
01
1
1206-
476
GASKET; SWITCH,WATER LEVEL
ID=28 T=2.5
1-09630-126-0
01
1
0610-
