0-60 — ENGINE ELECTRICAL CONTROL PARTS (#36008) — 68 parça

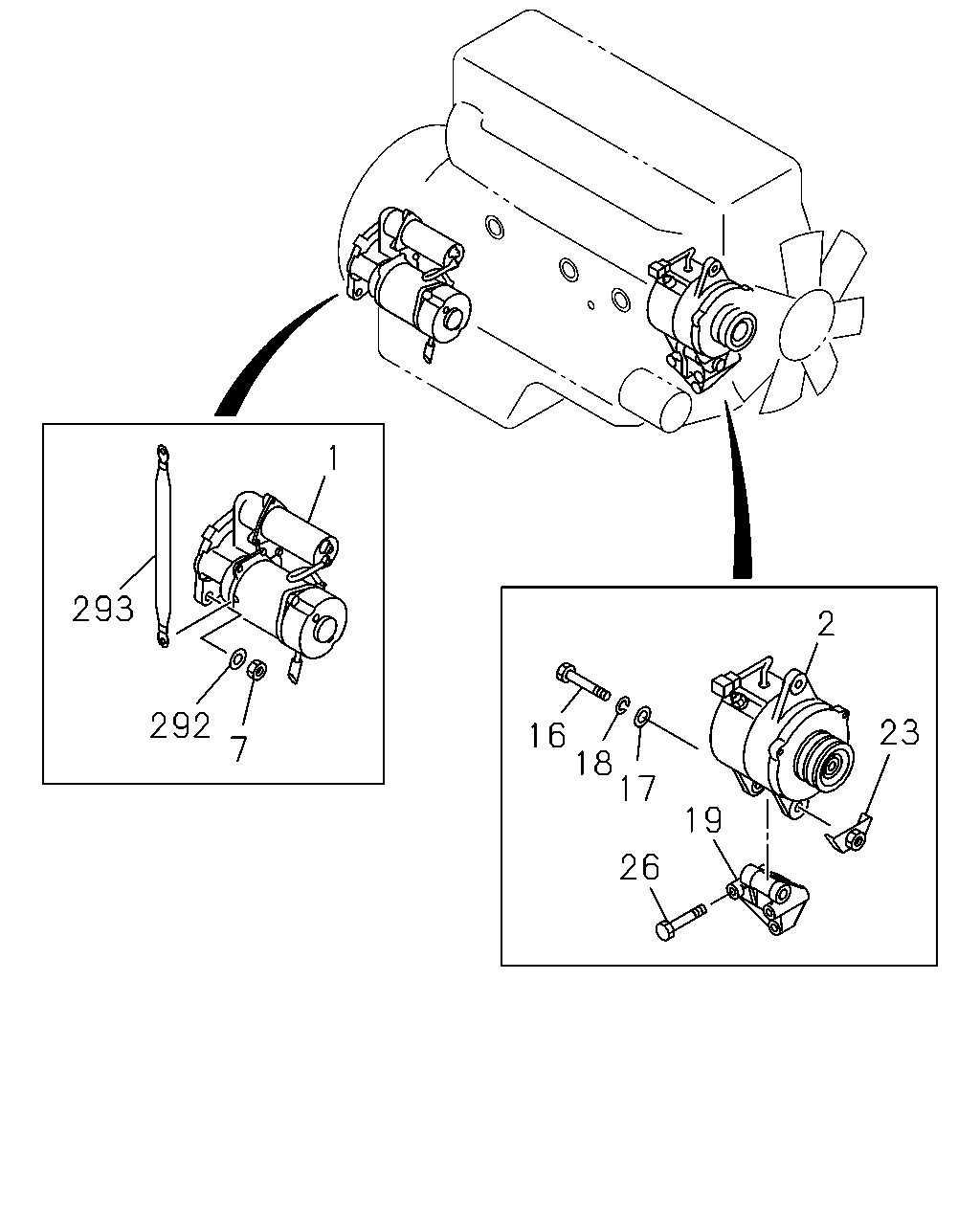

çizim 177679
1 293 2 292 23 16 18 17 7 19 26
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		1-81100-414-2 01 1 0610-0610
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98060-854-0 01 1 0610-0909
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 0910-1409
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 120A MITSUBISHI 		8-98020-154-2 01 1 0610-
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0610-
16 BOLT; GEN
M14X157 		1-09000-071-1 01 1 0610-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0610-
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0610-
19 BRACKET; GEN 8-94399-351-0 01 1 0610-
23 NUT; GEN
M14 W/BRKT 		1-19711-029-0 01 1 0610-
26 BOLT; GEN BRKT
M10X90 FLANGE 		0-28151-090-0 01 1 0610-
26 BOLT; GEN BRKT
M10X120 FLANGE 		0-28156-012-0 02 1 0610-
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0610-
293 CABLE; STARTER EARTH
L=350 		1-82650-240-0 01 1 0610-

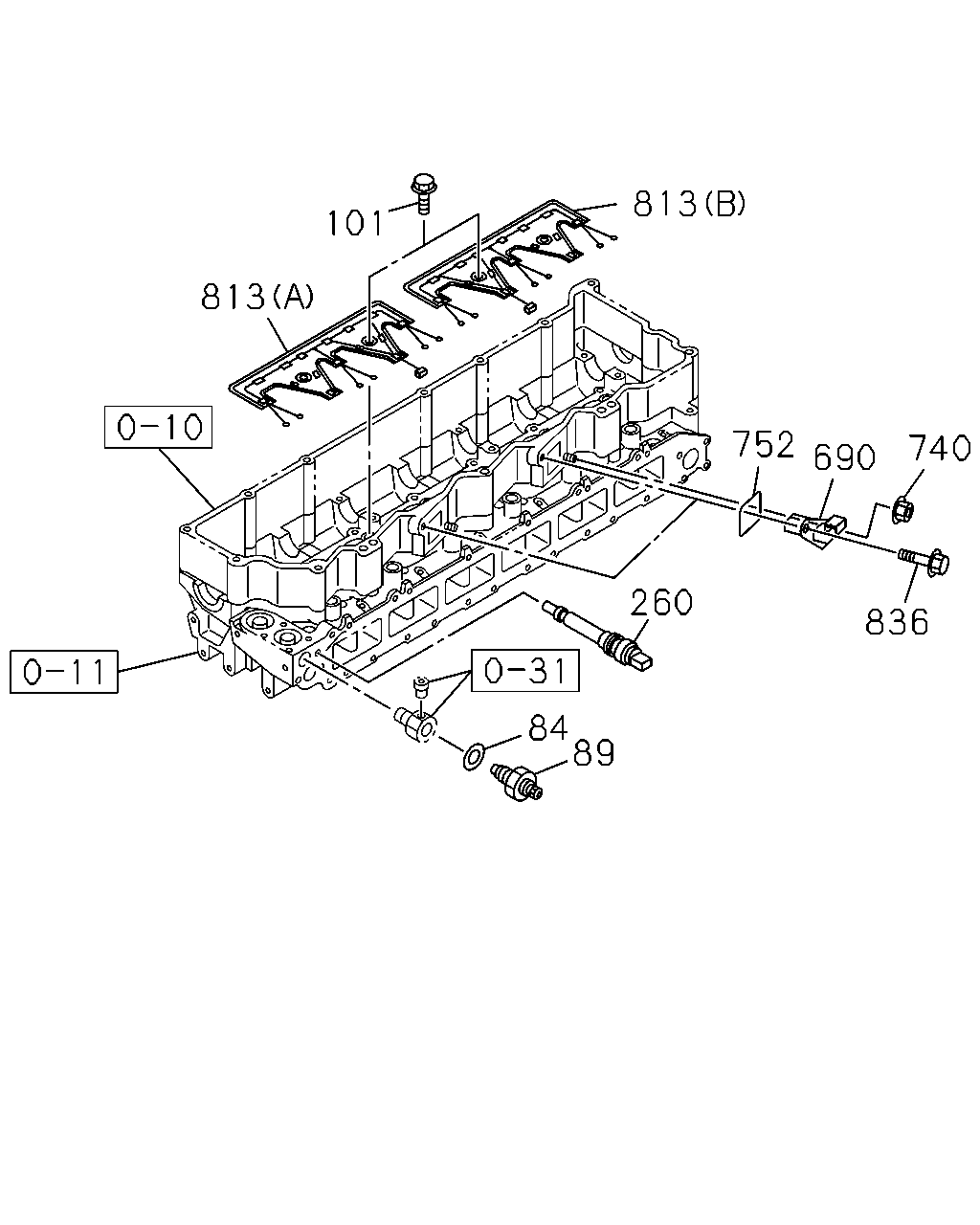

çizim 177680
813 101 813 752 740 690 260 836 84 89
BalonParca AdiParca NoAdetTipApplied Date
84 GASKET; THERMO SW
ID=16.2 		1-09630-086-0 01 1 0610-
89 SWITCH; OVER HEAT WARNING 1-82450-013-0 01 1 0610-
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 0610-
260 SENSOR; WATER TEMP
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0610-
690 CONNECTOR 8-94390-858-1 02 1 0610-
740 NUT
M8 FLANGE 		0-91180-108-0 04 1 0610-1011
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1012-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 0610-
813 HARNESS; INJECTOR
(A) FRONT 		8-97602-748-2 01 1 0610-1008
813 HARNESS; INJECTOR
(A) FRONT 		8-98177-447-0 01 1 1009-1112
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1201-
813 HARNESS; INJECTOR
(B) REAR 		8-97602-749-2 01 1 0610-1008
813 HARNESS; INJECTOR
(B) REAR 		8-98177-448-0 01 1 1009-1112
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1201-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1012-

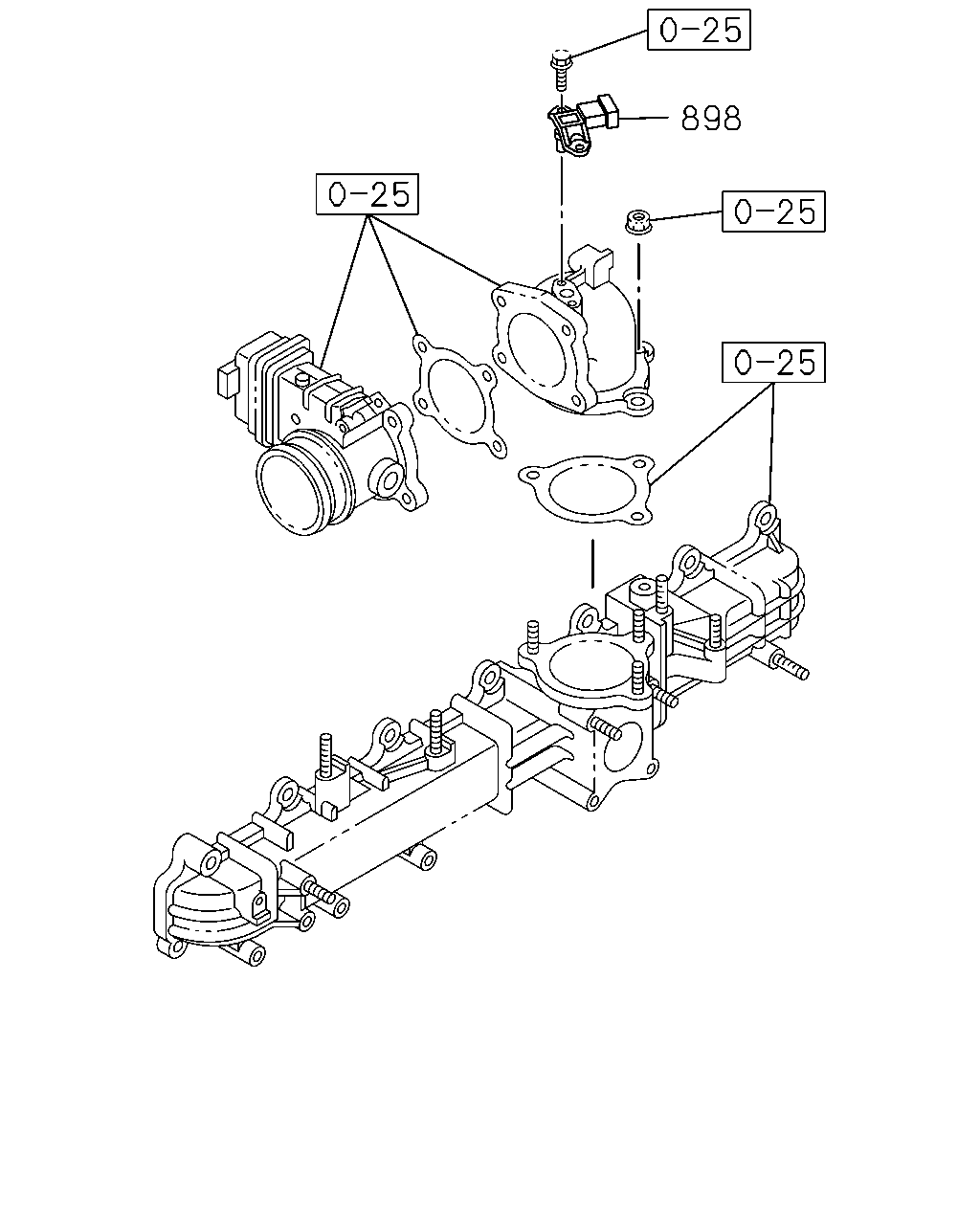

çizim 177681
898
BalonParca AdiParca NoAdetTipApplied Date
898 SENSOR; BOOST 8-98009-418-0 01 1 0610-

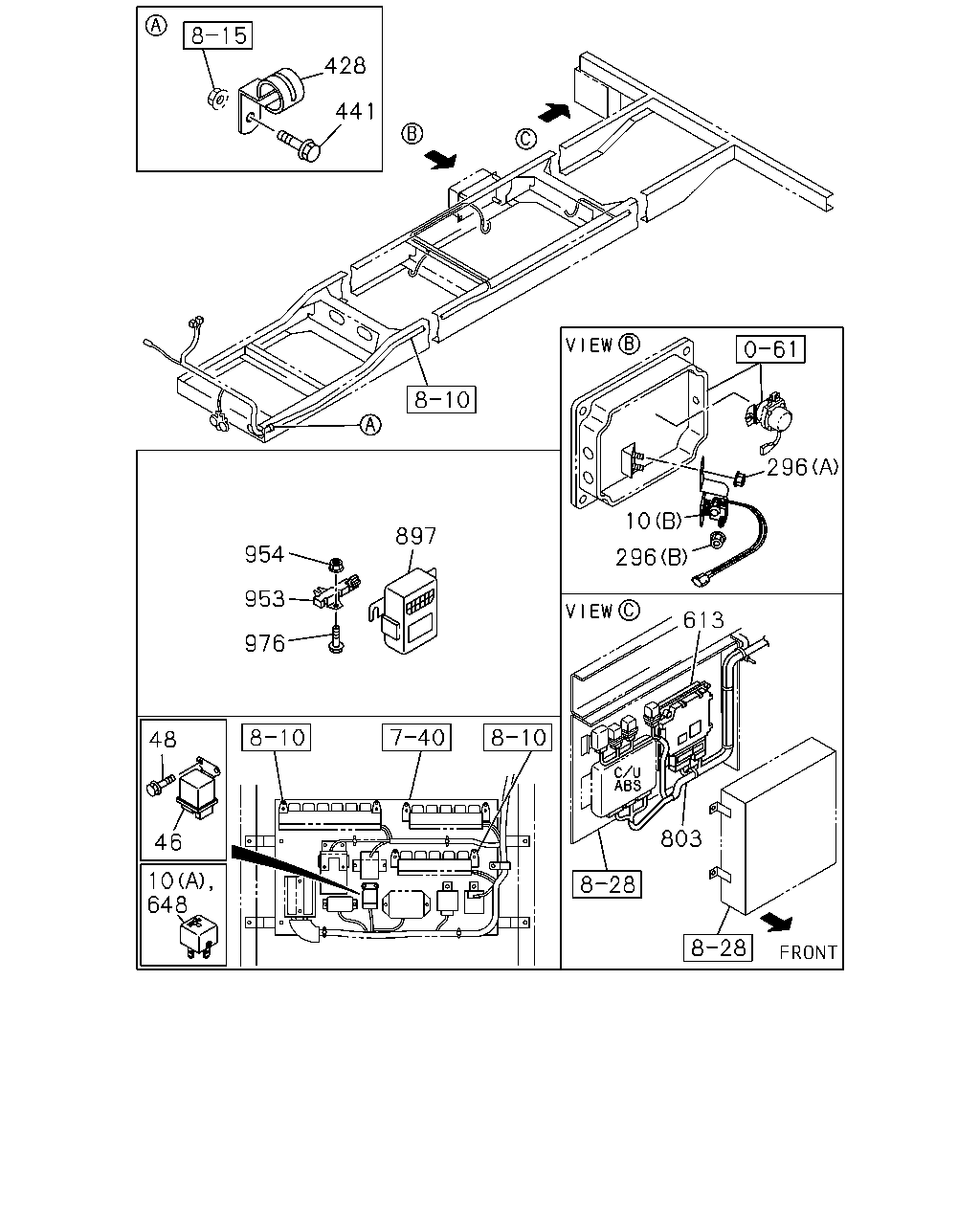

çizim 177683
428 441 296 10 897 954 296 953 613 976 48 803 46 10 648
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 		1-81171-100-1 01 1 0610-
10 RELAY; STARTER
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-1006
10 RELAY; STARTER
(A) 24V 12.5A PANASONIC 		8-98168-240-0 01 1 1007-
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0610-
48 BOLT; GLOW PLUG RELAY
M6X16 FLANGE 		0-28650-616-0 02 1 0610-
296 NUT; RELAY,STARTER
(B) M6 FLANGE 		0-91180-206-0 02 1 0706-
296 NUT; RELAY,STARTER
(A) M8 FLANGE 		0-91180-108-0 02 1 0610-
428 CLIP; HARNESS
ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0610-
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 01 1 0610-
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98061-009-0 01 1 0707-0707
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-98061-031-0 01 1 0610-0612
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-97619-990-0 01 1 0701-0704
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-98085-580-0 01 1 0705-0706
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-97621-070-2 01 1 0707-0804
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-98105-600-1 01 1 0805-1002
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-98163-646-0 01 1 1003-1303
613 CONTROL UNIT; ENG
SPEED LIMITER 60KM<ECF> 		8-98227-529-0 01 1 1304-
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-98061-030-0 01 1 0610-0612
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-97619-989-0 01 1 0701-0706
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-98088-410-2 01 1 0707-0804
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-98105-599-1 01 1 0805-1002
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-98163-645-0 01 1 1003-1303
613 CONTROL UNIT; ENG
SPEED LIMITER 70KM<ECY> 		8-98227-528-0 01 1 1304-
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98061-009-0 01 1 0610-0612
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-97619-988-0 01 1 0701-0706
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98088-411-2 01 1 0707-0804
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98105-597-1 01 1 0805-1002
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98163-644-0 01 1 1003-1303
613 CONTROL UNIT; ENG
INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. SPEED LIMITER 60KM<ECF>,SPEED LIMITER 70KM<ECY> 		8-98227-527-0 01 1 1304-
648 RELAY; ENG STOPPER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0610-
803 HARNESS; GOVERNOR
EURO4 SPECIFICATION(KBT) 		1-82641-376-3 01 1 0610-
897 DRM 8-98013-144-8 01 1 0610-1401
897 DRM 8-98260-912-0 01 1 1402-
953 RESISTOR; CONT UNIT 8-97357-613-0 01 1 0610-
954 NUT; RESISTOR
M6 FLANGE 		0-91180-106-0 02 1 0610-
976 BOLT; RESISTOR
M6X20 FLANGE 		0-28650-620-0 02 1 0610-1007
976 BOLT; RESISTOR
M6X16 FLANGE 		0-28650-616-0 02 1 1008-
