Isuzu WW
▶
BUSES
▶
LT
▶
11031 - LT134-RHD EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-50 - OIL COOLER AND OIL FILTER
▶
0-50 — OIL COOLER AND OIL FILTER
(#36004) — 62 parça
◀

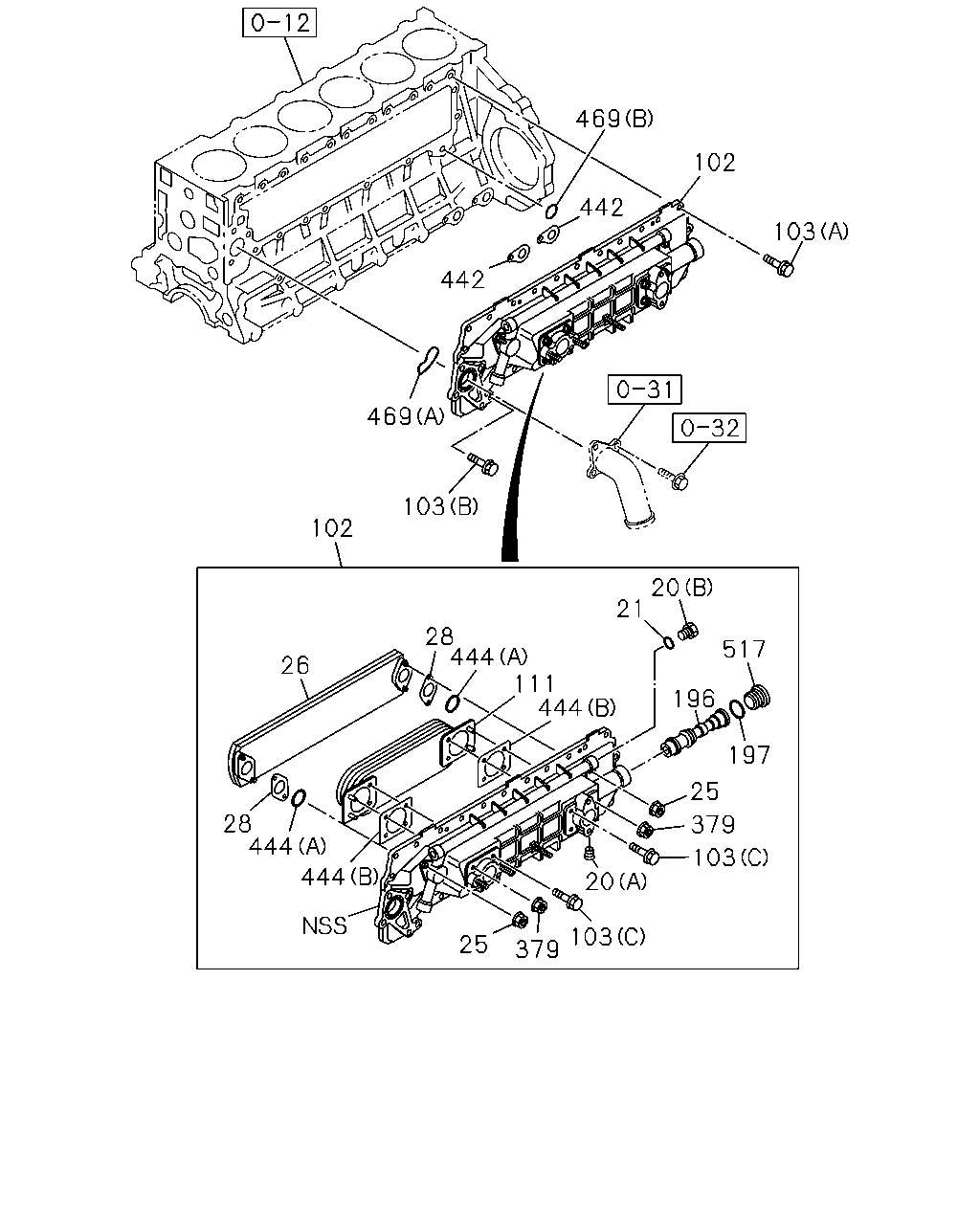

[050A] OIL COOLER (30 parça)

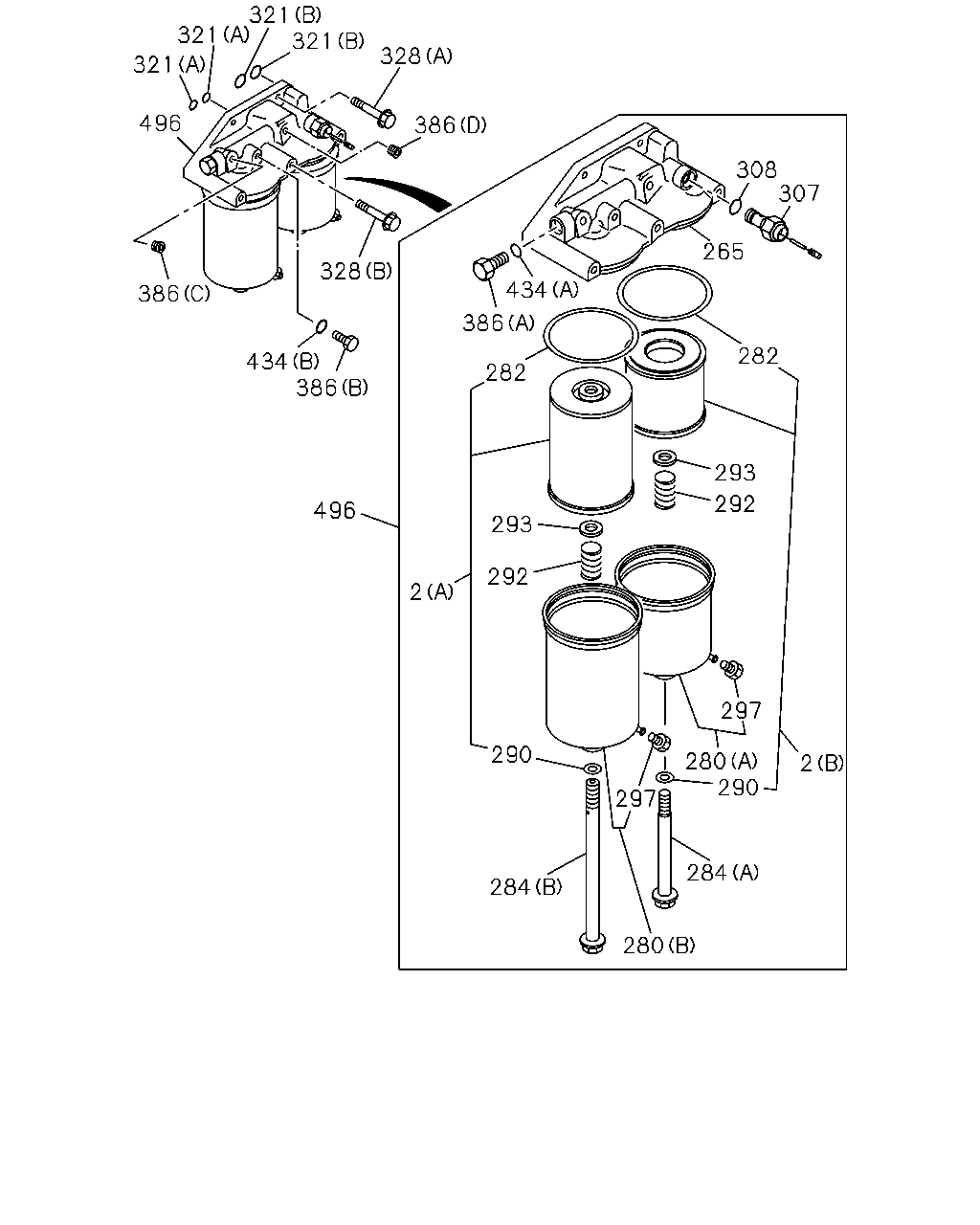

[050A] OIL FILTER (32 parça)
▶
469
102
103
469
103
102
442
442
26
28
444
21
20
517
196
197
25
379
103
20
103
379
25
444
444
28
111
444
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
PLUG; COOLER BODY
(A)
1-13219-240-0
02
1
0611-
20
PLUG; COOLER BODY
(B)
8-97608-567-0
02
1
0611-
21
GASKET; PLUG
8-97608-568-0
02
1
0611-
25
NUT; CORE TO BODY
M10 FLANGE
1-13219-324-0
04
1
0611-
26
CORE ASM; OIL COOLER
8-98062-207-0
01
1
0611-0708
26
CORE ASM; OIL COOLER
8-98063-861-0
01
1
0709-0709
26
CORE ASM; OIL COOLER
8-98062-207-0
01
1
0709-
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
0611-0708
28
GASKET; CORE TO BODY
8-98063-865-0
02
1
0709-1004
28
GASKET; CORE TO BODY
8-94394-930-0
02
1
1005-
102
COOLER ASM; OIL
8-97606-322-0
01
1
0610-0708
102
COOLER ASM; OIL
8-98065-861-1
01
1
0709-0808
102
COOLER ASM; OIL
8-98130-995-0
01
1
0809-1307
102
COOLER ASM; OIL
8-98236-650-0
01
1
1308-
103
BOLT; OIL COOLER
(C) M8X18 FLANGE
8-98251-758-0
04
1
1309-
103
BOLT; OIL COOLER
(B) M8X35 FLANGE
0-28050-835-0
03
1
0610-
103
BOLT; OIL COOLER
(A) M8X30 FLANGE
0-28650-830-0
24
1
0610-
111
CORE; OIL COOLER
8-98063-863-0
01
1
1309-
111
CORE; OIL COOLER
8-97601-799-0
01
1
0610-0708
196
THERMOSTAT; OIL COOLER
90 CELSIUS
8-97600-936-0
01
1
0610-
197
GASKET; THERMOSTAT
8-94391-728-0
01
1
0611-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
04
1
1309-
379
NUT; OIL COOLER
M8 FLANGE
0-91180-108-0
08
1
0610-0708
442
BRACKET; HARNESS,OIL FILTER
8-97601-310-0
02
1
0610-
444
GASKET; ELEMENT TO BODY
(B)
8-97601-801-0
02
1
1309-
444
GASKET; ELEMENT TO BODY
(A) ID=38.7
1-09623-299-0
02
1
0809-
444
GASKET; ELEMENT TO BODY
(A) ID=38.7
1-09623-299-0
02
1
0611-0708
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-94399-002-0
01
1
0610-
469
GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20
8-98045-449-0
01
1
0610-
517
PLUG; THERMOSTAT,OIL COOLER
8-94391-731-0
01
1
0611-
321
321
321
328
321
496
386
308
307
265
328
434
386
386
282
434
386
282
293
292
496
293
292
2
297
290
280
290
297
2
284
284
280
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ELEMENT; OIL FILTER
(A)
1-13240-132-0
01
1
0610-0904
2
ELEMENT; OIL FILTER
(A)
8-98140-515-0
01
1
0905-1406
2
ELEMENT; OIL FILTER
(A)
8-98274-487-0
01
1
1407-
2
ELEMENT; OIL FILTER
(B)
1-87810-372-1
01
1
0610-1406
2
ELEMENT; OIL FILTER
(B)
8-98274-486-0
01
1
1407-
265
BODY; OIL FILTER
1-13212-169-0
01
1
0610-
280
CASE ASM; OIL FILTER
(A)
8-94393-504-1
01
1
0610-
280
CASE ASM; OIL FILTER
(B)
8-94393-505-1
01
1
0610-
282
GASKET; BODY TO CASE
9-09920-311-0
02
1
0610-1406
282
GASKET; BODY TO CASE
8-98274-489-0
02
1
1407-
284
BOLT; CENTER,OIL FILTER
(A)
1-13231-069-0
01
1
0610-
284
BOLT; CENTER,OIL FILTER
(B)
1-13231-070-1
01
1
0610-
290
GASKET; PLUG,OIL DRAIN
ID=15.5
9-09920-694-0
02
1
0610-1406
290
GASKET; PLUG,OIL DRAIN
ID=15.5
8-98274-488-0
02
1
1407-
292
SPRING; ELEMENT
9-09941-283-0
02
1
0610-
293
SEAT; SPR
9-13239-025-0
02
1
0610-
297
PLUG; COVER
1-13219-275-0
02
1
0610-
307
VALVE; OVERFLOW
8-97073-740-0
01
1
0610-
308
GASKET; VLV,OVERFLOW
ID=15.8
1-09623-163-0
01
1
0610-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=9.8
8-94399-339-0
02
1
0610-
321
GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=22.1
8-94399-399-0
02
1
0610-
328
BOLT; OIL FILTER
(A) M10X30 FLANGE
0-28151-030-0
02
1
0610-
328
BOLT; OIL FILTER
(B) M10X135
8-94397-139-1
03
1
0610-
386
PLUG; OIL FILTER
(B) M10X10
1-09604-074-0
01
1
0610-
386
PLUG; OIL FILTER
(C)
8-97320-204-0
01
1
0610-
386
PLUG; OIL FILTER
(D) PT1/8
8-97369-552-1
01
1
0610-
386
PLUG; OIL FILTER
(A) M16X9
9-13226-011-0
01
1
0610-
434
GASKET; PLUG,OIL FILTER
(B) ID=10.2 OD=15.2
1-09630-083-0
01
1
0610-
434
GASKET; PLUG,OIL FILTER
(A)
9-09920-526-0
01
1
0610-
496
FILTER ASM; OIL
8-94392-551-1
01
1
0610-0904
496
FILTER ASM; OIL
8-98140-514-0
01
1
0905-1406
496
FILTER ASM; OIL
8-98274-484-0
01
1
1407-
