0-40 — FUEL INJECTION SYSTEM (#36002) — 90 parça

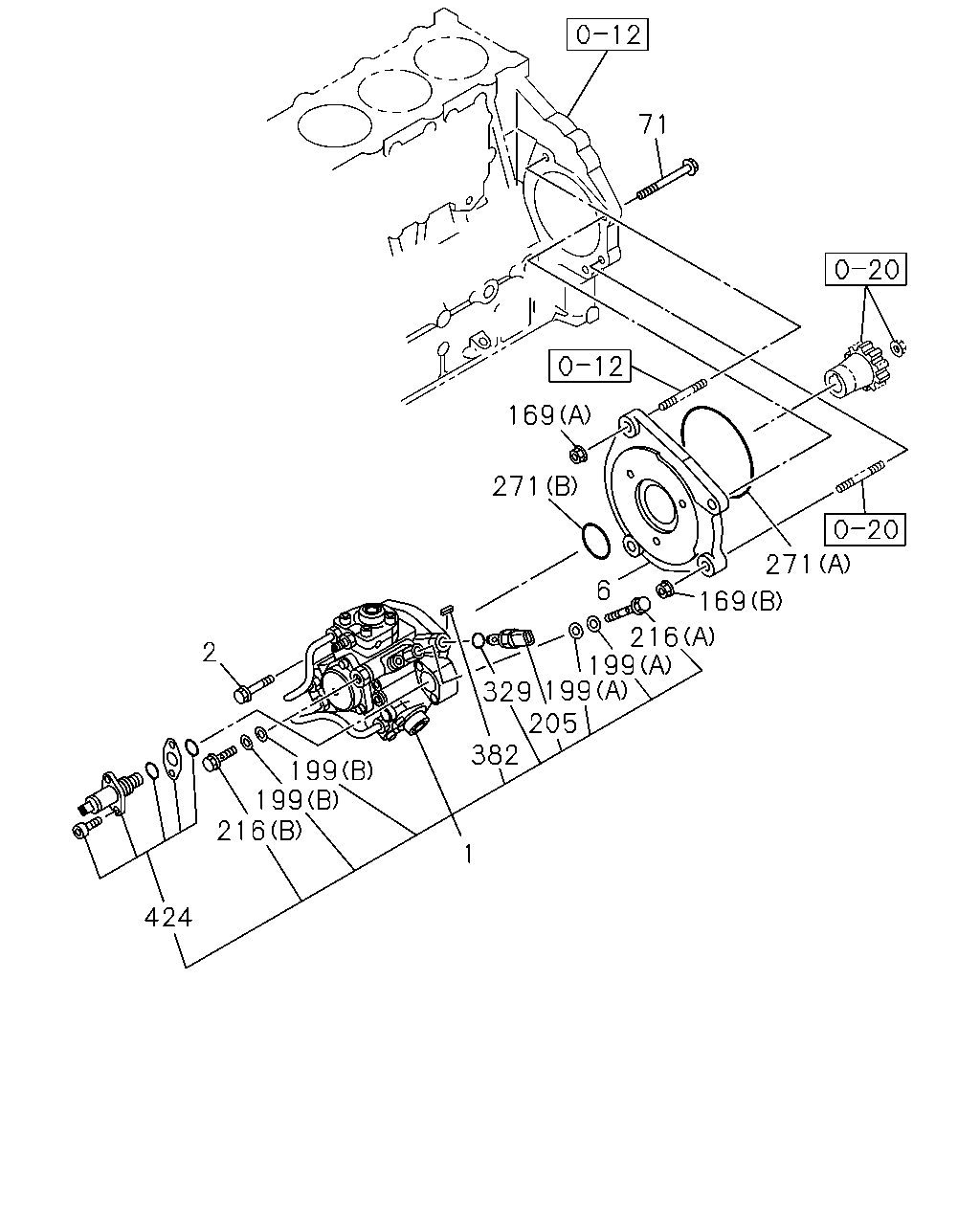

çizim 177670
71 169 271 271 169 216 199 199 329 205 382 2 199 199 216 424 1 6
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ 8-97605-946-7 01 1 0610-
2 BOLT; INJ PUMP
M8X28 		8-94399-256-0 03 1 0610-
6 BRACKET; INJ PUMP TO C/BL 8-97601-154-1 01 1 0610-
71 BOLT; BRKT
M12X100 FLANGE 		0-28151-200-0 01 1 0610-
71 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0610-
169 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0610-
169 NUT; BRKT
(B) M12 FLANGE 		0-91180-112-0 01 1 0610-
199 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 0610-
199 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 0610-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0610-
216 BOLT; EYE
(B) 		5-15759-003-0 01 1 0610-
216 BOLT; EYE
(A) 		8-97351-388-0 01 1 0610-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0610-
271 GASKET; INJ PUMP
(A) ID=139.6 		1-09623-464-0 01 1 0610-
271 GASKET; INJ PUMP
(B) ID=52 		8-98031-844-0 01 1 0610-
329 GASKET; SENSOR,FUEL TEMP
ID=9.8 OD=11.7 		9-09566-110-0 01 1 0610-1201
382 KEY; DRIVE SHAFT 8-97375-384-0 01 1 0610-0910
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 0911-
424 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98143-870-0 01 1 0610-0905
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-449-1 01 1 0906-

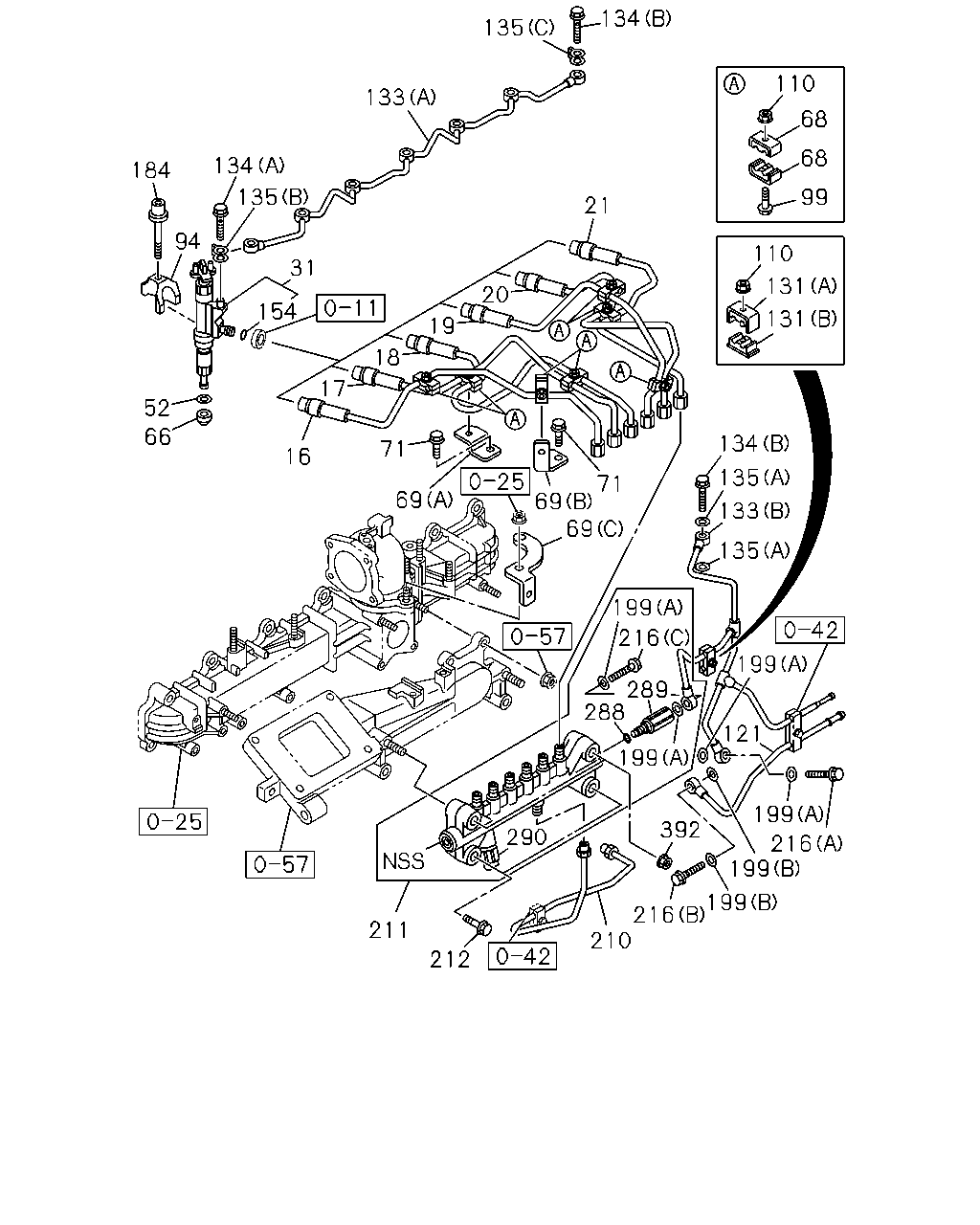

çizim 177672
134 135 110 133 68 68 134 184 135 99 21 94 110 31 131 20 154 131 19 18 17 52 66 134 71 16 135 71 69 69 69 133 135 199 216 199 289 288 121 199 199 392 290 216 199 199 216 210 211 212
BalonParca AdiParca NoAdetTipApplied Date
16 PIPE; INJ NO.1 8-98038-936-0 01 1 0610-1102
16 PIPE; INJ NO.1 8-98185-362-0 01 1 1103-1403
16 PIPE; INJ NO.1 8-98271-207-0 01 1 1404-1501
16 PIPE; INJ NO.1 8-98298-611-0 01 1 1502-
17 PIPE; INJ NO.2 8-98039-770-0 01 1 0610-1102
17 PIPE; INJ NO.2 8-98185-363-0 01 1 1103-1403
17 PIPE; INJ NO.2 8-98271-208-0 01 1 1404-1501
17 PIPE; INJ NO.2 8-98298-612-0 01 1 1502-
18 PIPE; INJ NO.3 8-98038-937-0 01 1 0610-1102
18 PIPE; INJ NO.3 8-98185-364-0 01 1 1103-1403
18 PIPE; INJ NO.3 8-98271-209-0 01 1 1404-1501
18 PIPE; INJ NO.3 8-98298-613-0 01 1 1502-
19 PIPE; INJ NO.4 8-98057-085-0 01 1 0610-1102
19 PIPE; INJ NO.4 8-98185-365-0 01 1 1103-1403
19 PIPE; INJ NO.4 8-98271-210-0 01 1 1404-1501
19 PIPE; INJ NO.4 8-98298-614-0 01 1 1502-
20 PIPE; INJ NO.5 8-98038-939-0 01 1 0610-1102
20 PIPE; INJ NO.5 8-98185-366-0 01 1 1103-1403
20 PIPE; INJ NO.5 8-98271-211-0 01 1 1404-1501
20 PIPE; INJ NO.5 8-98298-615-0 01 1 1502-
21 PIPE; INJ NO.6 8-98039-771-0 01 1 0610-1102
21 PIPE; INJ NO.6 8-98185-367-0 01 1 1103-1403
21 PIPE; INJ NO.6 8-98271-212-0 01 1 1404-1501
21 PIPE; INJ NO.6 8-98298-617-0 01 1 1502-
31 NOZZLE ASM; INJ 8-97609-788-6 06 1 0610-1303
31 NOZZLE ASM; INJ 8-98222-494-0 06 1 1304-
52 GASKET; SLEEVE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3 		8-94173-412-0 06 1 0610-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-97601-447-2 06 1 0610-0909
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1 		8-98079-248-0 06 1 0910-
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98039-293-0 14 1 0610-1405
68 CLIP; INJ PIPE
ID=11 & 11 L=19 		8-98148-996-2 14 1 1406-
69 BRACKET; INJ PIPE CLIP
(B) 		8-98038-940-0 01 1 0610-
69 BRACKET; INJ PIPE CLIP
(C) 		8-98038-941-0 01 1 0610-
69 BRACKET; INJ PIPE CLIP
(A) 		8-98049-015-0 01 1 0610-
71 BOLT; BRKT
M12X100 FLANGE 		0-28151-200-0 01 1 0610-
71 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0610-
94 BRACKET; INJ NOZZLE 8-98028-999-1 06 1 0610-
99 BOLT; CLIP,INJ,PIPE
M6X35 FLANGE 		0-28050-635-0 03 1 0610-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 05 1 0610-
121 PIPE; FUEL,FEED PUMP,SUCTION 8-97607-472-0 01 1 0610-0807
121 PIPE; FUEL,FEED PUMP,SUCTION 8-98126-330-0 01 1 0808-
131 CLIP; OVERFLOW LEAK OFF
(A) ID=7 & 9 L=25 		8-98000-010-2 01 1 0610-
131 CLIP; OVERFLOW LEAK OFF
(B) ID=7 & 9 L=25 		8-98000-011-2 01 1 0610-
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-94391-311-0 01 1 0610-1206
133 PIPE; INJ NOZZLE LEAK OFF
(A) 		8-98203-705-1 01 1 1207-
133 PIPE; INJ NOZZLE LEAK OFF
(B) 		8-97610-554-0 01 1 0610-
134 BOLT; JOINT,LEAK OFF PIPE
(A) M8X18 EYE-BOLT 		1-09675-037-1 06 1 0610-
134 BOLT; JOINT,LEAK OFF PIPE
(B) M10X21 FLANGE 		8-94396-711-0 02 1 0610-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0610-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17 		8-98079-755-0 01 1 0909-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-97240-975-0 01 1 0610-1301
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6 		8-98231-393-0 01 1 1302-
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 		8-97600-925-0 06 1 0610-0908
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0 		8-98065-992-0 06 1 0909-
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		9-09561-111-0 06 1 0610-1106
154 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0 		0-95690-111-0 06 1 1107-
184 BOLT; NOZZLE HOLDER
M8X54 		8-98008-895-0 06 1 0610-
199 GASKET; EYE BOLT
(B) 		1-15619-507-0 02 1 0610-
199 GASKET; EYE BOLT
(A) 		8-97602-218-0 04 1 0610-
210 PIPE; INJ,C/R 8-97608-480-1 01 1 0610-
211 RAIL ASM; COMMON 8-97609-980-2 01 1 0610-
212 BOLT; RAIL ASM
M10X50 FLANGE 		8-97372-243-0 02 1 0610-
216 BOLT; EYE
(B) 		5-15759-003-0 01 1 0610-
216 BOLT; EYE
(A) 		8-97351-388-0 01 1 0610-
216 BOLT; EYE
(C) 		8-98043-033-0 01 1 0610-
288 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0610-
289 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0610-
290 SENSOR; PRESS 8-97318-684-0 01 1 0610-0808
290 SENSOR; PRESS 8-98119-790-0 01 1 0809-
392 NUT; RAIL ASM
M10 FLANGE 		0-91180-110-0 02 1 0610-
