Sayfa 4-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶

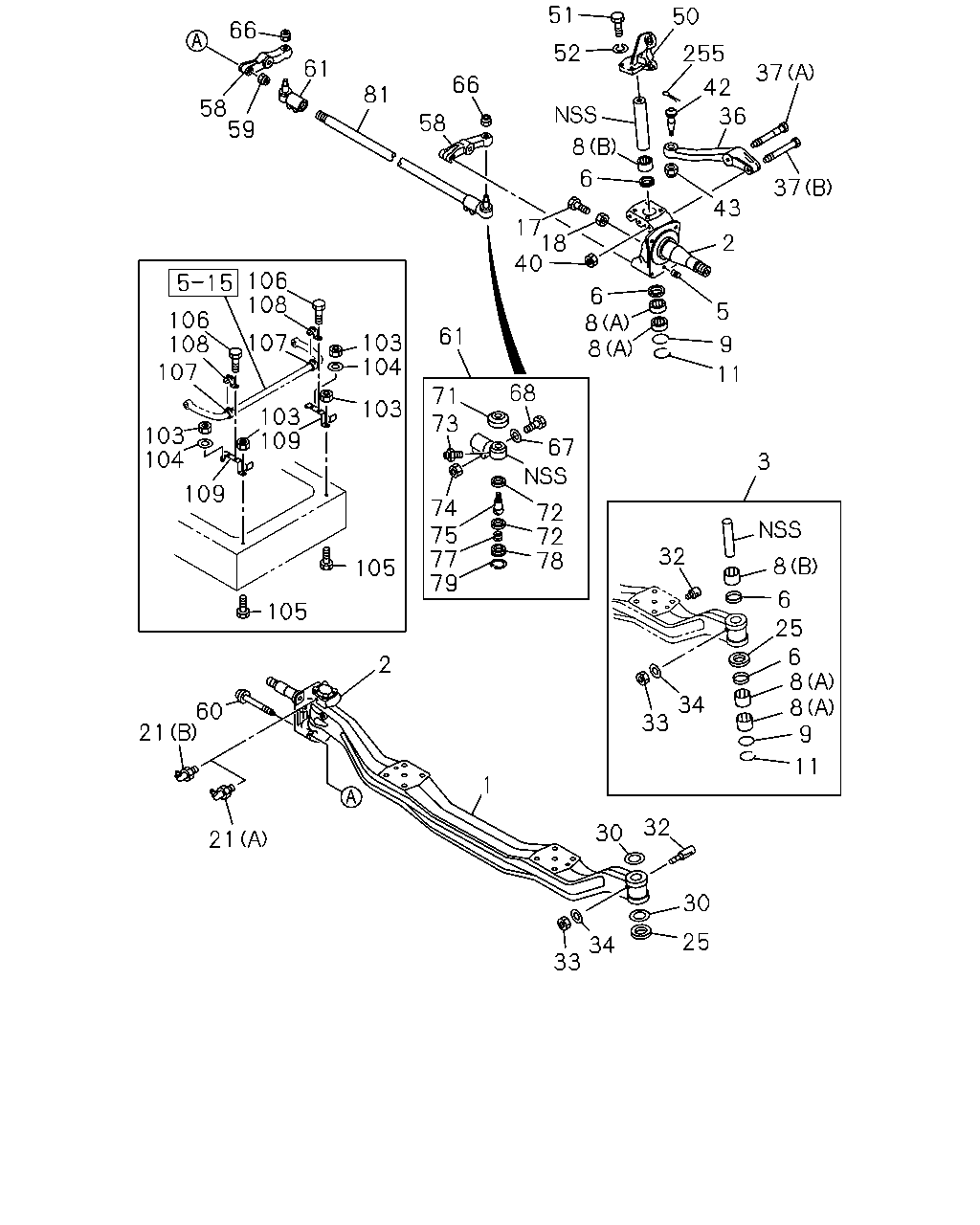

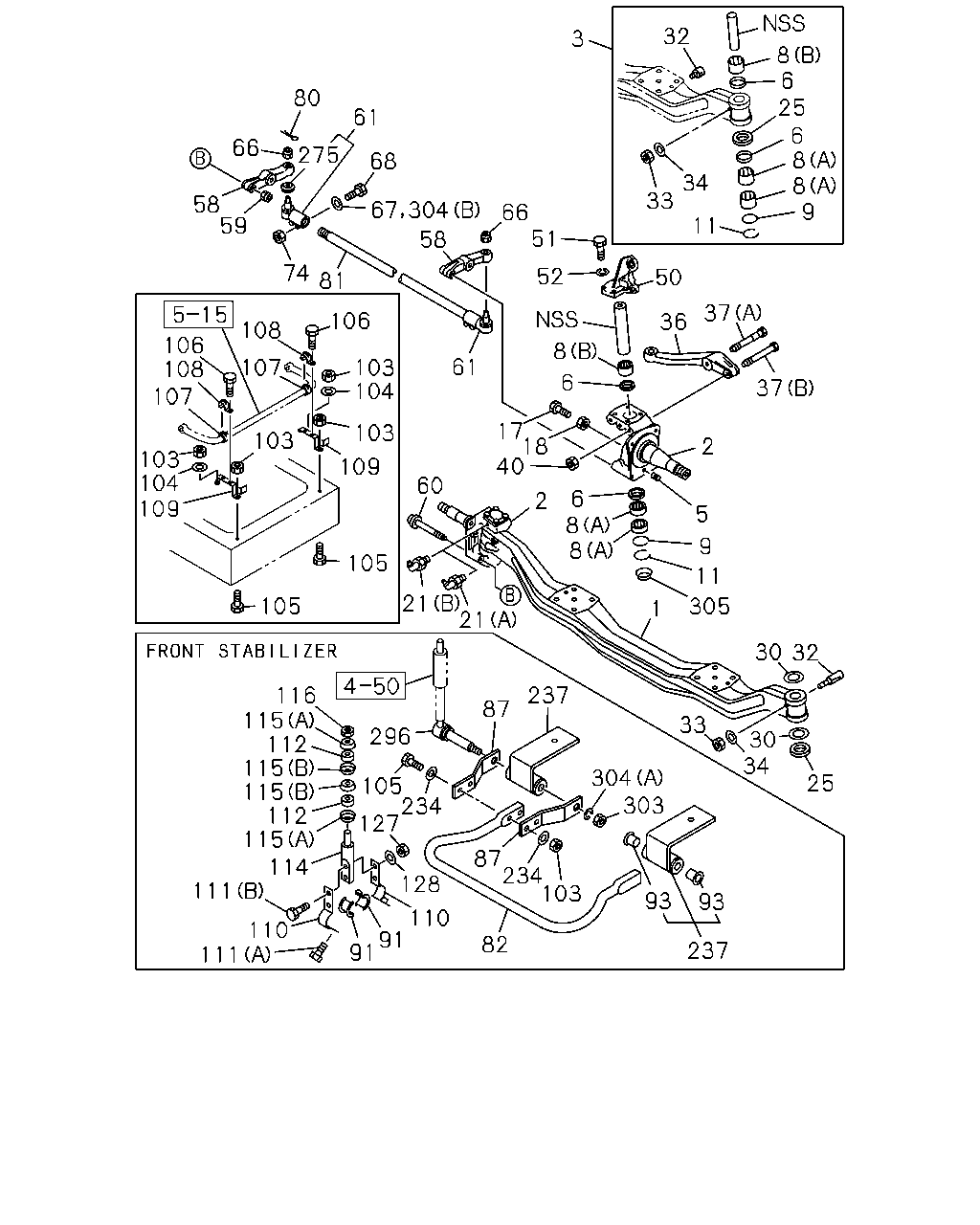

4-10 — FRONT AXLE (#3600) — 223 parça

32 3 8 6 25 80 61 6 8 8 9 66 275 68 34 33 58 59 66 51 11 58 74 81 52 50 37 106 36 108 106 108 107 8 61 107 103 104 6 37 17 18 40 103 103 2 103 104 109 109 60 6 8 8 2 5 9 105 11 21 21 105 305 1 30 32 237 116 115 112 115 115 112 115 114 111 87 33 296 30 34 304 303 25 105 234 127 87 234 103 93 128 93 110 110 111 91 91 82 237 67 304

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306
1	AXLE; FRT	1-43111-107-4	01	1	9307-
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-
3	KING PIN SET	1-87830-039-5	02	1	9002-9306
3	KING PIN SET	1-87830-640-0	02	1	9307-9404
3	KING PIN SET	1-87830-738-0	02	1	9405-
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (A)	9-09031-110-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (B)	9-09031-210-0	02	1	9002-
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203
25	BEARING; THRUST,KING PIN	1-09829-043-2	02	1	9204-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306
36	ARM; KNUCKLE	1-43133-057-1	01	1	9307-9404
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-
37	BOLT; KNUCKLE ARM (A) M22X167	1-09000-153-0	01	1	9002-9111
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9112-
37	BOLT; KNUCKLE ARM (B) M22X179	9-09806-848-1	01	1	9002-9111
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9112-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9002-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9002-
51	BOLT; POWER CHAMBER BRKT M12X60	9-91056-260-0	02	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9006-
51	BOLT; POWER CHAMBER BRKT M12X28	9-92051-228-0	06	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9006-
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9002-
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43135-044-1	01	1	9405-
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43134-044-1	01	1	9405-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-
61	ROD END; TIE ROD	1-43150-631-2	01	1	9307-
61	ROD END; TIE ROD	1-43150-630-2	01	1	9307-
61	ROD END; TIE ROD L TYPE ENG<90L>	1-43150-436-1	01	1	9002-9306
61	ROD END; TIE ROD L TYPE ENG<90L>	1-43150-435-1	01	1	9002-9306
61	ROD END; TIE ROD V TYPE ENG<91L>	1-43150-440-1	01	1	9002-9306
61	ROD END; TIE ROD V TYPE ENG<91L>	1-43150-439-1	01	1	9002-9306
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9002-9306
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9307-
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	9307-
81	ROD; TIE L TYPE ENG<90L> L=1600	9-43151-118-1	01	1	9002-9306
81	ROD; TIE V TYPE ENG<91L> L=1605	1-43151-027-0	01	1	9002-9306
81	ROD; TIE L=1605	1-43151-027-0	01	1	9307-9407
81	ROD; TIE L=1600	1-43151-012-0	01	1	9408-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-104-0	01	1	9307-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51781-084-1	02	1	9307-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51781-083-1	02	1	9307-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-0	04	1	9307-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-1	04	1	9307-
103	NUT; BRKT FIX M14	9-99110-514-0	02	1	9002-
103	NUT; BRKT FIX M10	9-09110-510-0	02	1	9307-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9307-
104	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9002-
105	BOLT; BRKT FIX M10X25	9-01911-025-0	02	1	9002-9002
105	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9307-
106	BOLT; CAP FIX M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005
106	BOLT; CAP FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302
106	BOLT; CAP FIX M8X25 FLANGE	0-28080-825-0	02	1	9303-
107	BUSHING; STABILIZER BAR	1-53459-860-0	02	1	9002-9404
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5)	1-53459-860-0	02	1	9405-
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5)	1-53458-613-0	02	1	9405-
108	CAP	1-53459-392-1	02	1	9002-
109	BUFFER; STAB BAR	1-53459-532-0	01	1	9002-
109	BUFFER; STAB BAR	1-53459-533-0	01	1	9002-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> FRONT	1-51789-027-2	02	1	9307-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> REAR	1-51789-028-1	02	1	9307-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	9307-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	9307-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	9307-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-071-2	02	1	9307-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	9307-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	9307-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	9307-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	9307-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	9307-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	9307-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	9307-
275	BOOT; ROD END,TIE	1-43159-078-0	02	1	9307-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	9307-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	9307-
304	WASHER; PL (B) ID=12.5	9-09164-512-0	04	1	9411-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (A) ID=21	9-09164-520-0	02	1	9307-
305	COVER; KNUCKLE	1-43175-021-0	02	1	9405-

51 50 66 52 255 61 37 66 42 81 58 59 36 58 8 6 37 43 17 18 40 2 106 108 6 8 8 5 106 108 107 61 103 104 107 9 11 68 71 73 103 103 109 103 104 67 3 109 74 75 77 79 72 72 78 32 8 105 6 105 25 6 8 8 9 2 34 33 60 21 11 1 32 30 21 30 25 34 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-051-4	01	1	9002-9306
1	AXLE; FRT	1-43111-107-4	01	1	9307-
2	KNUCKLE; FRT AXLE	1-43131-046-4	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43131-079-0	01	1	9405-
2	KNUCKLE; FRT AXLE	1-43132-046-3	01	1	9002-9404
2	KNUCKLE; FRT AXLE	1-43132-079-0	01	1	9405-
3	KING PIN SET	1-87830-039-5	02	1	9002-9306
3	KING PIN SET	1-87830-640-0	02	1	9307-9404
3	KING PIN SET	1-87830-738-0	02	1	9405-
5	PIN; KNUCKLE TO DRUM COVER	9-09878-625-0	02	1	9002-9404
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	9405-
6	SEAL; KING PIN	9-09926-024-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	9002-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	9002-
9	PLUG; KNUCKLE	9-09201-363-0	02	1	9002-9404
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	9002-
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	9002-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (A)	9-09031-110-0	02	1	9002-
21	NIPPLE; GREASE,KING PIN (B)	9-09031-210-0	02	1	9002-
25	BEARING; THRUST,KING PIN	1-09829-027-1	02	1	9002-9203
25	BEARING; THRUST,KING PIN	1-09829-043-2	02	1	9204-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	9002-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	9002-
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	9002-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9002-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9002-
36	ARM; KNUCKLE	1-43133-050-1	01	1	9002-9306
36	ARM; KNUCKLE	1-43133-057-1	01	1	9307-9404
36	ARM; KNUCKLE	1-43133-063-1	01	1	9405-
37	BOLT; KNUCKLE ARM (A) M22X167	1-09000-153-0	01	1	9002-9111
37	BOLT; KNUCKLE ARM (B) M22X179	1-09000-578-1	01	1	9112-
37	BOLT; KNUCKLE ARM (B) M22X179	9-09806-848-1	01	1	9002-9111
37	BOLT; KNUCKLE ARM (A) M22X167	9-09806-847-3	01	1	9112-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	9002-
42	JOINT; BALL,KNUCKLE ARM	1-44361-100-0	01	1	9002-9306
43	NUT; JOINT BALL,KNUCKLE ARM M24 SLOTTED	1-09442-020-0	01	1	9002-9306
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	9002-
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	9002-
51	BOLT; POWER CHAMBER BRKT M12X60	9-91056-260-0	02	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X60	0-10806-260-0	02	1	9006-
51	BOLT; POWER CHAMBER BRKT M12X28	9-92051-228-0	06	1	9002-9005
51	BOLT; POWER CHAMBER BRKT M12X28	0-20801-228-0	06	1	9006-
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	9002-
58	ARM; TIE ROD	1-43135-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43135-044-1	01	1	9405-
58	ARM; TIE ROD	1-43134-021-1	01	1	9002-9404
58	ARM; TIE ROD	1-43134-044-1	01	1	9405-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	9002-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	9002-
61	ROD END; TIE ROD	1-43150-631-2	01	1	9307-
61	ROD END; TIE ROD	1-43150-630-2	01	1	9307-
61	ROD END; TIE ROD L TYPE ENG<90L>	1-43150-436-1	01	1	9002-9306
61	ROD END; TIE ROD L TYPE ENG<90L>	1-43150-435-1	01	1	9002-9306
61	ROD END; TIE ROD V TYPE ENG<91L>	1-43150-440-1	01	1	9002-9306
61	ROD END; TIE ROD V TYPE ENG<91L>	1-43150-439-1	01	1	9002-9306
66	NUT; TIE ROD END M24	9-09844-669-2	02	1	9002-9306
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	9307-
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-512-0	04	1	9002-9207
67	WASHER; LK,TIE ROD END ID=12.2	9-09150-812-0	04	1	9208-9410
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	9002-
71	BOOT; TIE ROD END ID=31 & 49	1-43159-038-0	02	1	9002-9306
72	SEAT; BALL,TIE ROD JOINT	1-44371-012-1	04	1	9002-9306
73	NIPPLE; GREASE,TIE ROD END PT1/8 STRAIGHT	9-09031-010-0	02	1	9002-9306
74	NUT; TIE ROD END M12	9-99110-412-0	04	1	9002-9207
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	9208-
75	JOINT; BALL,DRAG LINK	9-44361-169-3	02	1	9002-9306
77	SPRING; TIE ROD END	9-09941-272-0	02	1	9002-9306
78	PLUG; ADJ,ROD END	1-44375-014-0	02	1	9002-9306
79	RING; SNAP,ADJ PLUG	1-09589-006-0	02	1	9002-9306
81	ROD; TIE L TYPE ENG<90L> L=1600	9-43151-118-1	01	1	9002-9306
81	ROD; TIE V TYPE ENG<91L> L=1605	1-43151-027-0	01	1	9002-9306
81	ROD; TIE L=1605	1-43151-027-0	01	1	9307-9407
81	ROD; TIE L=1600	1-43151-012-0	01	1	9408-
103	NUT; BRKT FIX M14	9-99110-514-0	02	1	9002-
103	NUT; BRKT FIX M10	9-09110-510-0	02	1	9307-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	9307-
104	WASHER; LK,BRKT ID=14.2	9-09150-614-0	02	1	9002-
105	BOLT; BRKT FIX M10X25	9-01911-025-0	02	1	9002-9002
105	BOLT; BRKT FIX M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	9307-
106	BOLT; CAP FIX M8X25 W/LK WASHER	9-01910-825-0	02	1	9002-9005
106	BOLT; CAP FIX M8X25 W/LK WASHER	0-50040-825-0	02	1	9006-9302
106	BOLT; CAP FIX M8X25 FLANGE	0-28080-825-0	02	1	9303-
107	BUSHING; STABILIZER BAR	1-53459-860-0	02	1	9002-9404
107	BUSHING; STABILIZER BAR EXC. TAIWAN EQUIPMENT(WW5)	1-53459-860-0	02	1	9405-
107	BUSHING; STABILIZER BAR TAIWAN EQUIPMENT(WW5)	1-53458-613-0	02	1	9405-
108	CAP	1-53459-392-1	02	1	9002-
109	BUFFER; STAB BAR	1-53459-532-0	01	1	9002-
109	BUFFER; STAB BAR	1-53459-533-0	01	1	9002-
255	PIN; SPLIT,JOINT BALL OD=4.6 L=35	9-08115-035-0	01	1	9002-9306

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
