◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#35991) — 134 parça

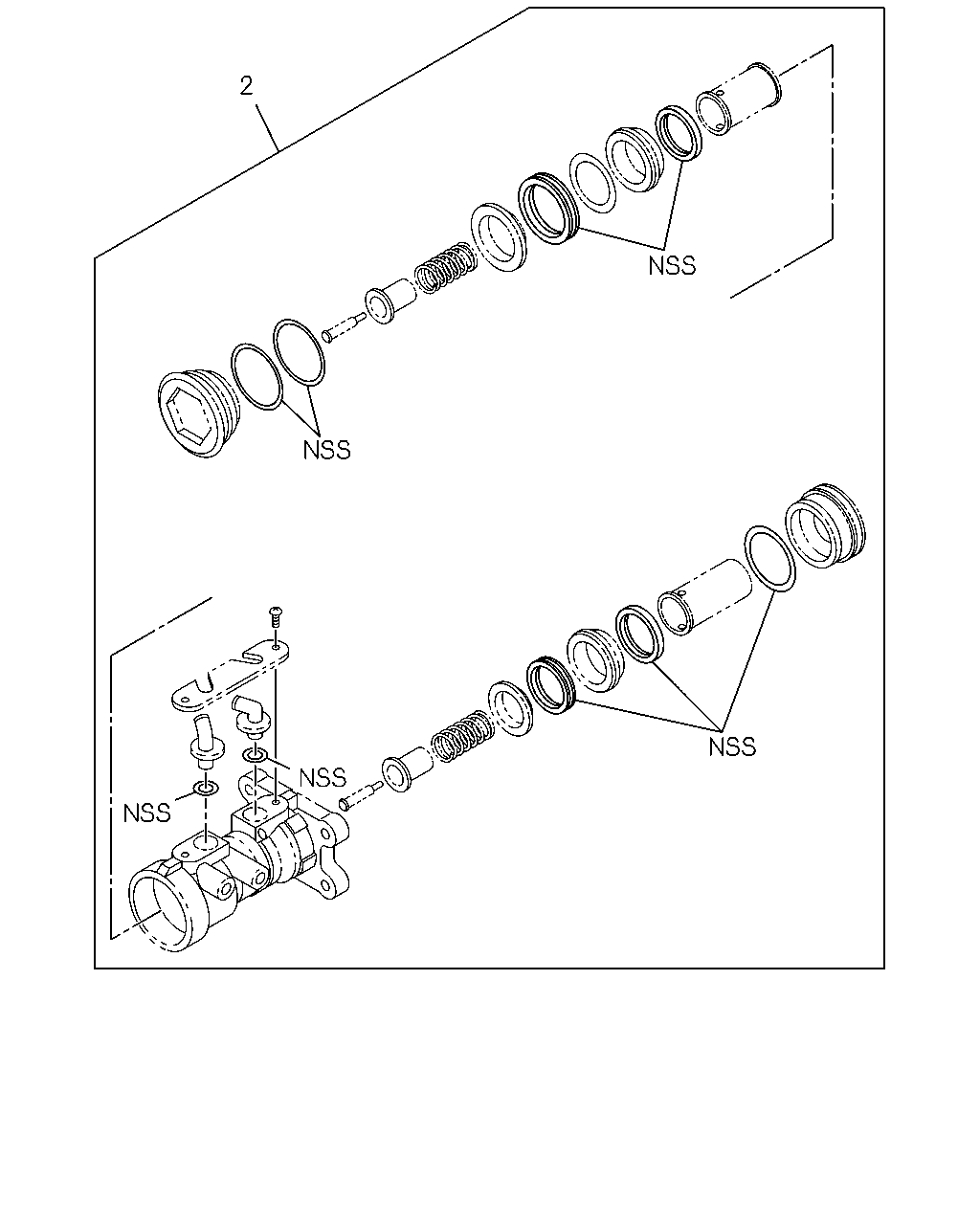

çizim 76445
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97141-423-0 01 1 1501- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1012- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-471-0 01 1 1012- ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-471-0 01 1 1012- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-471-0 01 1 1012- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-470-0 01 1 1012-1412 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97130-470-0 01 1 1012-1412 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97130-470-0 01 1 1501- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97130-470-0 01 1 1501- ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97254-775-0 01 1 1012-1406 ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97254-775-0 01 1 1012-1406 ●
2 04.649 REPAIR KIT; BRK,M/CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97254-775-0 01 1 1407- ●
2 04.649 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97254-775-0 01 1 1407- ●

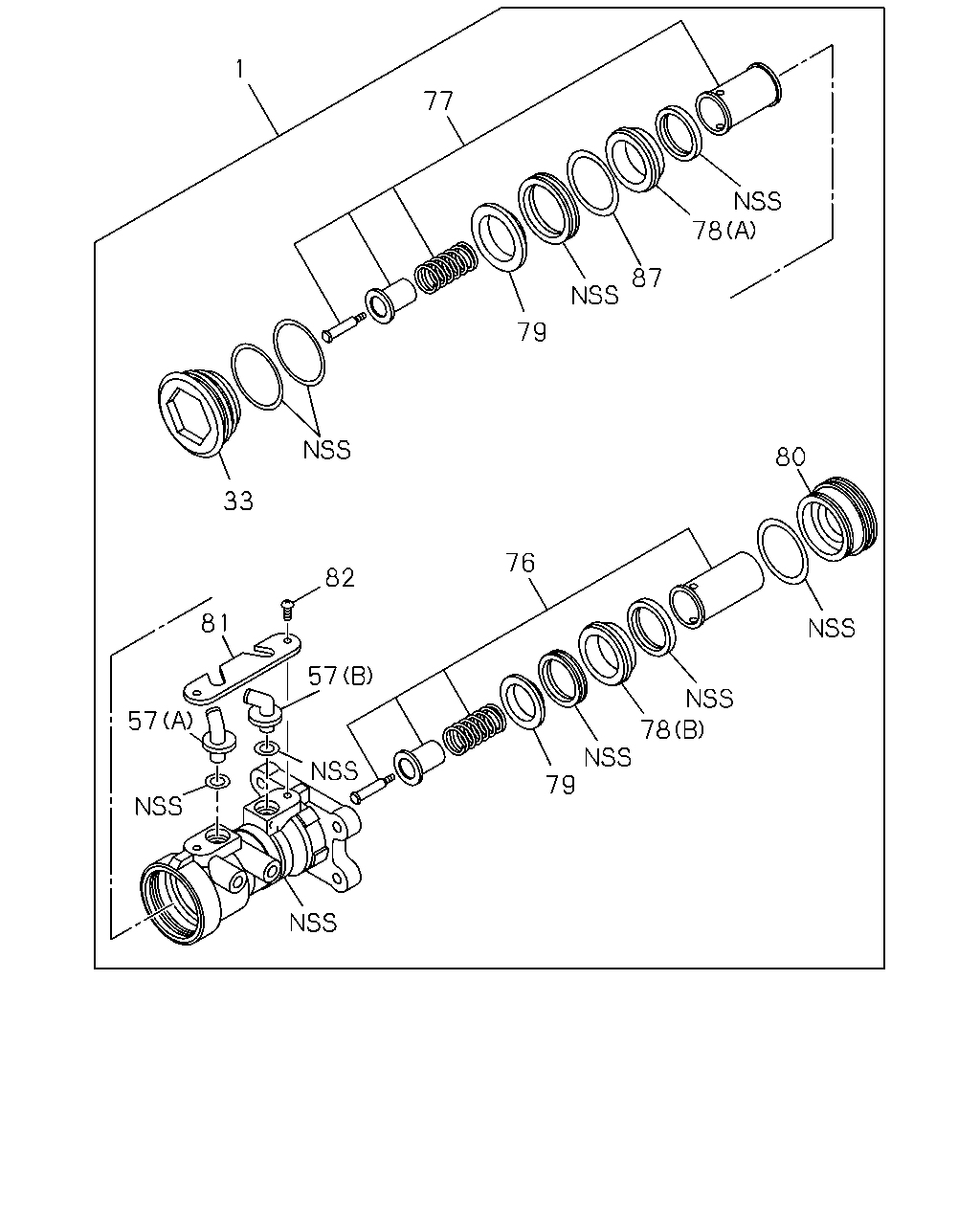

çizim 76485
1 77 78 87 79 80 33 76 82 81 57 78 79 57
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98093-122-0 01 1 1501- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 1012- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98032-602-0 01 1 1012- ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98032-602-0 01 1 1012- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON(RPW) 		8-98032-602-0 01 1 1012- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-98032-617-0 01 1 1012-1412 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) 		8-98032-617-0 01 1 1012-1412 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-98032-617-0 01 1 1501- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV) 		8-98032-617-0 01 1 1501- ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98032-603-0 01 1 1012-1406 ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98032-603-0 01 1 1012-1406 ●
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-98032-603-0 01 1 1407- ●
1 04.650 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER(7QQ) 		8-98032-603-0 01 1 1407- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97186-698-0 01 1 1501- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1012- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97186-697-0 01 1 1012- ●
33 04.661 PLUG; END,M/CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97186-697-0 01 1 1012- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97186-697-0 01 1 1012- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97186-696-0 01 1 1012-1412 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97186-696-0 01 1 1012-1412 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97186-696-0 01 1 1501- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97186-696-0 01 1 1501- ●
33 04.661 PLUG; END,M/CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97186-699-0 01 1 1012-1406 ●
33 04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97186-699-0 01 1 1012-1406 ●
33 04.661 PLUG; END,M/CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97186-699-0 01 1 1407- ●
33 04.661 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97186-699-0 01 1 1407- ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1012- ● ● ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1012- ● ● ● ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-639-0 01 1 1501- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1012- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-643-0 01 1 1012- ●
76 04.653 PISTON ASM; PRIMARY
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-643-0 01 1 1012- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-643-0 01 1 1012- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-636-0 01 1 1012-1412 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) 		8-97224-636-0 01 1 1012-1412 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97224-636-0 01 1 1501- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV) 		8-97224-636-0 01 1 1501- ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97224-641-0 01 1 1012-1406 ●
76 04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER(7QQ) 		8-97224-641-0 01 1 1012-1406 ●
76 04.653 PISTON ASM; PRIMARY
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97224-641-0 01 1 1407- ●
76 04.653 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER(7QQ) 		8-97224-641-0 01 1 1407- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-637-0 01 1 1501- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1012- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-642-0 01 1 1012- ●
77 04.653 PISTON ASM; SECONDARY
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-642-0 01 1 1012- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON(RPW) 		8-97224-642-0 01 1 1012- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97224-635-0 01 1 1012-1412 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) 		8-97224-635-0 01 1 1012-1412 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97224-635-0 01 1 1501- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV) 		8-97224-635-0 01 1 1501- ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97224-640-0 01 1 1012-1406 ●
77 04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER(7QQ) 		8-97224-640-0 01 1 1012-1406 ●
77 04.653 PISTON ASM; SECONDARY
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97224-640-0 01 1 1407- ●
77 04.653 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER(7QQ) 		8-97224-640-0 01 1 1407- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97141-410-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97217-830-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97130-455-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97130-455-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97130-455-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97217-312-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97217-312-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97217-312-0 01 1 1012- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97130-454-0 01 1 1012-1412 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (A) 		8-97130-454-0 01 1 1012-1412 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) (A) 		8-97130-454-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (A) 		8-97130-454-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97217-310-0 01 1 1012-1412 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (B) 		8-97217-310-0 01 1 1012-1412 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) (B) 		8-97217-310-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) (B) 		8-97217-310-0 01 1 1501- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97170-695-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97170-695-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97170-695-0 01 1 1407- ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (A) 		8-97170-695-0 01 1 1407- ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97207-685-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97207-685-0 01 1 1012-1406 ●
78 04.651 BUSHING; MASTER CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97207-685-0 01 1 1407- ●
78 04.651 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) (B) 		8-97207-685-0 01 1 1407- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97141-417-0 02 1 1501- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1012- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-463-0 02 1 1012- ●
79 04.651 SUPPORTER; CUP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-463-0 02 1 1012- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-463-0 02 1 1012- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-462-0 02 1 1012-1412 ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) 		8-97130-462-0 02 1 1012-1412 ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97130-462-0 02 1 1501- ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV) 		8-97130-462-0 02 1 1501- ●
79 04.651 SUPPORTER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-698-0 02 1 1012-1406 ●
79 04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-698-0 02 1 1012-1406 ●
79 04.651 SUPPORTER; CUP
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-698-0 02 1 1407- ●
79 04.651 SUPPORTER; CUP
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-698-0 02 1 1407- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97141-404-0 01 1 1501- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1012- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-449-0 01 1 1012- ●
80 04.651 COVER; MASTER CYL
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-449-0 01 1 1012- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.5-7.0TON(RPW) 		8-97130-449-0 01 1 1012- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-448-0 01 1 1012-1412 ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97130-448-0 01 1 1012-1412 ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97130-448-0 01 1 1501- ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV) 		8-97130-448-0 01 1 1501- ●
80 04.651 COVER; MASTER CYL
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-692-0 01 1 1012-1406 ●
80 04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-692-0 01 1 1012-1406 ●
80 04.651 COVER; MASTER CYL
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-692-0 01 1 1407- ●
80 04.651 COVER; MASTER CYL
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-692-0 01 1 1407- ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1012- ● ● ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1012- ● ● ● ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) ALGERIA EQUIPMENT(WN1) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97141-413-0 01 1 1501- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1012- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-459-0 01 1 1012- ●
87 04.662 SPACER; CUP
EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-459-0 01 1 1012- ●
87 04.662 SPACER; CUP
G.V.W. 6.5-7.0TON(RPW) 		8-97130-459-0 01 1 1012- ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. HYDRO BRAKE BOOSTER(7QQ) 		8-97130-458-0 01 1 1012-1412 ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) 		8-97130-458-0 01 1 1012-1412 ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) EXC. ALGERIA EQUIPMENT(WN1),HYDRO BRAKEBOOSTER(7QQ) 		8-97130-458-0 01 1 1501- ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV) 		8-97130-458-0 01 1 1501- ●
87 04.662 SPACER; CUP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-696-0 01 1 1012-1406 ●
87 04.662 SPACER; CUP
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-696-0 01 1 1012-1406 ●
87 04.662 SPACER; CUP
G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) HYDRO BRAKE BOOSTER(7QQ) 		8-97170-696-0 01 1 1407- ●
87 04.662 SPACER; CUP
HYDRO BRAKE BOOSTER(7QQ) 		8-97170-696-0 01 1 1407- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
