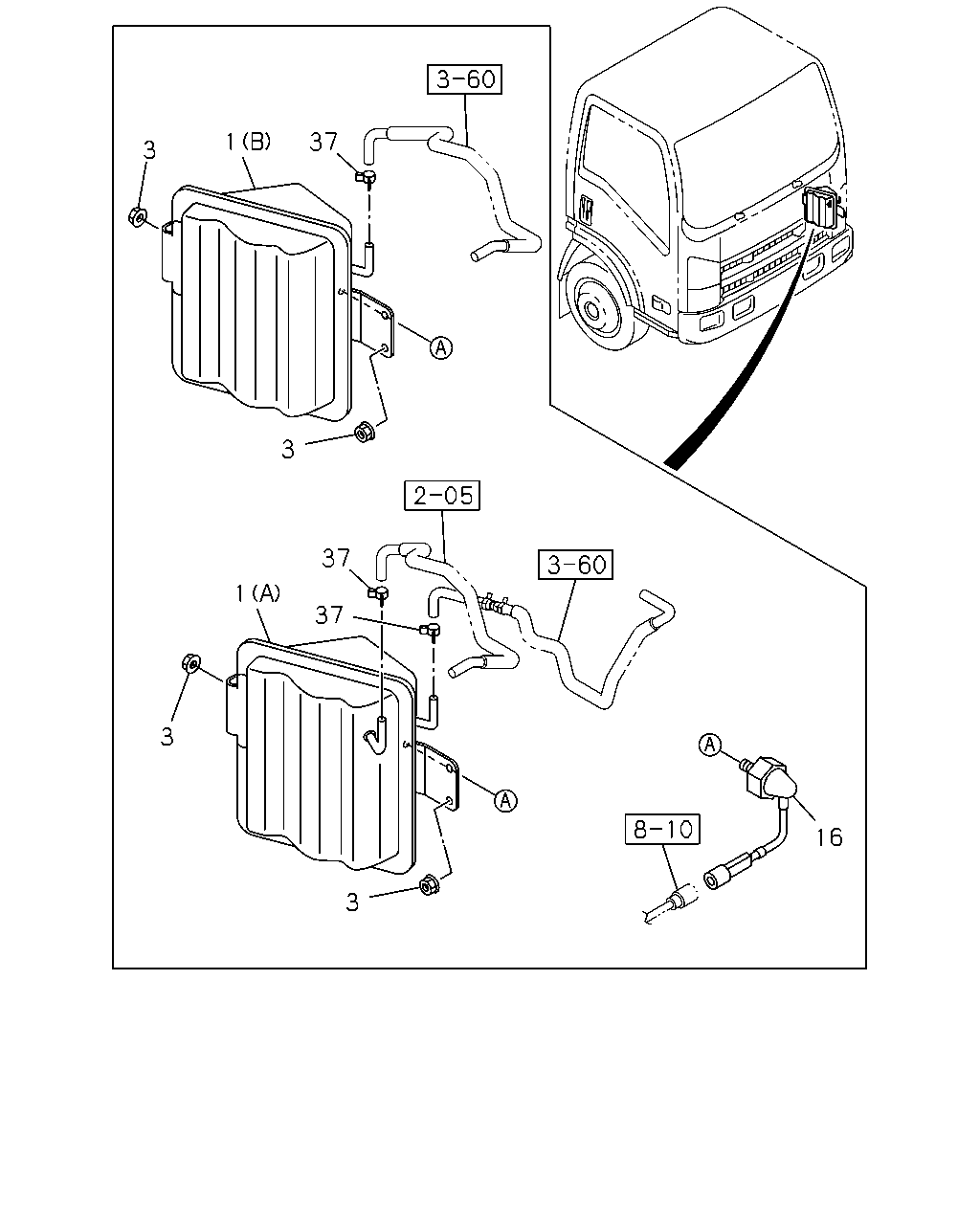

3-21 — VACUUM TANK
(#35990) — 17 parça
Tümü
A - NPR6SE
B - NPR6SN
C - NPR6SS
D - NPR6WN
◀
[321A] HYDRO BRAKE BOOSTER (8 parça)
[321A] EXC.HYDRO BRAKE BOOSTER (9 parça)
▶
37
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-123-0
01
1
1012-
●
●
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1012-
●
●
●
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-292-0
01
1
1012-
●
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1012-
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1012-
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
1
37
3
3
37
1
37
3
16
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) (A)
8-98009-123-0
01
1
1012-
●
●
●
●
1
04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) (B)
8-98009-124-1
01
1
1012-
●
●
●
●
1
04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) (C)
8-98032-292-0
01
1
1012-
●
●
3
04.902 NUT; VAC TANK TO BRKT
04.785
8-98008-071-0
03
1
1012-
●
●
●
●
16
04.906 SWITCH; VAC
EXC. HYDRO BRAKE BOOSTER(7QQ)
8-98049-417-0
01
1
1012-
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
02
1
1012-
●
●
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
37
04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
37
04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER(7QQ) 04.681 ID=15.5
8-94367-944-0
01
1
1012-
●
●
