◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10672 - EXR LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#3599) — 36 parça

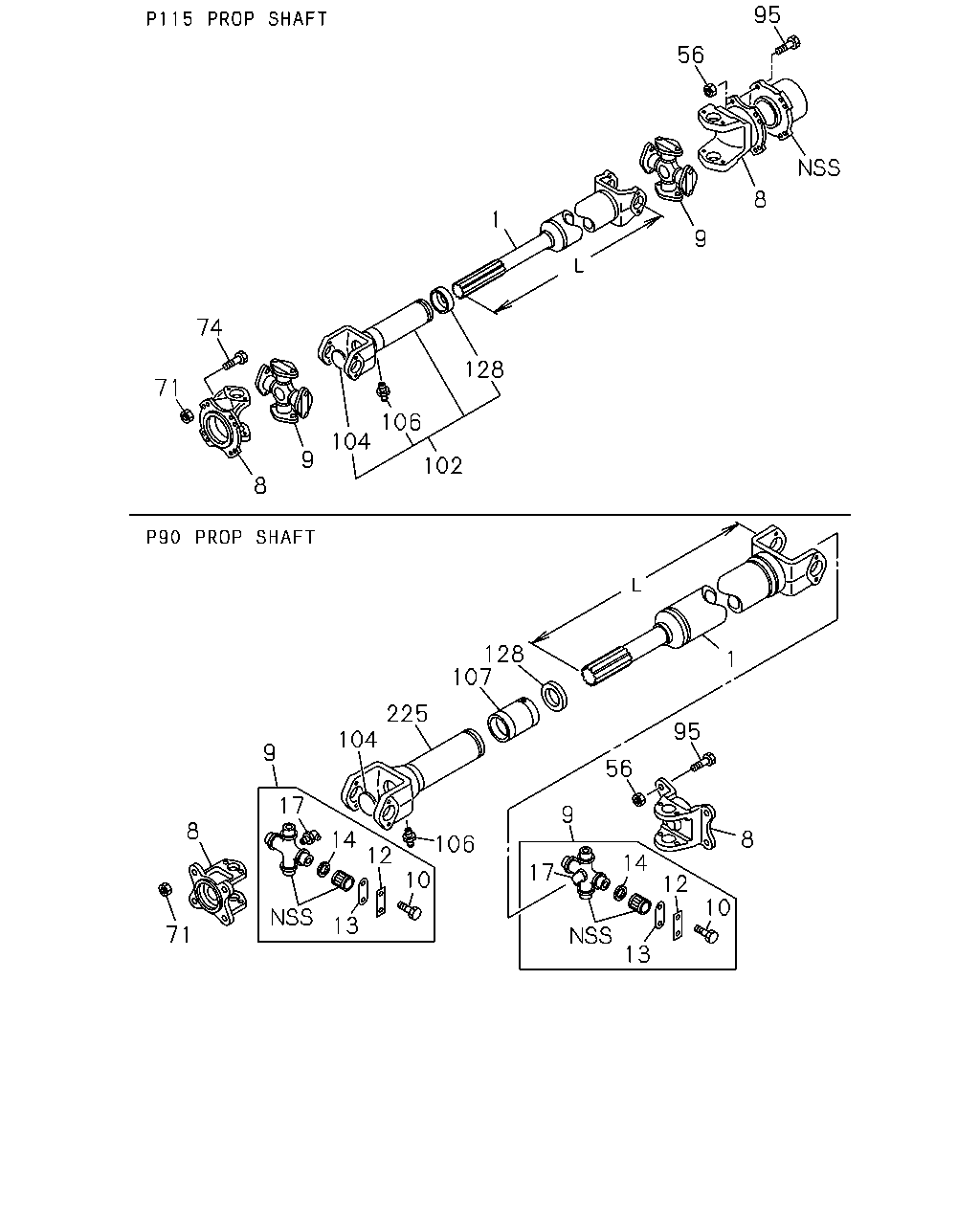

çizim 2948
95 56 8 1 9 74 128 71 106 104 9 102 8 128 107 1 225 104 95 9 56 17 9 8 8 14 106 12 14 17 10 12 10 13 71 13
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA6 M/T<X9S> P115 PROP SHAFT(C5X) L=1153 		1-37117-701-0 01 1 9002-
1 SHAFT; PROP
10PD1 STD ENG(40L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) L=1067 		1-37117-428-0 01 1 9002-
1 SHAFT; PROP
10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) L=1098 		1-37117-721-0 01 1 9002-
1 SHAFT; PROP
12PD1 C ENG(43L) MJA7 M/T<X9Q> P115 PROP SHAFT(C5X) L=1000 		1-37123-136-0 01 1 9307-
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA6 M/T<X9S> P90 PROP SHAFT(C5T) L=972 		1-37117-550-0 01 1 9002-
1 SHAFT; PROP
6RB1 STD ENG(07L) MJA7 M/T<X9Q> P90 PROP SHAFT(C5T) L=1039 		1-37117-551-0 01 1 9002-
1 SHAFT; PROP
6RB1 STD ENG(07L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT(C5X) L=893 		1-37117-557-0 01 1 9002-
1 SHAFT; PROP
6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT(C5X) L=973 		1-37117-556-0 01 1 9012-
1 SHAFT; PROP
6RB1 STD ENG(07L),10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT(C5X) L=973 		1-37117-556-0 01 1 9002-9011
1 SHAFT; PROP
6RB1 STD ENG(07L),6RB1TC-N ENG(29L) MJA7 M/T<X9Q> P115 PROP SHAFT(C5X) L=838 		1-37123-075-0 01 1 9002-
8 YOKE; FLANGE,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37211-047-2 02 1 9002-
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37211-050-1 02 1 9002-
9 JOURNAL ASM; PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37300-062-0 02 1 9002-
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-082-0 02 1 9002-
10 BOLT; UJT
P90 PROP SHAFT(C5T) M8X20 		9-09802-702-0 16 1 9002-
12 PLATE; LK,FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-37356-006-1 08 1 9002-
13 COVER; FRT UJT,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37355-003-1 08 1 9002-
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) 		1-37249-130-0 08 1 9105-
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5? 		9-09031-110-0 02 1 9002-
56 NUT; YOKE
P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 08 1 9002-
56 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9002-
71 NUT; YOKE
P115 PROP SHAFT(C5X) M16 FLANGE 		1-09449-065-0 08 1 9002-
71 NUT; YOKE
P90 PROP SHAFT(C5T) M16 FLANGE 		1-09449-065-0 04 1 9002-
74 BOLT; YOKE,TRANS
P115 PROP SHAFT(C5X) FULLER M/T<X9B> M16X48 		1-09000-383-0 08 1 9002-
95 BOLT; YOKE,FINAL
P115 PROP SHAFT(C5X) M16X48 		1-09000-383-0 08 1 9002-
95 BOLT; YOKE,FINAL
P90 PROP SHAFT(C5T) M16X48 		1-09000-383-0 04 1 9002-
102 YOKE; TRANSFER TO AXLE
P115 PROP SHAFT(C5X) 		1-37240-086-0 01 1 9002-
104 PLUG; SLEEVE YOKE
P115 PROP SHAFT(C5X) 		1-37248-011-0 01 1 9002-
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) 		1-09600-067-0 01 1 9002-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P115 PROP SHAFT(C5X) 		1-37248-010-0 01 1 9002-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) 		9-09031-010-0 01 1 9002-
107 COVER; RET,SLEEVE
P90 PROP SHAFT(C5T) 		1-37249-039-1 01 1 9002-
128 SEAL; SLEEVE
P115 PROP SHAFT(C5X) 		1-37247-013-0 01 1 9002-
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) 		1-37247-016-0 01 1 9002-
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37241-090-1 01 1 9002-9106
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37241-097-0 01 1 9107-
