3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#35989) — 68 parça

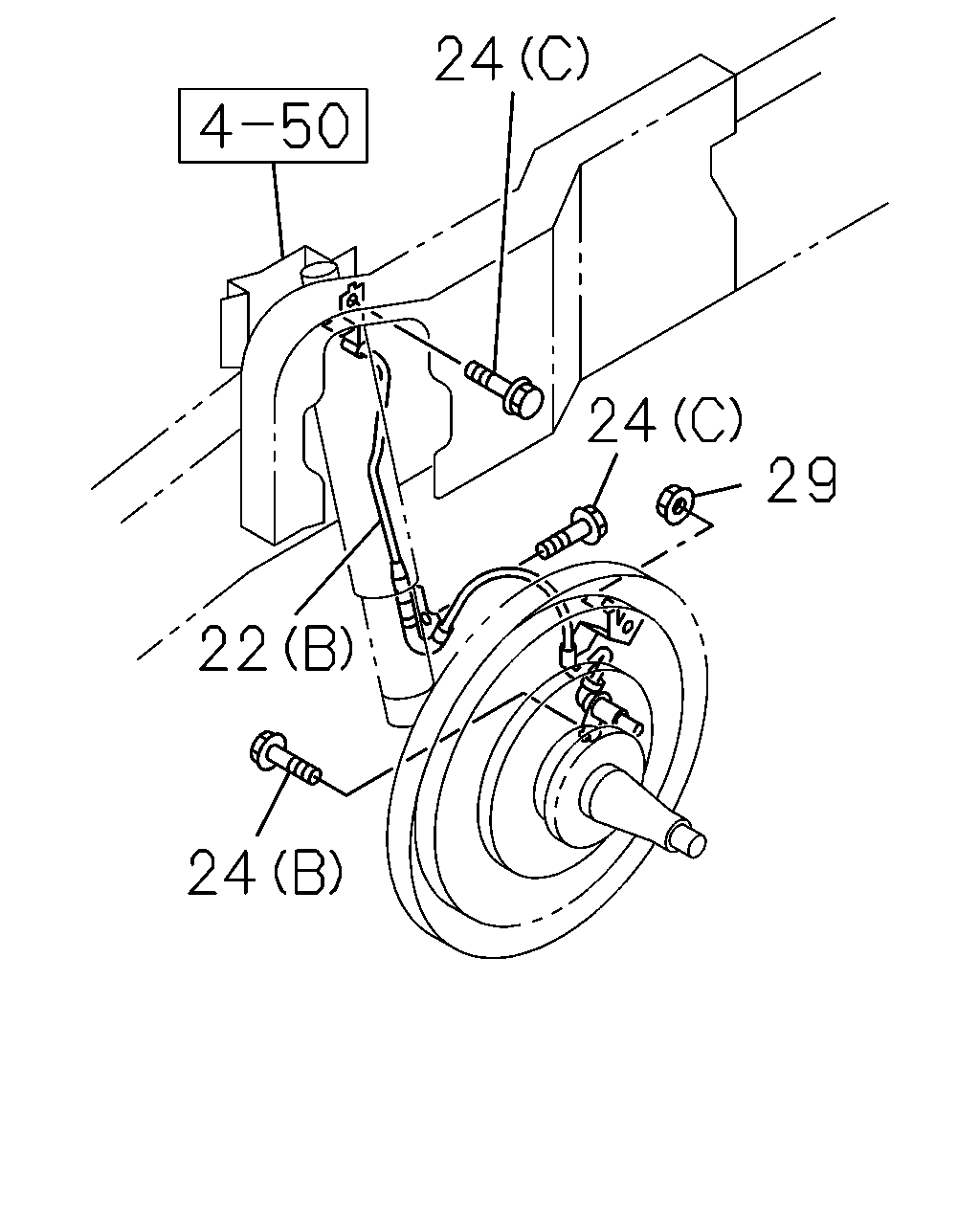

24 24 29 22 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1501-	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1012-1401	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-1407	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1408-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1012-1406	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1012-1406	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1012-1408	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-393-0	01	1	1409-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1012-1408	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-394-0	01	1	1409-	●	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1012-1401	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-1407	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1408-1412	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1501-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1012-1310	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-1111	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1112-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-1111	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1407-	●	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1012-1406	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	04	1	1407-	●	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1406	●
29	04.730 NUT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 01.062 M8 FLANGE	0-91180-108-0	02	1	1407-	●	●

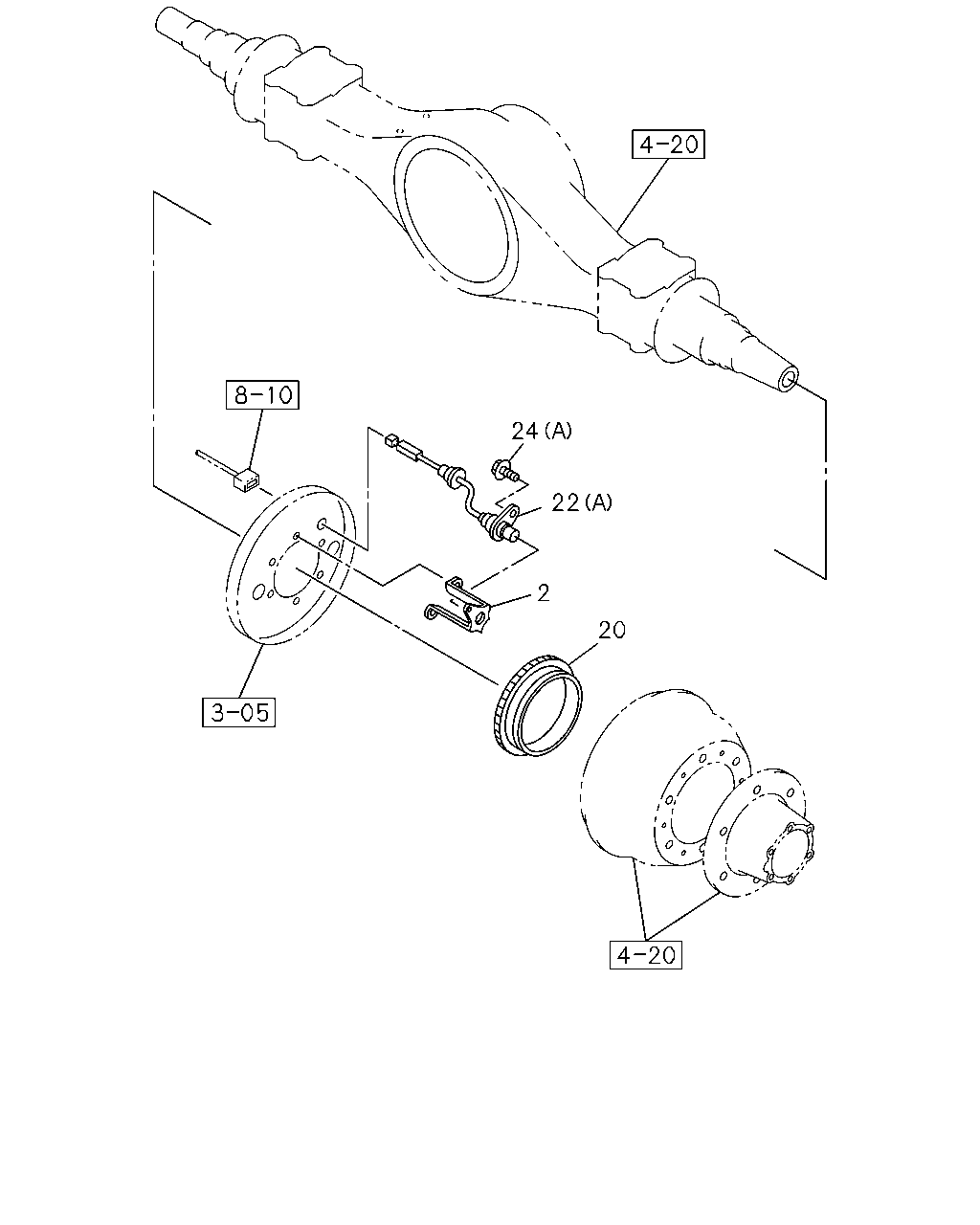

24 22 2 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	04.730 BRACKET; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-98000-019-2	02	1	1408-1412	●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-98000-019-2	02	1	1501-	●
2	04.730 BRACKET; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-440-1	02	1	1012-1407	●
2	04.730 BRACKET; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-98002-440-1	02	1	1408-	●
2	04.730 BRACKET; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98002-440-1	02	1	1408-		●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97234-459-3	02	1	1501-	●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 6.0-6.5TON(RPV)	8-97206-774-4	02	1	1408-	●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97206-775-3	02	1	1012-1407	●
20	04.710 ROTOR; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY)	8-97206-775-3	02	1	1408-	●
20	04.710 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97206-775-3	02	1	1408-		●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98219-351-0	02	1	1501-	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98002-215-1	02	1	1012-1401	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1402-1407	●
22	04.710 SENSOR; SPEED REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.110 (A)	8-98219-354-0	02	1	1408-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1012-1406	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-211-2	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1012-1406	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> (B)	8-98132-212-2	01	1	1407-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-186-0	01	1	1012-1408	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-393-0	01	1	1409-	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98006-187-0	01	1	1012-1408	●	●
22	04.710 SENSOR; SPEED 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> (B)	8-98219-394-0	01	1	1409-	●	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (A) M6X10 FLANGE	0-28050-610-0	02	1	1012-1401	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1402-1407	●
24	04.730 BOLT; SENSOR REAR AXLE HEAVY DUTY 320MM(6CP) 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1408-1412	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (A) M6X16 FLANGE	0-28050-616-0	02	1	1501-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	1012-1310	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1311-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 09.242 (B) M6X16 FLANGE	0-28050-616-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	1012-1111	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1112-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRONT WIDE TREAD<7GV> 02.343 (C) M8X16 FLANGE	0-28050-816-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1012-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 02.343 (C) M8X12 FLANGE	0-28050-812-0	02	1	1407-	●	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. FRONT WIDE TREAD<7GV> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-1111	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1112-1406	●
24	04.730 BOLT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1407-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
