Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#35982) — 291 parça

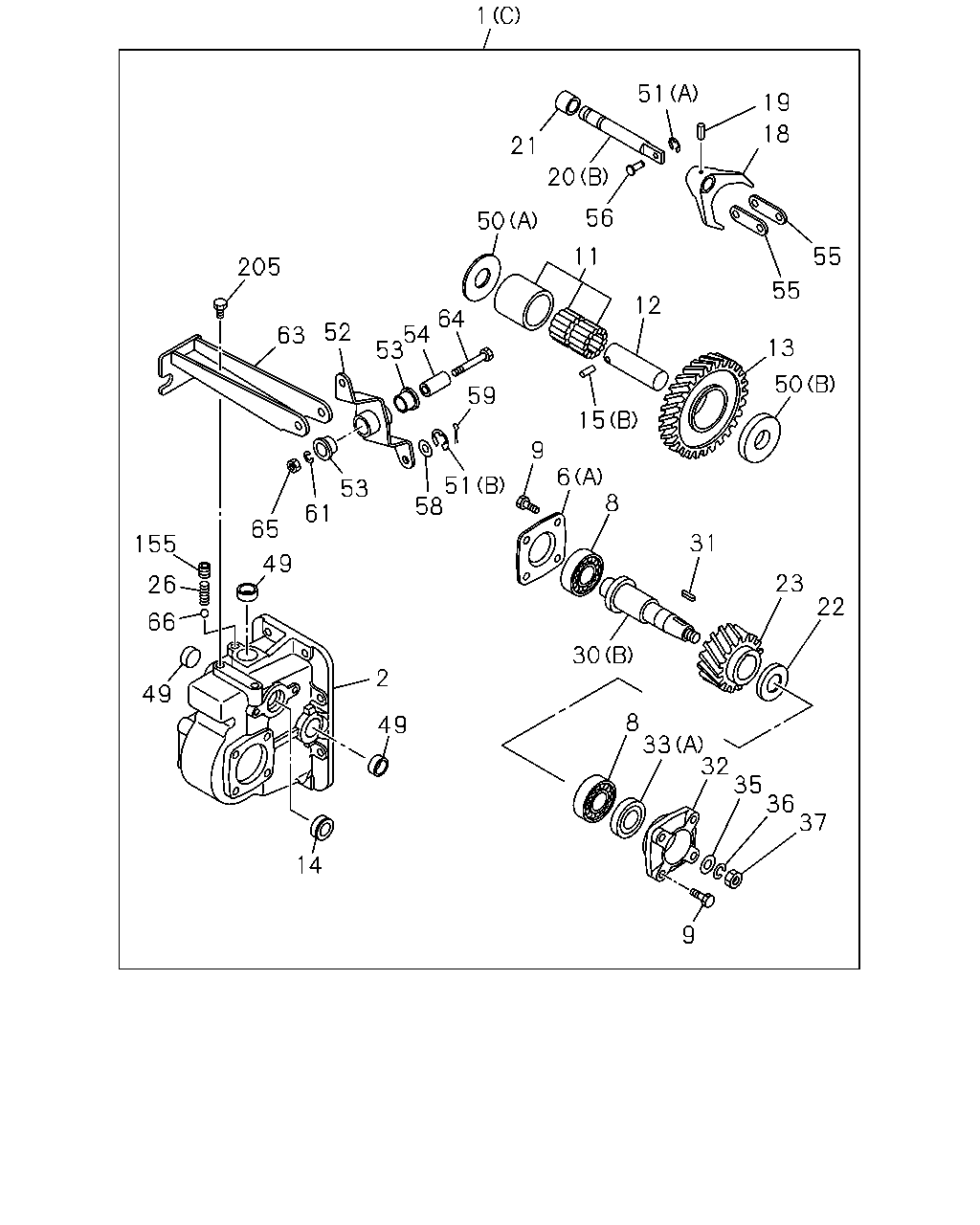

1 205 21 51 19 18 20 50 56 11 55 55 12 13 50 15 59 64 54 53 52 63 9 51 58 53 61 65 49 155 6 31 23 22 30 8 33 32 35 36 37 9 49 2 14 49 66 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (C) NO IDENTIFICATION	8-98047-033-0	01	1	1012-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	1012-1301	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-692-2	01	1	1012-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-383-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	1012-			●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-778-0	01	1	1306-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	1012-1301	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1012-1301			●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	1302-1305	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1302-1305			●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1306-			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-	●	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1012-1301	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1012-1301			●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1302-			●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	1012-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	1012-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	1012-			●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	1012-1301	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1302-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	1012-			●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (C) L=25 OD=5	8-94135-771-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=14	8-97175-890-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B) L=20 OD=4	9-09678-514-0	01	1	1012-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	1012-1301	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98088-695-0	01	1	1012-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	1012-			●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	1012-1301	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5	8-94135-771-0	01	1	1302-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	1012-			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98046-623-0	01	1	1012-1301	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C)	8-98046-623-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-709-1	01	1	1012-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	1012-			●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-619-0	01	1	1012-			●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	1012-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	1012-			●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	1012-1301	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97175-987-0	01	1	1012-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	1012-			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97374-129-1	01	1	1012-			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1012-1210			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98028-789-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	1012-	●	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	02	1	1012-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1012-1301	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1012-1301			●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1302-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1302-			●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1012-1301	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	1012-1301			●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1302-	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	1302-			●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	1012-	●	●	●	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98037-773-0	03	1	1012-			●	●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (A)	1-38226-058-1	01	1	1012-			●	●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (B)	8-97305-818-0	01	1	1012-			●	●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 16.585 (A) ID=6	0-91805-506-0	01	1	1012-			●	●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B) ID=8	0-91805-508-0	01	1	1012-			●	●
52	04.439 LEVER; CONT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98049-416-0	01	1	1012-			●	●
53	04.439 BUSHING; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	1012-			●	●
54	04.439 COLLAR; DIST,CONT LVR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	1012-			●	●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-938-0	02	1	1012-			●	●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-942-0	01	1	1012-			●	●
58	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 17.198 ID=10.5	0-91610-510-0	02	1	1012-			●	●
59	04.439 PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	0-82154-025-0	01	1	1012-			●	●
61	04.439 WASHER; LK,CONT LVR,TRANS SIDE P PTO TRANSMISSION SIDE(V66) 02.277 ID=10.2	0-91510-810-0	01	1	1012-			●	●
63	04.439 BRACKET; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98049-415-0	01	1	1012-			●	●
64	04.439 BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.685 M10X60 FLANGE	0-28051-060-0	01	1	1012-			●	●
65	04.439 NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.833 M10	0-91110-510-0	01	1	1012-			●	●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	1012-			●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	1012-			●	●
205	04.439 BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	1012-			●	●

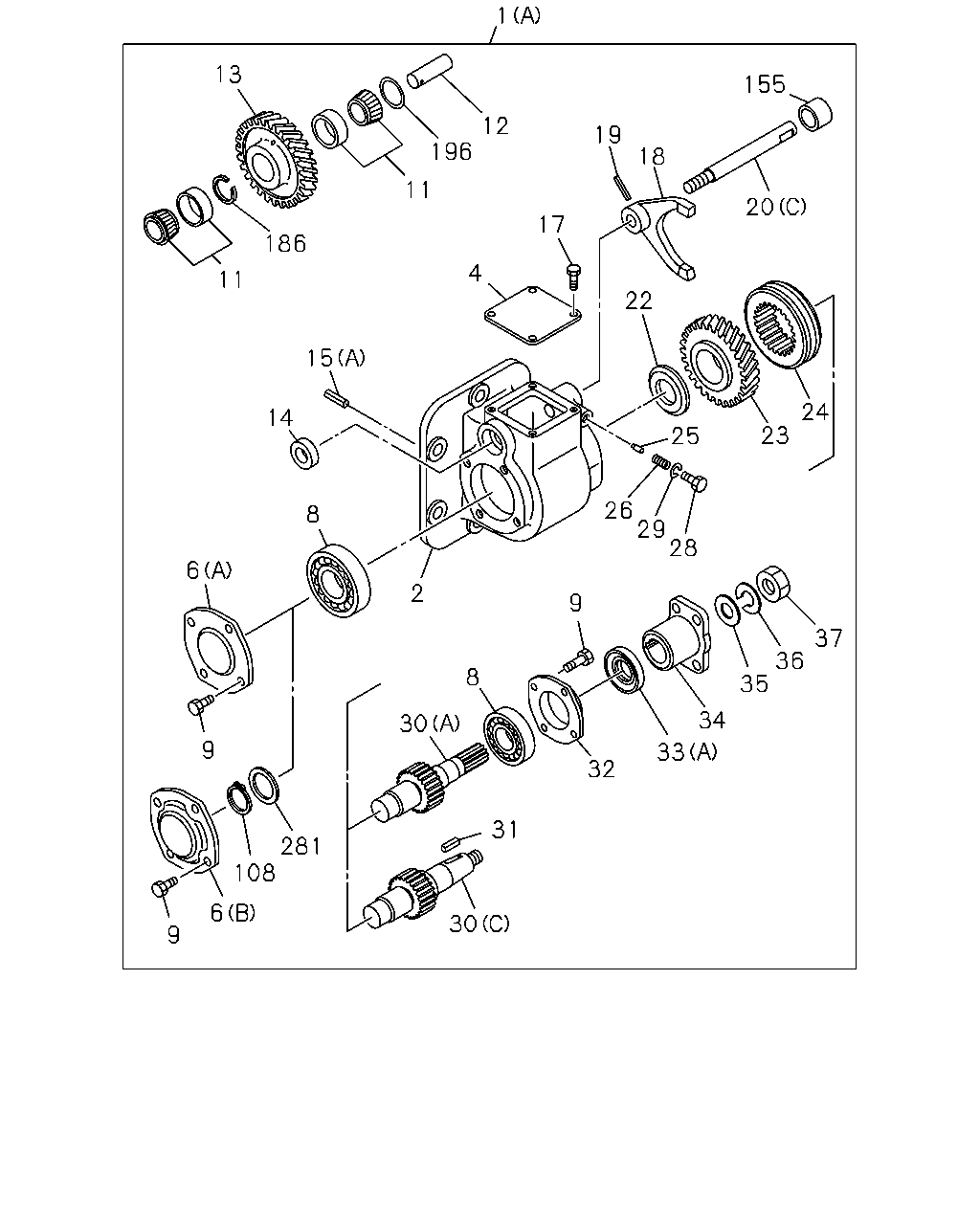

1 155 18 19 20 12 196 11 13 186 11 15 17 4 22 24 23 25 28 29 26 14 8 9 2 6 8 37 36 35 34 33 32 30 31 30 9 281 108 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (C) NO IDENTIFICATION	8-98047-033-0	01	1	1012-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	1012-1301	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-692-2	01	1	1012-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-383-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	1012-			●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-613-0	01	1	1012-1301	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98046-613-0	01	1	1302-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (B)	8-98233-778-0	01	1	1306-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	1012-1301	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1012-1301			●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-612-0	01	1	1302-1305	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1302-1305			●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	1306-			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-	●	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1012-1301	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1012-1301			●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1302-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	08	1	1302-			●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	1012-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	1012-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	1012-			●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	1012-1301	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98028-789-0	01	1	1302-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	1012-			●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (C) L=25 OD=5	8-94135-771-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=14	8-97175-890-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B) L=20 OD=4	9-09678-514-0	01	1	1012-			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1012-1301	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	1012-1301	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98088-695-0	01	1	1012-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	1012-			●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	1012-1301	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 04.303 L=25 OD=5	8-94135-771-0	01	1	1302-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	1012-			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98046-623-0	01	1	1012-1301	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C)	8-98046-623-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-709-1	01	1	1012-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	1012-			●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	1012-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	1012-			●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	1012-	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-94169-071-0	01	1	1012-1301	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-94169-071-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	1012-1301	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97175-987-0	01	1	1012-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	1012-			●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) M8	8-98038-424-0	01	1	1012-1301	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) M8	8-98038-424-0	01	1	1302-	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 ID=8.2	0-91510-808-0	01	1	1012-1301	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) 02.559 ID=8.2	0-91510-808-0	01	1	1302-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97374-129-1	01	1	1012-			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1012-1210			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98028-789-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	1012-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	1012-1210	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	02	1	1012-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1012-1301	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1012-1301			●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1302-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1302-			●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1012-1301	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	1012-1301			●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1302-	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	1302-			●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	1012-	●	●	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	1012-			●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	1012-	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●

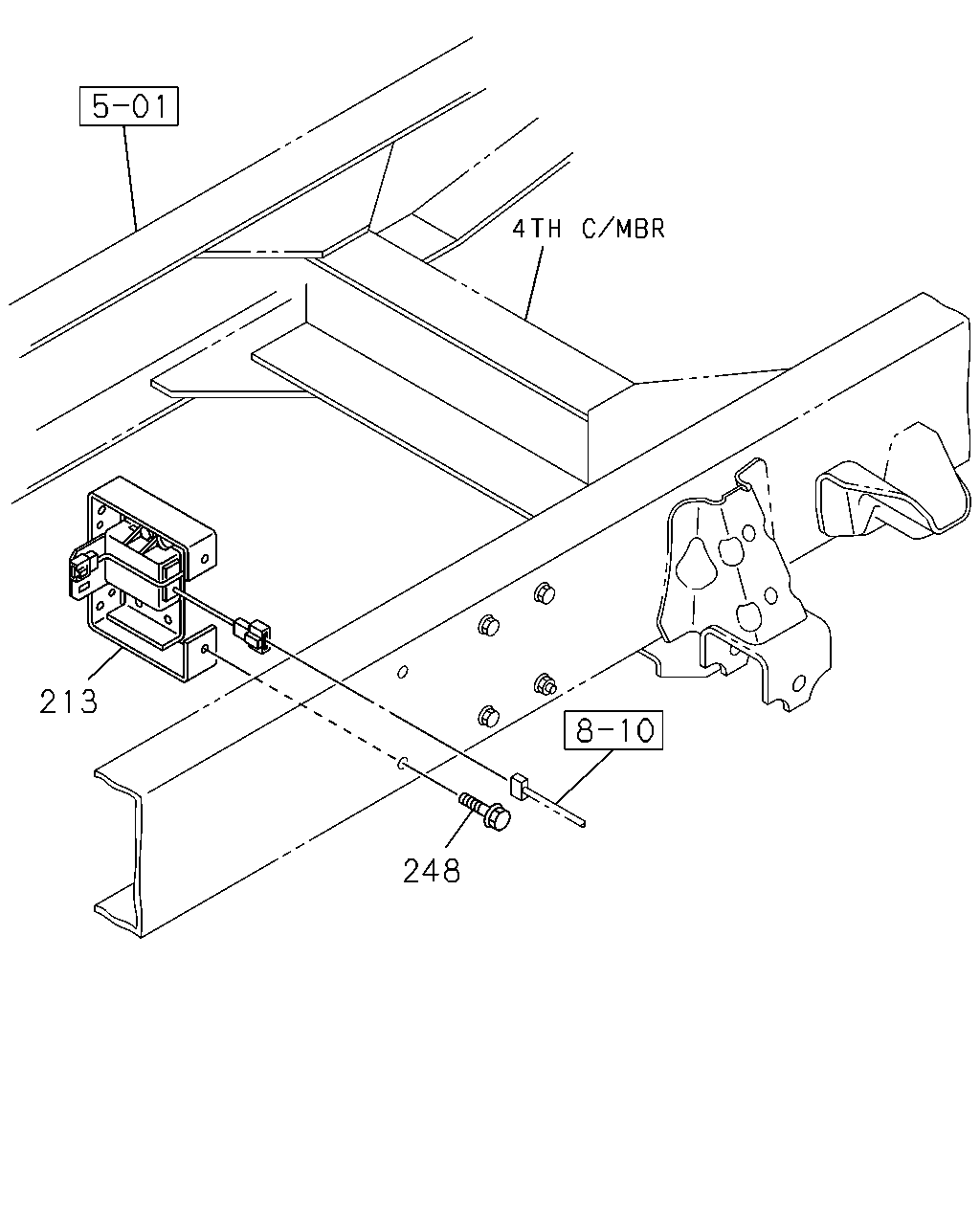

213 248

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
213	04.439 CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1012-1301	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1302-1408	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1409-1504	●	●
213	04.439 CONTROL UNIT; PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ)	8-98039-755-2	01	1	1409-1504		●
213	04.439 CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	1505-	●	●
248	04.439 BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1012-1301	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1302-1408	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1409-1504	●	●
248	04.439 BOLT; PTO CONT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1409-1504		●
248	04.439 BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	1505-	●	●

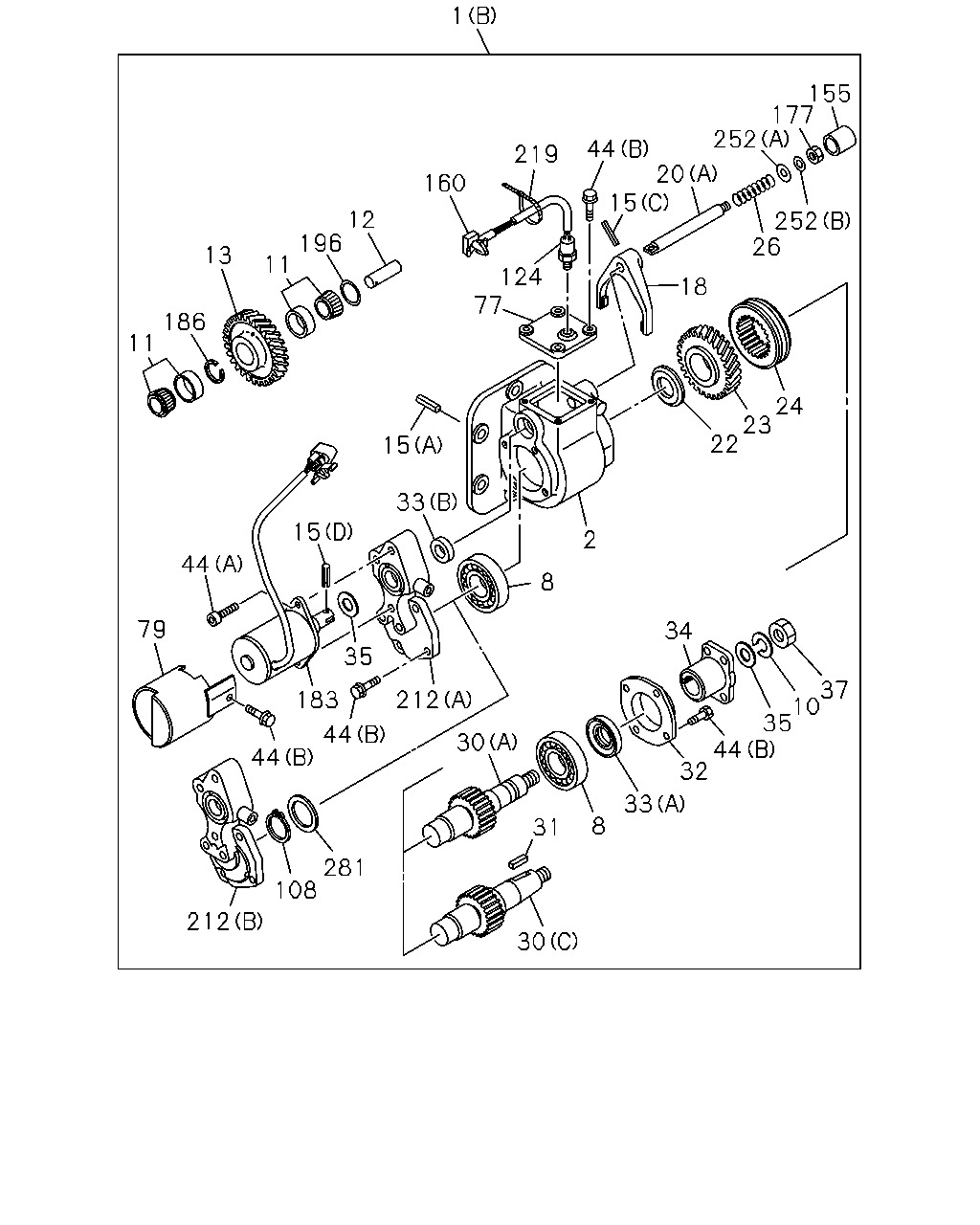

1 11 186 13 11 196 12 160 219 44 77 124 15 20 252 177 155 18 26 252 22 23 24 2 8 15 33 212 15 35 44 183 44 79 44 212 108 281 30 34 31 30 8 33 32 44 35 10 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1301	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1302-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98136-477-1	01	1	1012-1210	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98223-522-1	01	1	1211-1305	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) IDENTIFICATION=YT	8-98233-785-1	01	1	1306-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (C) NO IDENTIFICATION	8-98047-033-0	01	1	1012-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	1012-1301	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97308-689-2	01	1	1302-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-98282-381-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-692-2	01	1	1012-1409	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98282-383-0	01	1	1410-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	1012-			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	1012-	●	●	●	●
10	04.439 WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2	0-91510-814-0	01	1	1012-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	1012-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	1012-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	1012-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	1012-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	1012-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	1012-			●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (C) L=25 OD=5	8-94135-771-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) L=14	8-97175-890-0	01	1	1012-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B) L=20 OD=4	9-09678-514-0	01	1	1012-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	1012-1301	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	8-97224-702-0	01	1	1302-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98088-695-0	01	1	1012-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	1012-			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	8-98046-623-0	01	1	1012-1301	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) (C)	8-98046-623-0	01	1	1302-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-709-1	01	1	1012-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	1012-			●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	1012-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	1012-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	1012-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	1012-			●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	1012-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	1012-1301	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC)	9-09940-380-0	01	1	1302-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97175-987-0	01	1	1012-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	1012-			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	1012-1210	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-97374-129-1	01	1	1012-			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1012-1210			●	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-	●	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	1012-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98028-789-0	01	1	1012-	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	1012-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	1012-1210	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	02	1	1012-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1012-1301	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1012-1301			●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15	0-91610-514-0	01	1	1302-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	1302-			●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	1012-	●	●	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 (B) M8X20 FLANGE	0-28050-820-0	15	1	1012-	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.004 (A) M8X16 HEX SOCKET	0-58330-816-0	03	1	1012-	●	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-719-0	01	1	1012-	●	●
79	04.439 COVER; DUST,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-728-0	01	1	1012-	●	●
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-	●	●
124	04.439 SWITCH; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98031-760-1	01	1	1012-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	1012-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	1012-			●	●
160	04.439 CLIP; PTO A/T SIDE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 L=15	8-94315-436-1	01	1	1012-	●	●
177	04.439 NUT; SHIFT ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8	0-91110-508-0	01	1	1012-	●	●
183	04.439 SOLENOID ASM; PTO PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98136-076-1	01	1	1012-	●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	1012-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	1012-	●	●
212	04.439 ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-739-0	01	1	1012-1305	●	●
212	04.439 ADAPTER; SOLENOID PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98233-779-0	01	1	1306-	●	●
219	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97221-218-0	02	1	1012-	●	●
252	04.439 WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.417 (B) ID=8.4 OD=16	0-91610-508-0	01	1	1012-	●	●
252	04.439 WASHER; PL,SHIFTER ROD PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-97308-737-1	01	1	1012-	●	●
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
