◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#35977) — 42 parça
çizim 75974
8 525 41 9 249 185 22 401
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1012- ● ● ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1012-1311 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409- ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1012- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-505-1 01 1 1012-1012 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1101- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1012- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ● ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1012- ● ● ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1012- ● ● ● ●
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1012-1101 ●
525 04.040 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1102- ●

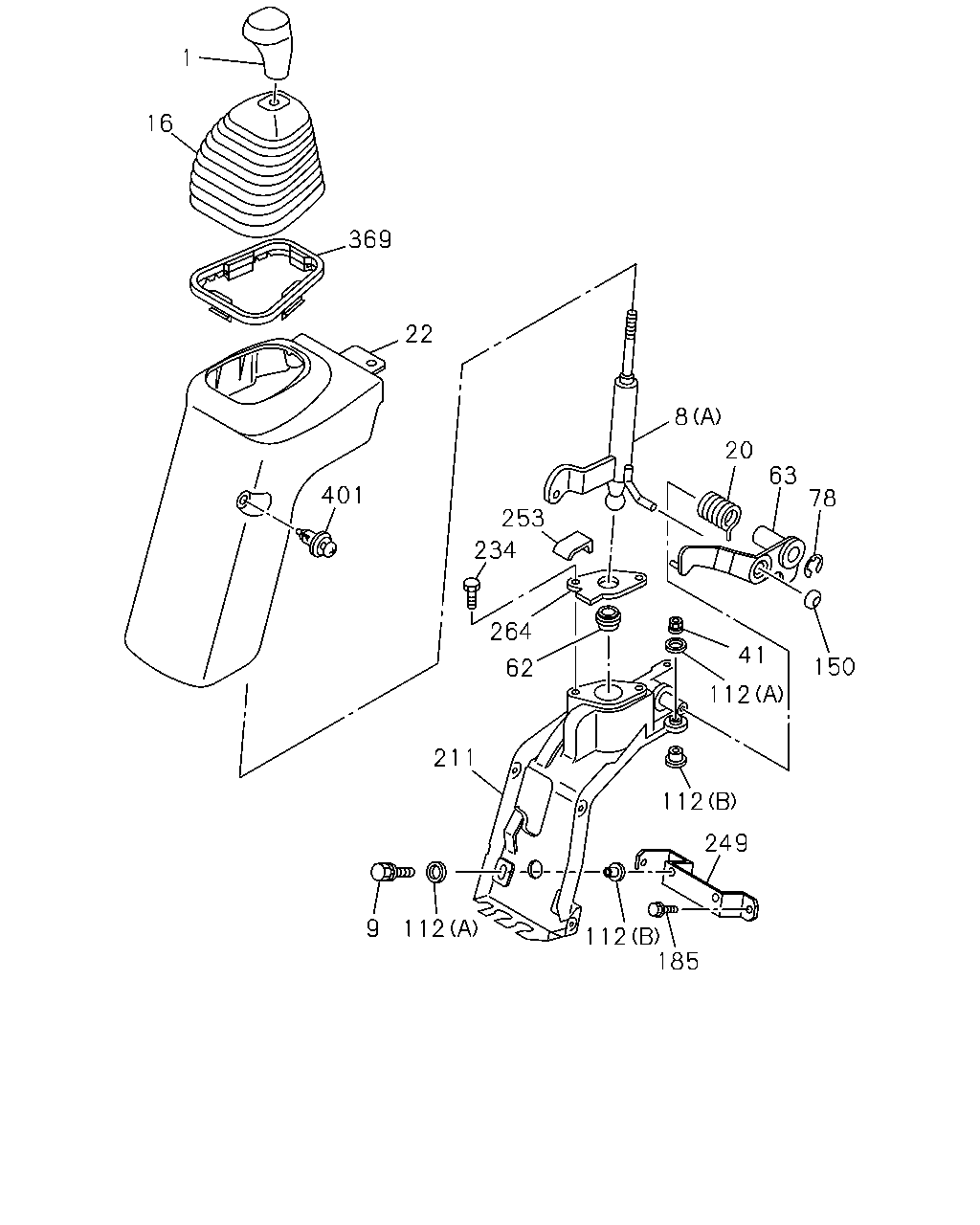

çizim 76483
1 16 369 22 8 20 63 401 78 253 234 264 41 150 62 112 211 112 249 112 185 9 112
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-286-1 01 1 1012- ●
1 04.006 KNOB; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK 		8-97196-287-1 01 1 1012- ● ● ●
8 04.006 LEVER; CHANGE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97204-506-0 01 1 1012- ● ● ● ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97421-816-0 01 1 1012-1311 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97429-048-0 01 1 1312-1408 ●
8 04.006 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DARK GRAY 		8-97465-739-1 01 1 1409- ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1012- ● ● ● ●
16 04.015 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98035-063-0 01 1 1012- ● ● ● ●
20 04.012 SPRING; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-514-1 01 1 1012- ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97411-505-1 01 1 1012-1012 ● ● ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97422-706-0 01 1 1101- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1012- ● ● ● ●
41 04.012 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ●
62 04.012 SEAT; BALL,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97011-895-1 01 1 1012- ● ● ● ●
63 04.006 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97143-199-0 01 1 1012- ●
63 04.006 LEVER; RELAY,SELECT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97163-768-0 01 1 1012- ● ● ●
78 04.008 RING; SNAP,CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10 		0-91805-510-0 01 1 1012- ● ● ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97091-426-0 04 1 1012- ● ● ● ●
112 04.012 RUBBER; CUSHION
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97091-427-0 04 1 1012- ● ● ● ●
150 04.008 BALL; DETENT,CONT LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97049-147-0 01 1 1012- ● ● ● ●
185 04.012 BOLT; BRKT,COVER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ● ● ●
211 04.010 BRACKET; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-505-1 01 1 1012- ● ● ● ●
234 04.010 BOLT; BRKT
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) M6X12 FLANGE 		1-33739-842-0 02 1 1012- ● ● ● ●
249 04.012 BRACKET; COVER 8-97387-767-0 01 1 1012- ● ● ● ●
253 04.012 STOPPER; CHANGE LEVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-510-0 01 1 1012- ● ● ● ●
264 04.015 PLATE; COVER
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97204-511-0 01 1 1012- ● ● ● ●
369 04.012 RETAINER; REINF
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-213-1 01 1 1012- ● ● ● ●
401 04.012 CLIP; COVER
GRAY 		8-97406-179-0 04 1 1012- ● ● ● ●
