◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#35970) — 6 parça

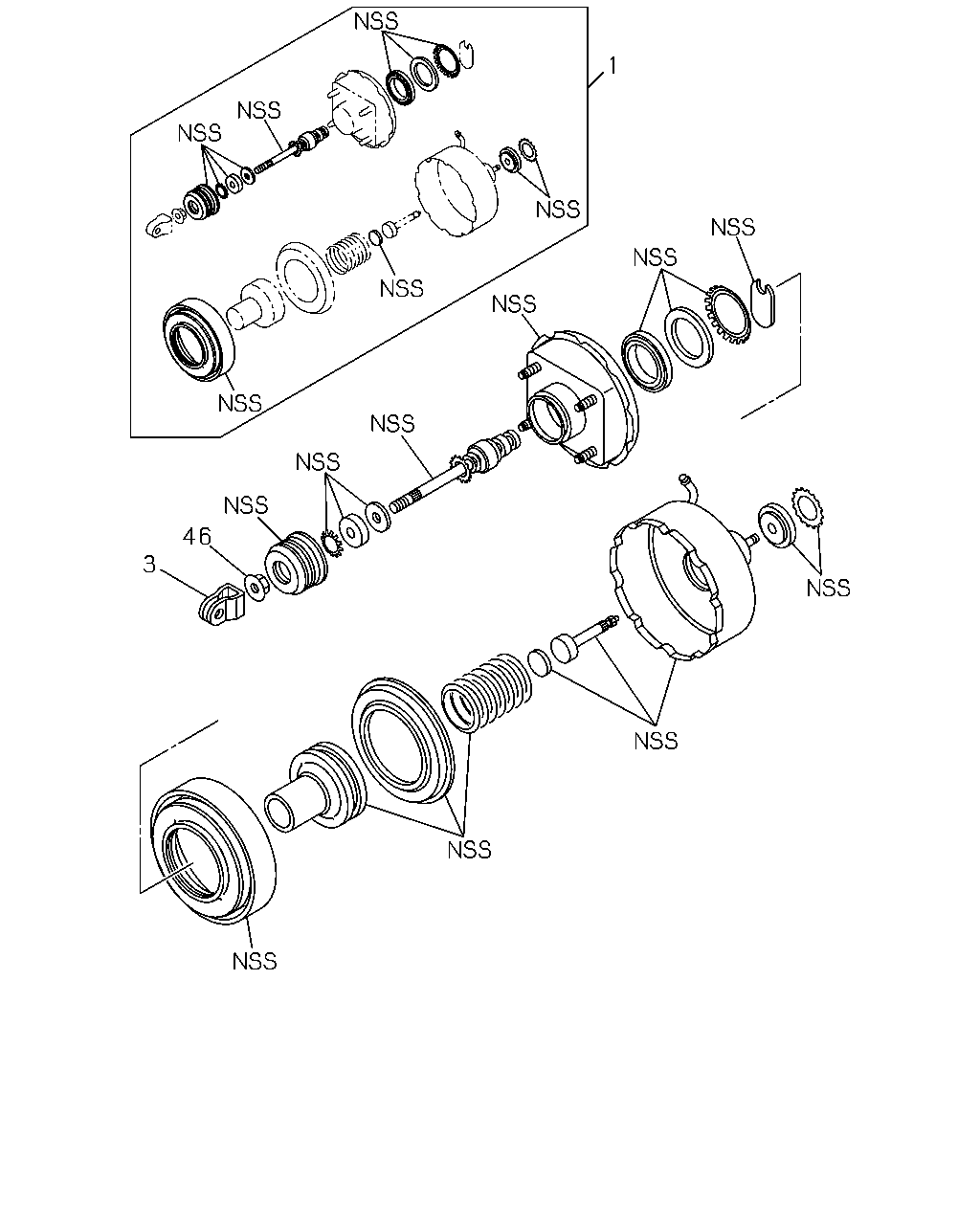

çizim 102994
1 46 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 1012-1012 ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-385-0 01 1 1101- ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 1012-1012 ● ● ● ●
1 00.775 REPAIR KIT; CLU BOOSTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98049-386-0 01 1 1101- ● ●
3 00.787 CLEVIS; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-147-0 01 1 1012- ● ● ● ●
46 00.787 NUT; PUSH ROD,CLU BOOSTER
POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97174-148-0 01 1 1012- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
