3-80 — BRAKE PIPING; TRAILER (#3597) — 203 parça

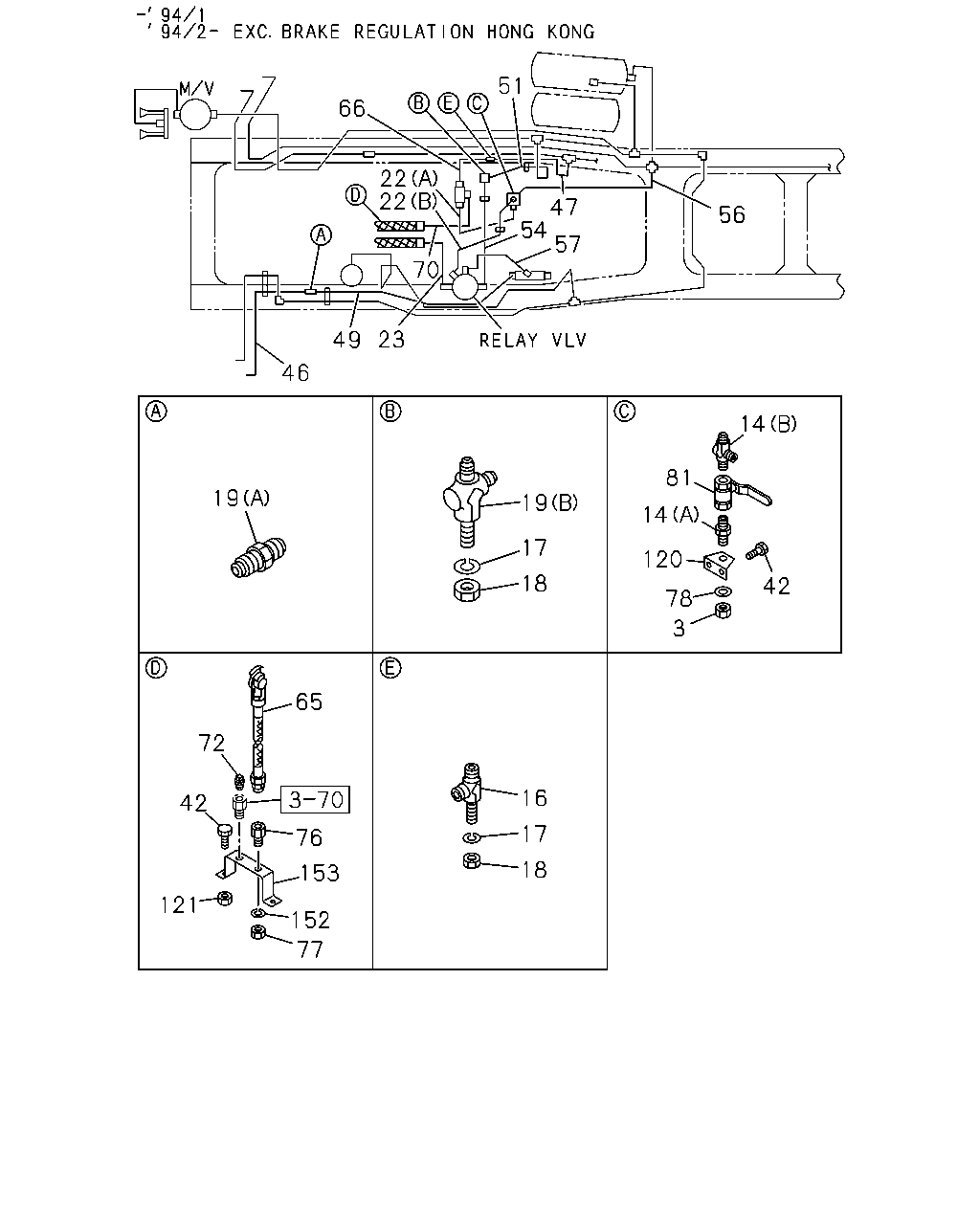

51 66 22 22 47 54 57 56 70 23 49 46 14 81 19 19 14 17 120 18 42 78 3 65 72 16 42 17 76 18 153 121 152 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; COCK M22	9-09111-422-0	01	1	9002-
14	CONNECTOR; AIR PIPE (A) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-
14	CONNECTOR; AIR PIPE (B)	1-09656-498-1	01	1	9002-
16	UNION; AIR PIPE M14 2WAY	1-09654-034-2	01	1	9002-9401
16	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> M14 2WAY	1-09654-034-2	01	1	9402-
17	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9002-9401
17	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=12.2	9-09150-512-0	01	1	9402-
17	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=22.5	9-09150-522-0	01	1	9402-
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M22	9-09111-422-0	01	1	9402-
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99111-412-0	01	1	9402-
18	NUT; UNION EXC. BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	02	1	9402-
18	NUT; UNION M12	9-99110-512-0	02	1	9002-9401
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	03	1	9402-
19	UNION; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9002-9401
19	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (B) M16 2WAY	1-09650-182-1	01	1	9402-
19	UNION; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-
22	PIPE; AIR,COCK TO SYN VLV (A) L=694 SERVICED BY L=1000	1-47434-491-0	01	1	9002-9401
22	PIPE; AIR,COCK TO SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=694 SERVICED BY L=1000	1-47434-491-0	01	1	9402-
22	PIPE; AIR,COCK TO SYN VLV (B) L=1127 SERVICED BY L=1150	1-47437-992-0	01	1	9002-9401
22	PIPE; AIR,COCK TO SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) L=1127 SERVICED BY L=1150	1-47437-992-0	01	1	9402-
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=630 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=618 SERVICED BY L=660	1-47426-409-0	01	1	9307-9309
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE L=615 SERVICED BY L=660	1-47426-409-0	01	1	9310-9401
23	PIPE; AIR,RELAY VLV TO JUMPER HOSE EXC. BRAKE REGULATION HONG KONG<TCZ> L=615 SERVICED BY L=660	1-47426-409-0	01	1	9402-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-
42	BOLT; BRKT M10X25	9-01911-025-0	02	1	9002-9002
42	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
42	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	02	1	9402-
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-47485-705-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION L=1608	1-47496-169-0	01	1	9307-9308
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-49111-219-0	01	1	9309-9401
46	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=1593	1-49111-219-0	01	1	9402-
46	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1426	1-49111-296-0	01	1	9402-9503
46	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ>	1-49115-509-0	01	1	9504-
47	PIPE; AIR,UNION TO UNION L=815 SERVICED BY L=900	1-47434-407-0	01	1	9002-9306
47	PIPE; AIR,UNION TO UNION L=813 SERVICED BY L=900	1-47426-384-0	01	1	9307-9401
47	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=813 SERVICED BY L=900	1-47426-384-0	01	1	9402-9405
47	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=791 SERVICED BY L=900	1-47426-384-0	01	1	9406-
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=970	1-47426-385-0	01	1	9307-
51	PIPE; AIR,UNION TO UNION L=675 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
51	PIPE; AIR,UNION TO UNION L=675 SERVICED BY L=700	1-47426-410-0	01	1	9307-9401
51	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=675 SERVICED BY L=700	1-47426-410-0	01	1	9402-
54	PIPE; AIR,UNION TO DUAL RELAY VLV L=729 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306
54	PIPE; AIR,UNION TO DUAL RELAY VLV L=729 SERVICED BY L=730	1-47426-411-0	01	1	9307-9401
54	PIPE; AIR,UNION TO DUAL RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=729 SERVICED BY L=730	1-47426-411-0	01	1	9402-
56	PIPE; AIR,UNION TO COCK BRAKE REGULATION HONG KONG<TCZ> L=1085	1-47495-155-0	01	1	9402-
56	PIPE; AIR,UNION TO COCK ISUZU M/T<X9A> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306
56	PIPE; AIR,UNION TO COCK L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9307-9401
56	PIPE; AIR,UNION TO COCK EXC. BRAKE REGULATION HONG KONG<TCZ> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> FULLER M/T<X9B> L=903 SERVICED BY L=1000	1-47426-414-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> ISUZU M/T<X9A> L=843 SERVICED BY L=900	1-47426-413-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795	1-47449-598-1	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9307-9401
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. BRAKE REGULATION HONG KONG<TCZ> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=723	1-47488-497-0	01	1	9002-9306
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9307-9401
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. BRAKE REGULATION HONG KONG<TCZ> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9402-
65	HOSE; AIR EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136	1-09363-148-0	01	1	9002-
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47447-782-0	01	1	9002-9306
66	PIPE; AIR,UNION TO SYN VLV L=221	1-47496-184-0	01	1	9307-9401
66	PIPE; AIR,UNION TO SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=221	1-47496-184-0	01	1	9402-
70	PIPE; AIR,SYN VLV L=330	1-47447-776-0	01	1	9002-9306
70	PIPE; AIR,SYN VLV L=330	1-47496-187-0	01	1	9307-9401
70	PIPE; AIR,SYN VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=330	1-47496-187-0	01	1	9402-
72	PLUG JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9311-
76	NIPPLE; AIR PIPE	1-09650-222-1	01	1	9002-
77	NUT; NIPPLE M16	9-99111-416-0	01	1	9002-
78	WASHER; LK ID=22.5	9-09150-522-0	01	1	9002-9312
81	COCK; AIR COUPLING BLUE	9-09904-195-0	01	1	9307-9409
81	COCK; AIR COUPLING BLUE	1-09680-068-0	01	1	9410-9512
81	COCK; AIR COUPLING BLUE	1-09680-078-0	01	1	9601-
120	BRACKET; COCK	1-48499-001-1	01	1	9002-
121	NUT; BRKT M8	9-09110-408-0	02	1	9002-
121	NUT; BRKT M10	9-09110-510-0	02	1	9002-
152	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9307-
153	BRACKET; NIPPLE	1-47475-388-0	01	1	9002-

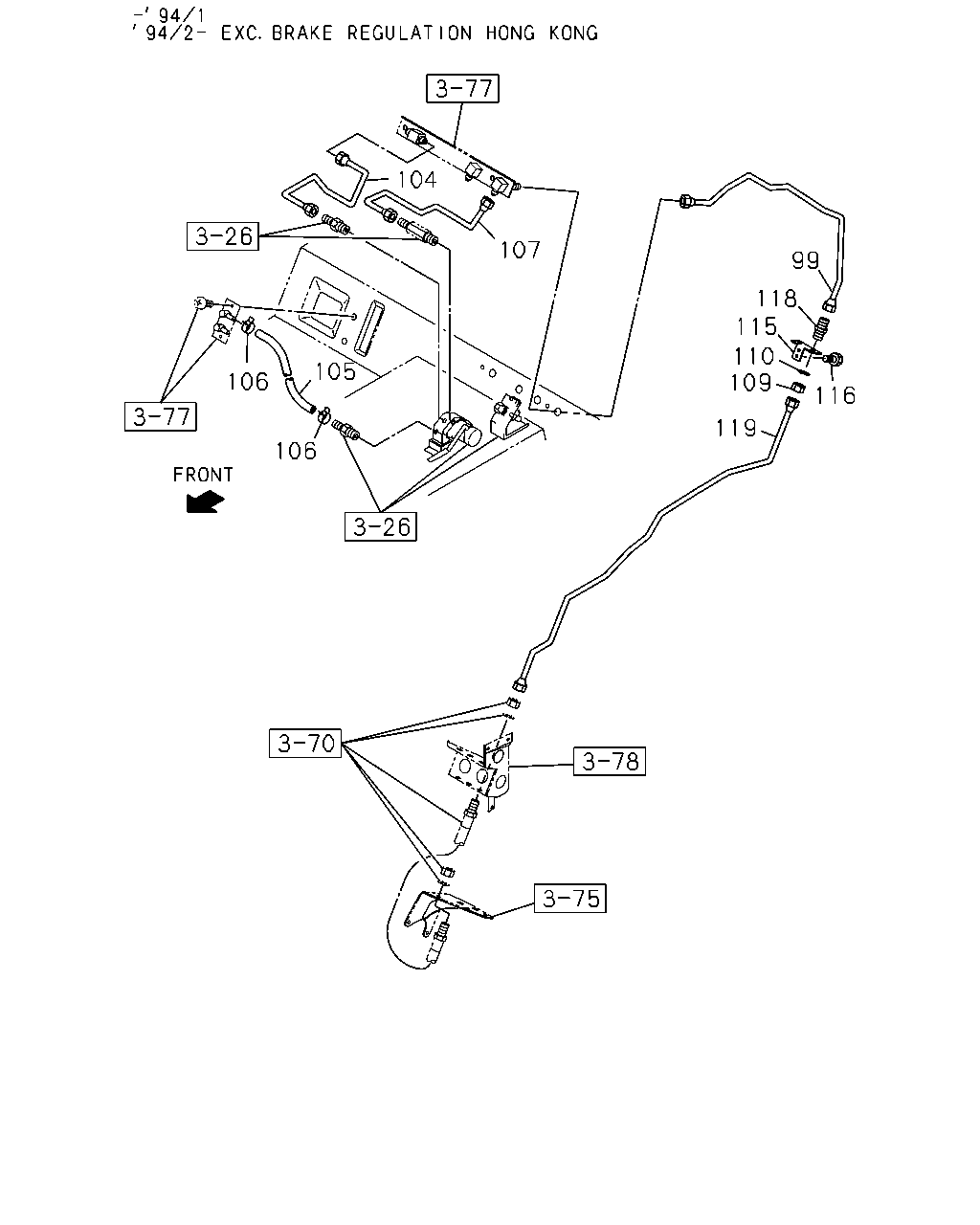

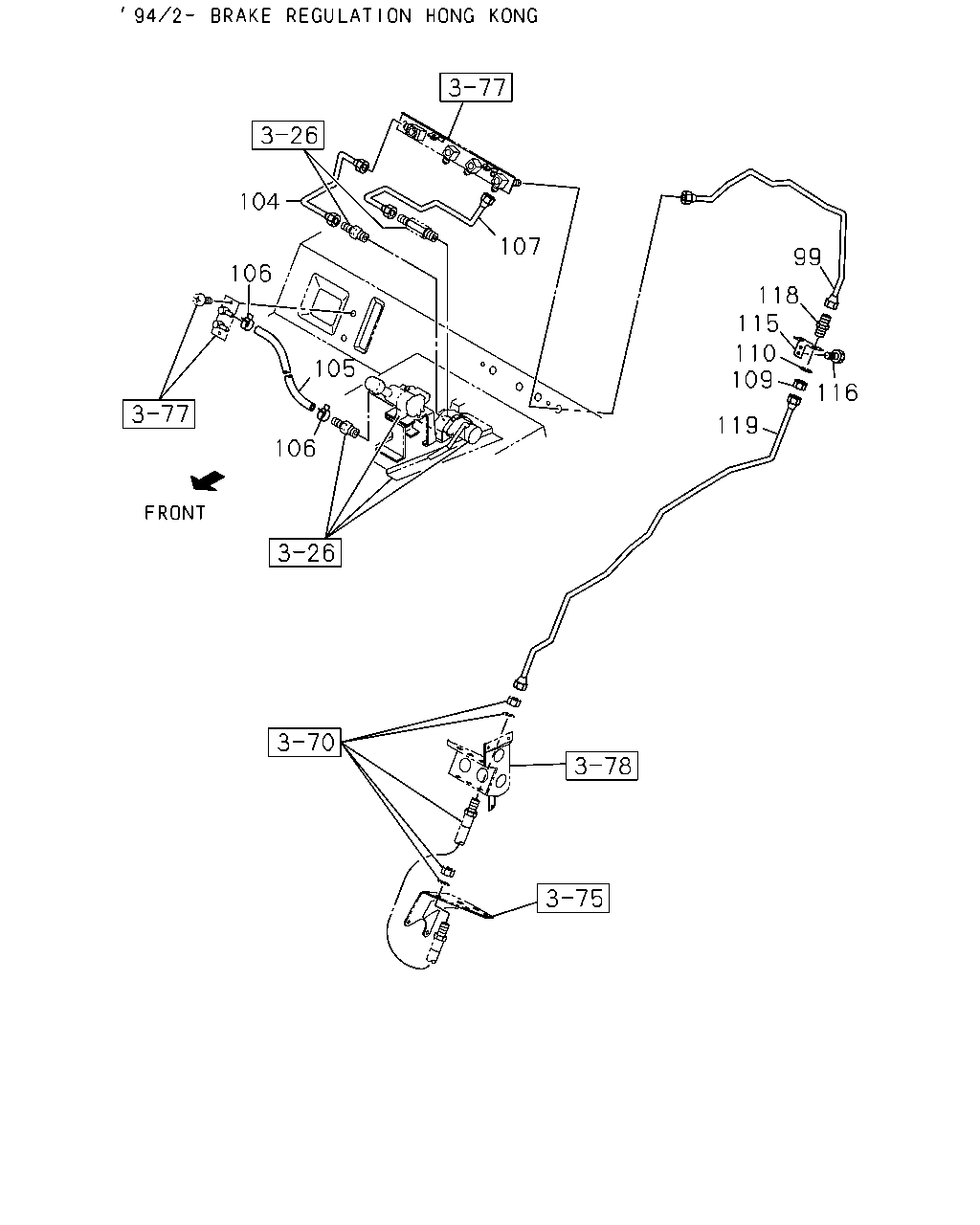

104 107 99 106 118 115 105 110 109 116 119 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	PIPE; AIR,JOINT TO JOINT L=1001 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
99	PIPE; AIR,JOINT TO JOINT L=1001	1-47495-960-0	01	1	9307-9401
99	PIPE; AIR,JOINT TO JOINT EXC. BRAKE REGULATION HONG KONG<TCZ> L=1001	1-47495-960-0	01	1	9402-
99	PIPE; AIR,JOINT TO JOINT BRAKE REGULATION HONG KONG<TCZ> L=1058	1-49113-643-0	01	1	9402-
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47446-012-0	01	1	9002-9306
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47495-954-0	01	1	9307-9401
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=562	1-47495-954-0	01	1	9402-
104	PIPE; AIR,JOINT TO PARKING BRK VLV BRAKE REGULATION HONG KONG<TCZ> L=440	1-49113-660-0	01	1	9402-
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9303
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9304-
106	CLIP; PIPE ID=15	9-09715-098-0	02	1	9002-
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=574	1-47446-013-0	01	1	9002-9306
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=575	1-47495-959-0	01	1	9307-
109	NUT; JOINT M14	9-99111-414-0	01	1	9002-
110	WASHER; LK,JOINT ID=14.2	9-09150-514-0	01	1	9002-
115	BRACKET; PIPE JOINT	1-47475-259-0	01	1	9002-9401
115	BRACKET; PIPE JOINT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-47475-259-0	01	1	9402-
115	BRACKET; PIPE JOINT BRAKE REGULATION HONG KONG<TCZ>	1-47476-296-0	01	1	9402-
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
116	BOLT; JOINT BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-
118	JOINT; AIR PIPE M14	9-09223-208-1	01	1	9002-
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9212
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9306
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430	1-47495-958-0	01	1	9307-

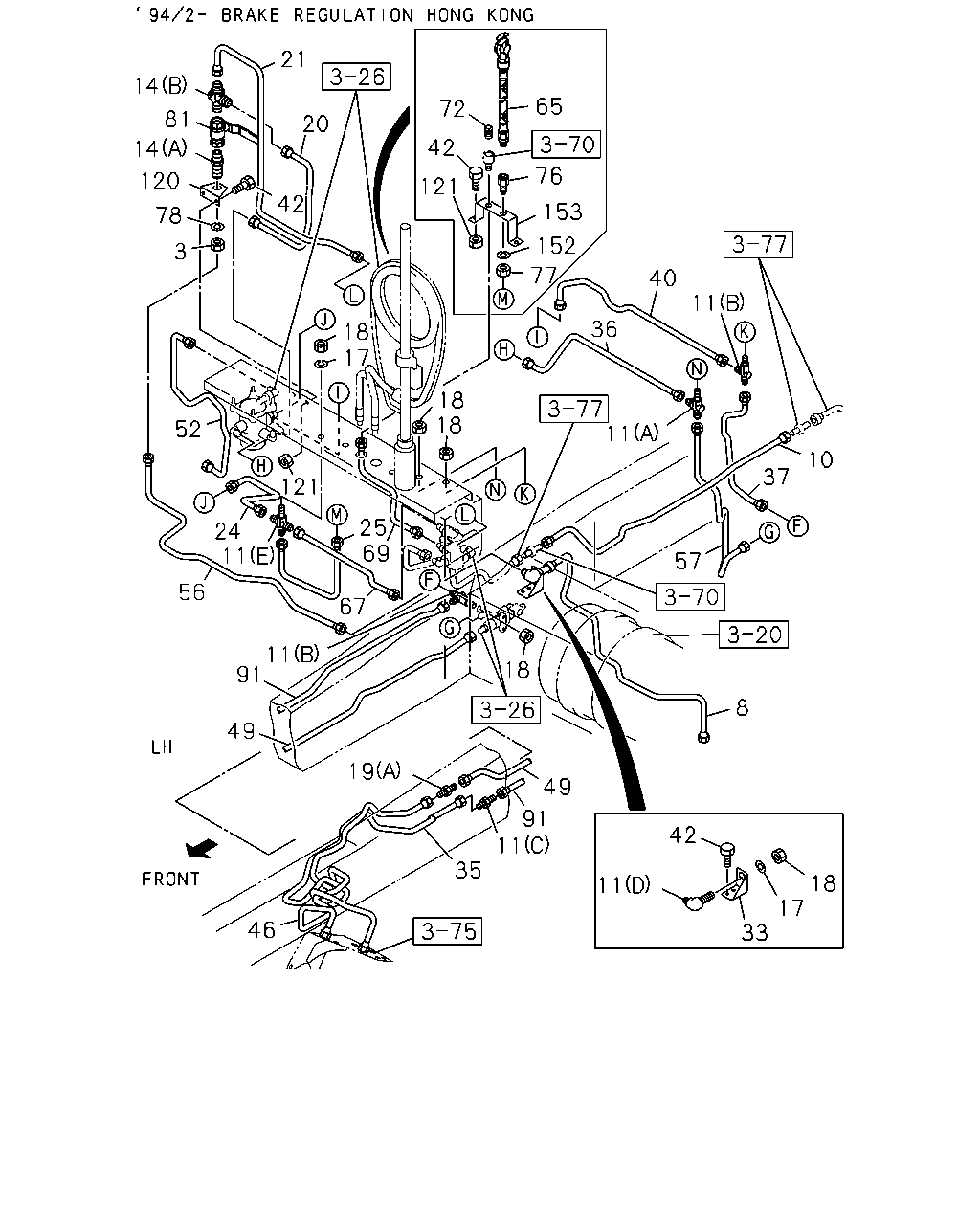

21 14 65 72 81 20 42 14 76 120 121 42 153 78 152 3 77 40 11 36 18 17 18 18 11 52 10 37 121 25 69 24 11 57 56 67 11 91 18 8 49 19 49 91 11 42 35 18 17 11 46 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; COCK M22	9-09111-422-0	01	1	9002-
8	PIPE; AIR,AIR TANK TO UNION BRAKE REGULATION HONG KONG<TCZ>	1-47494-959-0	01	1	9402-
10	PIPE; AIR,UNION TO DBL CHECK VLV 10PD1 STD ENG(40L) BRAKE REGULATION HONG KONG<TCZ> L=1016 SERVICED BY L=1100	1-47426-415-0	01	1	9402-
11	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (A) M16 2WAY	1-09650-182-1	01	1	9402-
11	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (B) M14 2WAY	1-09654-034-2	02	1	9402-
11	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M14 STRAIGHT	9-09223-008-1	01	1	9402-
11	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (D) M22	9-09235-215-1	01	1	9402-
11	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (E) M16	9-09238-310-1	01	1	9402-
14	CONNECTOR; AIR PIPE (A) M22 & PT1/2 STRAIGHT	1-09650-220-1	01	1	9002-
14	CONNECTOR; AIR PIPE (B)	1-09656-498-1	01	1	9002-
17	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9002-9401
17	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=12.2	9-09150-512-0	01	1	9402-
17	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=22.5	9-09150-522-0	01	1	9402-
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M22	9-09111-422-0	01	1	9402-
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99111-412-0	01	1	9402-
18	NUT; UNION EXC. BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	02	1	9402-
18	NUT; UNION M12	9-99110-512-0	02	1	9002-9401
18	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	03	1	9402-
19	UNION; AIR PIPE (B) M16 2WAY	1-09650-182-1	01	1	9002-9401
19	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (B) M16 2WAY	1-09650-182-1	01	1	9402-
19	UNION; AIR PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	9002-
20	PIPE ASM; AIR,COCK TO MULTI RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=558 SERVICED BY L=1000	1-47434-491-0	01	1	9402-
21	PIPE ASM; AIR,COCK TO SUPPLY DUMP VLV BRAKE REGULATION HONG KONG<TCZ> L=1148 SERVICED BY L=1150	1-47437-992-0	01	1	9402-
24	PIPE ASM; AIR,MULTI RELAY VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> L=480 SERVICED BY L=500	1-47426-406-0	01	1	9402-
25	PIPE ASM; AIR,UNION TO JOINT HOSE BRAKE REGULATION HONG KONG<TCZ> L=501 SERVICED BY L=550	1-47426-407-0	01	1	9402-
33	BRACKET BRAKE REGULATION HONG KONG<TCZ>	1-47476-631-0	01	1	9402-
35	PIPE ASM; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1759 SERVICED BY L=1800	1-47426-392-0	01	1	9402-9503
35	PIPE ASM; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9504-
36	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> L=665 SERVICED BY L=700	1-47426-410-0	01	1	9402-
37	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> L=527 SERVICED BY L=550	1-47426-377-0	01	1	9402-
40	PIPE ASM; AIR,2 WAY TO MULTI RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=718 SERVICED BY L=730	1-47426-382-0	01	1	9402-
42	BOLT; BRKT M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
42	BOLT; BRKT M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
42	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-
42	BOLT; BRKT M10X25	9-01911-025-0	02	1	9002-9002
42	BOLT; BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9003-
42	BOLT; BRKT BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	02	1	9402-
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-47485-705-0	01	1	9002-9306
46	PIPE; AIR,FLEX HOSE TO UNION L=1608	1-47496-169-0	01	1	9307-9308
46	PIPE; AIR,FLEX HOSE TO UNION L=1593	1-49111-219-0	01	1	9309-9401
46	PIPE; AIR,FLEX HOSE TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=1593	1-49111-219-0	01	1	9402-
46	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1426	1-49111-296-0	01	1	9402-9503
46	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ>	1-49115-509-0	01	1	9504-
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=1000	1-47437-956-0	01	1	9002-9306
49	PIPE; AIR,UNION TO CHECK VLV L=964 SERVICED BY L=970	1-47426-385-0	01	1	9307-
52	PIPE ASM; AIR,3 WAY TO MULTI RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=713 SERVICED BY L=730	1-47426-411-0	01	1	9402-
56	PIPE; AIR,UNION TO COCK BRAKE REGULATION HONG KONG<TCZ> L=1085	1-47495-155-0	01	1	9402-
56	PIPE; AIR,UNION TO COCK ISUZU M/T<X9A> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306
56	PIPE; AIR,UNION TO COCK L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9307-9401
56	PIPE; AIR,UNION TO COCK EXC. BRAKE REGULATION HONG KONG<TCZ> L=1296 SERVICED BY L=1350	1-47437-995-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> FULLER M/T<X9B> L=903 SERVICED BY L=1000	1-47426-414-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> ISUZU M/T<X9A> L=843 SERVICED BY L=900	1-47426-413-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795	1-47449-598-1	01	1	9005-9306
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9307-9401
57	PIPE; AIR,CHECK VLV TO UNION FULLER M/T<X9B> EXC. BRAKE REGULATION HONG KONG<TCZ> L=795 SERVICED BY L=800	1-47426-412-0	01	1	9402-
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=723	1-47488-497-0	01	1	9002-9306
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9307-9401
57	PIPE; AIR,CHECK VLV TO UNION ISUZU M/T<X9A> EXC. BRAKE REGULATION HONG KONG<TCZ> L=724 SERVICED BY L=730	1-47426-411-0	01	1	9402-
65	HOSE; AIR EXC. JUMPER HOSE & CABLE DELETE<SJK> L=4136	1-09363-148-0	01	1	9002-
67	PIPE ASM; AIR,3 WAY TO SUPPLY DUMP VLV BRAKE REGULATION HONG KONG<TCZ> L=398 SERVICED BY L=400	1-47426-404-0	01	1	9402-
69	PIPE ASM; AIR,SUPPLY VLV TO AIR HOSE BRAKE REGULATION HONG KONG<TCZ> L=407 SERVICED BY L=450	1-47426-405-0	01	1	9402-
72	PLUG JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9311-
76	NIPPLE; AIR PIPE	1-09650-222-1	01	1	9002-
77	NUT; NIPPLE M16	9-99111-416-0	01	1	9002-
78	WASHER; LK ID=22.5	9-09150-522-0	01	1	9002-9312
81	COCK; AIR COUPLING BLUE	9-09904-195-0	01	1	9307-9409
81	COCK; AIR COUPLING BLUE	1-09680-068-0	01	1	9410-9512
81	COCK; AIR COUPLING BLUE	1-09680-078-0	01	1	9601-
91	TUBE; NYLON BRAKE REGULATION HONG KONG<TCZ> L=822 SERVICED BY L=900	1-47426-384-0	01	1	9402-
120	BRACKET; COCK	1-48499-001-1	01	1	9002-
121	NUT; BRKT M8	9-09110-408-0	02	1	9002-
121	NUT; BRKT M10	9-09110-510-0	02	1	9002-
152	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9307-
153	BRACKET; NIPPLE	1-47475-388-0	01	1	9002-

104 107 99 118 115 105 110 109 106 116 119 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	PIPE; AIR,JOINT TO JOINT L=1001 SERVICED BY L=1100	1-47434-409-0	01	1	9002-9306
99	PIPE; AIR,JOINT TO JOINT L=1001	1-47495-960-0	01	1	9307-9401
99	PIPE; AIR,JOINT TO JOINT EXC. BRAKE REGULATION HONG KONG<TCZ> L=1001	1-47495-960-0	01	1	9402-
99	PIPE; AIR,JOINT TO JOINT BRAKE REGULATION HONG KONG<TCZ> L=1058	1-49113-643-0	01	1	9402-
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47446-012-0	01	1	9002-9306
104	PIPE; AIR,JOINT TO PARKING BRK VLV L=562	1-47495-954-0	01	1	9307-9401
104	PIPE; AIR,JOINT TO PARKING BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=562	1-47495-954-0	01	1	9402-
104	PIPE; AIR,JOINT TO PARKING BRK VLV BRAKE REGULATION HONG KONG<TCZ> L=440	1-49113-660-0	01	1	9402-
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1150 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9303
105	PIPE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9304-
106	CLIP; PIPE ID=15	9-09715-098-0	02	1	9002-
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=574	1-47446-013-0	01	1	9002-9306
107	PIPE; AIR,JOINT TO PARKING BRK VLV L=575	1-47495-959-0	01	1	9307-
109	NUT; JOINT M14	9-99111-414-0	01	1	9002-
110	WASHER; LK,JOINT ID=14.2	9-09150-514-0	01	1	9002-
115	BRACKET; PIPE JOINT	1-47475-259-0	01	1	9002-9401
115	BRACKET; PIPE JOINT EXC. BRAKE REGULATION HONG KONG<TCZ>	1-47475-259-0	01	1	9402-
115	BRACKET; PIPE JOINT BRAKE REGULATION HONG KONG<TCZ>	1-47476-296-0	01	1	9402-
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
116	BOLT; JOINT BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
116	BOLT; JOINT BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-
118	JOINT; AIR PIPE M14	9-09223-208-1	01	1	9002-
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9212
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430 SERVICED BY L=1550	1-47426-390-0	01	1	9301-9306
119	PIPE; AIR,JOINT TO FLEX HOSE L=1430	1-47495-958-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
