2-01 — CLUTCH (#35966) — 106 parça

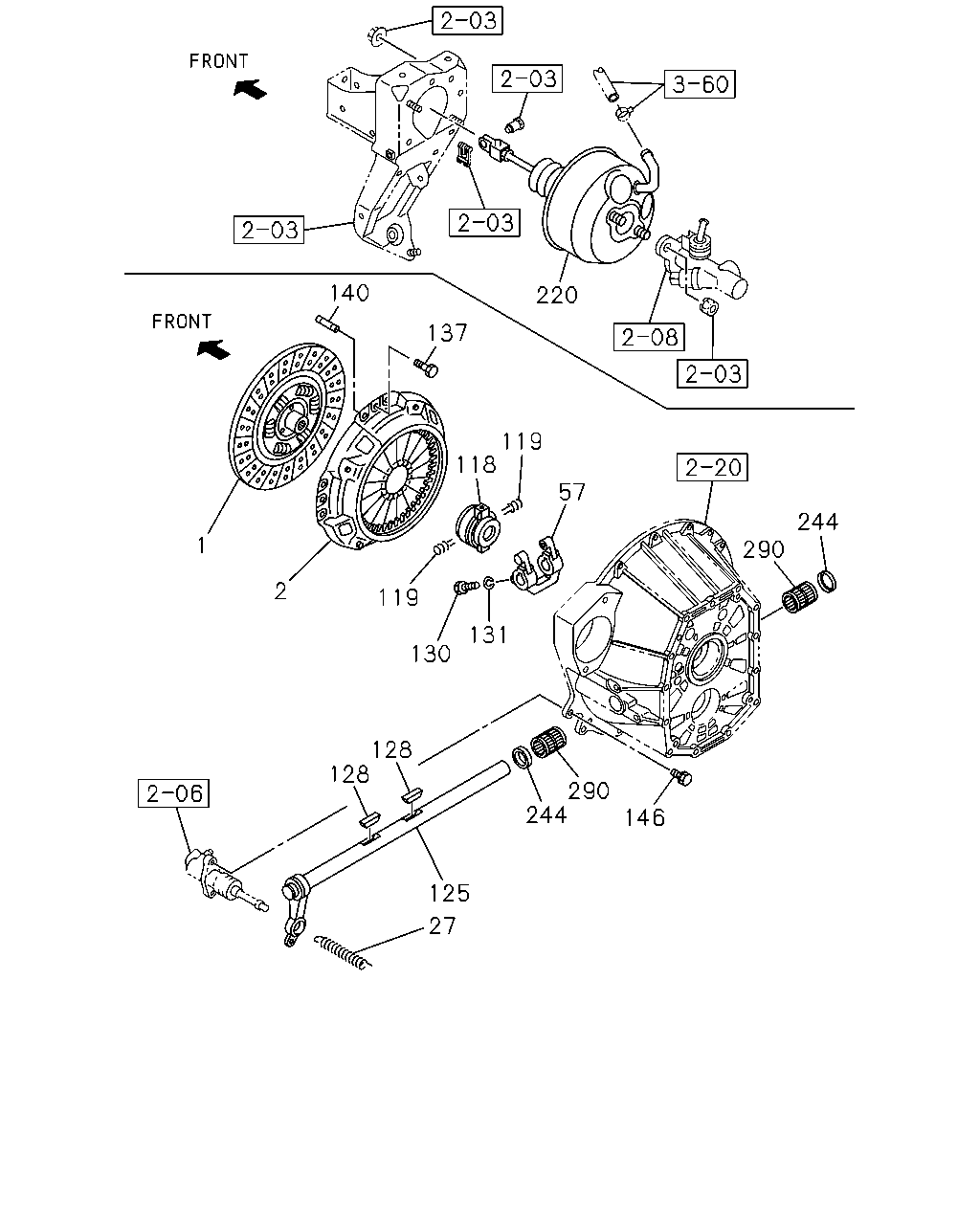

140 220 137 119 118 57 244 1 290 2 119 131 130 128 128 290 244 146 125 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-149-0	01	1	1012-1402	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98255-959-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98037-004-2	01	1	1012-1401	●	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98255-139-1	01	1	1402-	●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-235-1	01	1	1012-1402		●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98255-140-1	01	1	1403-		●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98164-917-1	01	1	1012-			●	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-077-0	01	1	1012-1401	●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-080-0	01	1	1012-1402		●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-049-2	01	1	1012-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-092-0	01	1	1502-			●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-080-1	01	1	1502-		●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP)	8-97169-534-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH)	8-97310-796-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98040-093-0	01	1	1012-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859	8-97351-794-0	01	1	1012-1405		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97038-831-2	01	1	1406-		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-091-0	01	1	1012-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-081-0	01	1	1012-1405		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-104-0	01	1	1406-		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP) BEST VALUE PARTS	5-87610-079-0	01	1	1102-1201	●
27	00.837 SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98025-313-0	01	1	1012-	●	●
27	00.837 SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98025-314-0	01	1	1012-			●	●
57	00.795 FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-303-0	01	1	1012-	●	●
57	00.795 FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97310-456-1	01	1	1012-			●	●
118	00.799 BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-012-0	01	1	1012-			●	●
118	00.799 BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-110-0	01	1	1012-			●	●
119	00.797 SPRING; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31329-024-0	02	1	1012-			●	●
125	00.805 SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97310-435-0	01	1	1012-			●	●
128	00.833 KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	1012-			●	●
130	00.833 SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	1012-			●	●
131	00.833 WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.439 ID=8.2	0-91510-508-0	01	1	1012-			●	●
137	00.862 BOLT; CLU COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1012-	●	●	●	●
140	00.862 PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	1012-	●	●	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-208-0	01	1	1012-1012	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-208-0	01	1	1101-	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98033-837-0	01	1	1012-1012	●	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98033-837-0	01	1	1101-		●	●
244	00.805 SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.797	1-09625-002-0	02	1	1012-			●	●
290	00.862 BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 NTN	1-09811-002-1	02	1	1012-			●	●

296 209 297 296 292 299 299 293 294 295 300 298 298 302 306 291 301 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
209	00.885 CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98116-930-2	01	1	1012-1412	●
209	00.885 CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98275-320-0	01	1	1501-	●
291	00.863 COUPLING; FLUID 4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-659-2	01	1	1302-	●
291	00.863 COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-661-1	01	1	1012-1301	●
291	00.863 COUPLING; FLUID 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-661-2	01	1	1302-	●
292	00.862 RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	1012-	●
293	00.799 BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	1012-	●
294	00.846 PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	1012-	●
295	00.864 BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
296	00.862 BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	1012-	●
296	00.862 BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	1012-	●
297	00.862 WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	1012-	●
298	04.020 PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-924-1	01	1	1012-	●
299	04.105 RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	1012-	●
300	04.226 BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) 09.173 M8X45 FLANGE	0-28050-845-0	11	1	1012-	●
301	04.166 SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	1012-	●
302	04.226 RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	1012-	●
303	02.480 HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98000-265-2	01	1	1012-	●
306	00.785 CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) 02.559 L=100	8-94279-939-0	03	1	1012-	●

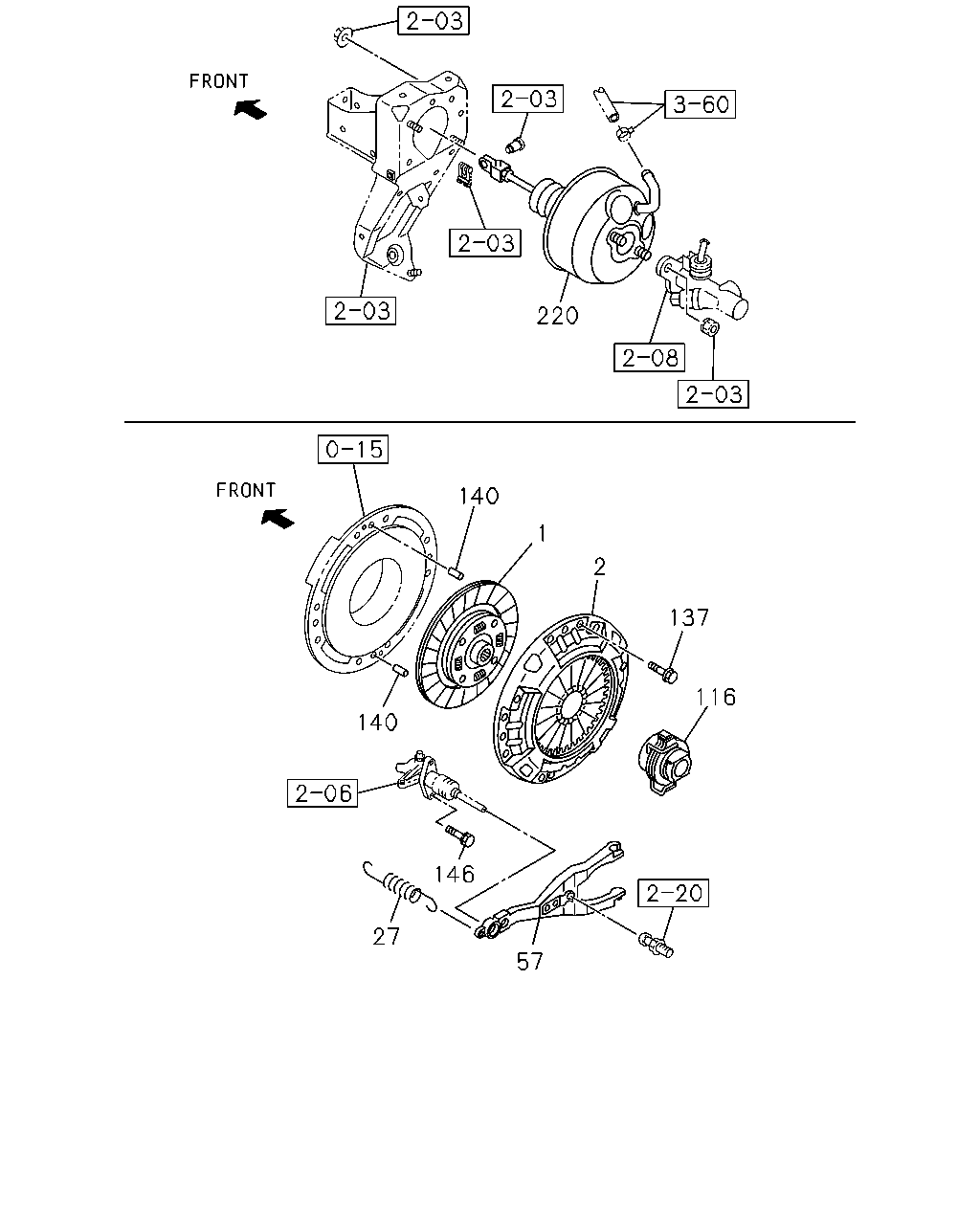

220 140 1 2 137 116 140 146 27 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97377-149-0	01	1	1012-1402	●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-98255-959-1	01	1	1403-	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98037-004-2	01	1	1012-1401	●	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98255-139-1	01	1	1402-	●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97362-235-1	01	1	1012-1402		●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98255-140-1	01	1	1403-		●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98164-917-1	01	1	1012-			●	●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-077-0	01	1	1012-1401	●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-080-0	01	1	1012-1402		●
1	00.886 DISC; CLUTCH 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-049-2	01	1	1012-	●
1	00.886 DISC; CLUTCH 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-092-0	01	1	1502-			●	●
1	00.886 DISC; CLUTCH 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-080-1	01	1	1502-		●
1	00.886 DISC; CLUTCH 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-077-1	01	1	1502-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP)	8-97169-534-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH)	8-97310-796-0	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH)	8-97310-796-0	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98040-093-0	01	1	1012-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.859	8-97351-794-0	01	1	1012-1405		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97038-831-2	01	1	1406-		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1012-1101	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1102-1201	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP),4HG1 ENG(RJH) BEST VALUE PARTS	5-87610-050-1	01	1	1202-	●
2	00.859 PLATE ASM; PRESSURE,CLU 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-091-0	01	1	1012-	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-081-0	01	1	1012-1405		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-104-0	01	1	1406-		●	●	●
2	00.859 PLATE ASM; PRESSURE,CLU 4HG1-T ENG(RDP) BEST VALUE PARTS	5-87610-079-0	01	1	1102-1201	●
27	00.837 SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98025-313-0	01	1	1012-	●	●
27	00.837 SPRING; RETURN,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98025-314-0	01	1	1012-			●	●
57	00.795 FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-303-0	01	1	1012-	●	●
57	00.795 FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97310-456-1	01	1	1012-			●	●
116	00.799 BLOCK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97255-313-0	01	1	1012-	●	●
116	00.799 BLOCK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-110-0	01	1	1012-	●	●
137	00.862 BOLT; CLU COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.483 M10X16 FLANGE	0-28051-016-0	10	1	1012-	●	●	●	●
140	00.862 PIN; STRAIGHT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=25	8-94410-361-0	02	1	1012-	●	●	●	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.403 M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-208-0	01	1	1012-1012	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98043-208-0	01	1	1101-	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98033-837-0	01	1	1012-1012	●	●	●	●
220	00.775 BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98033-837-0	01	1	1101-		●	●
