Sayfa 1-56 - Isuzu EPC

1-56 — EXHAUST BRAKE SYSTEM (#35965) — 201 parça

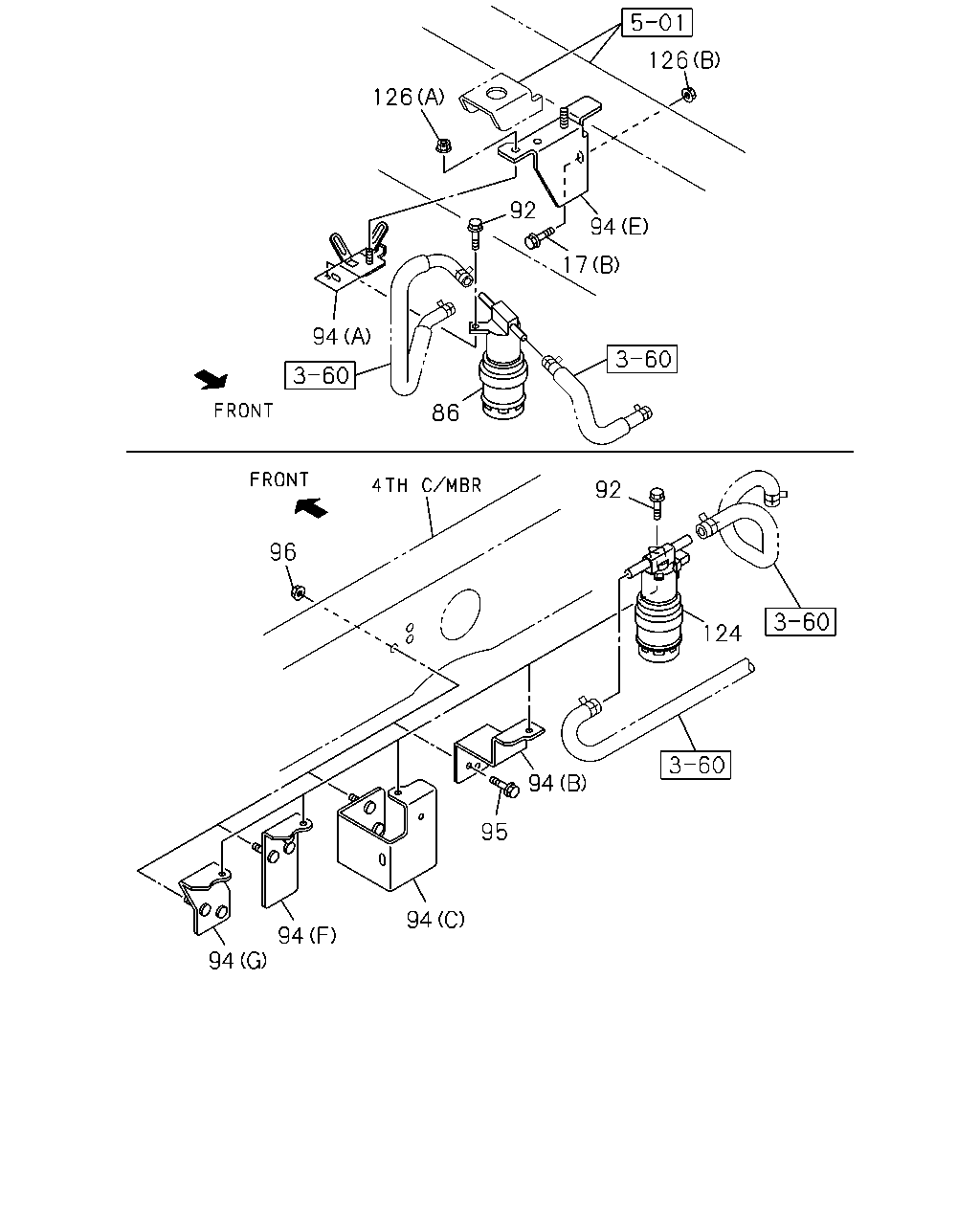

126 126 92 94 17 94 86 92 96 124 94 95 94 94 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-		●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-				●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1012-1509	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1012-1509		●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1510-	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-		●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1510-				●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (D)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98092-656-0	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (F)	8-97370-883-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (G)	8-98032-122-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-053-3	01	1	1012-1509		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-053-3	01	1	1510-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98019-678-1	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-096-2	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97387-681-1	01	1	1012-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98089-211-0	01	1	1012-				●
95	03.636 BOLT; BRKT,MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●
96	03.636 NUT; BRKT,MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●
124	03.636 VALVE; MAG,DPD EXH THROTTLE	8-98043-344-0	01	1	1012-	●
124	03.636 VALVE; MAG,DPD EXH THROTTLE CATALYSIS CONTROL WITH DPD(8JM)	8-98043-344-0	01	1	1012-		●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509	●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509		●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509				●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-	●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-		●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-				●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-				●

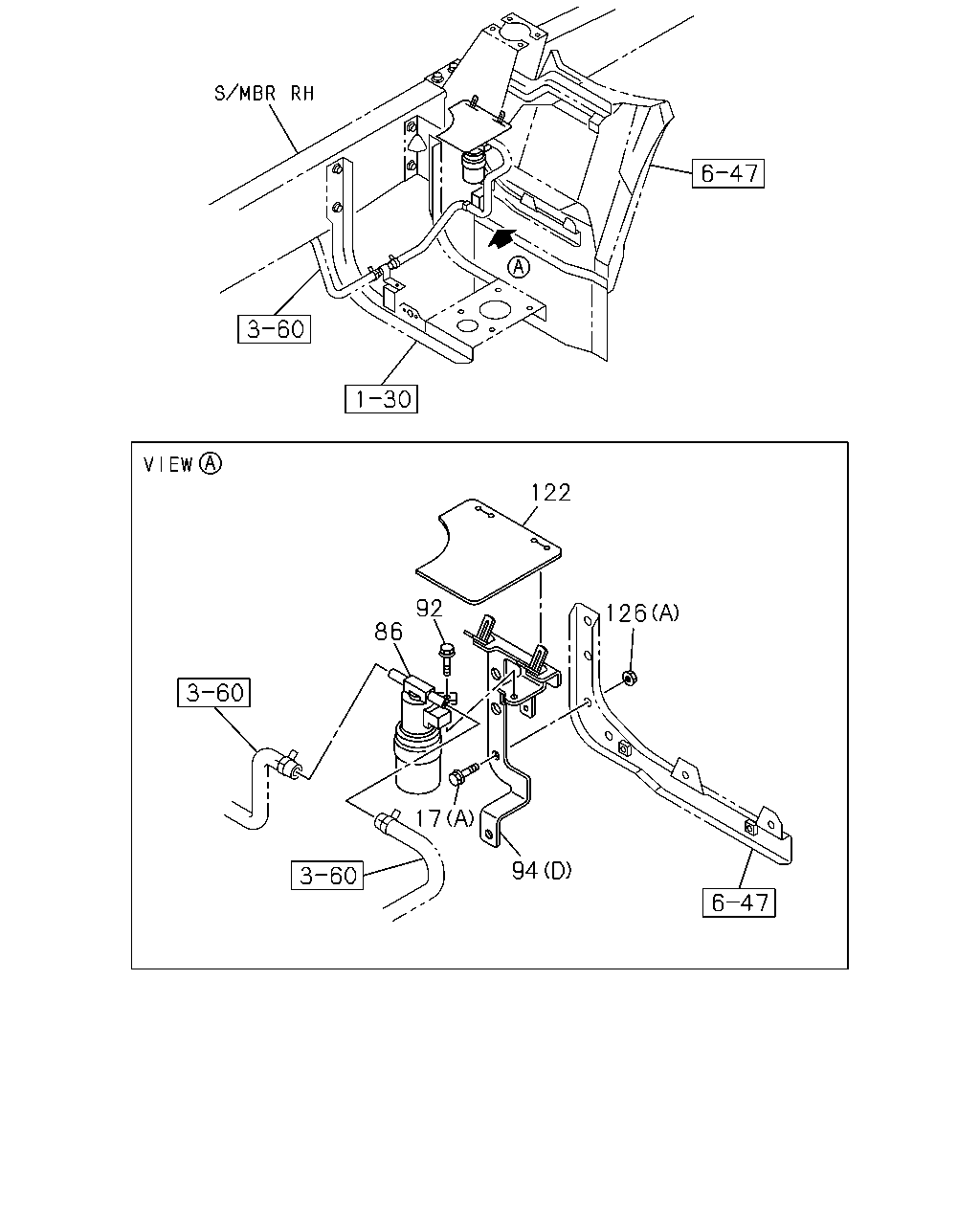

122 92 126 86 17 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●	●
17	03.634 BOLT; BRKT 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
17	03.634 BOLT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1510-		●	●
17	03.634 BOLT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-				●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1012-1509	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1012-1509		●	●	●
86	03.636 VALVE; MAG,EXH BRK	8-98043-344-0	01	1	1510-	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98043-344-0	01	1	1510-		●	●
86	03.636 VALVE; MAG,EXH BRK EXHAUST BRAKE<NF8>	8-98043-344-0	01	1	1510-				●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●	●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-1509		●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-	●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●	●
92	08.900 BOLT; MAG VLV CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-		●
92	08.900 BOLT; MAG VLV EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1510-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) (D)	8-98092-656-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-98092-656-0	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (F)	8-97370-883-2	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (G)	8-98032-122-0	01	1	1012-	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-053-3	01	1	1012-1509		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> FRAME STRAIGHT TYPE<7KJ> (D)	8-98034-053-3	01	1	1510-		●	●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (B)	8-98019-678-1	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> CATALYSIS CONTROL WITH DPD(8JM) (C)	8-98040-096-2	01	1	1012-		●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97387-681-1	01	1	1012-				●
94	03.634 BRACKET; MAG VLV,EXH BRAKE 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98089-211-0	01	1	1012-				●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1012-1509	●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>	8-98087-988-0	01	1	1012-1509		●	●
122	03.640 PROTECTOR; MAG VLV	8-98087-988-0	01	1	1510-	●
122	03.640 PROTECTOR; MAG VLV EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ>	8-98087-988-0	01	1	1510-		●	●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509	●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509		●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509				●
126	03.634 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-	●
126	03.634 NUT; BRKT EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-		●	●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1510-				●
126	03.634 NUT; BRKT 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-				●

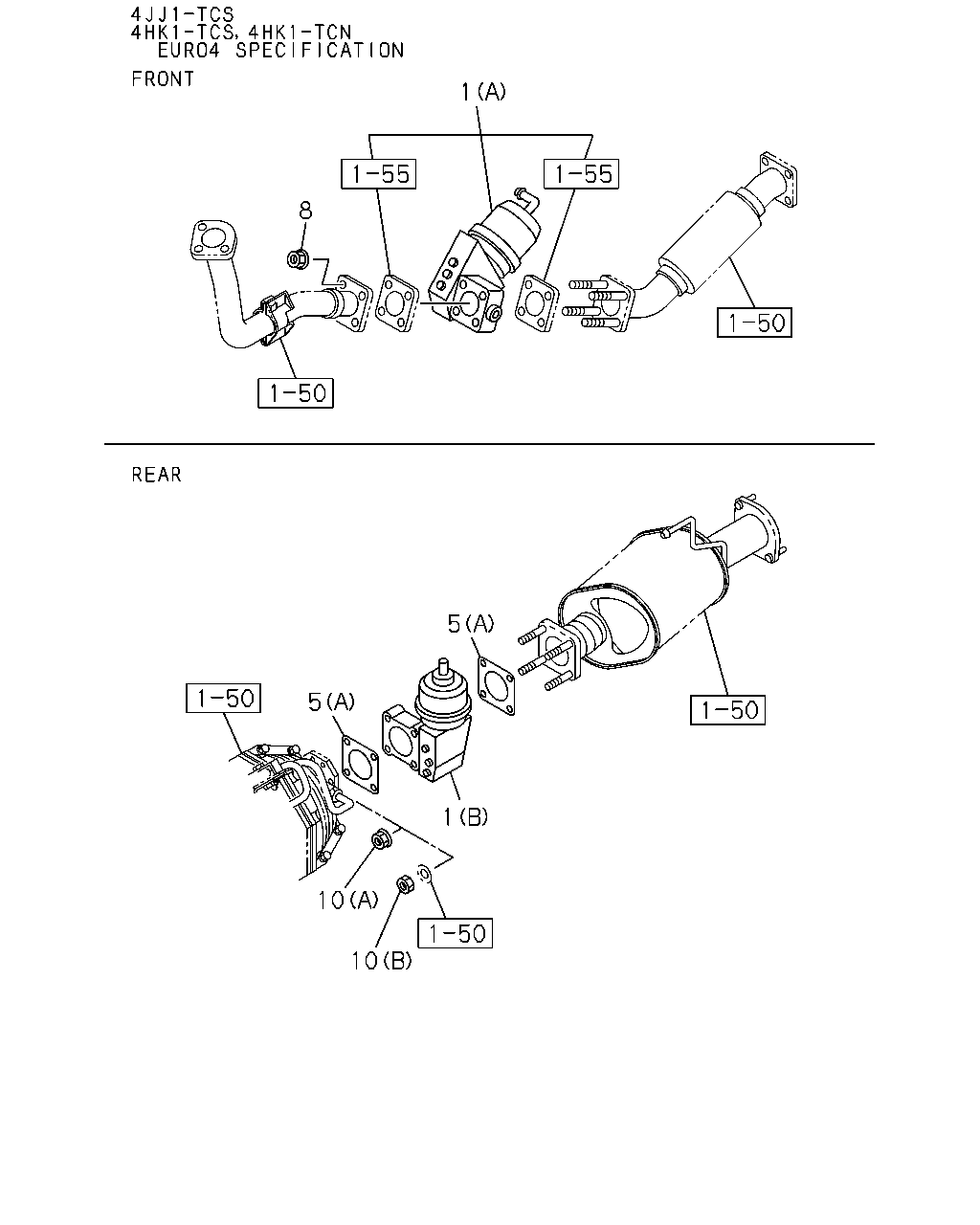

8 5 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C)	8-98274-409-0	01	1	1404-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE VAR3<8QZ> (C)	8-98274-409-0	01	1	1510-		●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98035-862-2	01	1	1012-1012		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98167-678-1	01	1	1101-1310		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98258-269-0	01	1	1311-		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98068-178-1	01	1	1012-1212		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98227-170-0	01	1	1301-		●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) (E)	8-98056-674-0	01	1	1012-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1012-1403		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D)	8-98033-200-1	01	1	1012-		●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (D)	8-98033-200-1	01	1	1012-		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) ID=54	8-94328-354-0	02	1	1012-		●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) (B) ID=54	8-94328-354-0	02	1	1012-		●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-				●

1 8 5 5 1 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C)	8-98274-409-0	01	1	1404-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE VAR3<8QZ> (C)	8-98274-409-0	01	1	1510-		●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98035-862-2	01	1	1012-1012		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98167-678-1	01	1	1101-1310		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98258-269-0	01	1	1311-		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98068-178-1	01	1	1012-1212		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98227-170-0	01	1	1301-		●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) (E)	8-98056-674-0	01	1	1012-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1012-1403		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D)	8-98033-200-1	01	1	1012-		●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (D)	8-98033-200-1	01	1	1012-		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) ID=54	8-94328-354-0	02	1	1012-		●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) (B) ID=54	8-94328-354-0	02	1	1012-		●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-				●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) 03.613 (B) M8	1-09400-118-1	04	1	1204-	●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.613 (B) M8	1-09400-118-1	04	1	1204-		●
10	03.634 NUT; BRKT,EXH BRAKE 4JJ1-TCS ENG(LFB) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1012-1203	●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1012-1203		●
10	03.634 NUT; BRKT,EXH BRAKE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.417 (A) M8 W/LK WASHER	8-97581-234-0	04	1	1204-		●

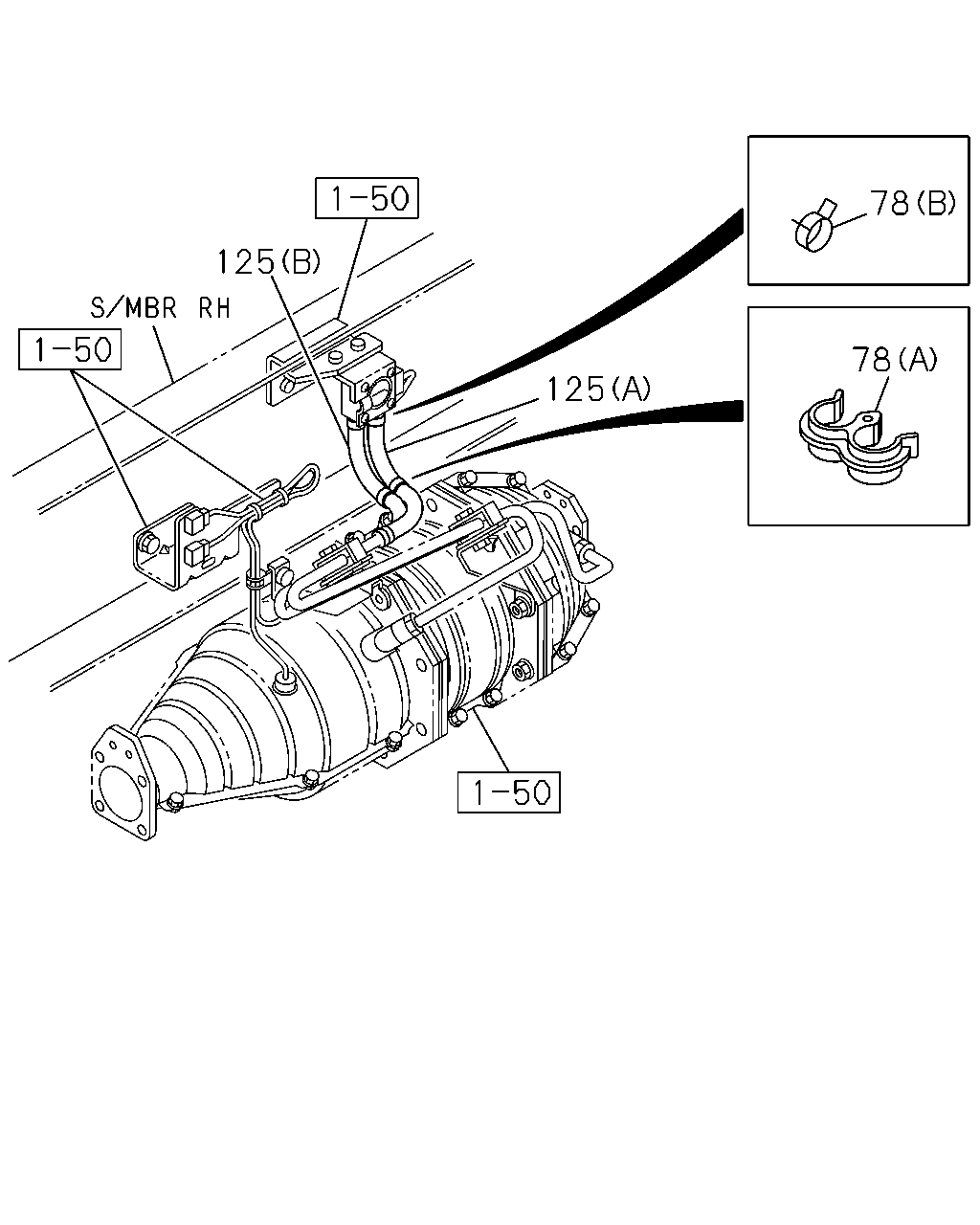

78 125 78 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (A)	8-97173-119-0	01	1	1012-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (A)	8-97173-119-0	01	1	1012-		●
78	03.636 CLIP; HOSE 4JJ1-TCS ENG(LFB) 03.162 (B) ID=13	8-97329-627-0	04	1	1012-	●
78	03.636 CLIP; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.162 (B) ID=13	8-97329-627-0	04	1	1012-		●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98004-348-0	01	1	1012-	●
125	03.630 HOSE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98004-349-0	01	1	1012-	●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (A) L=240 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
125	03.630 HOSE; DPD 4HK1-TCN ENG(RDQ) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (B) L=270 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) 03.163 (B) L=200 SERVICED BY L=3000	0-01558-300-0	01	1	1012-		●
125	03.630 HOSE; DPD 4HK1-TCS ENG(RJS) CATALYSIS CONTROL WITH DPD(8JM) (A) L=170	8-98068-068-0	01	1	1012-		●

5 1 5 8 1 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C)	8-98274-409-0	01	1	1404-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE VAR3<8QZ> (C)	8-98274-409-0	01	1	1510-		●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-97384-098-2	01	1	1012-1012	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98167-677-1	01	1	1101-1310	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (B)	8-98258-268-0	01	1	1311-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98035-862-2	01	1	1012-1012		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98167-678-1	01	1	1101-1310		●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B)	8-98258-269-0	01	1	1311-		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98068-178-1	01	1	1012-1212	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98068-178-1	01	1	1012-1212		●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCS ENG(LFB) (A)	8-98227-170-0	01	1	1301-	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A)	8-98227-170-0	01	1	1301-		●
1	03.632 BRAKE UNIT; EXH 4HG1-T ENG(RDP) (E)	8-98056-674-0	01	1	1012-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1012-1403		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98056-673-0	01	1	1404-1407		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98288-176-0	01	1	1408-1509		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98332-039-0	01	1	1510-1510		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98333-421-0	01	1	1511-		●	●
1	03.632 BRAKE UNIT; EXH 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D)	8-98033-200-1	01	1	1012-		●	●	●
1	03.632 BRAKE UNIT; EXH 4JJ1-TCC ENG(RDU) (D)	8-98033-200-1	01	1	1012-		●		●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCS ENG(LFB) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-	●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1-T ENG(RDP) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●	●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-		●
5	03.634 GASKET; EXH BRAKE UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.611 (A) ID=64	8-97373-108-0	02	1	1012-			●
5	03.634 GASKET; EXH BRAKE UNIT 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) ID=54	8-94328-354-0	02	1	1012-		●	●	●
5	03.634 GASKET; EXH BRAKE UNIT 4JJ1-TCC ENG(RDU) (B) ID=54	8-94328-354-0	02	1	1012-		●		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCS ENG(LFB) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-		●
8	03.632 NUT; EXH BRAKE UNIT FIX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-			●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JJ1-TCC ENG(RDU) 03.417 M8 W/LK WASHER	8-97581-234-0	04	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
