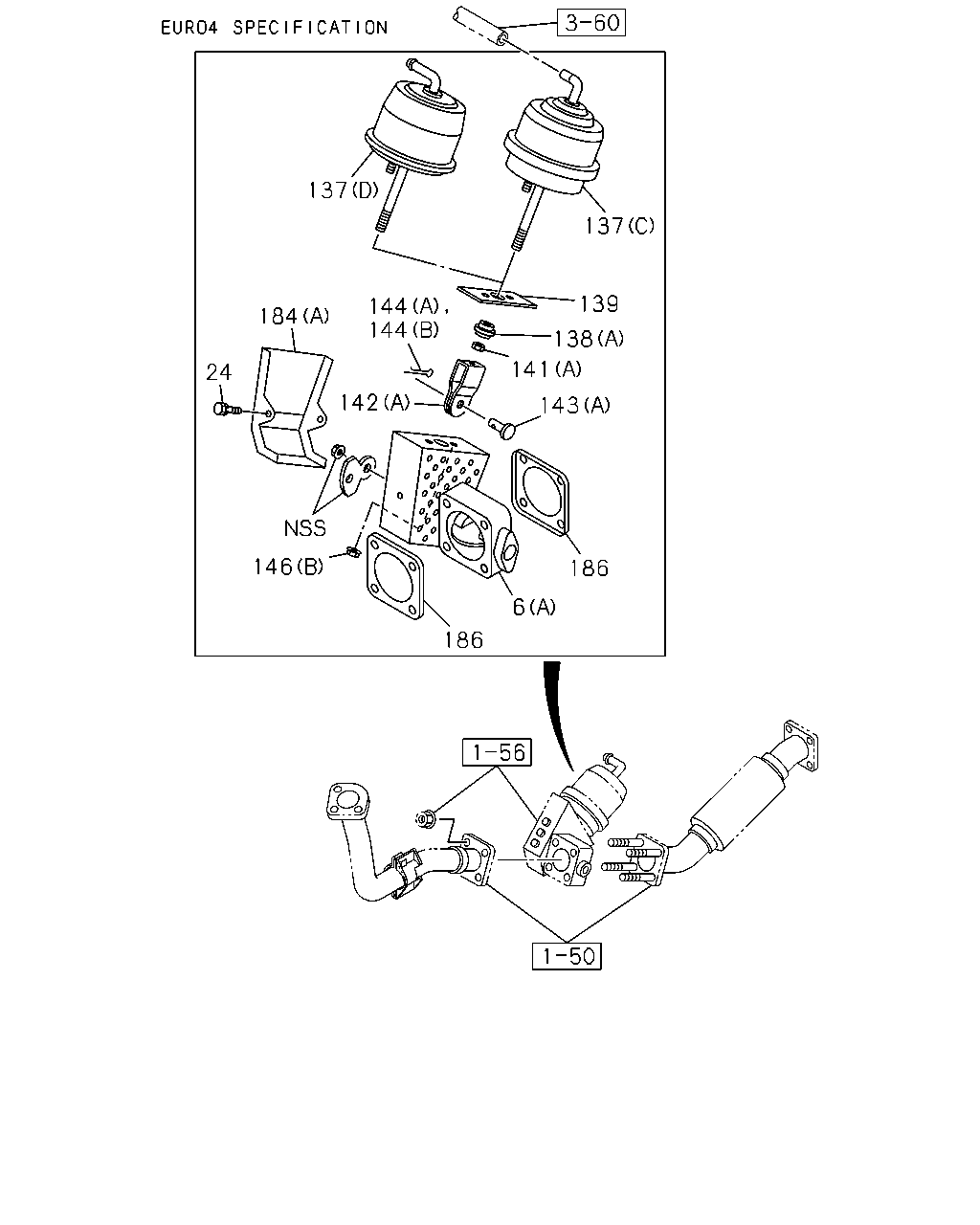

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#35964) — 1032 parça
çizim 75939
137 139 140 138 141 143 142 144 146 24 184
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ●
24 03.634 BOLT; COVER
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1404-1509 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.444 		8-97065-029-0 02 1 1510- ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1510- ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1510- ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.444 		8-97065-029-0 02 1 1510- ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1012-1212 ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1301- ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1301- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) 		5-22189-004-0 01 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1301-1403 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440 (B) 		8-94311-446-0 01 1 1012- ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCC ENG(RDU) 03.440 (B) 		8-94311-446-0 01 1 1012- ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ●
139 03.634 GASKET; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 		8-94328-234-0 01 1 1404-1509 ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1404-1509 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1404-1509 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 		8-94328-234-0 01 1 1510- ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1510- ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1510- ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-94328-234-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JJ1-TCS ENG(LFB) 		8-98037-494-0 01 1 1012- ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98037-494-0 01 1 1012- ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1012-1403 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1012-1403 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		9-88510-009-0 01 1 1012- ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		9-88510-009-0 01 1 1012- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1510- ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1510- ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1301-1403 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1301-1403 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1404-1509 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1510- ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D) 		8-97311-447-1 01 1 1012- ● ● ●
184 03.634 COVER; BRKT
4JJ1-TCC ENG(RDU) (D) 		8-97311-447-1 01 1 1012- ● ●
çizim 75940
137 137 184 144 144 24 142 146 186 6 186 143 141 138 139
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 03.632 VALVE; EXH BRAKE
4JJ1-TCS ENG(LFB) (A) 		8-98069-291-0 01 1 1012- ●
6 03.632 VALVE; EXH BRAKE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98069-291-0 01 1 1012- ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) 		8-97360-025-1 01 1 1012- ● ● ●
6 03.632 VALVE; EXH BRAKE
4JJ1-TCC ENG(RDU) (B) 		8-97360-025-1 01 1 1012- ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ●
24 03.634 BOLT; COVER
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1404-1509 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.444 		8-97065-029-0 02 1 1510- ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1510- ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1510- ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.444 		8-97065-029-0 02 1 1510- ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1012-1212 ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1301- ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1301- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) 		5-22189-004-0 01 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1301-1403 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440 (B) 		8-94311-446-0 01 1 1012- ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCC ENG(RDU) 03.440 (B) 		8-94311-446-0 01 1 1012- ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ●
139 03.634 GASKET; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 		8-94328-234-0 01 1 1404-1509 ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1404-1509 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1404-1509 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 		8-94328-234-0 01 1 1510- ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1510- ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1510- ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-94328-234-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		9-88510-009-0 01 1 1012- ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		9-88510-009-0 01 1 1012- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1510- ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1510- ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1301-1403 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1301-1403 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1404-1509 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1510- ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D) 		8-97311-447-1 01 1 1012- ● ● ●
184 03.634 COVER; BRKT
4JJ1-TCC ENG(RDU) (D) 		8-97311-447-1 01 1 1012- ● ●
186 03.611 GASKET; EXH BRK VLV,BODY
4JJ1-TCS ENG(LFB) 		8-98022-713-0 02 1 1012- ●
186 03.611 GASKET; EXH BRK VLV,BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98022-713-0 02 1 1012- ●
çizim 75968
137 139 142 144 184 138 141 143 24 146 6
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 03.632 VALVE; EXH BRAKE
4JJ1-TCS ENG(LFB) (A) 		8-98069-291-0 01 1 1012- ●
6 03.632 VALVE; EXH BRAKE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98069-291-0 01 1 1012- ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (B) 		8-97360-025-1 01 1 1012- ● ● ●
6 03.632 VALVE; EXH BRAKE
4JJ1-TCC ENG(RDU) (B) 		8-97360-025-1 01 1 1012- ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ●
24 03.634 BOLT; COVER
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1404-1509 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.444 		8-97065-029-0 02 1 1510- ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1510- ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1510- ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.444 		8-97065-029-0 02 1 1510- ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1012-1212 ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1301- ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1301- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) 		5-22189-004-0 01 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1301-1403 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440 (B) 		8-94311-446-0 01 1 1012- ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCC ENG(RDU) 03.440 (B) 		8-94311-446-0 01 1 1012- ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ●
139 03.634 GASKET; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 		8-94328-234-0 01 1 1404-1509 ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1404-1509 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1404-1509 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 		8-94328-234-0 01 1 1510- ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1510- ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1510- ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-94328-234-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		9-88510-009-0 01 1 1012- ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		9-88510-009-0 01 1 1012- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1510- ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1510- ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1301-1403 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1301-1403 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1404-1509 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1510- ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D) 		8-97311-447-1 01 1 1012- ● ● ●
184 03.634 COVER; BRKT
4JJ1-TCC ENG(RDU) (D) 		8-97311-447-1 01 1 1012- ● ●
çizim 76000
137 139 138 140 187 144 144 141 141 142 142 143 143 180 180 146 184 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ●
24 03.634 BOLT; COVER
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1012-1403 ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1012-1403 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ● ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1404-1509 ● ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1404-1509 ● ●
24 03.634 BOLT; COVER
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 03.444 		8-97065-029-0 02 1 1510- ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 1510- ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 1510- ● ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 03.444 		8-97065-029-0 02 1 1510- ● ●
24 03.634 BOLT; COVER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 03.444 		8-97065-029-0 02 1 1510- ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (D) 		8-98229-058-0 01 1 1301- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98038-348-0 01 1 1012-1012 ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-132-0 01 1 1101- ●
137 03.634 CHAMBER; POWER
4JJ1-TCS ENG(LFB) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1012-1212 ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1012-1212 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (C) 		8-98043-596-0 01 1 1012-1212 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (C) 		8-98043-596-0 01 1 1301- ● ● ●
137 03.634 CHAMBER; POWER
4JJ1-TCC ENG(RDU) (C) 		8-98043-596-0 01 1 1301- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1012-1403 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-98070-470-0 01 1 1404-1509 ● ●
137 03.634 CHAMBER; POWER
4HG1-T ENG(RDP) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
137 03.634 CHAMBER; POWER
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-98070-470-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-608-0 01 1 1301- ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) 		5-22189-004-0 01 1 1012-1212 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		5-22189-004-0 01 1 1012-1212 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1301-1403 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1301-1403 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) REAR 		5-22189-004-0 01 1 1404-1509 ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1404-1509 ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1-T ENG(RDP) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) REAR 		5-22189-004-0 01 1 1510- ● ●
138 03.634 BEARING; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) REAR 		5-22189-004-0 01 1 1510- ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 03.440 (B) 		8-94311-446-0 01 1 1012- ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JJ1-TCC ENG(RDU) 03.440 (B) 		8-94311-446-0 01 1 1012- ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ●
139 03.634 GASKET; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1012-1403 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1012-1403 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCSENG(RJS) 		8-94328-234-0 01 1 1404-1509 ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1404-1509 ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1404-1509 ● ●
139 03.634 GASKET; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HG1-T ENG(RDP), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 		8-94328-234-0 01 1 1510- ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 1510- ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 1510- ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) 		8-94328-234-0 01 1 1510- ● ●
139 03.634 GASKET; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-94328-234-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JJ1-TCS ENG(LFB) 		8-98037-494-0 01 1 1012- ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98037-494-0 01 1 1012- ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1012-1403 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1012-1403 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 		8-97173-333-0 01 1 1404-1509 ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1-T ENG(RDP) 		8-97173-333-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1510- ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 		8-97173-333-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-128-0 01 1 1101- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) 		8-94311-428-0 01 1 1012-1012 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1101-1403 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1404-1509 ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCS ENG(LFB) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1-T ENG(RDP) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 05.122 (A) FRONT 		8-94311-428-0 01 1 1510- ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		9-88510-009-0 01 1 1012- ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		9-88510-009-0 01 1 1012- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-609-0 01 1 1301- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-133-0 01 1 1101- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97177-311-0 01 1 1012-1012 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97177-311-0 01 1 1012-1012 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1101-1212 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1101-1212 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1301-1403 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1404-1509 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97177-311-0 01 1 1510- ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97177-311-0 01 1 1510- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97177-311-0 01 1 1510- ●
142 03.636 CLEVIS; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97177-311-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) FRONT 		8-98231-610-0 01 1 1301- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-126-0 01 1 1101- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-94311-452-0 01 1 1012-1012 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-94311-452-0 01 1 1012-1012 ● ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1101-1212 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1101-1212 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1301-1403 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1404-1509 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-94311-452-0 01 1 1510- ● ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-94311-452-0 01 1 1510- ● ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-94311-452-0 01 1 1510- ●
143 03.636 PIN; EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-94311-452-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) REAR 		8-97985-124-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-97985-124-0 01 1 1301- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1012-1012 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) 		8-97029-428-0 01 1 1012-1012 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCS ENG(LFB) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) FRONT 		8-97029-428-0 01 1 1101-1212 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) FRONT 		8-97029-428-0 01 1 1101-1212 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1301-1403 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1301-1403 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1301-1403 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1404-1509 ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (A) 		8-97029-428-0 01 1 1404-1509 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1404-1509 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (A) 		8-97029-428-0 01 1 1510- ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) 		8-97029-428-0 01 1 1510- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1-T ENG(RDP) (A) 		8-97029-428-0 01 1 1510- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JJ1-TCC ENG(RDU) (A) 		8-97029-428-0 01 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1104-1403 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1404-1509 ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HG1-T ENG(RDP) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 (B) M8 FLANGE 		0-91180-108-0 02 1 1510- ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCS ENG(LFB) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ● ●
146 03.634 NUT; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1012-1103 ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ● ●
146 03.634 NUT; EXH BRK VLV
4JJ1-TCC ENG(RDU) 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 1104- ● ●
180 03.640 COLLAR; EXH BRK VLV
4JJ1-TCS ENG(LFB) 03.440 		8-97018-597-0 02 1 1012- ●
180 03.640 COLLAR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.440 		8-97018-597-0 02 1 1012- ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-97370-068-0 01 1 1012- ●
184 03.634 COVER; BRKT
4JJ1-TCS ENG(LFB) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (B) 		8-98037-493-0 01 1 1012- ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1012-1403 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. COLOMBIA EQUIPMENT(CB7) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) COLOMBIA EQUIPMENT(CB7) EURO2 SPECIFICATION(NT2) (C) 		8-98070-514-0 01 1 1404-1509 ● ●
184 03.634 COVER; BRKT
4HG1-T ENG(RDP) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C) 		8-98070-514-0 01 1 1510- ● ●
184 03.634 COVER; BRKT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> (D) 		8-97311-447-1 01 1 1012- ● ● ●
184 03.634 COVER; BRKT
4JJ1-TCC ENG(RDU) (D) 		8-97311-447-1 01 1 1012- ● ●
187 03.685 PROTECTOR; EXH BRK VLV
4JJ1-TCS ENG(LFB) 		8-98037-495-0 01 1 1012- ●
187 03.685 PROTECTOR; EXH BRK VLV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-98037-495-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
