1-45 — WATER SEDIMENTER; FUEL (#35962) — 39 parça

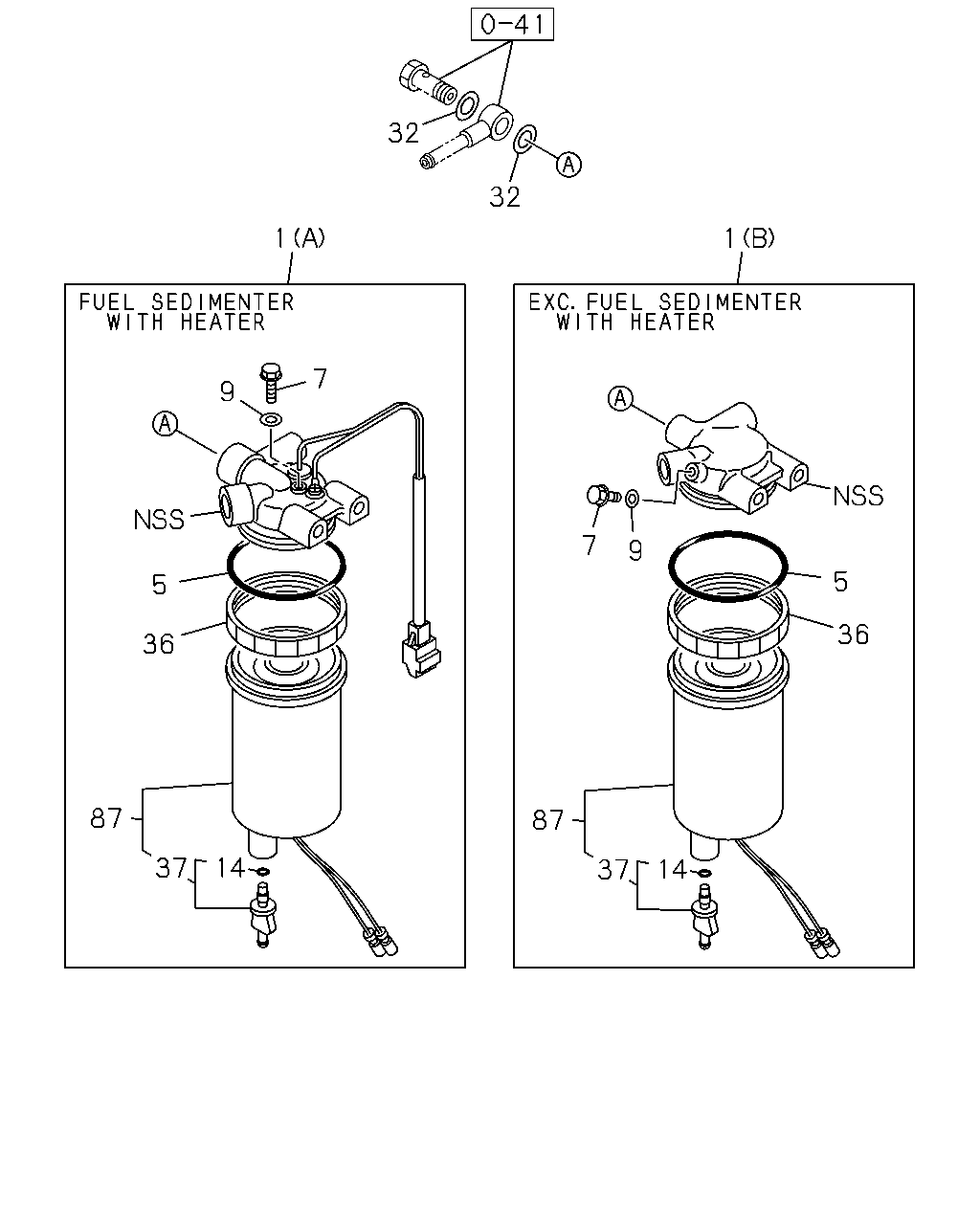

çizim 75937
32 32 1 1 7 9 7 9 5 5 36 36 87 87 14 37 37 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-98181-253-0 01 1 1012- ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97081-814-3 01 1 1012- ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94311-522-3 01 1 1012- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94144-933-4 01 1 1012- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-09623-075-0 01 1 1012- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) 		5-09623-075-0 01 1 1012- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 1012- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 1012- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 1012- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP) 		8-94132-675-0 01 1 1012- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 1012- ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94447-156-0 01 1 1012- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) 		8-94447-156-0 01 1 1012- ●
32 03.890 GASKET; FUEL FILTER
4HG1 ENG(RJH) 03.107 ID=14.2 OD=23.0 		9-09572-014-0 04 1 1012- ● ● ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-13234-001-0 01 1 1012- ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) 		5-13234-001-0 01 1 1012- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 1012- ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) 		8-94453-746-0 01 1 1012- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97219-363-1 01 1 1012- ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) 		8-97219-363-1 01 1 1012- ●

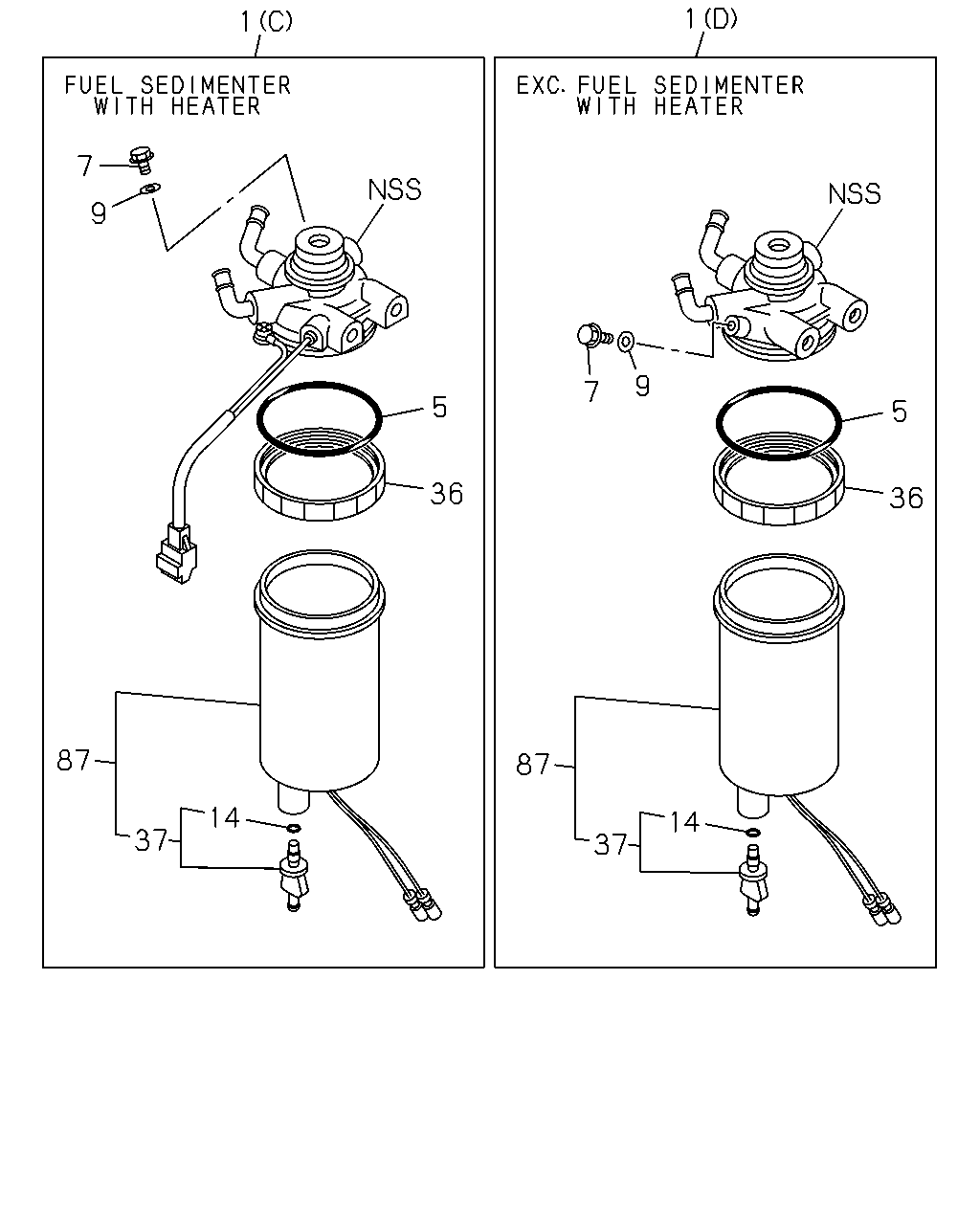

çizim 76274
1 1 7 9 9 7 5 5 36 36 87 87 14 14 37 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) FUEL SEDIMENTER WITH HEATER<6HU> (C) 		8-98181-253-0 01 1 1012- ● ●
1 03.890 SEDIMENTER; FUEL
4HG1-T ENG(RDP) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (D) 		8-97081-814-3 01 1 1012- ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> (A) 		8-94311-522-3 01 1 1012- ● ● ●
1 03.890 SEDIMENTER; FUEL
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> (B) 		8-94144-933-4 01 1 1012- ● ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-09623-075-0 01 1 1012- ● ●
5 03.890 GASKET; UPR COVER,SEDIMENTER
4HG1 ENG(RJH) 		5-09623-075-0 01 1 1012- ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94132-674-0 01 1 1012- ● ●
7 03.890 PLUG; DRAIN,SEDIMENTER
4HG1 ENG(RJH) 		8-94132-674-0 01 1 1012- ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) FUEL SEDIMENTER WITH HEATER<6HU> 		8-94132-675-0 01 1 1012- ● ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1-T ENG(RDP) 		8-94132-675-0 01 1 1012- ● ●
9 03.890 GASKET; DRAIN PLUG & CONNECTOR
4HG1 ENG(RJH) EXC. FUEL SEDIMENTER WITH HEATER<6HU> 03.895 		9-09571-406-0 01 1 1012- ● ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94447-156-0 01 1 1012- ● ●
14 03.890 GASKET; SENSOR TO CENTER BOLT
4HG1 ENG(RJH) 		8-94447-156-0 01 1 1012- ●
36 03.890 RING; BODY TO CASE
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		5-13234-001-0 01 1 1012- ● ●
36 03.890 RING; BODY TO CASE
4HG1 ENG(RJH) 		5-13234-001-0 01 1 1012- ●
37 03.890 PLUG; SENSOR
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-94453-746-0 01 1 1012- ● ●
37 03.890 PLUG; SENSOR
4HG1 ENG(RJH) 		8-94453-746-0 01 1 1012- ●
87 03.890 CASE ASM; SEDIMENTER
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-97219-363-1 01 1 1012- ● ●
87 03.890 CASE ASM; SEDIMENTER
4HG1 ENG(RJH) 		8-97219-363-1 01 1 1012- ●
