1-40 — FUEL TANK (#35960) — 741 parça

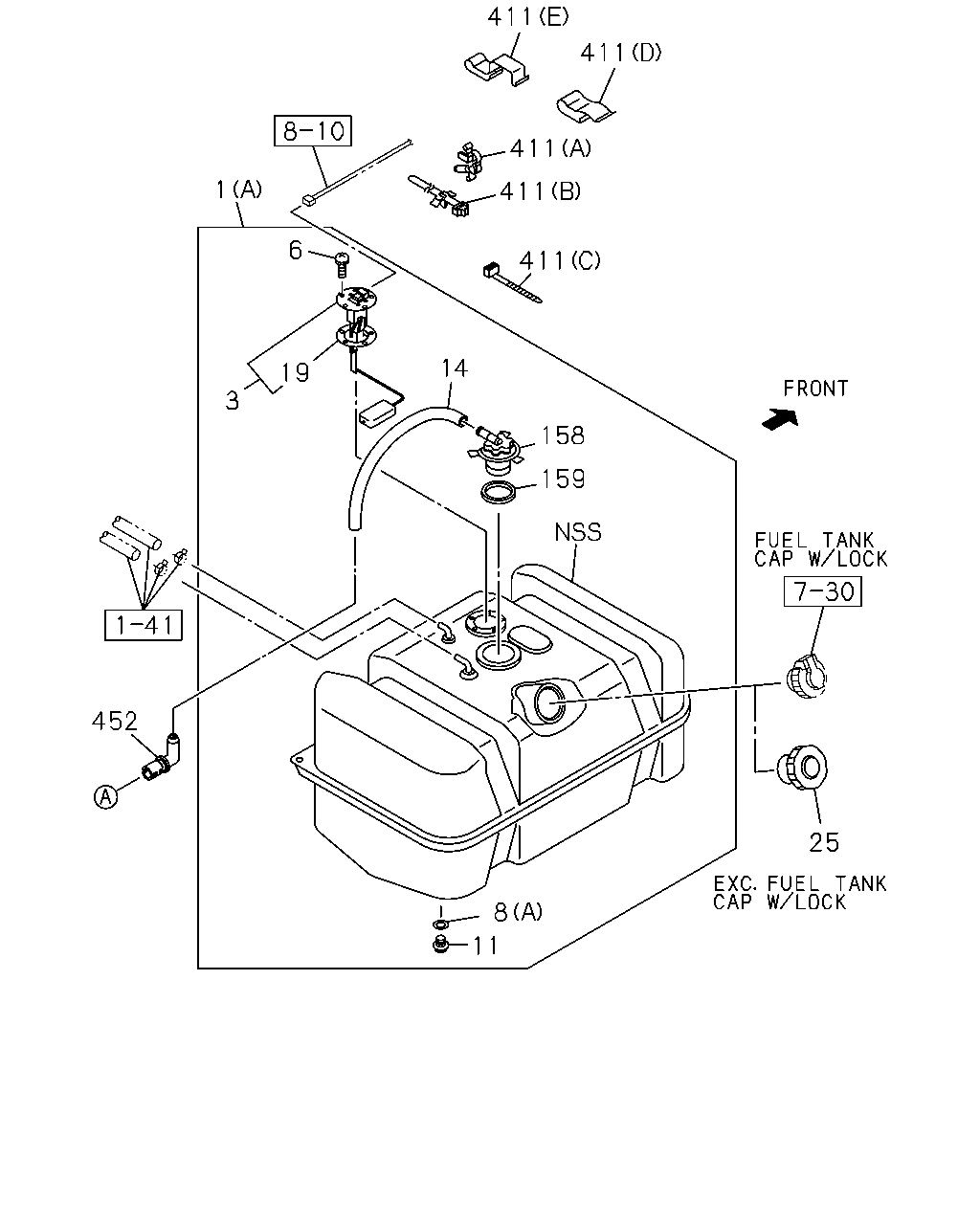

çizim 75934
411 411 411 411 411 25 11 8 159 158 14 19 3 6 1 452
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98101-073-2 01 1 1012- ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (B) 820X500X400 140L 		8-98051-031-4 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 1012- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1012- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1012- ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1012- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1012- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1012- ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1012- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1012- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1102-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1102-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1012 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1012- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1012 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1203- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
452 03.028 BREATHER; FUEL TANK 8-97357-261-0 01 1 1012- ● ● ●
452 03.028 BREATHER; FUEL TANK
FUEL TANK 100 LITTER<N02> 		8-97357-261-0 01 1 1012- ●
çizim 76272
411 411 411 411 411 1 635 3 19 14 6 158 159 640 8 7 11 25
BalonParca AdiParca NoAdetTipApplied Date A B C D

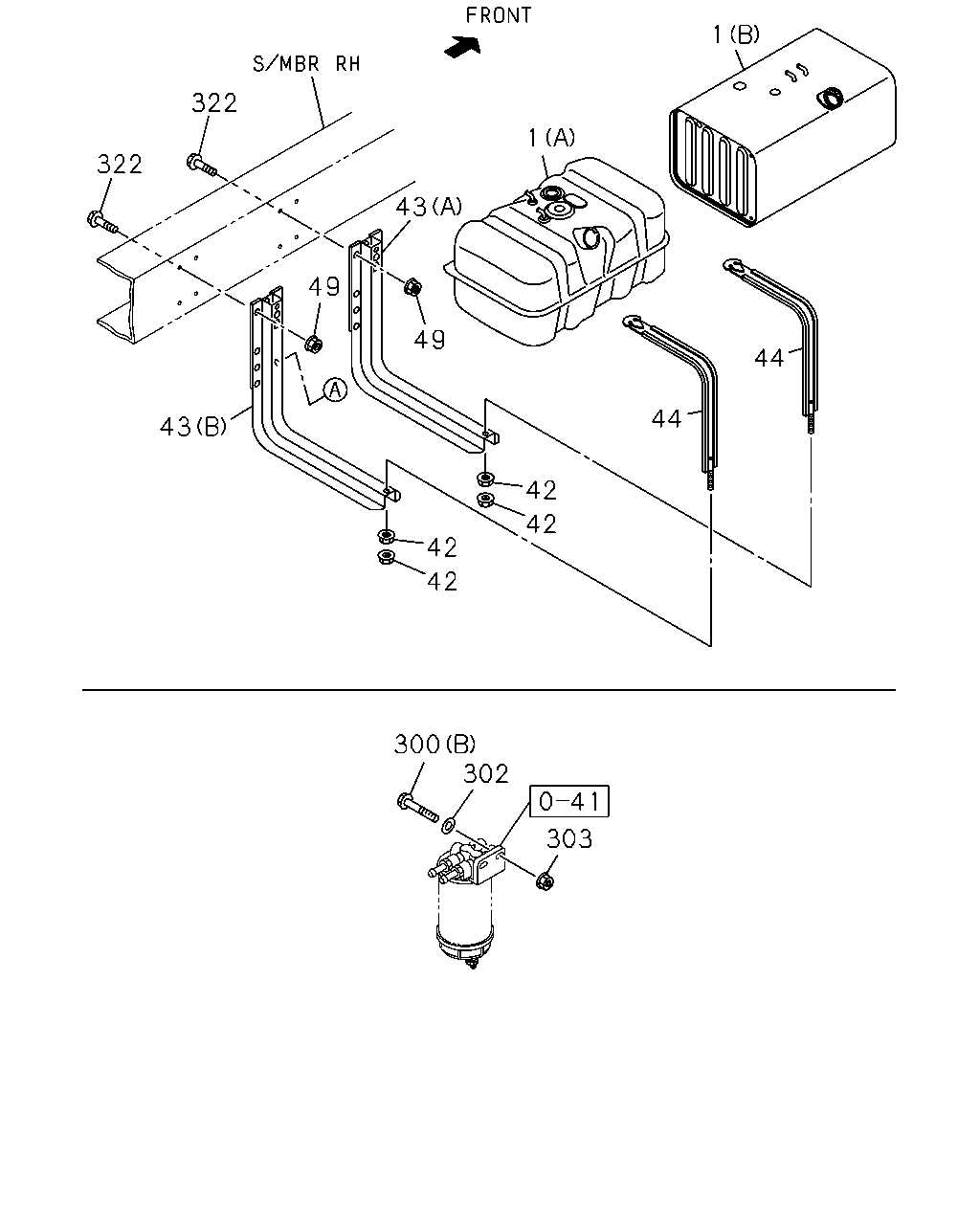

1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98101-073-2 01 1 1012- ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (B) 820X500X400 140L 		8-98051-031-4 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 1012- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1012- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1012- ● ● ● ●
7 03.112 GASKET; TANK UNIT,SUB TANK
FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012-1503 ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1012- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1012- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1012- ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1012- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1012- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1102-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1102-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1012 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1012- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1012 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1203- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1012- ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1012- ●

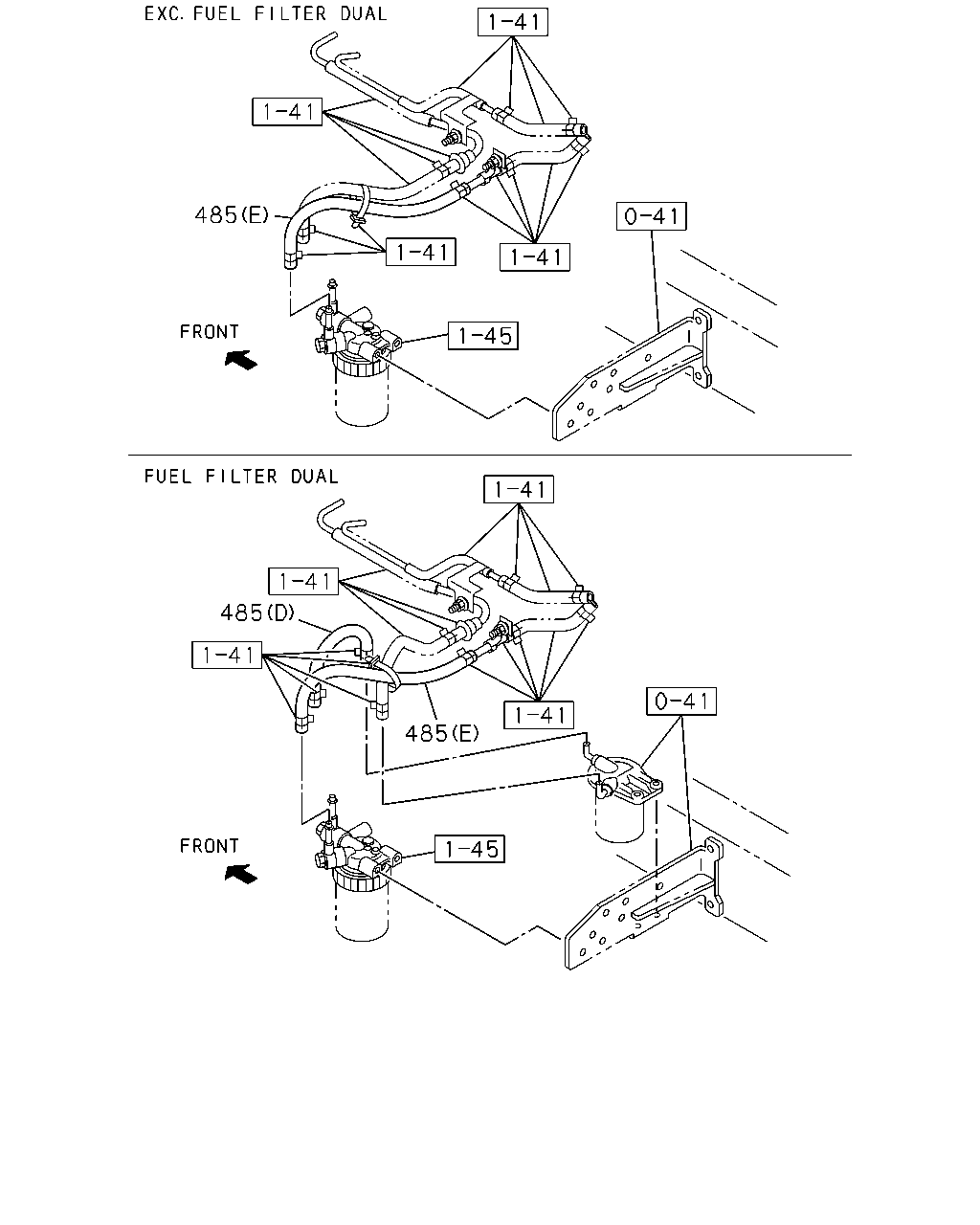

çizim 76304
485 485 485
BalonParca AdiParca NoAdetTipApplied Date A B C D
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1012- ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1012- ● ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),MINI BUS CHASSIS VAR.2(6GQ) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98105-710-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98105-710-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (A) 		8-98099-503-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-503-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (A) 		8-98099-503-0 01 1 1107- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98099-503-0 01 1 1107- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98098-276-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), MINIBUS CHASSIS VAR.2(6GQ) (C) 		8-98041-728-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98041-728-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), MINIBUS CHASSIS VAR.2(6GQ) (C) 		8-98041-728-0 01 1 1107- ● ●
çizim 76305
485 485 485
BalonParca AdiParca NoAdetTipApplied Date A B C D
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=250 SERVICED BY L=3000 		0-01259-300-0 01 1 1012- ● ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FUEL FILTER DUAL(S6B) FRAME STRAIGHT TYPE<7KJ> 03.003 (D) L=280 SERVICED BY L=3000 		0-01259-300-0 01 1 1012- ● ● ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),DUMP CHASSIS(V4D) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1012-1207 ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. EGYPT EQUIPMENT(B09),MINI BUS CHASSIS VAR.2(6GQ) 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.003 (E) L=360 SERVICED BY L=3000 		0-01259-300-0 01 1 1208- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (B) 		8-98105-710-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98105-710-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (A) 		8-98099-503-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98099-503-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSISVAR.2(6GQ) (A) 		8-98099-503-0 01 1 1107- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS VAR.2(6GQ) (A) 		8-98099-503-0 01 1 1107- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (A) 		8-98098-276-0 01 1 1012- ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), MINIBUS CHASSIS VAR.2(6GQ) (C) 		8-98041-728-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0) (C) 		8-98041-728-0 01 1 1012-1106 ●
485 03.163 HOSE; FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. POOR QUALITY DIESEL FUEL(KF0), MINIBUS CHASSIS VAR.2(6GQ) (C) 		8-98041-728-0 01 1 1107- ● ●
çizim 76736
411 411 411 411 1 411 635 3 19 14 656 6 158 159 656 640 11 8 422 8 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98101-073-2 01 1 1012- ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (B) 820X500X400 140L 		8-98051-031-4 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> 		8-98113-179-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> 		8-98113-180-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98056-705-0 01 1 1012- ●
3 03.107 UNIT; FUEL TANK,SUB 8-98056-705-0 01 1 1012- ● ●
3 03.107 UNIT; FUEL TANK,SUB
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) 		8-98065-304-0 01 1 1012- ●
6 03.115 SCREW; TANK UNIT TO SUB FUEL TAN
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1012- ● ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> 06.673 (C) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1504- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ● ● ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 100 LITTER<N02> 03.107 (A) ID=14.2 OD=23.0 		9-09572-014-0 01 1 1012- ●
8 03.890 GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 140 LITTER<N19> (B) ID=30 		8-98067-041-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
01.453 M14X14 		9-09862-156-0 01 1 1012- ● ● ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 100 LITTER<N02> 01.453 M14X14 		9-09862-156-0 01 1 1012- ●
11 03.890 PLUG; DRAIN,FUEL TANK
FUEL TANK 140 LITTER<N19> M18 		8-98068-006-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
L=420 		8-98157-809-0 01 1 1012- ● ● ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 100 LITTER<N02> L=420 		8-98157-809-0 01 1 1012- ●
14 03.163 HOSE; BREATHER,OUTLET
FUEL TANK 140 LITTER<N19> L=460 		8-98082-184-1 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1012-1107 ●
19 03.112 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> ID=42 OD=71 		5-83148-001-0 01 1 1108- ●
19 03.112 GASKET; FUEL TANK UNIT
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) 		8-98051-797-0 01 1 1012- ●
19 03.112 GASKET; FUEL TANK UNIT 8-98051-797-0 01 1 1012- ● ●
25 03.028 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97387-179-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT 8-97179-645-0 01 1 1012- ● ● ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 100 LITTER<N02> 		8-97179-645-0 01 1 1012- ●
158 03.164 VALVE; ROLL OVER & FLOAT
FUEL TANK 140 LITTER<N19> 		8-98095-223-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE 8-97326-488-0 01 1 1012- ● ● ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 100 LITTER<N02> 		8-97326-488-0 01 1 1012- ●
159 03.015 SEAL; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> ID=45 OD=67 		1-83149-003-0 01 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1102-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1102-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1107-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) (D) L=250 		5-09707-030-1 01 1 1208- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1012-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1403-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 2700MM(27W),WHEEL BASE 3800MM(38W) EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1012-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 06.525 (A) ID=5-12 L=18 		1-09709-287-0 01 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1203-1307 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1308-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1012 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. EURO4 SPECIFICATION(NT4) (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1012 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1012-1107 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1108-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
03.162 (C) L=140 		5-09707-031-1 01 1 1012- ● ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1012-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCS ENG(LFB) (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FUEL TANK 140 LITTER<N19>,FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=170.3 		1-09987-182-0 01 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1012-1106 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1107-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1208-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 02 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1203-1402 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> (E) T=4.5 & 9 		8-97371-947-0 03 1 1403- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 140 LITTER<N19> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 03 1 1012- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1012 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1012-1202 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 05 1 1203- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1203-1407 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
FRAME STRAIGHT TYPE<7KJ> EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (E) T=4.5 & 9 		8-97371-947-0 01 1 1408- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) EURO4 SPECIFICATION(NT4) FUEL TANK 100 LITTER<N02> FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 04 1 1012-1202 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1203-1207 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) MINI BUS CHASSIS VAR.2(6GQ) (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EURO4 SPECIFICATION(NT4) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EURO4 SPECIFICATION(NT4) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 2700MM(27W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EURO2 SPECIFICATION(NT2) EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 02 1 1208-1412 ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
(D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. ALGERIA EQUIPMENT(WN1),FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ● ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
4HG1 ENG(RJH) WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
411 02.559 CLIP; FUEL TANK UNIT HARNESS
EXC. FRAME STRAIGHT TYPE<7KJ> (D) T=5.5 		8-97371-951-0 06 1 1501- ●
422 03.023 PLUG; FUEL TANK
FUEL TANK 140 LITTER<N19> 03.890 M30 		8-98067-038-0 01 1 1504- ●
635 03.001 SCREW; ROLL OVER & FLOAT VALVE
FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER 		0-36220-510-0 05 1 1012- ●
640 03.164 VENTILATOR; HOSE,BREATHER
FUEL TANK 140 LITTER<N19> 		8-98092-398-0 01 1 1012- ●
656 03.023 CLAMP; FUEL TANK
FUEL TANK 140 LITTER<N19> 		8-98304-416-0 02 1 1504- ●
çizim 102873
322 322 43 49 49 43 1 1 44 44 42 42 42 42 300 302 303
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L 		8-98104-006-3 01 1 1012- ●
1 03.001 TANK; FUEL
TURKEY EQUIPMENT(B11) FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L 		8-98101-073-2 01 1 1012- ●
1 03.001 TANK; FUEL
FUEL TANK 100 LITTER<N02> EXC. TURKEY EQUIPMENT(B11) (A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ●
1 03.001 TANK; FUEL
(A) 756X482X376 100L 		8-98062-738-4 01 1 1012- ● ●
1 03.001 TANK; FUEL
FUEL TANK 140 LITTER<N19> EXC. TURKEY EQUIPMENT(B11) (B) 820X500X400 140L 		8-98051-031-4 01 1 1012- ●
42 03.023 NUT; SUPPORT BELT
M8 FLANGE 		9-09130-408-0 02 1 1012- ● ● ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 100 LITTER<N02> M8 FLANGE 		9-09130-408-0 02 1 1012- ●
42 03.023 NUT; SUPPORT BELT
FUEL TANK 140 LITTER<N19> 00.833 M10 		0-91110-510-0 04 1 1012- ●
43 03.015 BRACKET; FUEL TANK
(A) 		8-97384-060-5 01 1 1012- ● ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (A) 		8-97384-060-5 01 1 1012- ●
43 03.015 BRACKET; FUEL TANK
(B) 		8-97384-062-6 01 1 1012- ● ● ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 100 LITTER<N02> (B) 		8-97384-062-6 01 1 1012- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (A) 		8-98049-768-1 01 1 1012- ●
43 03.015 BRACKET; FUEL TANK
FUEL TANK 140 LITTER<N19> (B) 		8-98127-229-0 01 1 1012- ●
44 03.023 BAND; FUEL TANK
L=795 		8-97384-080-2 02 1 1012- ● ● ●
44 03.023 BAND; FUEL TANK
FUEL TANK 100 LITTER<N02> L=795 		8-97384-080-2 02 1 1012- ●
44 03.023 BAND; FUEL TANK
FUEL TANK 140 LITTER<N19> L=925 		8-98049-769-1 02 1 1012- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1012-1107 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1108-1307 ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
FUEL TANK 100 LITTER<N02>,FUEL TANK 140LITTER<N19> FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 2700MM(27W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 4100MM(41W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 04.085 M10 FLANGE 		0-91180-210-0 08 1 1308- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE 		0-91180-210-0 09 1 1012- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FUEL TANK 100 LITTER<N02> EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 1012- ●
49 03.023 NUT; BRKT
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 04.085 M10 FLANGE 		0-91180-210-0 09 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
300 03.162 BOLT; BRKT TO BODY
4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
302 03.162 WASHER; PL,SEDIMENTER
4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26 		0-91614-710-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
303 03.162 NUT; SEDIMENTER BRKT
4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE 		0-91180-110-0 02 1 1012- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1107 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1107 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1107 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1107 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1012-1107 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1108-1307 ●
322 03.895 BOLT; BRKT FIX
FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1108-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1108-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1108-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1108-1307 ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 03.613 M10X40 FLANGE 		0-28661-040-0 08 1 1308- ●
322 03.895 BOLT; BRKT FIX
WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE 		0-28661-040-0 07 1 1012- ●
çizim 475373
300 300 299 634 633 301 299 301 301
BalonParca AdiParca NoAdetTipApplied Date A B C D
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) (B) 		8-98074-132-1 01 1 1012- ● ●
299 03.162 BRACKET; FUEL FILTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-175-3 01 1 1012- ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB),4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ● ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE 		0-28651-040-0 02 1 1012- ●
300 03.162 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ● ●
300 03.162 BOLT; BRKT TO BODY
4HG1 ENG(RJH) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 02 1 1012- ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (A) M12X100 FLANGE 		0-28151-200-0 01 1 1012- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (B) M12X50 FLANGE 		0-28151-250-0 01 1 1012- ● ●
301 03.162 BOLT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (C) M12X80 		0-28151-280-0 01 1 1012- ● ●
633 03.162 STUD; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.275 M8X25 L=37 		0-41010-825-0 02 1 1012- ● ●
634 03.162 NUT; BRKT TO SEDIMENTER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 02 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
