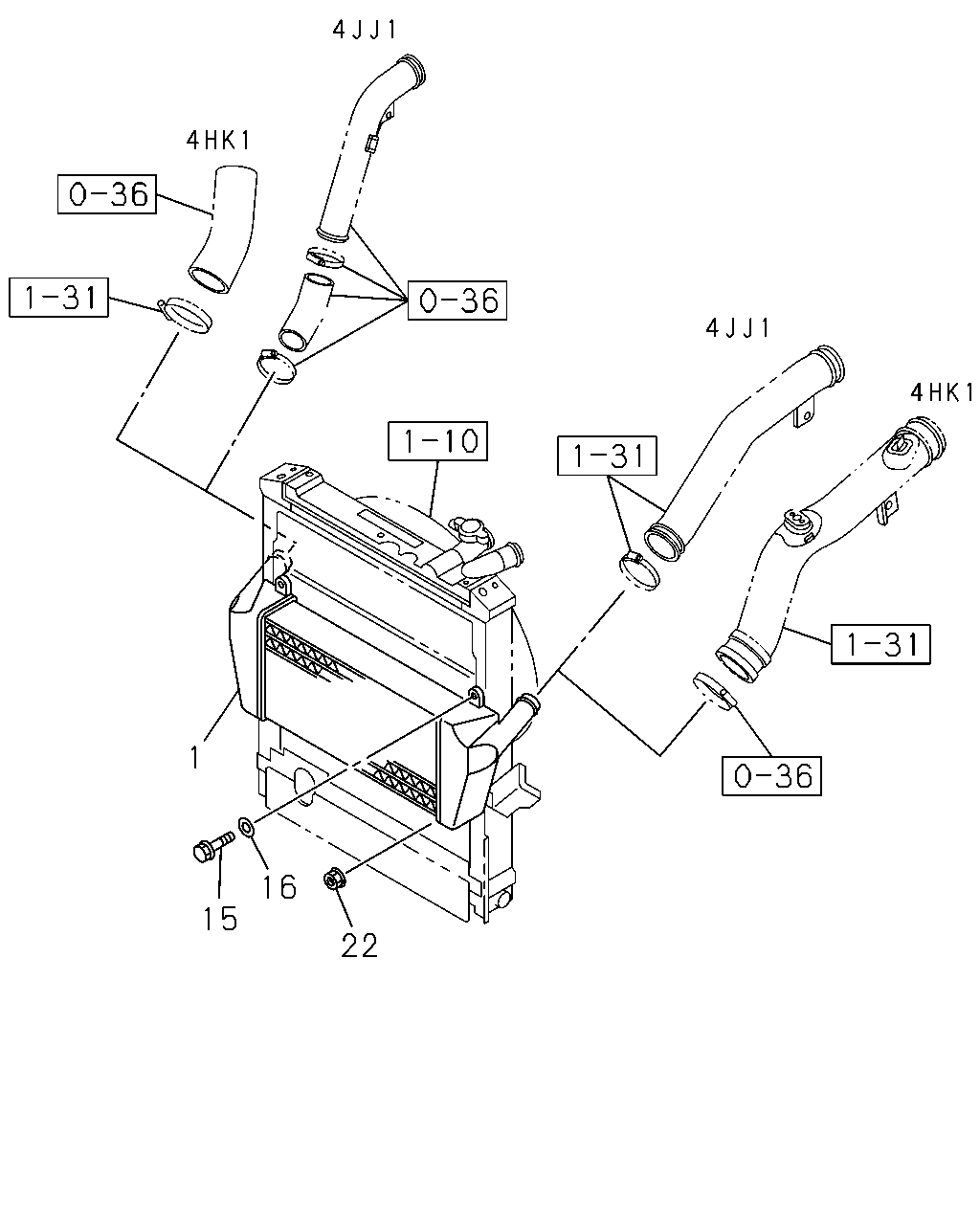

1-35 — CHARGE AIR COOLER (#35959) — 47 parça

1 16 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.374 COOLER; CHARGE AIR	8-97387-033-0	01	1	1012-	●
1	03.374 COOLER; CHARGE AIR 4JJ1-TCC ENG(RDU)	8-97387-033-0	01	1	1012-		●	●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98006-479-1	01	1	1012-		●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98006-479-1	01	1	1012-		●
1	03.374 COOLER; CHARGE AIR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98006-479-1	01	1	1012-				●
15	03.374 BOLT; CHARGE AIR COOLER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1012	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1012		●		●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1012		●		●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1012		●	●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCS ENG(LFB) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112		●		●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112		●	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1012-1112		●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCS ENG(LFB) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-1412	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-1412		●		●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-1412		●		●
15	03.374 BOLT; CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1201-1412		●	●
15	03.374 BOLT; CHARGE AIR COOLER 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1501-	●
15	03.374 BOLT; CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.275 M8X25 FLANGE	0-28050-825-0	02	1	1501-		●	●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1012	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1012		●		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1012		●		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1012		●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCS ENG(LFB) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112		●		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112		●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1012-1112		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCS ENG(LFB) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-1412	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-1412		●		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-1412		●		●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1201-1412		●	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1501-	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	1501-		●	●	●
22	03.374 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1012	●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1012		●		●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1012		●		●
22	03.374 NUT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1012		●	●
22	03.374 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112	●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112		●		●
22	03.374 NUT 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112		●	●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-1112		●
22	03.374 NUT 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-1412	●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-1412		●		●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-1412		●		●
22	03.374 NUT 4JJ1-TCC ENG(RDU) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	02	1	1201-1412		●	●
22	03.374 NUT 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-	●
22	03.374 NUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	1501-		●	●	●
