◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#35958) — 944 parça

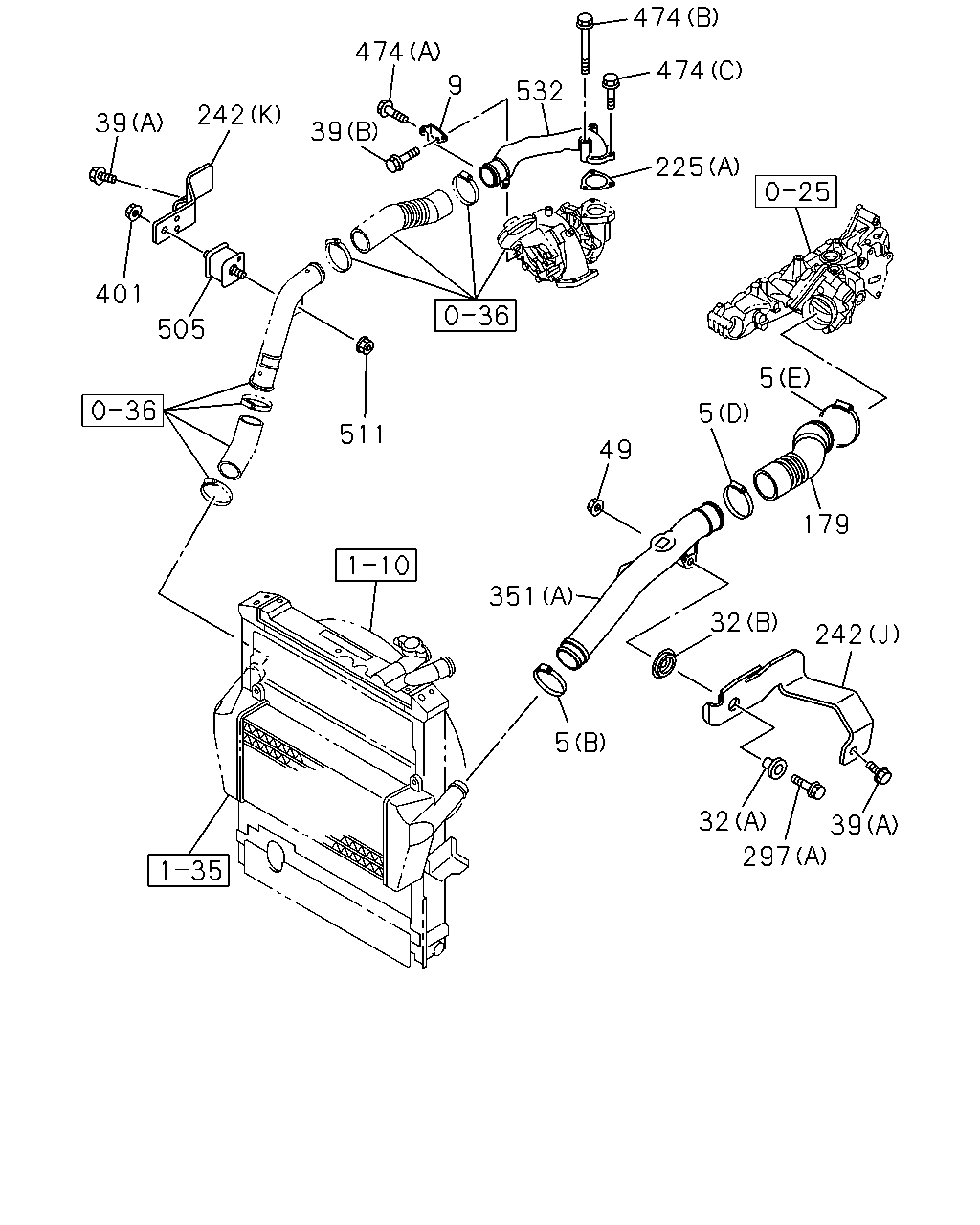

çizim 76237
474 474 9 474 532 242 39 39 225 401 505 5 5 511 49 179 351 32 242 5 32 39 297
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) 		8-98009-086-0 01 1 1012- ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCC ENG(RDU) 		8-98009-086-0 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) OD=32 		8-94395-766-0 01 1 1012- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) 01.277 (B) OD=32 		8-94395-766-0 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1012- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 1012-1106 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1012- ● ●
49 03.417 NUT; AIR DUCT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 1012- ●
179 03.417 HOSE; AIR INT
4JJ1-TCC ENG(RDU) 		8-98050-920-2 01 1 1012- ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 1012- ● ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 (A) ID=47 		8-97202-328-1 01 1 1012- ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCC ENG(RDU) 03.270 (A) ID=47 		8-97202-328-1 01 1 1012- ● ●
225 03.417 GASKET; AIR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ●
297 03.417 BOLT; DUCT
4JJ1-TCC ENG(RDU) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (A) 		8-98051-032-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) (C) 		8-98021-486-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) 		8-98070-865-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 1012- ●
474 03.417 BOLT; PIPE
4JJ1-TCC ENG(RDU) (B) M6X70 FLANGE 		0-28050-670-0 02 1 1012- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ●
474 03.417 BOLT; PIPE
4JJ1-TCC ENG(RDU) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 1012- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1012- ●
474 03.417 BOLT; PIPE
4JJ1-TCC ENG(RDU) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 1012- ● ●
505 03.406 RUBBER; MTG
4JJ1-TCS ENG(LFB) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4JJ1-TCC ENG(RDU) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4JJ1-TCS ENG(LFB) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4JJ1-TCC ENG(RDU) 03.417 		8-97081-886-0 01 1 1107- ●
511 03.417 NUT; PIPE
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-97385-203-1 01 1 1012-1303 ●
532 03.417 PIPE; INTAKE
4JJ1-TCC ENG(RDU) 		8-97385-203-1 01 1 1012-1303 ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-98237-771-1 01 1 1304- ●
532 03.417 PIPE; INTAKE
4JJ1-TCC ENG(RDU) 		8-98237-771-1 01 1 1304- ● ●

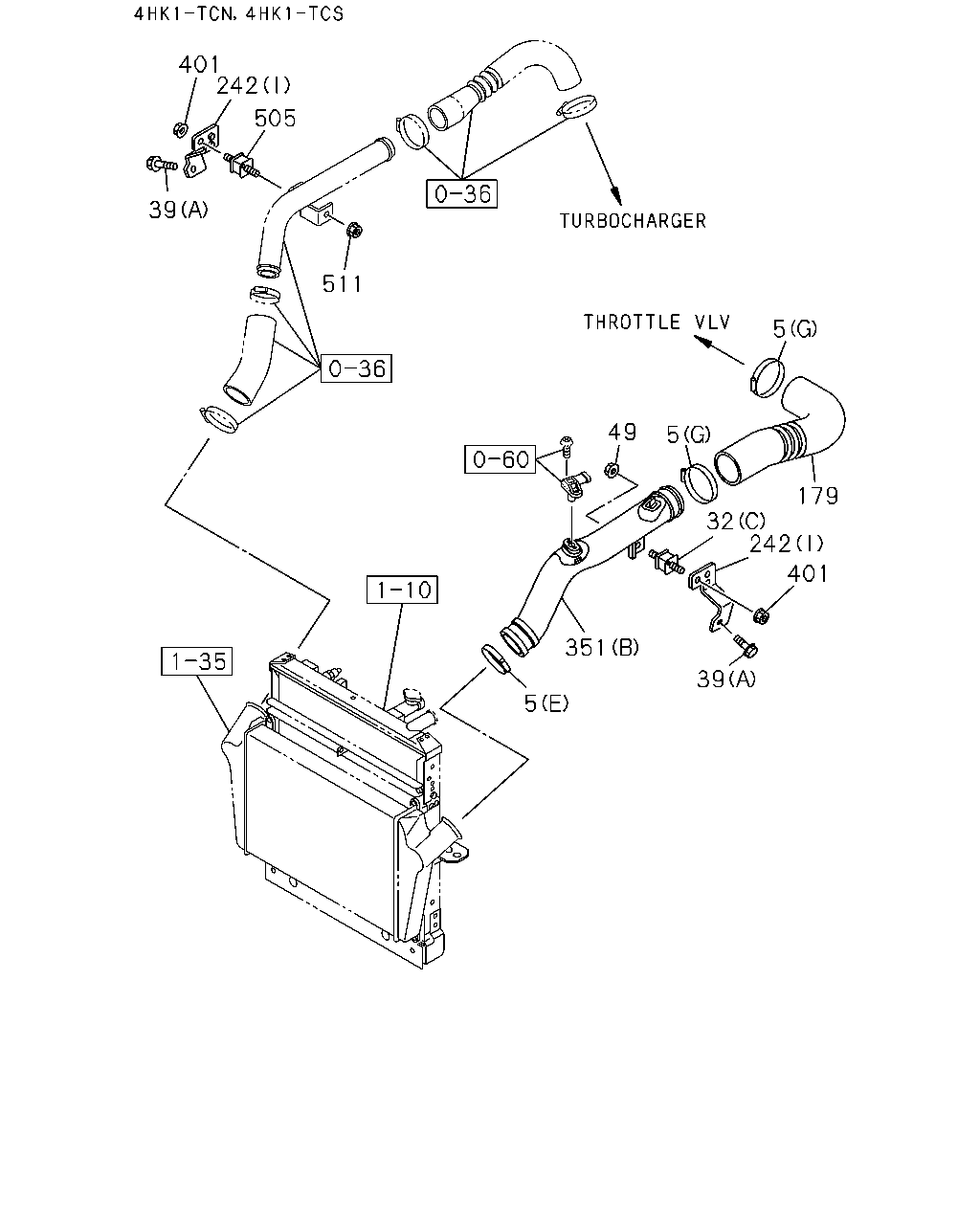

çizim 76303
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) OD=32 		8-94395-766-0 01 1 1012- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) 01.277 (B) OD=32 		8-94395-766-0 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 1012- ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCC ENG(RDU) 03.265 (A) OD=23 		8-97105-689-6 01 1 1012- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 1012-1106 ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCC ENG(RDU) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1012- ●
39 03.417 BOLT; BRKT
4JJ1-TCC ENG(RDU) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 1012- ● ●
49 03.417 NUT; AIR DUCT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
49 03.417 NUT; AIR DUCT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 1012- ●
179 03.417 HOSE; AIR INT
4JJ1-TCC ENG(RDU) 		8-98050-920-2 01 1 1012- ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (A) 		8-98051-032-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) (C) 		8-98021-486-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) 		8-98070-865-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
505 03.406 RUBBER; MTG
4JJ1-TCS ENG(LFB) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4JJ1-TCC ENG(RDU) 03.417 		8-98036-826-0 01 1 1012-1106 ●
505 03.406 RUBBER; MTG
4JJ1-TCS ENG(LFB) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 		8-97081-886-0 01 1 1107- ●
505 03.406 RUBBER; MTG
4JJ1-TCC ENG(RDU) 03.417 		8-97081-886-0 01 1 1107- ●
511 03.417 NUT; PIPE
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●
511 03.417 NUT; PIPE
4JJ1-TCC ENG(RDU) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ●

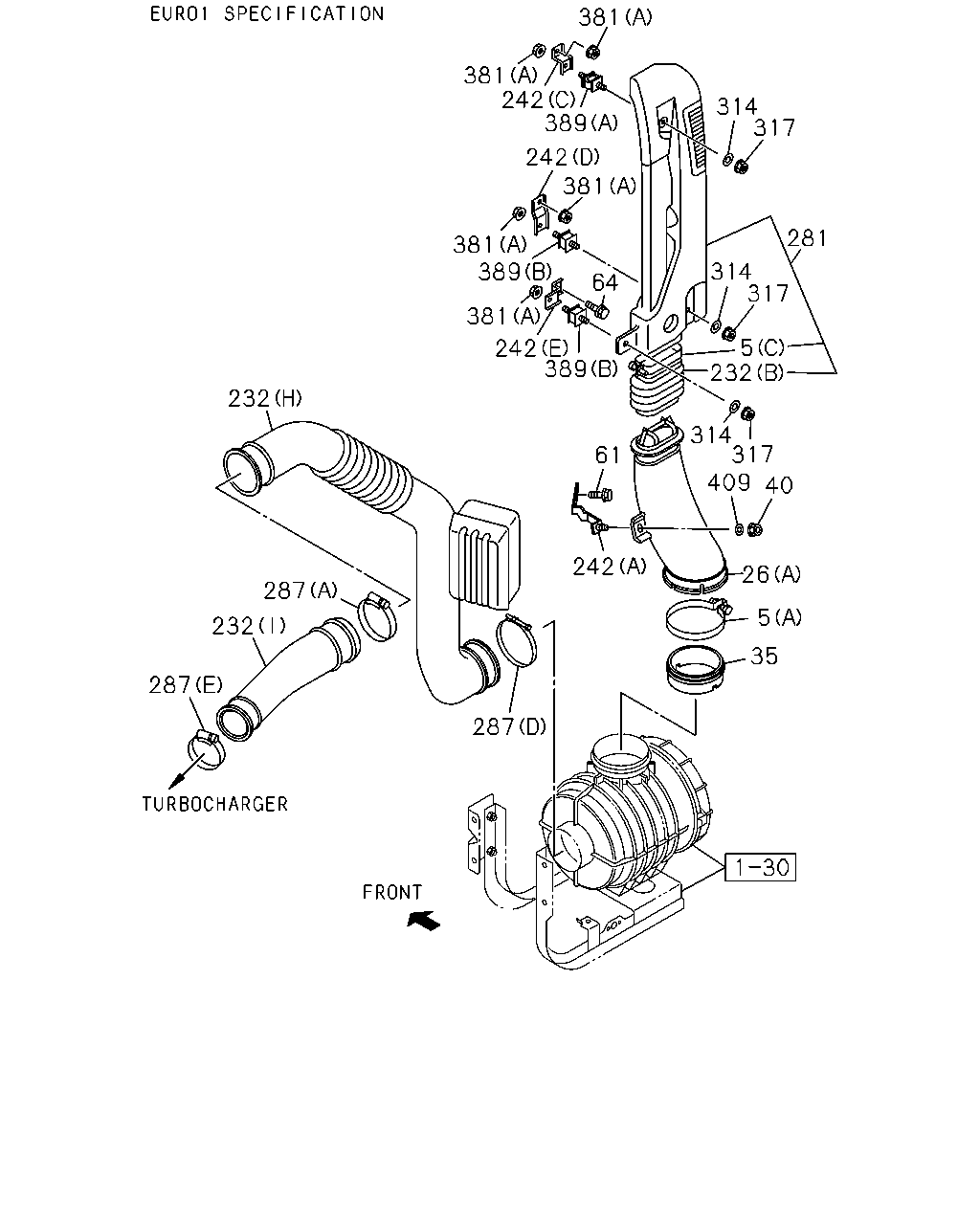

çizim 77479
381 381 242 389 314 317 242 381 281 381 389 314 317 64 381 5 232 242 389 232 314 317 409 61 40 242 26 287 5 232 35 287 287
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012- ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1406- ● ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1406- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●

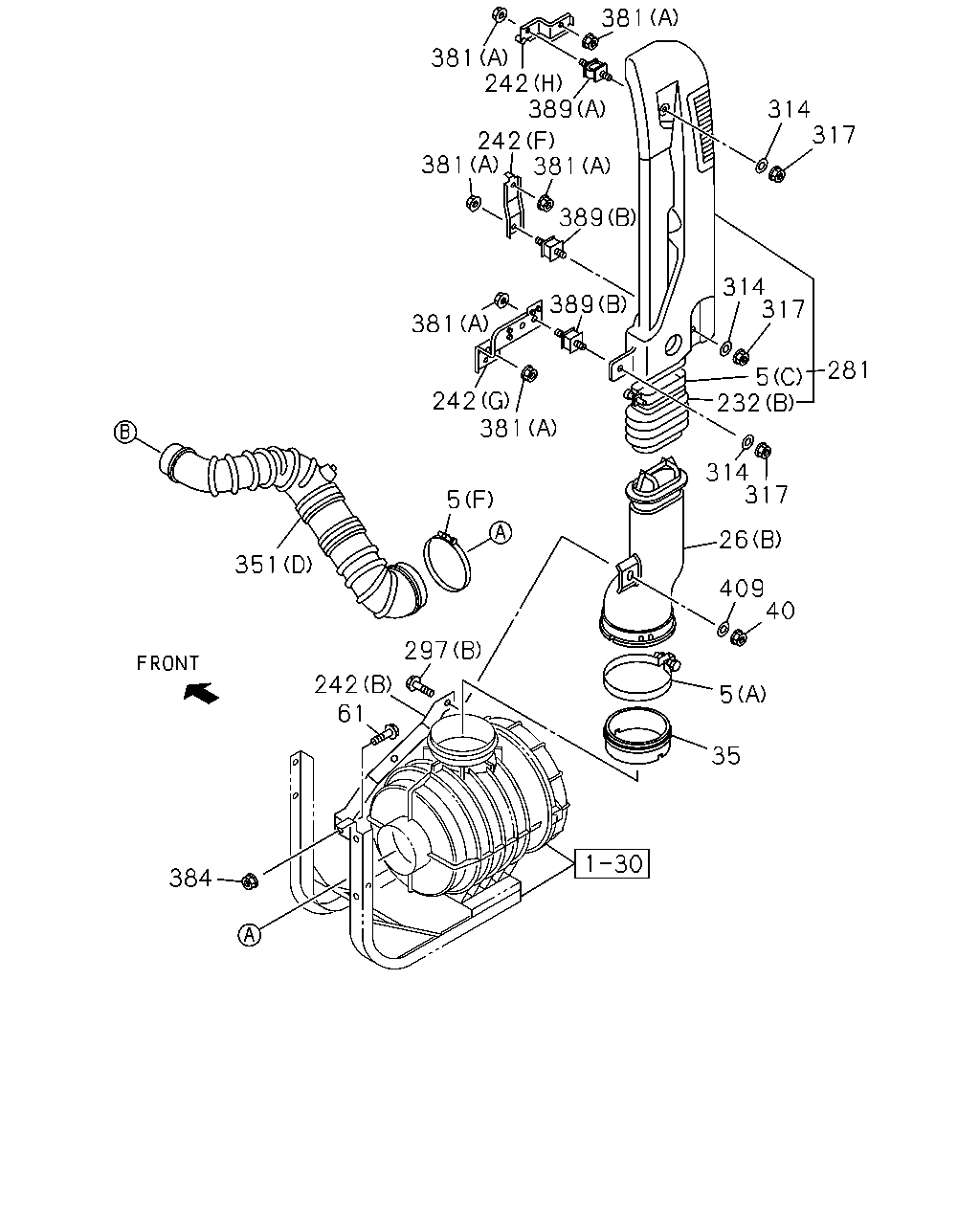

çizim 77480
381 381 242 389 314 317 242 381 381 389 314 317 389 381 5 232 281 242 381 314 317 5 26 351 409 40 297 242 61 5 35 384
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ●
297 03.417 BOLT; DUCT
4JJ1-TCC ENG(RDU) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 1012- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCC ENG(RDU) 02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (A) 		8-98051-032-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) (C) 		8-98021-486-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) 		8-98070-865-0 01 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
384 03.417 NUT; AIR INT DUCT BRKT
4JJ1-TCC ENG(RDU) 03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●

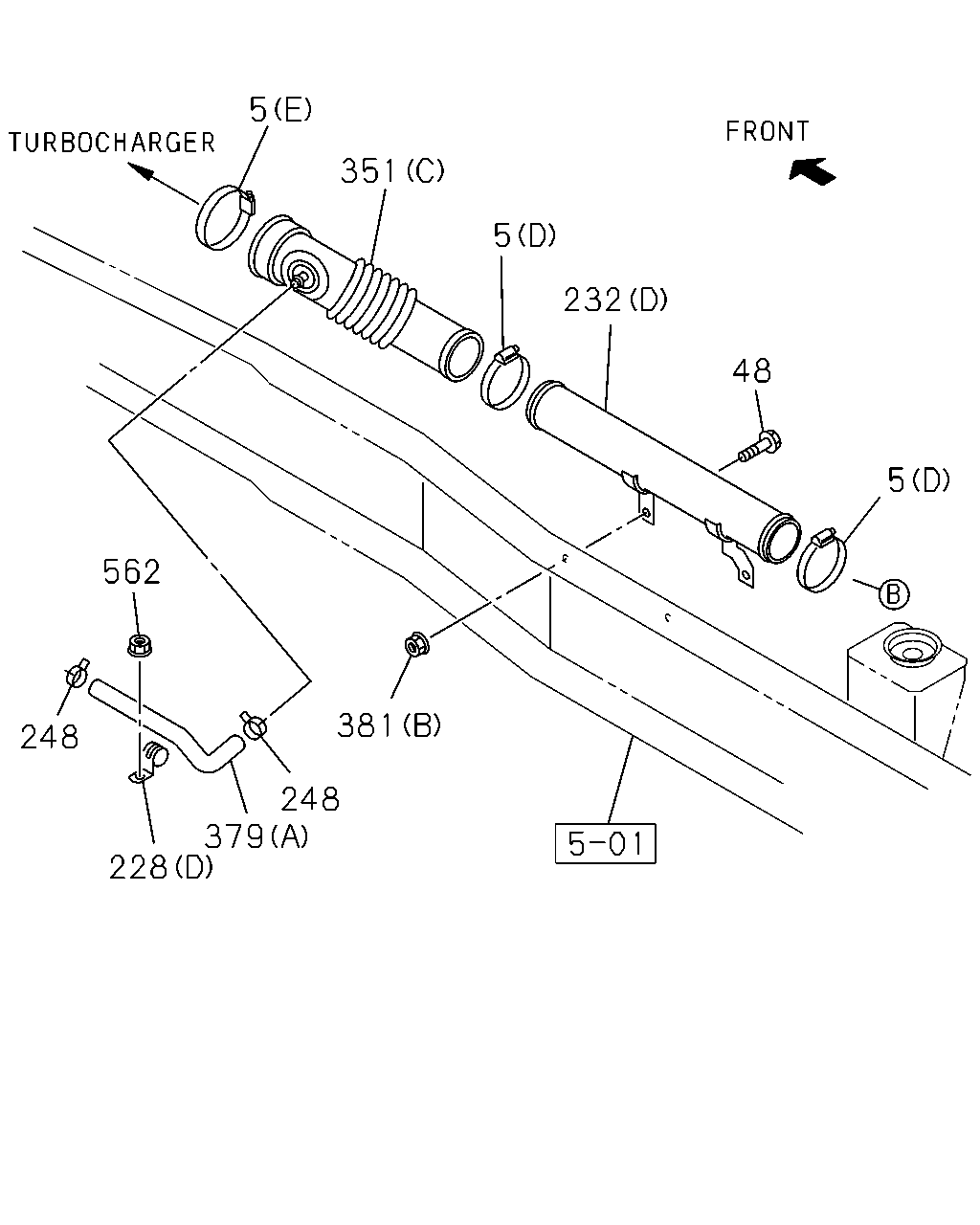

çizim 102835
5 351 5 232 48 5 562 381 248 248 379 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
48 03.417 BOLT; AIR DUCT
4JJ1-TCC ENG(RDU) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1012- ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 (E) 		8-97369-959-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7 		8-97203-074-0 01 1 1012- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) 03.417 (A) 		8-98051-032-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 1012- ● ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) (C) 		8-98021-486-1 01 1 1012- ●
351 03.407 DUCT; AIR
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) 		8-98070-865-0 01 1 1012- ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B) 		8-98075-711-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 03.975 (C) 		8-98153-119-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (D) 		8-98153-120-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) 		8-98135-511-0 01 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●

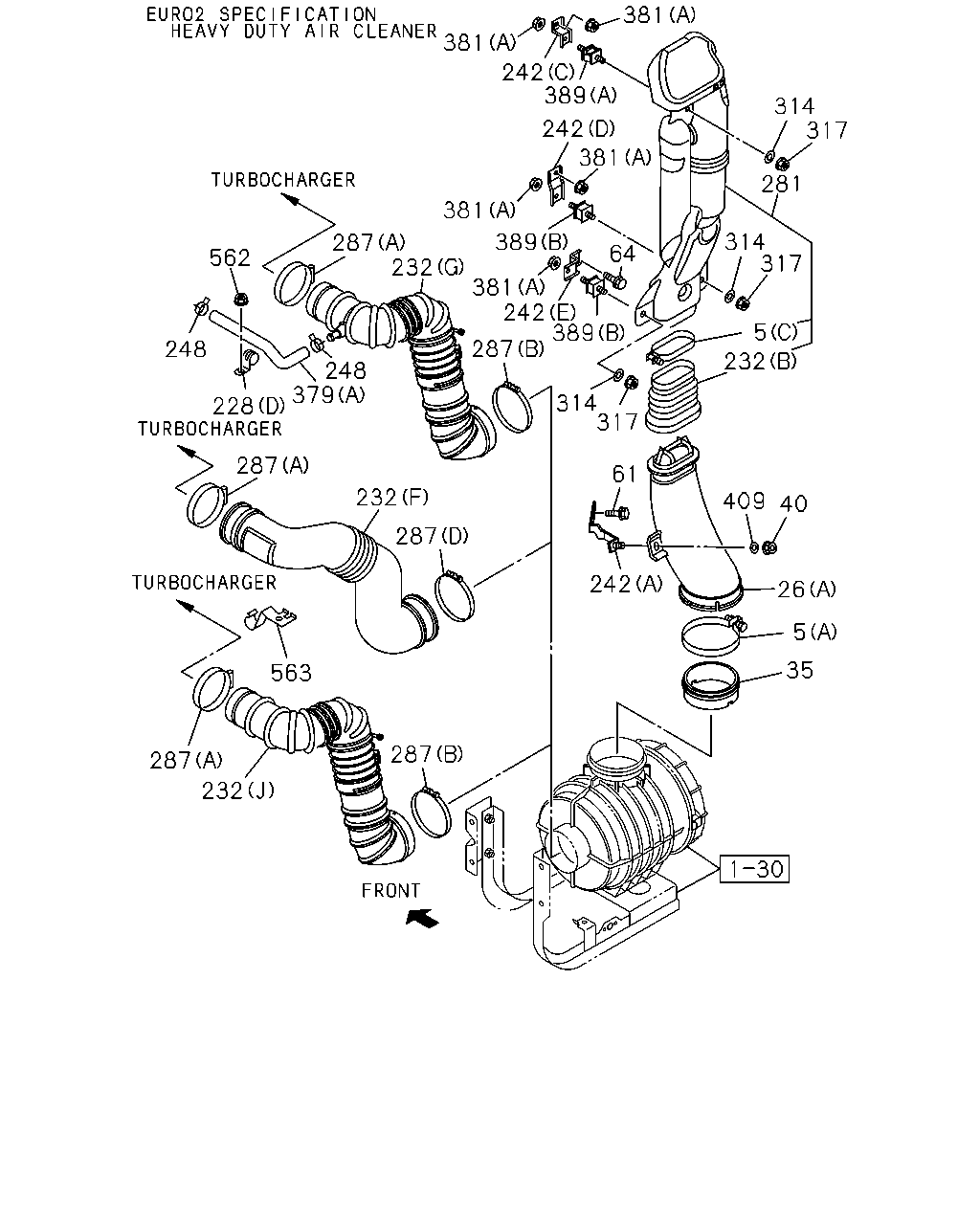

çizim 102836
381 381 242 389 314 317 242 381 281 381 314 317 389 287 232 64 562 381 242 389 287 5 248 232 248 379 228 314 317 287 61 232 409 40 287 242 26 5 35 563 287 287 232
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012- ● ● ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 (E) 		8-97369-959-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7 		8-97203-074-0 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1406- ● ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1406- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B) 		8-98075-711-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 03.975 (C) 		8-98153-119-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (D) 		8-98153-120-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) 		8-98135-511-0 01 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 1012- ● ●
çizim 102874
381 381 242 389 314 317 242 381 281 381 314 317 389 287 232 64 562 381 242 389 5 232 287 248 248 379 228 314 317 409 61 40 287 232 242 287 26 5 35 563 228 287 287 232
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012- ● ● ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 (E) 		8-97369-959-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7 		8-97203-074-0 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1406- ● ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1406- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B) 		8-98075-711-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 03.975 (C) 		8-98153-119-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (D) 		8-98153-120-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) 		8-98135-511-0 01 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●
562 03.403 NUT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
563 03.417 BRACKET; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 		8-98090-587-0 01 1 1012- ● ●
çizim 102875
381 381 379 242 389 314 317 242 381 281 381 389 248 314 317 64 225 381 5 232 242 389 554 379 314 317 409 61 40 287 232 287 242 26 5 35 112 557 379 225 248 554 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012- ● ● ●
112 03.417 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 02.343 M8X12 FLANGE 		0-28050-812-0 01 1 1012- ● ●
112 03.417 BOLT; CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 1012- ● ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 (A) ID=47 		8-97202-328-1 01 1 1012- ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCC ENG(RDU) 03.270 (A) ID=47 		8-97202-328-1 01 1 1012- ● ●
225 03.417 GASKET; AIR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 01.097 (B) ID=43.7 		9-09561-344-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 (E) 		8-97369-959-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7 		8-97203-074-0 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1406- ● ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1406- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B) 		8-98075-711-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 03.975 (C) 		8-98153-119-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (D) 		8-98153-120-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) 		8-98135-511-0 01 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●
554 04.439 FLANGE; PIPE,PCV
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 		8-98038-208-0 01 1 1012- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 1012- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 1012- ●
çizim 102877
232 530 557 557 248 228 379 248 228 287 175 174 232 287 557 174 175 242 61 287 232 287 381 381 389 242 389 64 242 381 389 242 381 381 314 317 314 317 281 232 5 314 317 409 40 26 5 35
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 1012- ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=65-85 		8-98133-350-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (B) ID=45-65 		8-98133-348-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (E) ID=70-90 		8-98122-372-0 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) IDENTIFICATION LABEL FOR KD<6UT> (G) ID=75-95 		8-98133-357-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. IDENTIFICATION LABEL FOR KD<6UT> (G) ID=77-99 		1-09707-141-0 02 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) ID=60-65 		8-98096-418-0 01 1 1012- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) (F) ID=117 		9-09915-075-1 01 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) IDENTIFICATION LABEL FOR KD<6UT> (D) ID=55-75 		8-98133-349-0 02 1 1012- ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. IDENTIFICATION LABEL FOR KD<6UT> (D) ID=58-79 		1-09707-136-0 02 1 1012- ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 1012- ● ● ●
26 03.417 DUCT; AIR INT
4JJ1-TCC ENG(RDU) (B) 		8-98025-627-0 01 1 1012- ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 1012- ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 1012- ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1012- ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 1012- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT
4JJ1-TCS ENG(LFB) 		8-97601-967-0 01 1 1012- ●
174 03.682 SENSOR; AIR FLOW CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 		8-97601-967-0 01 1 1012- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1012- ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1012- ●
228 03.278 CLIP; PCV HOSE
4HG1-T ENG(RDP) 03.417 (E) 		8-97369-959-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (B) ID=22 L=22 		8-98120-916-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1012-1111 ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1112- ●
228 03.278 CLIP; PCV HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) 04.866 (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1012- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (D) ID=25 H=40 L=50 		8-98073-275-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 1012-1309 ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98231-785-0 01 1 1310- ● ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCS ENG(LFB) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) (C) 		8-98048-137-0 01 1 1012- ●
232 03.417 HOSE; CONN
4HG1-T ENG(RDP) (J) 		8-98166-943-0 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEAVY DUTY AIR CLEANER<K46> EURO2 SPECIFICATION(NT2) (F) 		8-98070-857-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) EXC. HEAVY DUTY AIR CLEANER<K46> (F) 		8-98095-507-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) (E) 		8-98059-956-2 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98059-989-2 01 1 1012-1402 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (A) 		8-98272-698-0 01 1 1403-1406 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) (K) 		8-98281-176-0 01 1 1407- ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (G) 		8-98070-065-1 01 1 1012-1111 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98070-065-1 01 1 1112-1409 ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (G) 		8-98269-835-0 01 1 1410- ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (H) 		8-98105-926-1 01 1 1012- ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) (I) 		8-98131-538-1 01 1 1012-1405 ● ●
232 03.417 HOSE; CONN
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) (I) 		8-98131-538-1 01 1 1406- ● ● ●
232 03.417 HOSE; CONN
4JJ1-TCC ENG(RDU) (D) 		8-98021-072-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98145-112-1 01 1 1012- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (J) 		8-98070-942-2 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (K) 		8-98070-943-0 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 1012- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (F) 		8-98055-243-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (G) 		8-98055-246-2 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) (H) 		8-98055-247-1 01 1 1012- ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-98029-819-1 01 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCC ENG(RDU) 08.846 ID=21.7 		8-97203-074-0 02 1 1012- ● ●
248 03.417 CLIP; RUBBER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 08.846 ID=21.7 		8-97203-074-0 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCS ENG(LFB) 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98000-230-5 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-98101-995-5 01 1 1012- ● ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ● ●
281 03.417 DUCT; AIR,VERTICAL INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98080-929-2 01 1 1012- ●
281 03.417 DUCT; AIR,VERTICAL INT
4JJ1-TCC ENG(RDU) EXC. HEAVY DUTY AIR CLEANER<K46> 		8-98061-757-2 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4JJ1-TCC ENG(RDU) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP) 03.407 (B) ID=117 		9-09915-075-1 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=65-85 		8-98133-350-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=55-75 		8-98133-349-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=58-79 		1-09707-136-0 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) 03.407 (D) ID=112 		9-09915-074-1 01 1 1012- ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 1012-1406 ●
287 03.417 CLIP; AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.407 (A) ID=70-90 		8-98122-372-0 01 1 1012- ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) IDENTIFICATION LABEL FOR KD<6UT> (E) ID=40-50 		8-98133-347-0 01 1 1406- ● ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1012-1405 ● ●
287 03.417 CLIP; AIR DUCT
4HG1 ENG(RJH) SAUDI ARABIA EQUIPMENT(GH3) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.166 (E) ID=44-60 		8-94175-940-0 01 1 1406- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 1012- ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ● ● ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1012-1111 ●
379 03.675 HOSE; RUBBER
4JJ1-TCS ENG(LFB) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.278 (A) 		8-98045-343-0 01 1 1112- ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (B) 		8-98075-711-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) 03.975 (C) 		8-98153-119-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (D) 		8-98153-120-0 01 1 1012- ● ●
379 03.675 HOSE; RUBBER
4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) (A) 		8-98135-511-0 01 1 1012- ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 1012- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 1012- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCC ENG(RDU) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 1012- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 1012- ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 1012- ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 1012- ● ● ● ●
530 03.407 CLAMP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) ID=77-99 		1-09707-141-0 01 1 1407- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1012-1111 ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 1112- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 1012- ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
