Sayfa 3-77 - Isuzu EPC

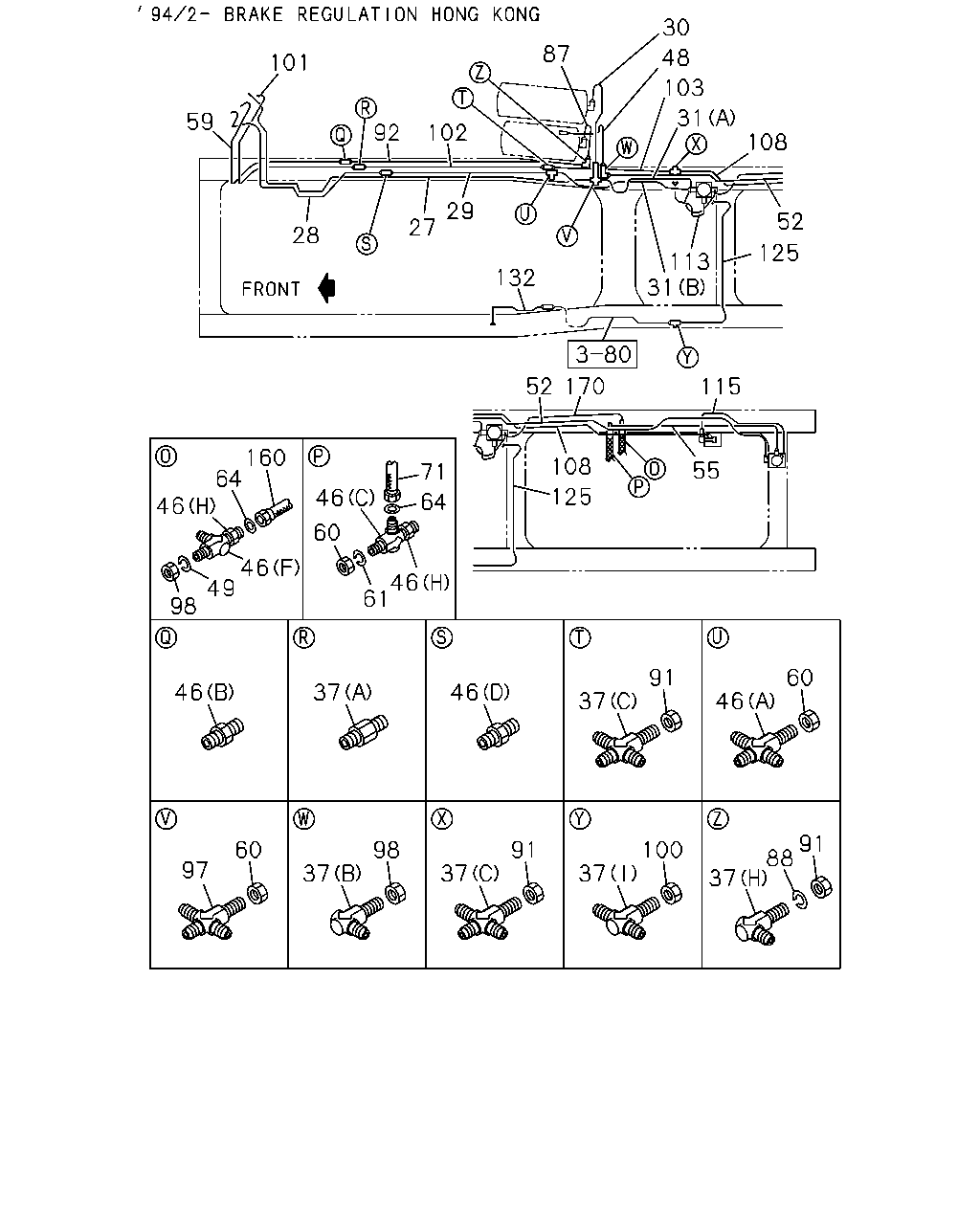

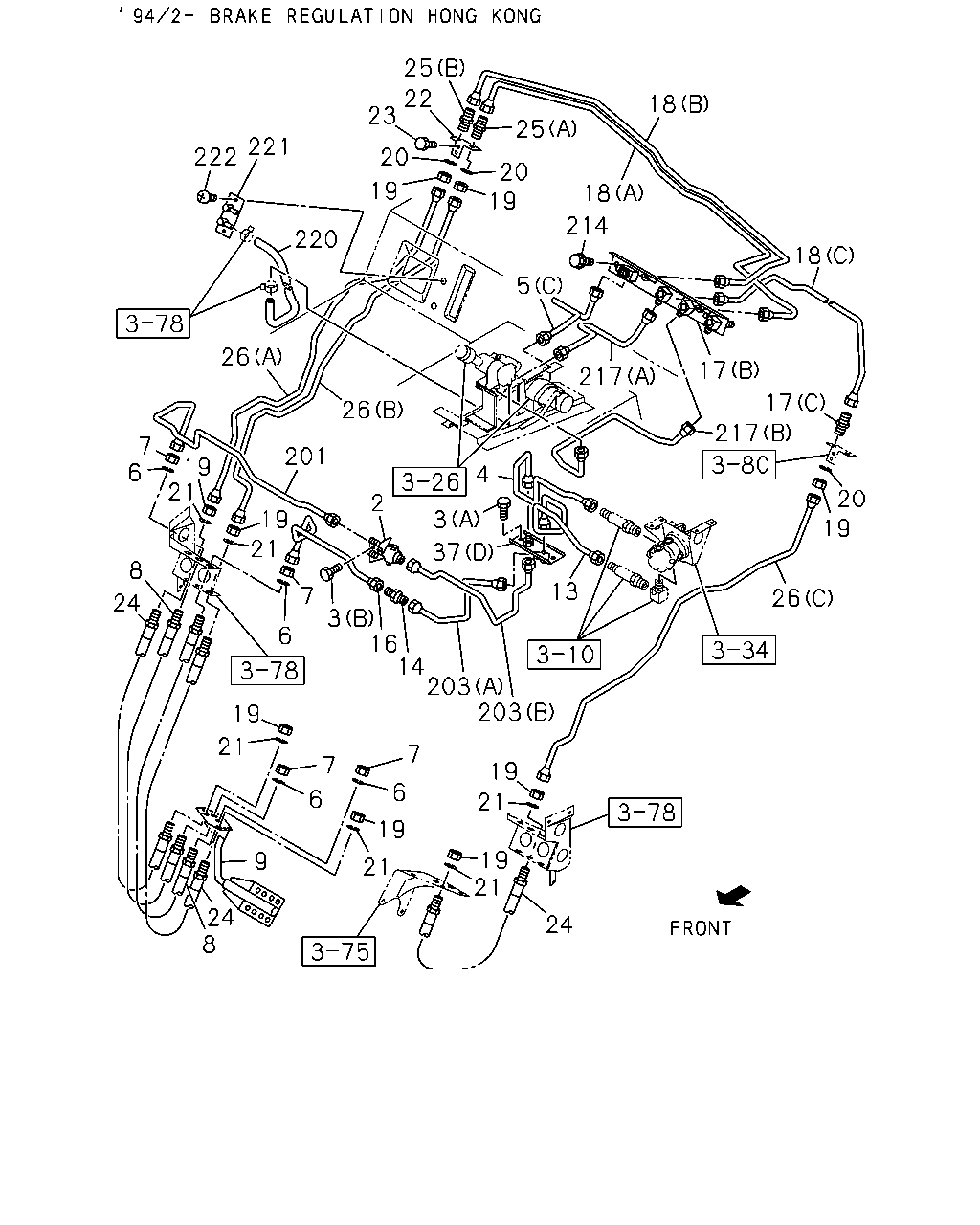

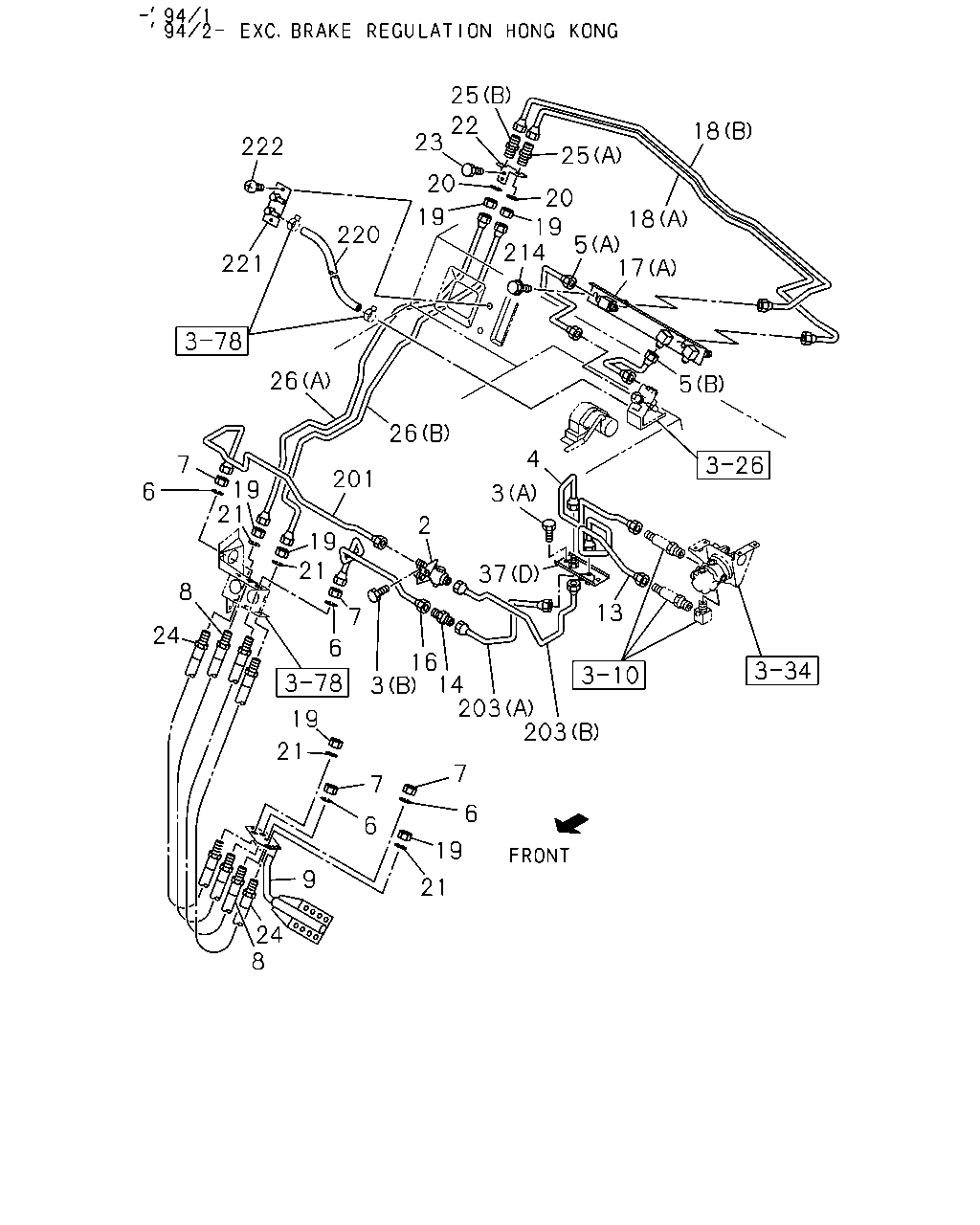

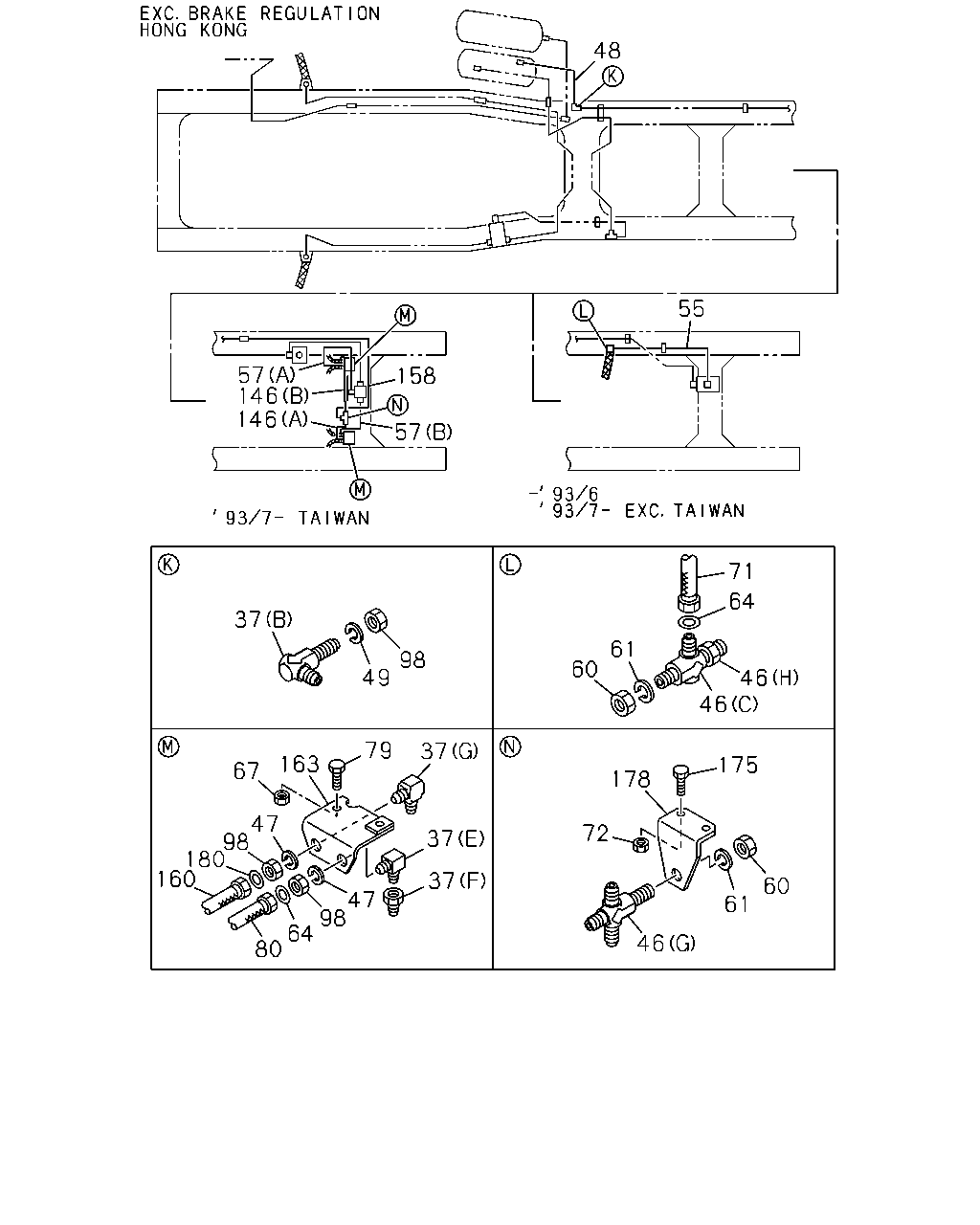

3-77 — BRAKE PIPING; AIR,REAR (#3595) — 543 parça

48 55 57 146 146 158 57 71 64 37 61 98 60 49 46 46 79 37 163 175 67 178 47 98 180 160 72 37 37 60 47 98 64 80 61 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-
37	UNION; AIR PIPE (A)	9-09233-010-1	02	1	9002-9401
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE (B)	9-09235-215-1	01	1	9002-
37	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-9401
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (H) M20	9-09235-212-1	01	1	9002-
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (I) M16	1-09654-148-1	01	1	9402-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (E)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (F)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9002-9306
46	NIPPLE; AIR PIPE (F)	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE (C) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE (E)	9-09228-308-1	01	1	9004-9401
46	NIPPLE; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	9-09228-308-1	01	1	9402-
46	NIPPLE; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (A) M14 2WAY	1-09654-176-2	01	1	9402-
46	NIPPLE; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	1-09656-074-2	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (F)	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (C) M14X35	1-09650-272-2	01	1	9307-
46	NIPPLE; AIR PIPE V TYPE ENG<91L> (D) M14 STRAIGHT	9-09223-008-1	01	1	9002-
47	WASHER; LK,HOSE BRKT TAIWAN EQUIPMENT(WW5) ID=16.2	9-09150-516-0	02	1	9307-
47	WASHER; LK,HOSE BRKT TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	02	1	9307-
48	PIPE; AIR,AIR TANK TO UNION L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
49	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9312
49	WASHER; LK,PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1260 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) L=1260 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
57	PIPE; AIR,RELAY VLV TO FLEX HOSE TAIWAN EQUIPMENT(WW5) (A) L=536 SERVICED BY L=550	1-49111-436-0	01	1	9307-
57	PIPE; AIR,RELAY VLV TO FLEX HOSE TAIWAN EQUIPMENT(WW5) (B) L=748 SERVICED BY L=800	1-49111-441-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-412-0	01	1	9002-9304
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE TAIWAN EQUIPMENT(WW5) M20	9-99111-412-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-512-0	01	1	9305-
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9312
61	WASHER; LK,NIPPLE TAIWAN EQUIPMENT(WW5) ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9002-
64	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	02	1	9307-
67	NUT; HOSE BRKT TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	04	1	9307-
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9002-9306
71	HOSE; FLEX,RWD RR EXC. TAIWAN EQUIPMENT(WW5) L=550	0-07909-550-0	01	1	9307-
72	NUT; BRKT TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	02	1	9307-
79	BOLT; HOSE BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28080-830-0	04	1	9307-
80	HOSE; FLEX,POWER CHAMBER TAIWAN EQUIPMENT(WW5) L=480	0-07909-480-0	02	1	9307-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	02	1	9307-
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
146	PIPE; AIR,UNION TO FLEX HOSE TAIWAN EQUIPMENT(WW5) (A) L=468 SERVICED BY L=500	1-47426-406-0	01	1	9307-
146	PIPE; AIR,UNION TO FLEX HOSE TAIWAN EQUIPMENT(WW5) (B) L=615 SERVICED BY L=660	1-47426-409-0	01	1	9307-
158	PIPE; AIR,PRESS CONT VALVE TO RELAY VL TAIWAN EQUIPMENT(WW5) L=1819 SERVICED BY L=1950	1-47426-393-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER L=550	0-07909-550-0	01	1	9002-9306
160	HOSE; FLEX,SPR CHAMBER EXC. TAIWAN EQUIPMENT(WW5) L=550	0-07909-550-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER TAIWAN EQUIPMENT(WW5) L=470	0-07847-470-1	02	1	9307-
163	BRACKET; FLEX HOSE TAIWAN EQUIPMENT(WW5)	1-47477-060-0	01	1	9307-
163	BRACKET; FLEX HOSE TAIWAN EQUIPMENT(WW5)	1-47477-059-0	01	1	9307-
175	BOLT; HOSE BRKT TAIWAN EQUIPMENT(WW5) M8X30 FLANGE	0-28080-830-0	02	1	9307-
178	BRACKET; UNION TAIWAN EQUIPMENT(WW5)	1-47476-169-1	01	1	9307-
180	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	02	1	9307-

30 87 48 101 103 92 31 59 102 108 29 52 27 28 125 113 31 132 52 170 115 160 64 46 108 55 71 125 46 64 60 46 49 98 46 61 91 60 46 37 46 37 46 91 88 37 60 98 91 100 37 97 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9311
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
29	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
31	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (B) L=1076 SERVICED BY L=1100	1-47426-387-0	01	1	9402-
31	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (A) L=1098	1-47487-498-0	01	1	9402-
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-
37	UNION; AIR PIPE (A)	9-09233-010-1	02	1	9002-9401
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE (B)	9-09235-215-1	01	1	9002-
37	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-9401
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (H) M20	9-09235-212-1	01	1	9002-
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (I) M16	1-09654-148-1	01	1	9402-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (E)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (F)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9002-9306
46	NIPPLE; AIR PIPE (F)	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE (C) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE (E)	9-09228-308-1	01	1	9004-9401
46	NIPPLE; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	9-09228-308-1	01	1	9402-
46	NIPPLE; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (A) M14 2WAY	1-09654-176-2	01	1	9402-
46	NIPPLE; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	1-09656-074-2	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (F)	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (C) M14X35	1-09650-272-2	01	1	9307-
46	NIPPLE; AIR PIPE V TYPE ENG<91L> (D) M14 STRAIGHT	9-09223-008-1	01	1	9002-
48	PIPE; AIR,AIR TANK TO UNION L=708 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
49	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9312
49	WASHER; LK,PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
52	PIPE; AIR,UNION TO RELAY VLV L=2494 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9307-9401
52	PIPE; AIR,UNION TO RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9402-
52	PIPE; AIR,UNION TO RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=2534 SERVICED BY L=2750	1-49111-469-0	01	1	9402-
55	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1260 SERVICED BY L=1300	1-47434-486-0	01	1	9002-9306
55	PIPE; AIR,RELAY VLV TO FLEX HOSE EXC. TAIWAN EQUIPMENT(WW5) L=1260 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=1321 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) L=1024 SERVICED BY L=1100	1-49111-444-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-412-0	01	1	9002-9304
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE TAIWAN EQUIPMENT(WW5) M20	9-99111-412-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-512-0	01	1	9305-
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9312
61	WASHER; LK,NIPPLE TAIWAN EQUIPMENT(WW5) ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9002-
64	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	02	1	9307-
71	HOSE; FLEX,RWD RR L=550	0-07909-550-0	01	1	9002-9306
71	HOSE; FLEX,RWD RR EXC. TAIWAN EQUIPMENT(WW5) L=550	0-07909-550-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-
88	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-
91	NUT; PIPE UNION M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9305-9306
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9307-9401
91	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	01	1	9402-
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9402-
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=2160 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1861 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
97	UNION; AIR PIPE	1-09656-495-1	01	1	9002-9401
97	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-09656-495-1	01	1	9402-
97	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> M22	1-09656-099-1	01	1	9402-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	02	1	9307-
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
100	NUT; UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	01	1	9402-
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1381 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=1105 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1240 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-9401
103	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9402-
103	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9402-
108	PIPE; AIR,UNION TO LSPV L=1366 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9307-9401
108	PIPE; AIR,UNION TO LSPV EXC. BRAKE REGULATION HONG KONG<TCZ> L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9402-
108	PIPE; AIR,UNION TO LSPV BRAKE REGULATION HONG KONG<TCZ> L=1451 SERVICED BY L=1550	1-47426-419-0	01	1	9402-
113	PIPE; AIR,UNION TO RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=400 SERVICED BY L=400	1-47426-404-0	01	1	9402-
115	PIPE; AIR,LSPV TO RELAY VLV L=701 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
115	PIPE; AIR,LSPV TO RELAY VLV L=702 SERVICED BY L=730	1-47426-411-0	01	1	9307-
125	PIPE ASM; AIR,RELAY VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1188 SERVICED BY L=1250	1-47426-416-0	01	1	9402-
132	PIPE ASM; AIR,2 WAY TO SUPPLY DUMP VLV BRAKE REGULATION HONG KONG<TCZ> L=719 SERVICED BY L=730	1-47426-411-0	01	1	9402-
160	HOSE; FLEX,SPR CHAMBER L=550	0-07909-550-0	01	1	9002-9306
160	HOSE; FLEX,SPR CHAMBER EXC. TAIWAN EQUIPMENT(WW5) L=550	0-07909-550-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER TAIWAN EQUIPMENT(WW5) L=470	0-07847-470-1	02	1	9307-
170	PIPE; AIR,RELAY VLV TO FLEX HOSE 10PD1 STD ENG(40L) BRAKE REGULATION HONG KONG<TCZ> L=1088 SERVICED BY L=1100	1-47426-387-0	01	1	9402-

25 22 23 18 25 221 222 20 20 19 19 18 214 220 18 5 26 17 217 17 26 217 7 6 201 19 21 4 20 19 2 19 21 3 37 8 13 7 26 24 3 16 14 203 203 6 21 7 7 19 6 6 21 19 21 19 9 21 24 8 24 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-175-2	01	1	9002-
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-189-3	01	1	9002-
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-
3	BOLT; PIPE UNION (B) M6X16	1-09980-296-0	02	1	9002-
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-49111-438-0	01	1	9307-
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47445-569-1	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV (B) L=240	1-47445-570-1	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47495-978-0	01	1	9307-9402
5	PIPE; AIR,UNION TO PARKING VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=431	1-47495-978-0	01	1	9402-
5	PIPE; AIR,UNION TO PARKING VLV (B) L=256	1-47495-979-0	01	1	9307-9402
5	PIPE; AIR,UNION TO PARKING VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) L=256	1-47495-979-0	01	1	9402-
5	PIPE; AIR,UNION TO PARKING VLV BRAKE REGULATION HONG KONG<TCZ> (C)	1-49113-659-1	01	1	9402-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9002-
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9002-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9002-
7	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-
8	HOSE; FLEX,AIR,CAB SIDE L=850	0-07424-850-0	01	1	9002-9408
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07424-830-0	01	1	9409-
8	HOSE; FLEX,AIR,CAB SIDE L=850	0-07706-850-0	01	1	9002-9409
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07706-830-0	01	1	9410-
9	BRACKET; FLEX HOSE,CAB SIDE	1-47475-603-0	01	1	9002-
13	PIPE; AIR,BRK VLV TO UNION L=648 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306
13	PIPE; AIR,BRK VLV TO UNION L=649 SERVICED BY L=700	1-47426-410-0	01	1	9307-
14	UNION; AIR PIPE M16 L=42	9-09233-010-1	01	1	9002-
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
17	UNION; AIR PIPE (A)	1-47470-178-3	01	1	9002-9402
17	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47470-178-3	01	1	9402-
17	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (B)	1-47470-393-1	01	1	9402-
17	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M14	9-09223-208-1	01	1	9402-
18	PIPE; AIR,UNION TO UNION (A) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION (A) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-9402
18	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9402-
18	PIPE; AIR,UNION TO UNION (B) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION (B) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (C) L=1123 SERVICED BY L=1250	1-47426-388-0	01	1	9402-
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (A) L=1717 SERVICED BY L=1800	1-47426-392-0	01	1	9402-
19	NUT; PIPE UNION M14	9-99111-414-0	03	1	9002-9402
19	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M14	9-99111-414-0	02	1	9403-
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9403-
19	NUT; PIPE UNION M16	9-99111-416-0	03	1	9002-
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M14	9-99111-414-0	01	1	9502-
20	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9002-
20	WASHER; LK,PIPE UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	01	1	9402-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	03	1	9002-9501
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9502-
21	WASHER; LK,UNION ID=16.2	9-09150-516-0	02	1	9002-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9402-9501
21	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	01	1	9402-9501
21	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	02	1	9502-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9502-
22	BRACKET; PIPE UNION	1-47475-259-0	01	1	9002-
23	BOLT; UNION BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
23	BOLT; UNION BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
23	BOLT; UNION BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-
24	HOSE; FLEX,PARKING BRK L=580	0-07404-580-0	01	1	9002-9402
24	HOSE; FLEX,PARKING BRK BRAKE REGULATION HONG KONG<TCZ> L=580	0-07404-580-0	01	1	9403-
24	HOSE; FLEX,PARKING BRK L=580	0-07404-580-0	01	1	9403-
24	HOSE; FLEX,PARKING BRK L=590	0-07424-590-0	01	1	9002-
25	UNION; AIR PIPE (A)	9-09223-308-1	01	1	9002-
25	UNION; AIR PIPE (B)	9-09233-210-1	01	1	9002-
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1488	1-47447-663-2	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1489	1-47495-961-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1522	1-47495-972-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9402-
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-
37	UNION; AIR PIPE (A)	9-09233-010-1	02	1	9002-9401
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE (B)	9-09235-215-1	01	1	9002-
37	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-9401
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (H) M20	9-09235-212-1	01	1	9002-
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (I) M16	1-09654-148-1	01	1	9402-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (E)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (F)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	9-09903-782-1	02	1	9307-
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-49111-442-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION (A) L=446 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION (A) L=446	1-47495-946-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47446-008-1	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47495-936-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=681	1-47495-935-0	01	1	9307-
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-
217	PIPE; AIR,PARKING BRK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> (A) L=512	1-49113-657-1	01	1	9402-
217	PIPE; AIR,PARKING BRK VLV TO UNION BRAKE REGULATION HONG KONG<TCZ> (B) L=744	1-49113-658-0	01	1	9402-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9404
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9402-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE REGULATION HONG KONG<TCZ> L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9402-
221	CONNECTOR; EXH	1-47470-166-0	01	1	9002-
222	BOLT; CONNECTOR M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
222	BOLT; CONNECTOR M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
222	BOLT; CONNECTOR M6X16 FLANGE	0-28080-616-0	02	1	9303-9312
222	BOLT; CONNECTOR M6X20 FLANGE	0-28080-620-0	02	1	9401-

25 22 23 18 222 25 20 20 19 214 19 18 17 220 5 221 26 5 26 4 7 201 19 21 6 3 2 19 21 37 8 13 7 24 6 16 3 14 203 203 19 21 7 7 6 6 19 9 21 24 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE DUAL AIR GAUGE<UG2>	1-47470-175-2	01	1	9002-
2	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2>	1-47470-189-3	01	1	9002-
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
3	BOLT; PIPE UNION (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-
3	BOLT; PIPE UNION (B) M6X16	1-09980-296-0	02	1	9002-
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-47437-978-0	01	1	9002-9306
4	PIPE; AIR,UNION TO BRK VLV L=608 SERVICED BY L=660	1-49111-438-0	01	1	9307-
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47445-569-1	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV (B) L=240	1-47445-570-1	01	1	9002-9306
5	PIPE; AIR,UNION TO PARKING VLV (A) L=431	1-47495-978-0	01	1	9307-9402
5	PIPE; AIR,UNION TO PARKING VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=431	1-47495-978-0	01	1	9402-
5	PIPE; AIR,UNION TO PARKING VLV (B) L=256	1-47495-979-0	01	1	9307-9402
5	PIPE; AIR,UNION TO PARKING VLV EXC. BRAKE REGULATION HONG KONG<TCZ> (B) L=256	1-47495-979-0	01	1	9402-
5	PIPE; AIR,UNION TO PARKING VLV BRAKE REGULATION HONG KONG<TCZ> (C)	1-49113-659-1	01	1	9402-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	9002-
6	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9002-
7	NUT; FLEX HOSE M16	9-99111-416-0	02	1	9002-
7	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-
8	HOSE; FLEX,AIR,CAB SIDE L=850	0-07424-850-0	01	1	9002-9408
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07424-830-0	01	1	9409-
8	HOSE; FLEX,AIR,CAB SIDE L=850	0-07706-850-0	01	1	9002-9409
8	HOSE; FLEX,AIR,CAB SIDE L=830	0-07706-830-0	01	1	9410-
9	BRACKET; FLEX HOSE,CAB SIDE	1-47475-603-0	01	1	9002-
13	PIPE; AIR,BRK VLV TO UNION L=648 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306
13	PIPE; AIR,BRK VLV TO UNION L=649 SERVICED BY L=700	1-47426-410-0	01	1	9307-
14	UNION; AIR PIPE M16 L=42	9-09233-010-1	01	1	9002-
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
16	PIPE; AIR,UNION TO FLEX HOSE L=1203 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
17	UNION; AIR PIPE (A)	1-47470-178-3	01	1	9002-9402
17	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A)	1-47470-178-3	01	1	9402-
17	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (B)	1-47470-393-1	01	1	9402-
17	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M14	9-09223-208-1	01	1	9402-
18	PIPE; AIR,UNION TO UNION (A) L=1616 SERVICED BY L=1800	1-47434-413-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION (A) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9307-9402
18	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=1722 SERVICED BY L=1950	1-47426-393-0	01	1	9402-
18	PIPE; AIR,UNION TO UNION (B) L=1616 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9306
18	PIPE; AIR,UNION TO UNION (B) L=1617 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (C) L=1123 SERVICED BY L=1250	1-47426-388-0	01	1	9402-
18	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> (A) L=1717 SERVICED BY L=1800	1-47426-392-0	01	1	9402-
19	NUT; PIPE UNION M14	9-99111-414-0	03	1	9002-9402
19	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M14	9-99111-414-0	02	1	9403-
19	NUT; PIPE UNION M14	9-99111-414-0	02	1	9403-
19	NUT; PIPE UNION M16	9-99111-416-0	03	1	9002-
19	NUT; PIPE UNION M14	9-99111-414-0	01	1	9502-
19	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M14	9-99111-414-0	01	1	9502-
20	WASHER; LK,PIPE UNION ID=16.2	9-09150-516-0	01	1	9002-
20	WASHER; LK,PIPE UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	01	1	9402-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	03	1	9002-9501
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9502-
21	WASHER; LK,UNION ID=16.2	9-09150-516-0	02	1	9002-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	9402-9501
21	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	01	1	9402-9501
21	WASHER; LK,UNION BRAKE REGULATION HONG KONG<TCZ> ID=14.2	9-09150-514-0	02	1	9502-
21	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9502-
22	BRACKET; PIPE UNION	1-47475-259-0	01	1	9002-
23	BOLT; UNION BRKT M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
23	BOLT; UNION BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
23	BOLT; UNION BRKT M6X16 FLANGE	0-28080-616-0	02	1	9303-
24	HOSE; FLEX,PARKING BRK L=580	0-07404-580-0	01	1	9002-9402
24	HOSE; FLEX,PARKING BRK BRAKE REGULATION HONG KONG<TCZ> L=580	0-07404-580-0	01	1	9403-
24	HOSE; FLEX,PARKING BRK L=580	0-07404-580-0	01	1	9403-
24	HOSE; FLEX,PARKING BRK L=590	0-07424-590-0	01	1	9002-
25	UNION; AIR PIPE (A)	9-09223-308-1	01	1	9002-
25	UNION; AIR PIPE (B)	9-09233-210-1	01	1	9002-
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1521 SERVICED BY L=1550	1-47437-957-0	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1488	1-47447-663-2	01	1	9002-9306
26	PIPE; AIR,FLEX HOSE TO UNION (A) L=1489	1-47495-961-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION (B) L=1522	1-47495-972-0	01	1	9307-
26	PIPE; AIR,FLEX HOSE TO UNION BRAKE REGULATION HONG KONG<TCZ> (C) L=1447 SERVICED BY L=1550	1-47426-390-0	01	1	9402-
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-
37	UNION; AIR PIPE (A)	9-09233-010-1	02	1	9002-9401
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE (B)	9-09235-215-1	01	1	9002-
37	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-9401
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (H) M20	9-09235-212-1	01	1	9002-
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (I) M16	1-09654-148-1	01	1	9402-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (E)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (F)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	9-09903-782-1	02	1	9307-
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-47437-981-0	01	1	9002-9306
201	PIPE; AIR,FLEX HOSE TO UNION L=843 SERVICED BY L=900	1-49111-442-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION (A) L=446 SERVICED BY L=450	1-47437-962-0	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION (A) L=446	1-47495-946-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47446-008-1	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> (B) L=644	1-47495-936-0	01	1	9307-
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
203	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> (B) L=681	1-47495-935-0	01	1	9307-
214	BOLT; PIPE UNION M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
214	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
214	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9404
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=1200 SERVICED BY L=10000	9-09914-701-0	01	1	9402-
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE REGULATION HONG KONG<TCZ> L=1350 SERVICED BY L=10000	9-09914-701-0	01	1	9402-
221	CONNECTOR; EXH	1-47470-166-0	01	1	9002-
222	BOLT; CONNECTOR M6X16 W/LK WASHER	9-01900-616-0	02	1	9002-9204
222	BOLT; CONNECTOR M6X16 W/LK WASHER	0-50040-616-0	02	1	9205-9302
222	BOLT; CONNECTOR M6X16 FLANGE	0-28080-616-0	02	1	9303-9312
222	BOLT; CONNECTOR M6X20 FLANGE	0-28080-620-0	02	1	9401-

30 155 29 27 33 28 60 61 60 61 97 46 46 160 64 46 140 49 98 60 46 46 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=3188 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=3188 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
27	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=3181 SERVICED BY L=3300	1-47437-975-0	01	1	9002-9306
27	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=3181 SERVICED BY L=3300	1-47426-426-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2953 SERVICED BY L=3300	1-47434-416-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2971 SERVICED BY L=3300	1-47434-416-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=2978 SERVICED BY L=3300	1-47434-416-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=3017 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1679 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9002
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1697 SERVICED BY L=1700	1-47434-412-0	01	1	9003-9009
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1704 SERVICED BY L=1800	1-47434-413-0	01	1	9010-9306
28	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9311
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) EXC. ANTI NOISE EQUIPMENT<SV9> L=1739 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) ANTI NOISE EQUIPMENT<SV9> L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1758 SERVICED BY L=1800	1-47426-392-0	01	1	9312-
28	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=3074 SERVICED BY L=3300	1-47426-398-0	01	1	9307-
29	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1257 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306
29	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1257 SERVICED BY L=1400	1-47426-389-0	01	1	9307-
30	PIPE; AIR,AIR TANK TO JOINT L=868 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
33	PIPE; AIR,UNION TO CONT VLV L=1647 SERVICED BY L=1700	1-47434-412-0	01	1	9002-9306
33	PIPE; AIR,UNION TO CONT VLV L=1641 SERVICED BY L=1800	1-47426-392-0	01	1	9307-9401
33	PIPE; AIR,UNION TO CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=1641 SERVICED BY L=1800	1-47426-392-0	01	1	9402-
46	NIPPLE; AIR PIPE (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9002-9306
46	NIPPLE; AIR PIPE (F)	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE (C) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE (E)	9-09228-308-1	01	1	9004-9401
46	NIPPLE; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	9-09228-308-1	01	1	9402-
46	NIPPLE; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (A) M14 2WAY	1-09654-176-2	01	1	9402-
46	NIPPLE; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	1-09656-074-2	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (F)	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (C) M14X35	1-09650-272-2	01	1	9307-
46	NIPPLE; AIR PIPE V TYPE ENG<91L> (D) M14 STRAIGHT	9-09223-008-1	01	1	9002-
49	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-9306
49	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9312
49	WASHER; LK,PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M22	9-09111-422-0	01	1	9002-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-412-0	01	1	9002-9304
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	01	1	9002-9306
60	NUT; NIPPLE,AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE TAIWAN EQUIPMENT(WW5) M20	9-99111-412-0	01	1	9307-
60	NUT; NIPPLE,AIR PIPE M12	9-99110-512-0	01	1	9305-
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	01	1	9002-9306
61	WASHER; LK,NIPPLE ID=22.5	9-09150-522-0	01	1	9002-9312
61	WASHER; LK,NIPPLE TAIWAN EQUIPMENT(WW5) ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE ID=12.2	9-09150-512-0	01	1	9307-9312
61	WASHER; LK,NIPPLE EXC. TAIWAN EQUIPMENT(WW5) ID=20.2	9-09150-520-0	01	1	9307-
64	GASKET; FLEX HOSE ID=17.5	9-09572-515-0	04	1	9002-
64	GASKET; FLEX HOSE TAIWAN EQUIPMENT(WW5) ID=11 OD=18	9-09572-510-0	02	1	9307-
97	UNION; AIR PIPE	1-09656-495-1	01	1	9002-9401
97	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ>	1-09656-495-1	01	1	9402-
97	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> M22	1-09656-099-1	01	1	9402-
98	NUT; PIPE UNION M22	9-09111-422-0	01	1	9002-
98	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-9306
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	02	1	9307-
98	NUT; PIPE UNION TAIWAN EQUIPMENT(WW5) M16	9-99111-416-0	02	1	9307-
98	NUT; PIPE UNION EXC. TAIWAN EQUIPMENT(WW5) M20	9-99111-420-0	01	1	9307-
140	BRACKET; AIR PIPE L=50	1-47475-299-2	01	1	9002-9306
155	PIPE; AIR,UNION TO CONT VLV L=264 SERVICED BY L=350	9-47415-377-0	01	1	9002-9306
155	PIPE; AIR,UNION TO CONT VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,TAIWAN EQUIPMENT(WW5) L=264 SERVICED BY L=300	1-47426-372-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER L=550	0-07909-550-0	01	1	9002-9306
160	HOSE; FLEX,SPR CHAMBER EXC. TAIWAN EQUIPMENT(WW5) L=550	0-07909-550-0	01	1	9307-
160	HOSE; FLEX,SPR CHAMBER TAIWAN EQUIPMENT(WW5) L=470	0-07847-470-1	02	1	9307-

87 59 102 52 108 101 92 103 115 91 88 46 37 37 91 88 46 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (D)	1-47470-188-1	01	1	9002-
37	UNION; AIR PIPE (A)	9-09233-010-1	02	1	9002-9401
37	UNION; AIR PIPE (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (A) M16 L=42	9-09233-010-1	01	1	9402-
37	UNION; AIR PIPE (B)	9-09235-215-1	01	1	9002-
37	UNION; AIR PIPE (C)	9-09238-310-1	01	1	9002-9401
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (C) M16	9-09238-310-1	01	1	9402-
37	UNION; AIR PIPE (H) M20	9-09235-212-1	01	1	9002-
37	UNION; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (I) M16	1-09654-148-1	01	1	9402-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (E)	1-09650-003-1	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (F)	1-09656-088-0	02	1	9307-
37	UNION; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	9-09903-782-1	02	1	9307-
46	NIPPLE; AIR PIPE (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9002-9306
46	NIPPLE; AIR PIPE (F)	1-09650-251-1	01	1	9002-9306
46	NIPPLE; AIR PIPE (C) M14X35	1-09650-272-2	01	1	9002-9306
46	NIPPLE; AIR PIPE (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE L TYPE ENG<90L> (E)	9-09228-308-0	01	1	9002-9003
46	NIPPLE; AIR PIPE (E)	9-09228-308-1	01	1	9004-9401
46	NIPPLE; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (E)	9-09228-308-1	01	1	9402-
46	NIPPLE; AIR PIPE (B) M20 STRAIGHT	9-09233-012-1	01	1	9002-
46	NIPPLE; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> (A) M14 2WAY	1-09654-176-2	01	1	9402-
46	NIPPLE; AIR PIPE TAIWAN EQUIPMENT(WW5) (G)	1-09656-074-2	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (H) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (F)	1-09650-251-1	01	1	9307-
46	NIPPLE; AIR PIPE EXC. TAIWAN EQUIPMENT(WW5) (C) M14X35	1-09650-272-2	01	1	9307-
46	NIPPLE; AIR PIPE V TYPE ENG<91L> (D) M14 STRAIGHT	9-09223-008-1	01	1	9002-
52	PIPE; AIR,UNION TO RELAY VLV L=2494 SERVISCED BY L=2500	1-47434-494-0	01	1	9002-9306
52	PIPE; AIR,UNION TO RELAY VLV L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9307-9401
52	PIPE; AIR,UNION TO RELAY VLV EXC. BRAKE REGULATION HONG KONG<TCZ> L=2507 SERVICED BY L=2750	1-49111-469-0	01	1	9402-
52	PIPE; AIR,UNION TO RELAY VLV BRAKE REGULATION HONG KONG<TCZ> L=2534 SERVICED BY L=2750	1-49111-469-0	01	1	9402-
59	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> L=1139 SERVICED BY L=1200	1-47437-983-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=1121 SERVICED BY L=1200	1-49111-445-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=1435 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
59	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> L=1321 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
59	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) L=1024 SERVICED BY L=1100	1-49111-444-0	01	1	9307-
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
87	PIPE; AIR,AIR TANK TO UNION L=668 SERVICED BY L=700	1-49111-439-0	01	1	9307-
88	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	9002-9312
88	WASHER; LK,PIPE UNION ID=20.2	9-09150-520-0	01	1	9002-
91	NUT; PIPE UNION M12	9-99110-412-0	01	1	9002-9304
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9305-9306
91	NUT; PIPE UNION M20	9-99111-420-0	01	1	9002-
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9307-9401
91	NUT; PIPE UNION BRAKE REGULATION HONG KONG<TCZ> M12	9-99110-512-0	01	1	9402-
91	NUT; PIPE UNION M12	9-99110-512-0	01	1	9402-
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=2157 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=2160 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1860 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
92	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1861 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION L TYPE ENG<90L> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1180 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1519 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
101	PIPE; AIR,FLEX HOSE TO UNION V TYPE ENG<91L> L=1381 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
101	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=1105 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1510 SERVICED BY L=1550	1-47437-970-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> L=1514 SERVICED BY L=1550	1-47426-419-0	01	1	9307-
102	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1205 SERVICED BY L=1250	1-47437-968-0	01	1	9002-9306
102	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> L=1240 SERVICED BY L=1250	1-47426-416-0	01	1	9307-
103	PIPE; AIR,UNION TO UNION L=1284 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
103	PIPE; AIR,UNION TO UNION L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9307-9401
103	PIPE; AIR,UNION TO UNION EXC. BRAKE REGULATION HONG KONG<TCZ> L=1284 SERVICED BY L=1300	1-47426-417-0	01	1	9402-
103	PIPE; AIR,UNION TO UNION BRAKE REGULATION HONG KONG<TCZ> L=1229 SERVICED BY L=1250	1-47426-416-0	01	1	9402-
108	PIPE; AIR,UNION TO LSPV L=1366 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
108	PIPE; AIR,UNION TO LSPV L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9307-9401
108	PIPE; AIR,UNION TO LSPV EXC. BRAKE REGULATION HONG KONG<TCZ> L=1366 SERVICED BY L=1400	1-47426-418-0	01	1	9402-
108	PIPE; AIR,UNION TO LSPV BRAKE REGULATION HONG KONG<TCZ> L=1451 SERVICED BY L=1550	1-47426-419-0	01	1	9402-
115	PIPE; AIR,LSPV TO RELAY VLV L=701 SERVICED BY L=730	1-47437-965-0	01	1	9002-9306
115	PIPE; AIR,LSPV TO RELAY VLV L=702 SERVICED BY L=730	1-47426-411-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
