Sayfa 0-81 - Isuzu EPC

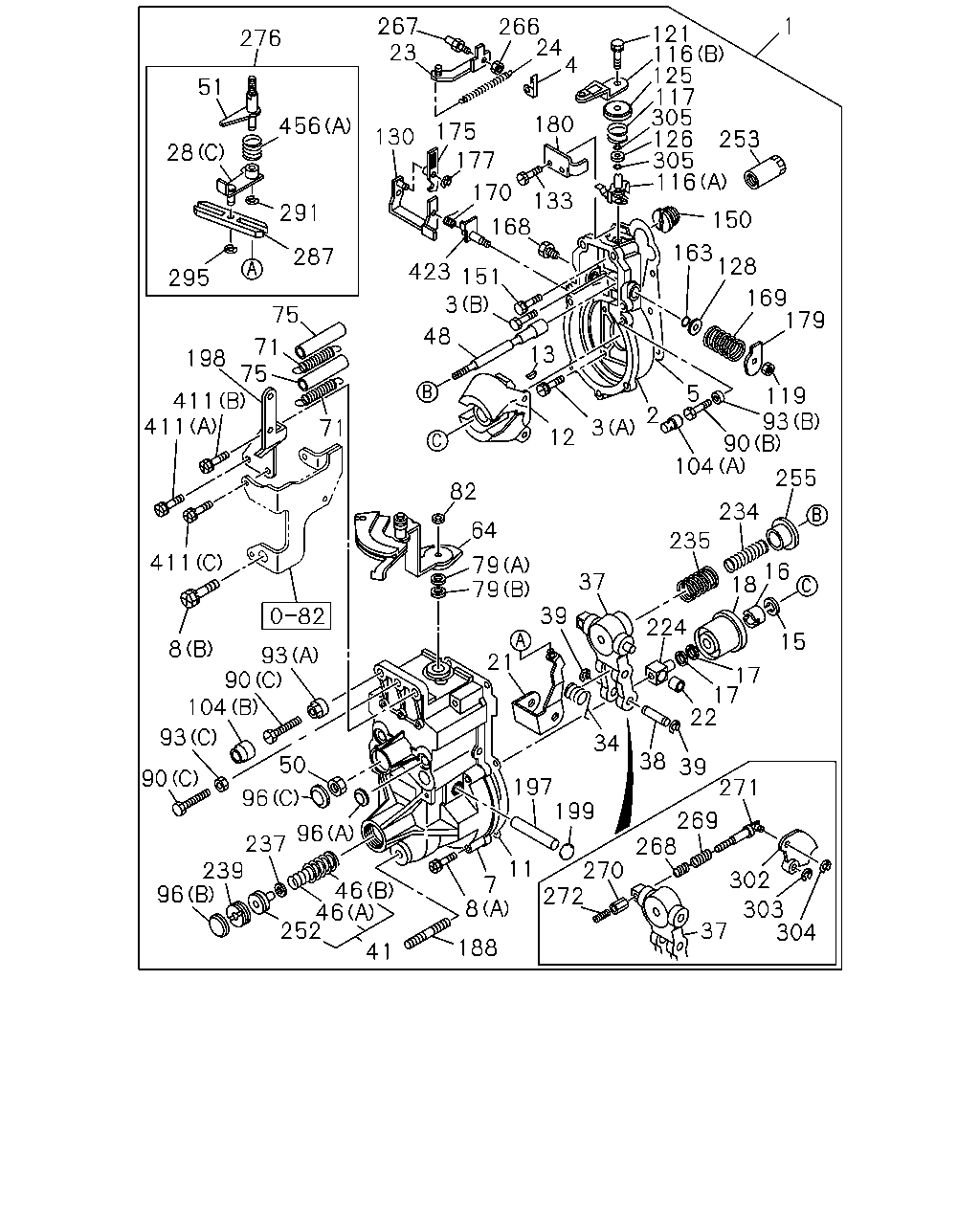

0-81 — GOVERNOR; INJECTION PUMP (#35947) — 363 parça

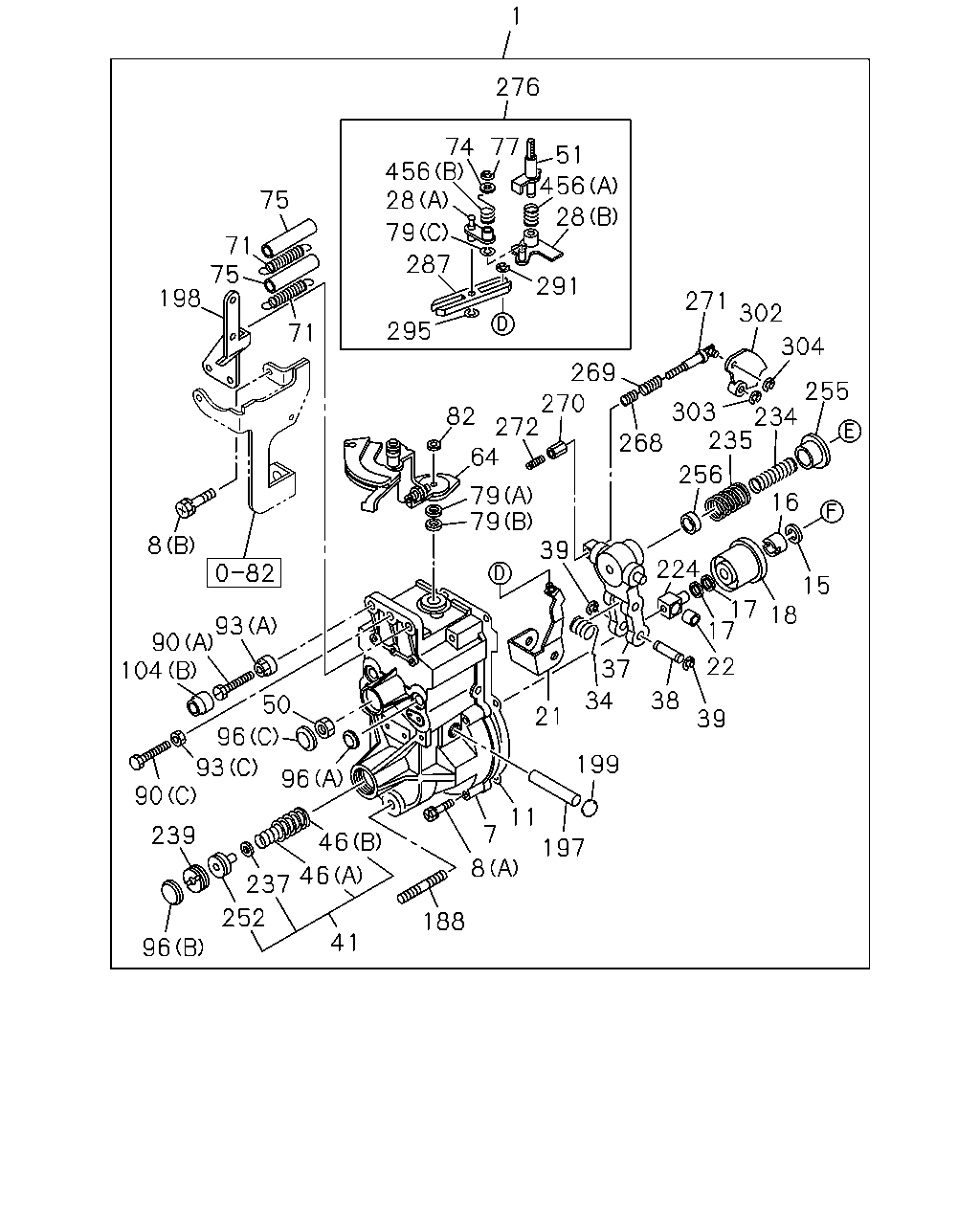

1 276 74 456 28 77 51 456 75 28 79 71 75 198 287 291 271 302 295 71 304 269 255 303 234 235 270 272 64 82 268 16 256 79 79 39 8 224 15 18 17 17 93 90 104 22 37 38 34 50 21 39 96 199 93 90 96 11 7 239 46 197 8 46 237 252 188 41 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-531-3	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: E = 8-97385-476-0, 97385476	8-97224-393-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-101-0, 97212101	8-97225-682-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97212-102-0, 97212102	8-97225-683-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97215-704-2, 97215704	8-97225-684-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97142-961-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97142-962-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101	8-97142-963-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (B) ASM PART: E = 8-97385-476-0, 97385476	1-15729-535-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5, 97178485	1-15729-535-0	02	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704	5-15729-033-0	07	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: E = 8-97385-476-0, 97385476	5-15729-033-0	06	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5, 97178485	5-15729-033-0	05	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-107-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-034-0	01	1	-
16	03.308 NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-086-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-891-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-892-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-893-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-286-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-287-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-088-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-551-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-552-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-553-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-372-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94339-977-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97223-398-0	01	1	-
22	03.308 COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94368-298-1	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-472-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-485-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (C) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94171-152-0	01	1	-
34	03.308 SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-140-1	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94339-976-0	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-455-0	01	1	-
38	03.308 PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-370-0	01	1	-
39	03.308 RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-88410-201-0	02	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97026-922-0	01	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97085-009-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97115-982-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97115-983-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97115-984-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-147-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-876-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94325-501-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97026-934-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 778 ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-634-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97026-929-0	02	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-629-0	02	1	-
74	03.330 WASHER; LEVER SPR 00.206, ID=6.4 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	9-09160-506-0	01	1	-
75	03.308 TUBE; RETURN SPRING,STOPPER LEVE 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-963-0	02	1	-
77	03.308 RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	9-88410-201-0	01	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-076-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-077-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-078-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-079-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-080-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-081-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-082-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-517-0	01	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-617-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-618-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-619-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-896-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97066-844-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-642-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15729-761-0	02	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-761-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-799-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-800-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-801-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-802-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-803-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-842-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-843-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-643-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 01.531, (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-807-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97026-924-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-076-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-145-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-148-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-021-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-022-0	01	1	-
188	03.308 STUD; COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-790-0	01	1	-
197	03.308 SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15725-008-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97026-928-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, D = 8-97215-704-2, 97215704	8-97085-014-0	01	1	-
199	03.308 PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-076-0	02	1	-
224	03.308 SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-142-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15723-355-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-457-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-626-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-456-0	01	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-966-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-967-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-968-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-268-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-269-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-270-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-271-0	AR	1	-
239	03.308 SCREW; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-144-0	01	1	-
252	03.308 SCREW; GUIDE ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-003-1	01	1	-
255	03.308 SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-173-0	01	1	-
256	03.308 SEAT; GOV SPRING ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15779-214-0	01	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-056-0	01	1	-
269	03.308 SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-070-1	01	1	-
270	03.308 NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-051-0	01	1	-
271	03.308 ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15725-009-1	01	1	-
272	03.308 SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-138-0	01	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-534-0	01	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94325-500-0	01	1	-
287	03.308 LEVER; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15725-542-0	01	1	-
291	03.308 RING; SNAP,CONT SHAFT,GOV 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
295	03.308 RING; SNAP 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102	8-97185-013-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-458-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: E = 8-97385-476-0, 97385476	8-97224-411-0	01	1	-
303	03.308 RING; SNAP,CAM PLATE,GOV 03.320 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-023-0	01	1	-
304	03.308 RING; SNAP,LINK TO CAM PLATE,GOV 04.040, ID=4 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-09185-404-0	01	1	-
456	03.308 SPRING; LEVER,GOV 03.306, (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15723-295-0	01	1	-
456	03.308 SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94413-728-0	01	1	-

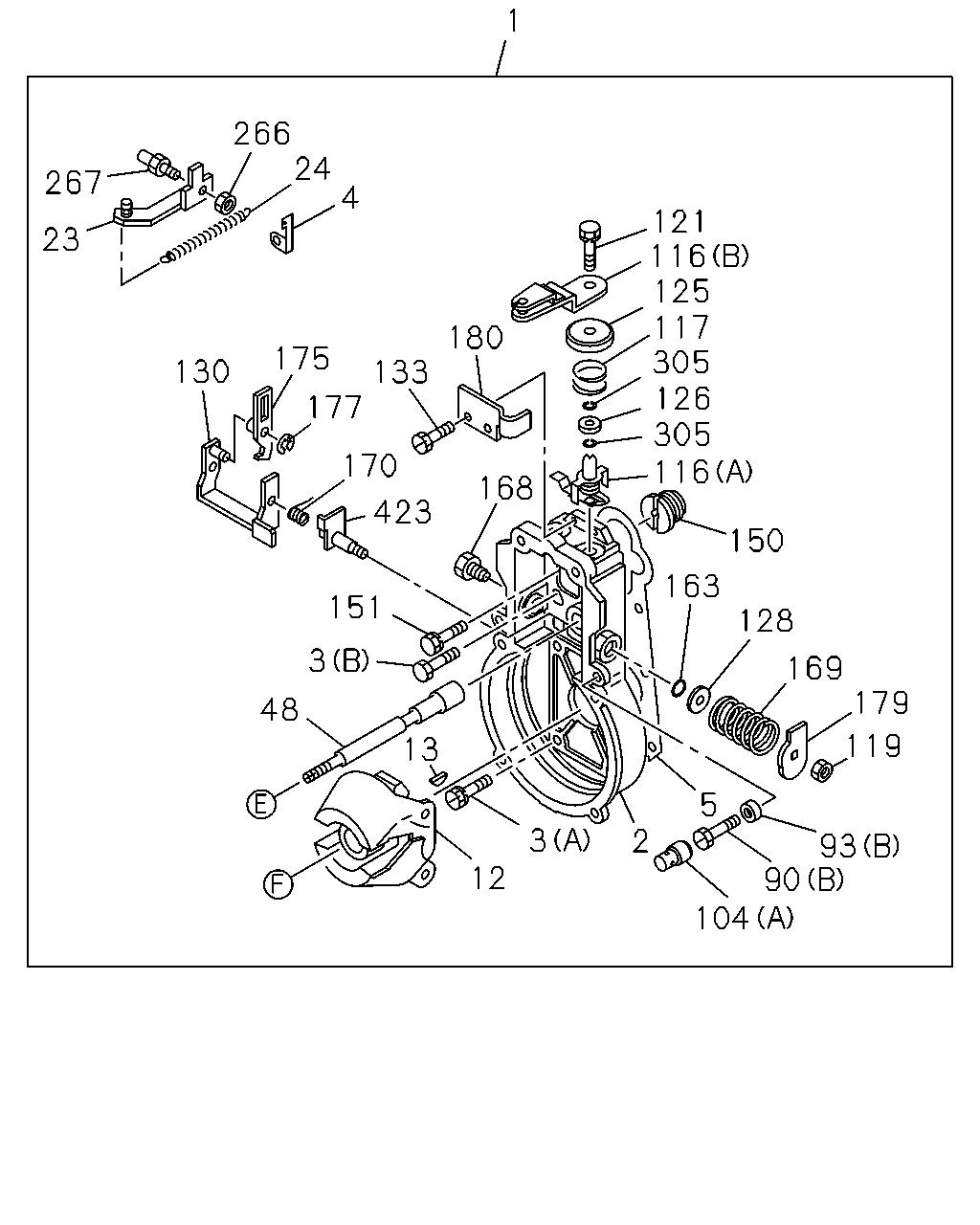

1 266 24 4 267 121 116 125 117 305 126 305 116 23 180 175 130 133 77 170 168 423 150 163 151 128 3 169 179 48 119 13 5 3 2 93 90 104 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-531-3	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: E = 8-97385-476-0, 97385476	8-97224-393-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-101-0, 97212101	8-97225-682-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97212-102-0, 97212102	8-97225-683-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97215-704-2, 97215704	8-97225-684-0	01	1	-
2	03.308 HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15721-265-0	01	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-027-0	05	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-071-0	01	1	-
4	03.306 PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-591-0	01	1	-
5	03.308 GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-106-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15722-017-0	01	1	-
13	03.308 KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-19619-049-0	01	1	-
23	03.308 LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15725-928-0	01	1	-
24	03.308 SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-035-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-146-1	01	1	-
77	03.308 RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	9-88410-201-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-642-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15729-761-0	02	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-761-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-799-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-800-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-801-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-802-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-803-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-842-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-843-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-643-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 01.531, (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-807-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97026-924-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-021-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-022-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-631-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-632-0	01	1	-
117	03.308 SPRING; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94336-925-0	01	1	-
119	03.308 NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
121	03.308 BOLT; ENG STOP LEVER,GOV 04.665, M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-01910-612-0	01	1	-
125	03.308 CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-168-0	01	1	-
126	03.308 GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-853-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-897-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-898-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-899-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-556-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-557-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-558-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-559-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-560-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-88410-421-0	AR	1	-
130	03.306 LEVER; CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, D = 8-97215-704-2, 97215704	1-15725-496-0	01	1	-
130	03.306 LEVER; CONT,GOV ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15725-527-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-834-0	02	1	-
150	03.308 ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81315-065-0	01	1	-
151	03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-01900-818-0	01	1	-
163	03.306 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15629-859-0	01	1	-
168	03.306 PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-796-0	01	1	-
169	03.306 SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-032-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	5-15723-033-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: D = 8-97215-704-2, 97215704	8-97225-865-0	01	1	-
175	03.306 LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97176-488-0	01	1	-
179	03.308 LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-132-0	01	1	-
180	03.308 PLATE; GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-643-0	01	1	-
266	03.308 NUT; PIN TO LINK,CONT RACK,GOV 17.185, M5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-99110-405-0	01	1	-
267	03.308 BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-858-0	01	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-308-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-309-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-310-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-311-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-312-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-553-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-820-0	01	1	-

1 267 23 266 24 4 121 116 125 117 305 126 305 116 276 51 180 456 175 130 253 28 177 170 133 168 291 150 163 128 287 423 151 3 295 169 179 75 48 71 75 411 411 13 198 5 119 93 90 104 2 3 71 12 255 82 234 64 235 16 18 411 79 79 37 39 224 21 15 8 93 90 104 17 17 22 93 34 38 50 39 90 197 199 271 96 269 268 96 237 239 96 11 270 272 302 7 8 46 46 252 303 304 37 188 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: A = 8-97178-485-5, 97178485	8-97214-531-3	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: E = 8-97385-476-0, 97385476	8-97224-393-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: B = 8-97212-101-0, 97212101	8-97225-682-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: C = 8-97212-102-0, 97212102	8-97225-683-0	01	1	-
1	03.308 GOVERNOR ASM; INJ PUMP ASM PART: D = 8-97215-704-2, 97215704	8-97225-684-0	01	1	-
2	03.308 HOUSING; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15721-265-0	01	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-027-0	05	1	-
3	03.318 BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-071-0	01	1	-
4	03.306 PLATE; START SPRING,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-591-0	01	1	-
5	03.308 GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-106-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97142-961-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97142-962-0	01	1	-
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101	8-97142-963-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (B) ASM PART: E = 8-97385-476-0, 97385476	1-15729-535-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (B) ASM PART: A = 8-97178-485-5, 97178485	1-15729-535-0	02	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704	5-15729-033-0	07	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: E = 8-97385-476-0, 97385476	5-15729-033-0	06	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP (A) ASM PART: A = 8-97178-485-5, 97178485	5-15729-033-0	05	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-107-0	01	1	-
12	03.308 FLYWEIGHT ASM; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15722-017-0	01	1	-
13	03.308 KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-19619-049-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-034-0	01	1	-
16	03.308 NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-086-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-891-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-892-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-893-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-286-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-287-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-088-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-551-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-552-0	AR	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-553-0	AR	1	-
18	03.308 SLEEVE; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-372-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94339-977-0	01	1	-
21	03.308 LEVER ASM; GUIDE,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97223-398-0	01	1	-
22	03.308 COLLAR; LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94368-298-1	01	1	-
23	03.308 LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15725-928-0	01	1	-
24	03.308 SPRING; START,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-035-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-472-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-485-0	01	1	-
28	03.308 LEVER; SUPPORTING,GOV (C) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94171-152-0	01	1	-
34	03.308 SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-140-1	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94339-976-0	01	1	-
37	03.308 LEVER ASM; TENSION,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-455-0	01	1	-
38	03.308 PIN; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-370-0	01	1	-
39	03.308 RING; SNAP,LEVER PIN,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-88410-201-0	02	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97026-922-0	01	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97085-009-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97115-982-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97115-983-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97115-984-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-146-1	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-147-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-876-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94325-501-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97026-934-1	01	1	-
64	03.308 LEVER; LOAD CONT,GOV STAMP 778 ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-634-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97026-929-0	02	1	-
71	03.306 SPRING; CONT LEVER,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-629-0	02	1	-
75	03.308 TUBE; RETURN SPRING,STOPPER LEVE 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-963-0	02	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.95 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-076-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-077-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-078-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-079-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-080-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-081-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-082-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (C) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-517-0	01	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.70 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-617-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.90 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-618-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-619-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (B), T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-896-0	AR	1	-
79	03.308 SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97066-844-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (A), M8X62 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-642-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15729-761-0	02	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (C), M8X65 ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15729-761-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X33 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-799-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X34 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-800-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-801-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X36 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-802-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X37 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-803-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X31 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-842-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B), M6X32 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-843-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 03.308, (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-643-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV 01.531, (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-807-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97026-924-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-076-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-145-0	01	1	-
96	03.308 PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-148-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-021-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97085-022-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-631-0	01	1	-
116	03.300 LEVER; ENG STOP,GOV (B) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-632-0	01	1	-
117	03.308 SPRING; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94336-925-0	01	1	-
119	03.308 NUT; ENG STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-236-0	01	1	-
121	03.308 BOLT; ENG STOP LEVER,GOV 04.665, M6X12 W/LK WASHER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-01910-612-0	01	1	-
125	03.308 CAP; STOP LEVER SPRING,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-168-0	01	1	-
126	03.308 GASKET; STOP LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-853-0	01	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-897-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-898-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.90 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-899-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-556-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-557-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-558-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-559-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-560-0	AR	1	-
128	03.306 SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-88410-421-0	AR	1	-
130	03.306 LEVER; CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, D = 8-97215-704-2, 97215704	1-15725-496-0	01	1	-
130	03.306 LEVER; CONT,GOV ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15725-527-0	01	1	-
133	03.308 BOLT; BRKT FIX,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-834-0	02	1	-
150	03.308 ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81315-065-0	01	1	-
151	03.671 BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-01900-818-0	01	1	-
163	03.306 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15629-859-0	01	1	-
168	03.306 PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-796-0	01	1	-
169	03.306 SPRING; LEVER SET,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-032-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	5-15723-033-0	01	1	-
170	03.306 SPRING; LEVER TO LEVER,GOV ASM PART: D = 8-97215-704-2, 97215704	8-97225-865-0	01	1	-
175	03.306 LEVER; GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97176-488-0	01	1	-
177	03.306 RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
179	03.308 LEVER; SPD ADJ,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-132-0	01	1	-
180	03.308 PLATE; GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97121-643-0	01	1	-
188	03.308 STUD; COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-790-0	01	1	-
197	03.308 SHAFT; LEVER,GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15725-008-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97026-928-0	01	1	-
198	03.306 BRACKET; COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, D = 8-97215-704-2, 97215704	8-97085-014-0	01	1	-
199	03.308 PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-076-0	02	1	-
224	03.308 SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-142-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15723-355-0	01	1	-
234	03.308 SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-457-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-97121-626-0	01	1	-
235	03.308 SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-456-0	01	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-966-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-967-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-968-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.10 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-268-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-269-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.25 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-270-0	AR	1	-
237	03.308 SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94472-271-0	AR	1	-
239	03.308 SCREW; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-144-0	01	1	-
252	03.308 SCREW; GUIDE ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15779-003-1	01	1	-
253	03.308 LIMITTER; GOV CONT ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102	8-94167-792-0	01	1	-
255	03.308 SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-173-0	01	1	-
266	03.308 NUT; PIN TO LINK,CONT RACK,GOV 17.185, M5 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-99110-405-0	01	1	-
267	03.308 BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-858-0	01	1	-
268	03.308 SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-056-0	01	1	-
269	03.308 SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15723-070-1	01	1	-
270	03.308 NUT; TORQUE ROD LK,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-051-0	01	1	-
271	03.308 ROD; TORQUE CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15725-009-1	01	1	-
272	03.308 SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94171-138-0	01	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15725-534-0	01	1	-
276	03.308 LEVER ASM; LOAD CONT,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	8-94325-500-0	01	1	-
287	03.308 LEVER; GOV ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15725-542-0	01	1	-
291	03.308 RING; SNAP,CONT SHAFT,GOV 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
295	03.308 RING; SNAP 03.306 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-445-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102	8-97185-013-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	8-97214-458-0	01	1	-
302	03.308 PLATE; CAM,GOV ASM PART: E = 8-97385-476-0, 97385476	8-97224-411-0	01	1	-
303	03.308 RING; SNAP,CAM PLATE,GOV 03.320 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	5-15729-023-0	01	1	-
304	03.308 RING; SNAP,LINK TO CAM PLATE,GOV 04.040, ID=4 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-09185-404-0	01	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-308-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-309-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-310-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.60 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-311-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=0.80 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-97089-312-0	AR	1	-
305	03.308 SHIM; STOP LEVER,GOV T=1.00 ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	9-81325-553-0	01	1	-
411	03.306 BOLT; BRKT 03.330, (C) ASM PART: E = 8-97385-476-0, 97385476	1-15619-187-0	01	1	-
411	03.306 BOLT; BRKT 03.330, (A) ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	1-15719-005-0	02	1	-
411	03.306 BOLT; BRKT 01.531, (B) ASM PART: C = 8-97212-102-0, 97212102, E = 8-97385-476-0, 97385476	5-15729-304-0	01	1	-
423	03.306 SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	1-15729-820-0	01	1	-
456	03.308 SPRING; LEVER,GOV 03.306, (B) ASM PART: A = 8-97178-485-5, 97178485, D = 8-97215-704-2, 97215704	1-15723-295-0	01	1	-
456	03.308 SPRING; LEVER,GOV (A) ASM PART: A = 8-97178-485-5, 97178485, B = 8-97212-101-0, 97212101, C = 8-97212-102-0, 97212102, D = 8-97215-704-2, 97215704, E = 8-97385-476-0, 97385476	8-94413-728-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
