0-66 — GENERATOR (#35945) — 112 parça

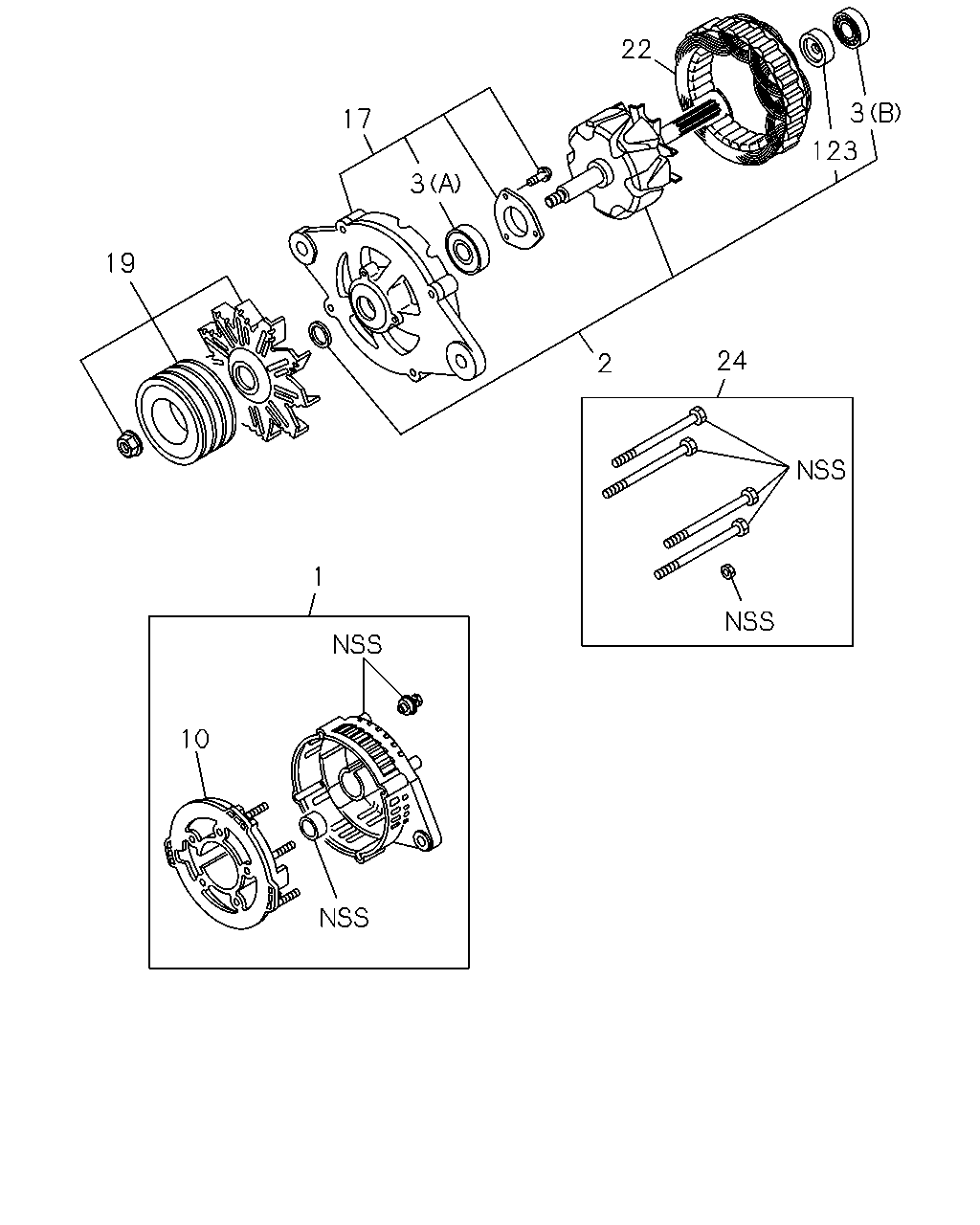

22 3 17 123 3 19 24 2 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-332-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98230-316-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98230-317-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-98230-322-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97351-572-1, 97351572	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98230-326-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98230-327-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98230-331-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-98029-887-2, 98029887	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98075-026-0, 98075026	8-98038-926-1	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97351-572-1, 97351572, D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97351-574-1, 97351574, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-

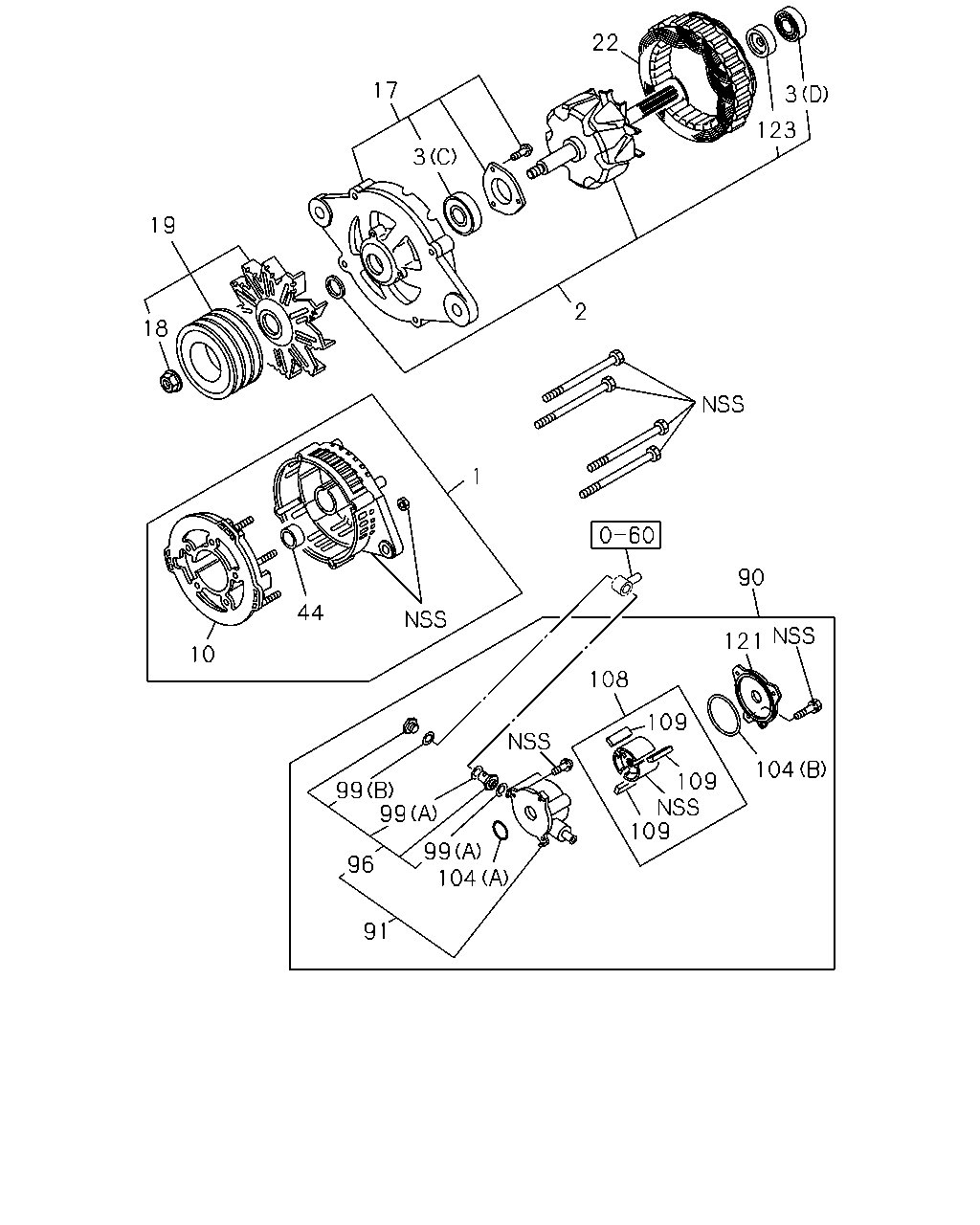

22 17 3 123 3 19 2 18 1 90 44 121 10 108 109 104 109 109 99 99 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-332-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1, 97351572	8-97253-370-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98230-316-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98230-317-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97351-572-1, 97351572	8-98230-320-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97351-573-0, 97351573	8-98230-321-0	01	1	1209-
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97351-574-1, 97351574	8-98230-322-0	01	1	1209-
2	02.279 ROTOR; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-330-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97351-572-1, 97351572	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (D) ASM PART: A = 8-97351-572-1, 97351572	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98146-442-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: A = 8-97351-572-1, 97351572	8-98159-457-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97253-577-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98230-326-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98230-327-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97351-572-1, 97351572	8-98230-330-0	01	1	1209-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-98230-331-0	01	1	1209-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97351-572-1, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-98029-887-2, 98029887	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97351-572-1, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-98075-026-0, 98075026	8-98038-926-1	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97351-572-1, 97351572, D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97351-574-1, 97351574, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-117-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	5-19679-003-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-115-1	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573, C = 8-97351-574-1, 97351574, D = 8-98029-887-2, 98029887, E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892, G = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97351-572-1, 97351572, B = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97351-574-1, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-98029-887-2, 98029887, G = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-98029-889-2, 98029889, F = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
