◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#35943) — 185 parça

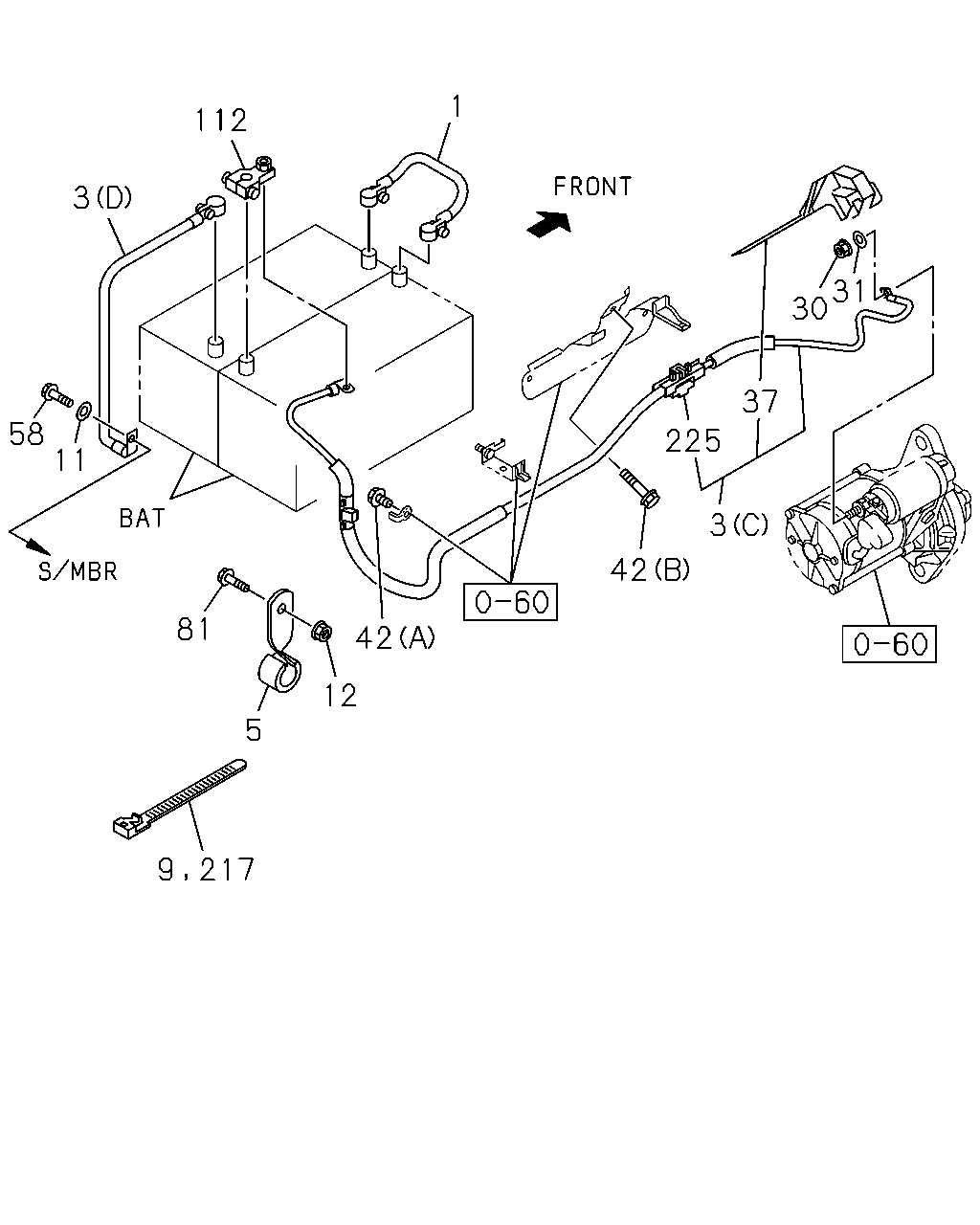

çizim 76336
1 112 3 31 30 37 58 11 225 3 42 81 42 12 5 9 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98293-917-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-693-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-693-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-872-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-743-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (A) 		8-98294-742-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98119-234-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98137-187-1 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98137-187-1 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-738-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-729-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 1012-1203 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98201-105-0 01 1 1204- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) (B) L=250 		8-98056-338-1 01 1 1012- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ● ● ● ●
5 02.559 CLIP; BATTERY CABLE TO BODY
MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> ID=19 L=58 		1-09700-733-1 01 1 1012- ● ● ● ●
9 02.343 CLIP; BATTERY CABLE
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 02.559 L=250 		5-09707-030-1 07 1 1012- ● ● ● ●
9 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS VAR.2(6GQ) 02.559 L=250 		5-09707-030-1 07 1 1012- ● ● ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 		8-98099-007-0 01 1 1012- ● ● ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS VAR.2(6GQ) 		8-98099-007-0 01 1 1012- ● ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS VAR.2(6GQ) 03.162 M10 FLANGE 		0-91180-110-0 02 1 1012- ● ● ● ●
12 02.343 NUT; BATTERY CABLE CLIP
MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NNR/NPR/NQR SGL CAB(NP**S*) DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NNR/NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-1106 ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1107- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS(V4B) EXC. EGYPT EQUIPMENT(B09) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ● ● ●
81 02.559 BOLT; BATTERY CABLE
MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ● ● ● ● ●
217 02.343 CLIP; BAND,CABLE
UZBEKISTAN EQUIPMENT(JCW) 03.162 L=140 		5-09707-031-1 01 1 1101- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ● ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ● ● ●

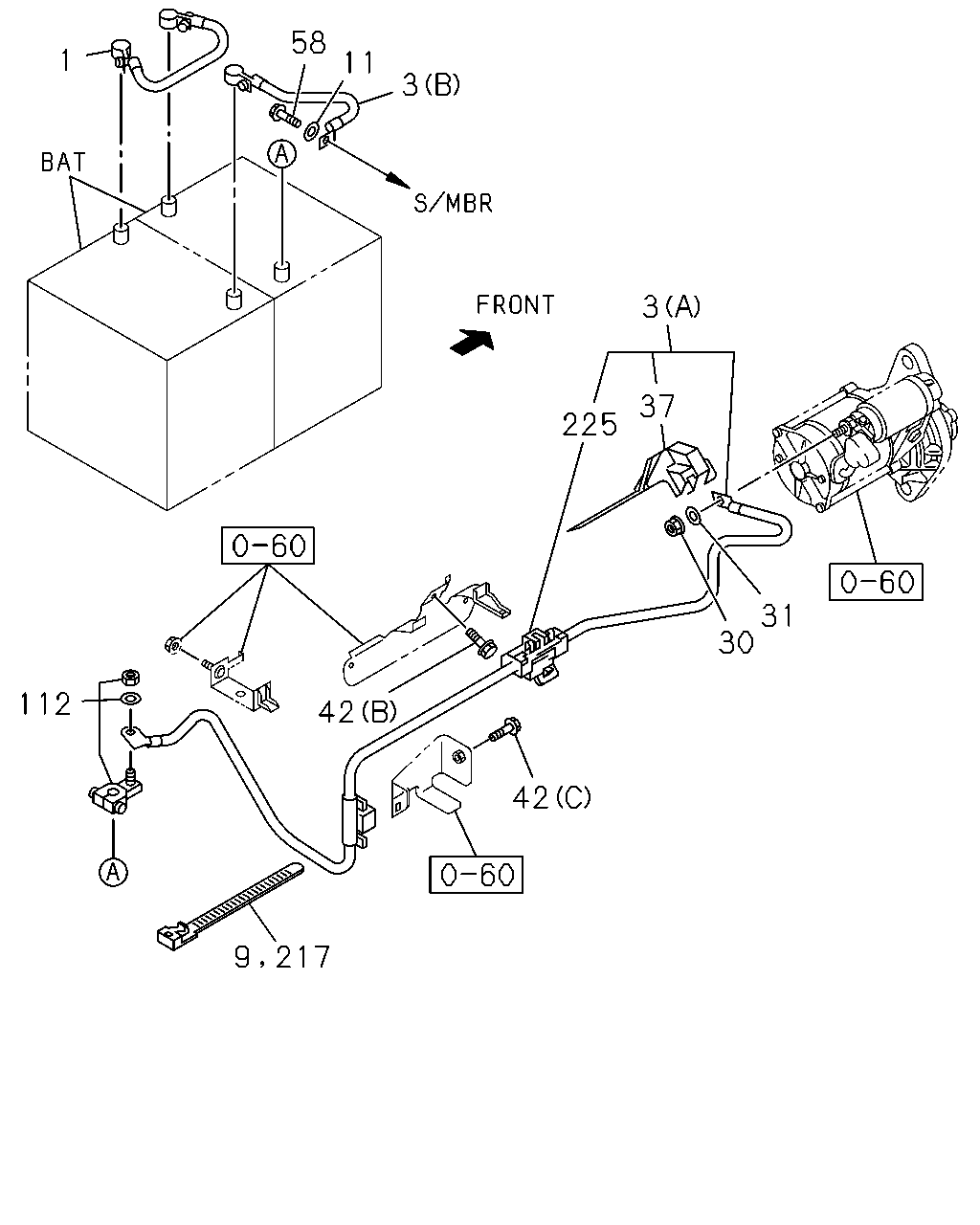

çizim 76708
58 1 11 3 3 37 225 31 30 112 42 42 9 217
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.341 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 1012- ● ● ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
(B) L=200 		8-98056-337-1 01 1 1012- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
MINI BUS CHASSIS(V4B) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (B) L=200 		8-98056-337-1 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98046-378-4 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98293-917-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-228-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-719-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98135-436-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-874-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-745-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-873-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-744-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98116-879-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-878-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98099-102-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-731-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98099-101-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-730-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98077-140-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-725-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98077-137-4 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MZZ6U(RSF),M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS VAR.2(6GQ), BATTERY 115E41L<8MA> (A) 		8-98294-723-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98135-430-2 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-693-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) SAUDI ARABIA EQUIPMENT(GH3) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-693-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98067-966-4 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS(V4B) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. EGYPT EQUIPMENT(B09),BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),P OWER TAKE OFF CONTROL ELECTRIC(7GR), BATTERY 115E41L<8MA> (A) 		8-98294-718-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98137-177-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-694-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98116-872-1 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> (C) 		8-98294-743-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (A) 		8-98116-871-1 01 1 1208-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (A) 		8-98294-742-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) BATTERY 115E41L<8MA> (D) 		8-98119-234-2 01 1 1012- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 1012-1207 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) MINI BUS CHASSIS VAR.2(6GQ) EXC. SAUDI ARABIA EQUIPMENT(GH3), BATTERY 115E41L<8MA> (B) 		8-98116-877-2 01 1 1208- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98137-187-1 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98137-187-1 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ) (C) 		8-98294-738-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98137-179-1 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. DUMP CHASSIS(V4D),MINI BUS CHASSIS VAR.2(6GQ),BATTERY 115E41L<8MA> (A) 		8-98294-737-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98077-141-2 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) BATTERY 115E41L<8MA> (C) 		8-98294-726-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-138-4 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-724-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1012-1407 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98070-230-2 01 1 1408-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR SGL CAB(NP**S*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ), POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98294-721-0 01 1 1410- ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98077-149-1 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 2700MM(27W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-729-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98070-229-2 01 1 1012-1409 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. BATTERY 115E41L<8MA> (A) 		8-98294-720-0 01 1 1410- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98056-339-1 01 1 1012-1203 ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) (D) L=400 		8-98201-105-0 01 1 1204- ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) (B) L=250 		8-98056-338-1 01 1 1012- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98070-231-3 01 1 1012-1409 ● ● ● ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
NNR/NPR/NQR DBL CAB(NP**W*) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),BATTERY 115E41L<8MA> (A) 		8-98294-722-0 01 1 1410- ● ● ● ●
9 02.343 CLIP; BATTERY CABLE
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 02.559 L=250 		5-09707-030-1 07 1 1012- ● ● ● ●
9 02.343 CLIP; BATTERY CABLE
MINI BUS CHASSIS VAR.2(6GQ) 02.559 L=250 		5-09707-030-1 07 1 1012- ● ● ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) 		8-98099-007-0 01 1 1012- ● ● ● ●
11 02.343 WASHER; BATTERY CABLE EARTH
MINI BUS CHASSIS VAR.2(6GQ) 		8-98099-007-0 01 1 1012- ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
M8 		0-91110-508-0 01 1 1012- ● ● ● ● ● ●
31 02.334 WASHER; LK,CABLE,STARTER TO BATT
02.559 ID=8.2 		0-91510-808-0 01 1 1012- ● ● ● ● ● ●
37 02.343 CAP; TERMINAL,BATTERY CABLE 8-98042-507-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NNR/NPR/NQR SGL CAB(NP**S*) DUMP CHASSIS(V4D) 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NNR/NPR/NQR DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 00.685 (C) M6X25 FLANGE 		0-28650-625-0 01 1 1012- ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
02.500 (B) M6X16 FLANGE 		8-97329-599-0 01 1 1012- ● ● ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1012-1106 ● ● ● ●
42 02.343 BOLT; BRKT,BATTERY CABLE
NPR SGL CAB(NPR6SN) NQR SGL CAB(NPR6SS) BATTERY 115E41L<8MA> EXC. MINI BUS CHASSIS VAR.2(6GQ) 06.216 (A) M8X25 FLANGE 		0-28650-825-0 01 1 1107- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS(V4B) EXC. EGYPT EQUIPMENT(B09) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EXC. MINI BUS CHASSIS(V4B),MINI BUS CHASSIS VAR.2(6GQ) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
EGYPT EQUIPMENT(B09) MINI BUS CHASSIS(V4B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ● ● ●
58 02.343 BOLT; CABLE,BATTERY
MINI BUS CHASSIS VAR.2(6GQ) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ● ● ●
112 02.343 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 1012- ● ● ● ● ● ●
217 02.343 CLIP; BAND,CABLE
UZBEKISTAN EQUIPMENT(JCW) 03.162 L=140 		5-09707-031-1 01 1 1101- ● ● ●
225 02.343 BLOCK; TERMINAL 8-98029-689-0 01 1 1012-1409 ● ● ● ● ● ●
225 02.343 BLOCK; TERMINAL 8-98294-524-0 01 1 1410- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
