Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#35941) — 482 parça

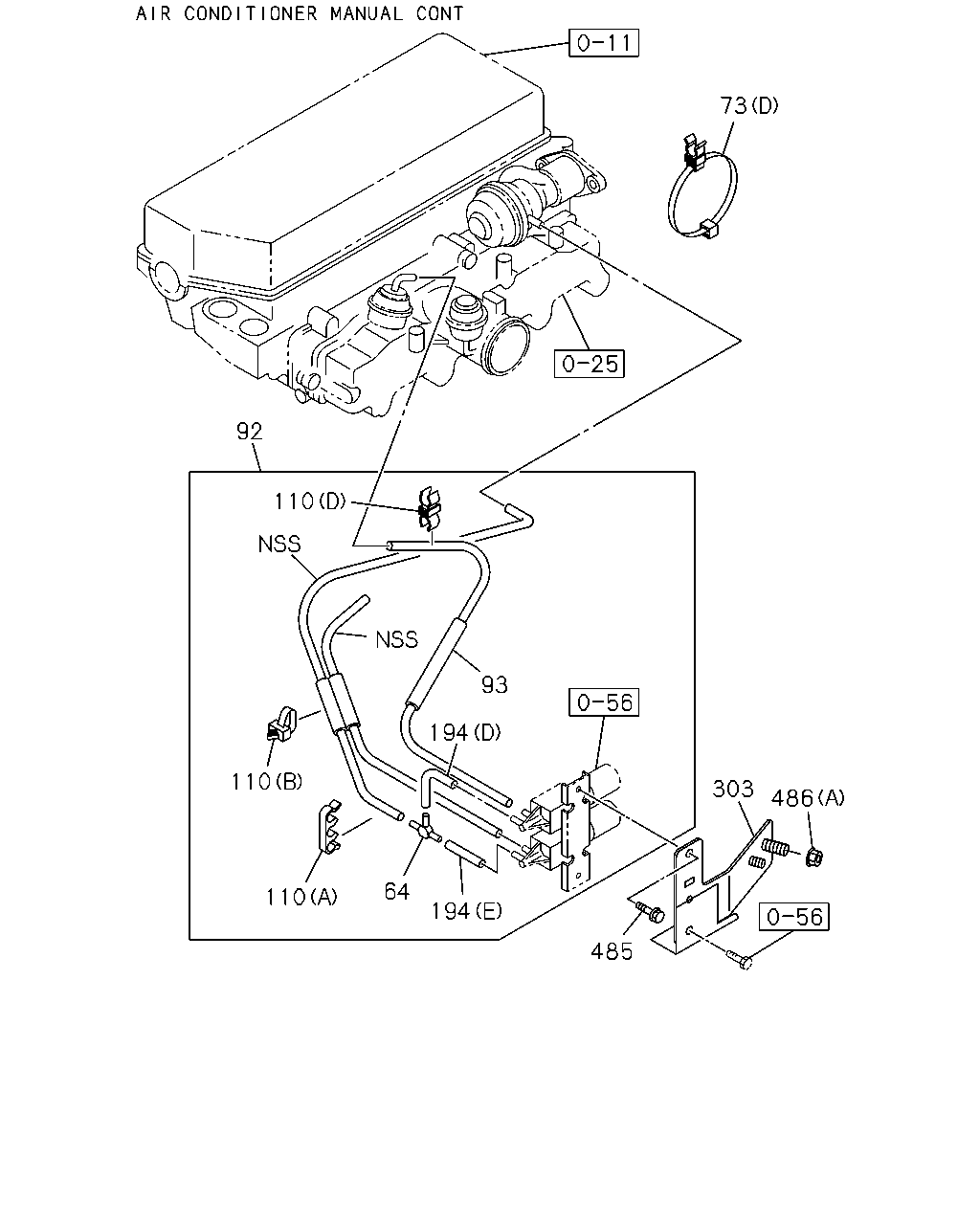

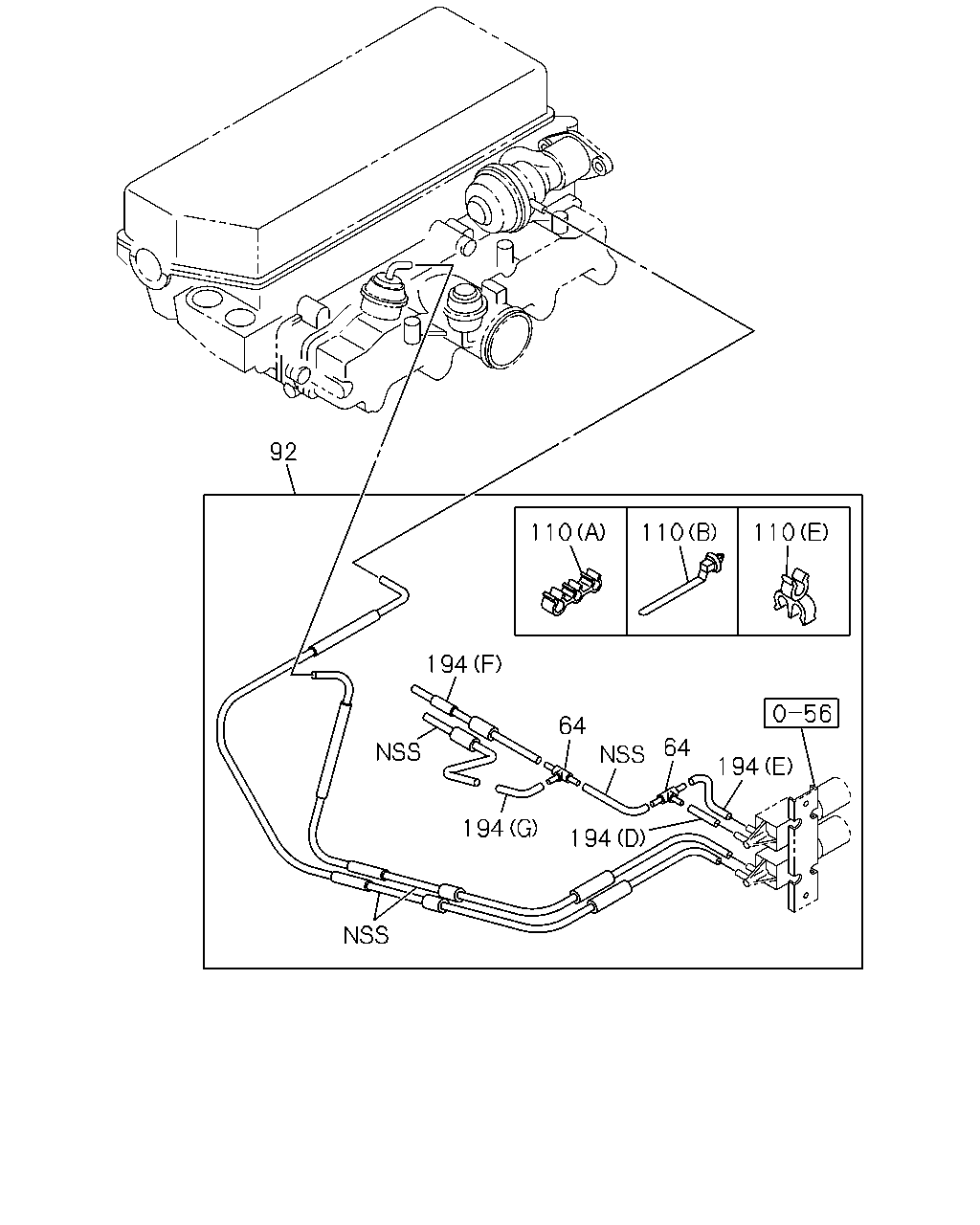

92 110 110 110 194 64 64 194 194 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-		●
92	03.675 HOSE; VAC,THROTTLE BODY	8-98169-777-1	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-98118-239-2	01	1	1012-		●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●	●
194	03.675 HOSE; VAC 08.962 (G) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (F) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-					●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-					●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-					●

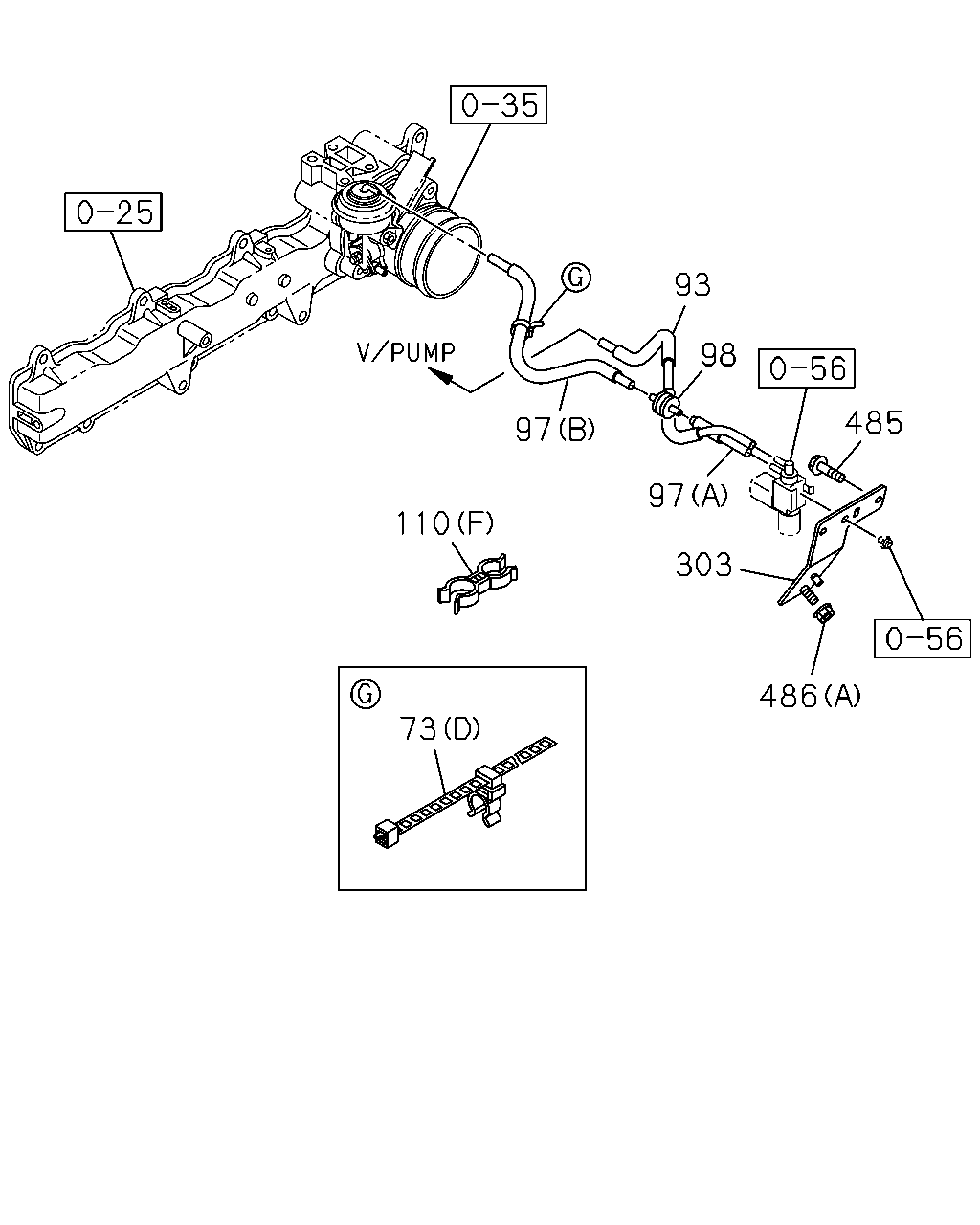

93 98 485 97 303 486 110 97 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) L=350	8-97373-487-0	02	1	1012-			●	●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-		●
93	03.675 HOSE ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98105-295-1	01	1	1012-			●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (B)	8-98113-964-0	01	1	1012-			●	●
97	03.675 HOSE; RUBBER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A)	8-98113-965-0	01	1	1012-			●	●
98	03.670 VALVE; DELAY EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-94110-978-0	01	1	1012-			●	●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●	●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-1202	●	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98097-124-0	01	1	1012-			●	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202			●	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-			●	●

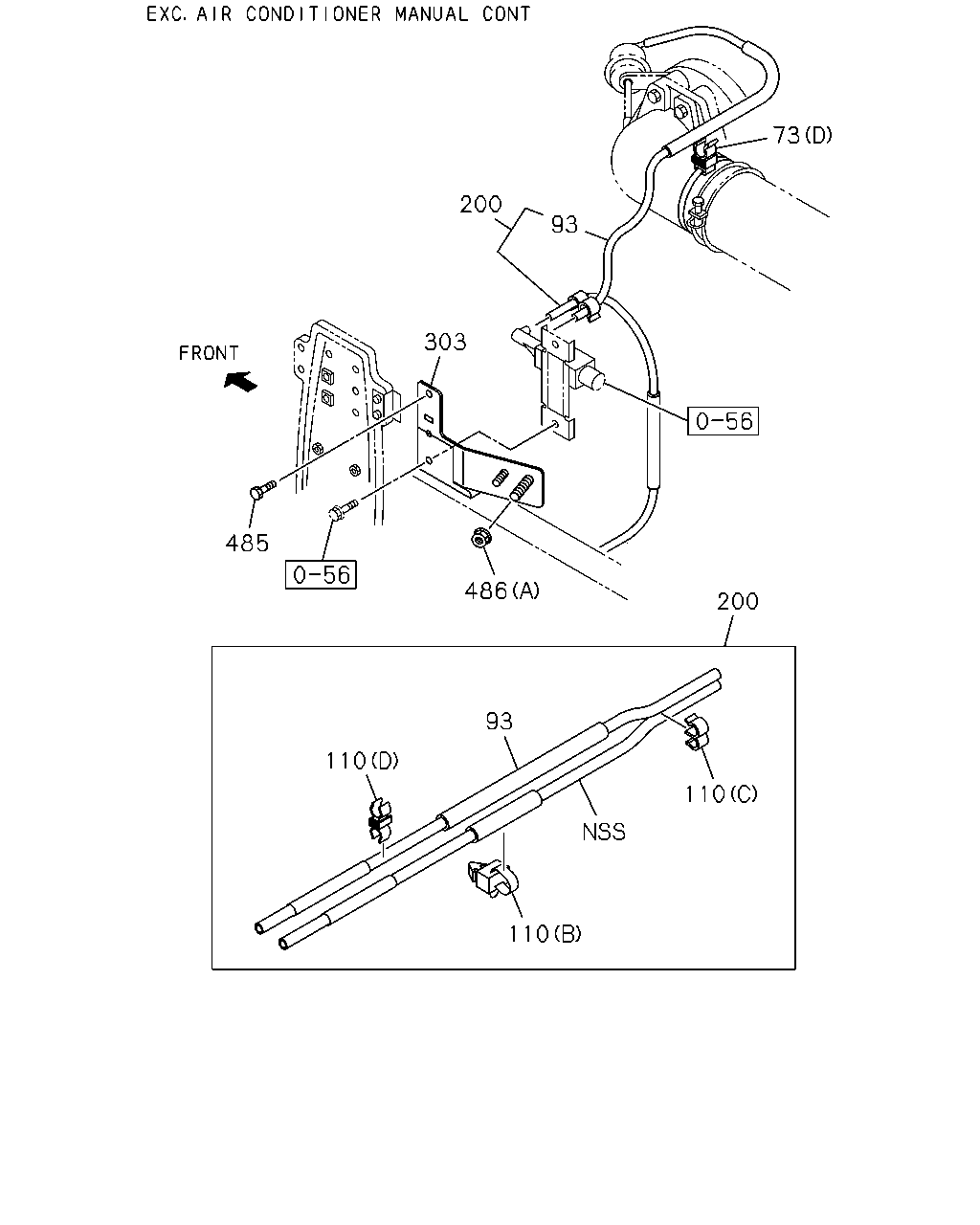

73 200 93 303 485 486 200 93 110 110 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) L=350	8-97373-487-0	02	1	1012-			●	●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-		●
93	03.675 HOSE ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98105-295-1	01	1	1012-			●	●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●	●
200	03.675 HOSE; VAC EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98118-238-2	01	1	1012-		●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-1202	●	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98097-124-0	01	1	1012-			●	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202			●	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-			●	●

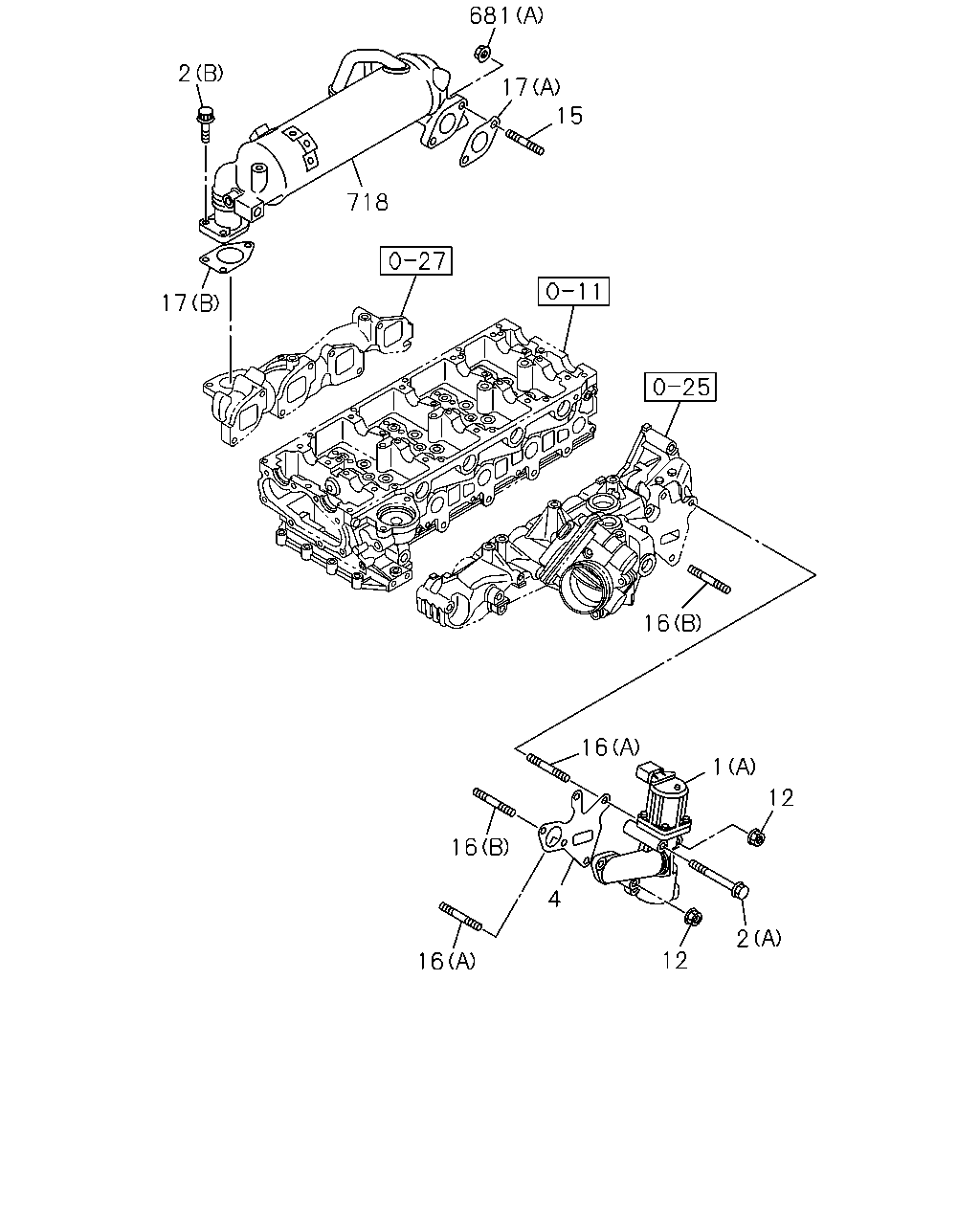

681 2 17 15 718 17 16 16 1 12 16 4 2 12 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	F
1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1111				●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1112-1403				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1112-1403					●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-					●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (C)	8-97377-509-8	01	1	1012-		●	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4) (D)	8-98018-264-6	01	1	1012-		●	●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-1111				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-					●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-1111				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1012-1111				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1112-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-98094-528-0	02	1	1112-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1012-1111				●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-				●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-					●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●	●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1012-1111				●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1112-				●
15	03.670 STUD; EGR PIPE EURO3 SPECIFICATION(NT3) 03.275 M8X25 L=37	0-41010-825-0	02	1	1112-					●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1112-					●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X50 L=62	0-40210-850-0	02	1	1112-					●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97367-918-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-97375-980-1	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D)	8-97388-919-0	04	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (H)	8-97601-836-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (G)	8-98036-507-0	01	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 (C) M8 FLANGE	8-97061-401-1	03	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111				●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-		●	●
718	03.337 COOLER; EGR	8-98164-570-0	01	1	1012-1111				●
718	03.337 COOLER; EGR	8-98164-570-1	01	1	1112-				●
718	03.337 COOLER; EGR EURO3 SPECIFICATION(NT3)	8-98164-570-1	01	1	1112-					●

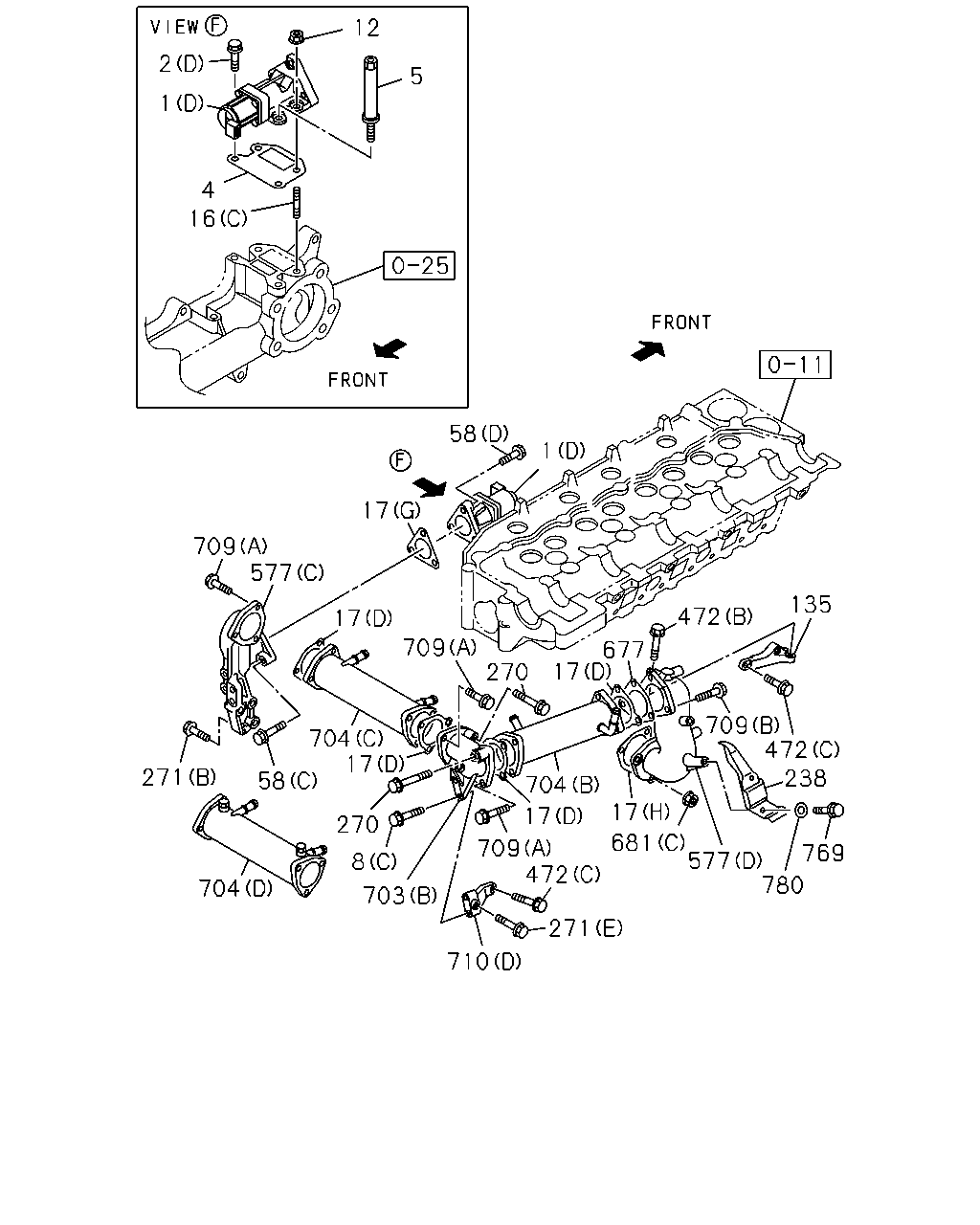

12 2 5 1 4 16 58 1 17 709 577 17 710 17 710 271 703 704 17 8 58 271 271 709 17 577 8 681 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	F
1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1111				●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1112-1403				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1112-1403					●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-					●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (C)	8-97377-509-8	01	1	1012-		●	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4) (D)	8-98018-264-6	01	1	1012-		●	●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-1111				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-					●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-1111				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1012-1111				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1112-				●

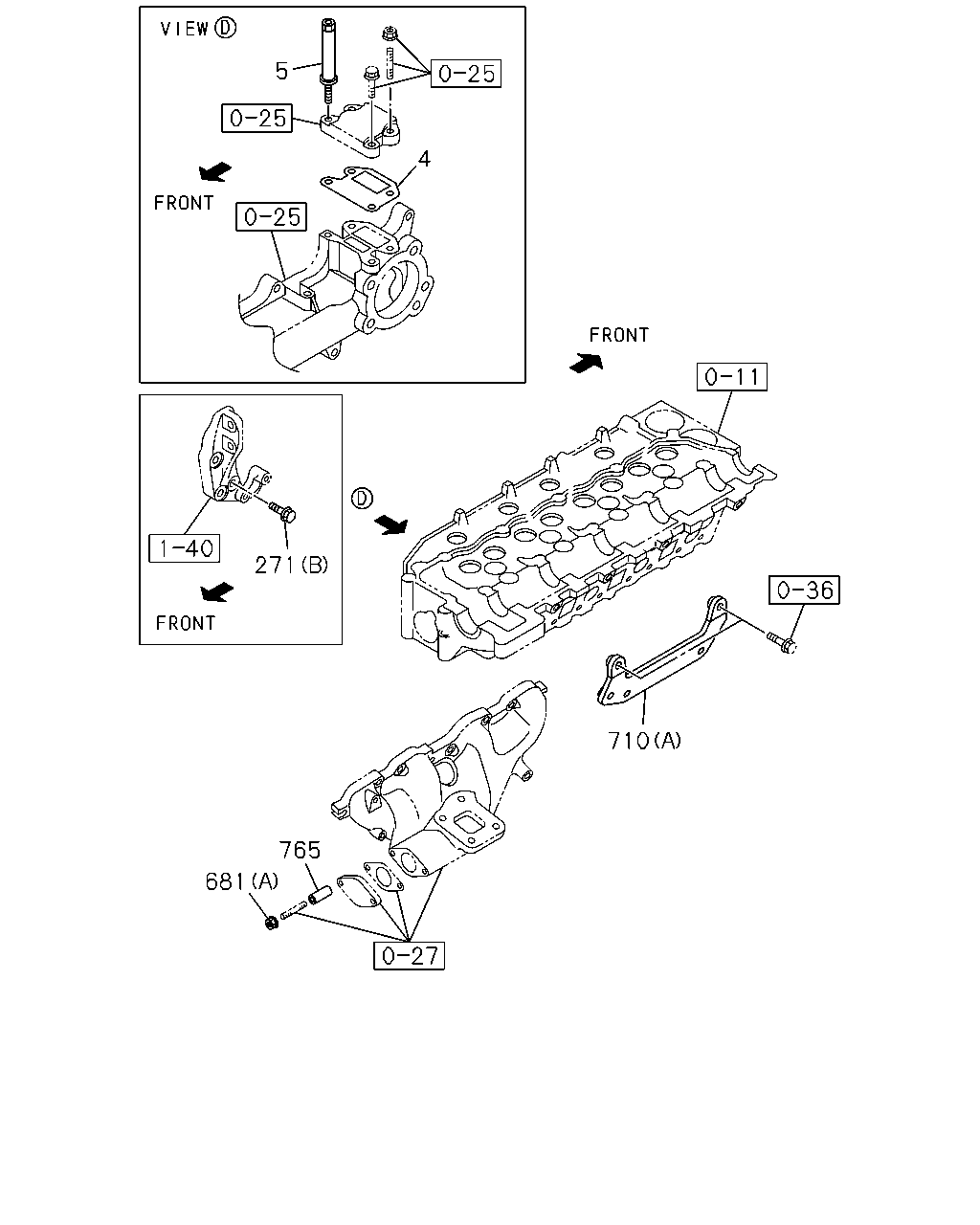

4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-98094-528-0	02	1	1112-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 03.417 (B) M8X28 FLANGE	8-98043-528-0	03	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO4 SPECIFICATION(NT4) 00.029 (C) M10X40 FLANGE	0-28751-040-0	02	1	1012-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1012-1111				●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-				●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-					●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●	●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1112-					●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X50 L=62	0-40210-850-0	02	1	1112-					●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97367-918-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-97375-980-1	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D)	8-97388-919-0	04	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (H)	8-97601-836-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (G)	8-98036-507-0	01	1	1012-		●	●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	1012-		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	1012-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR EURO4 SPECIFICATION(NT4) (D)	8-98028-113-2	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (C)	8-98055-858-2	01	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 (C) M8 FLANGE	8-97061-401-1	03	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111				●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-		●	●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-100-2	01	1	1012-		●	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-114-0	01	1	1012-		●	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-104-0	01	1	1012-		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-110-1	01	1	1012-1306		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98244-305-0	01	1	1307-		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (C)	8-98028-112-1	01	1	1012-1204		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (D)	8-98212-715-0	01	1	1205-		●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.604 (B) M10X30 FLANGE	8-98032-158-0	03	1	1012-		●	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (D)	8-98025-254-1	01	1	1012-		●	●
765	03.670 SPACER; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613	8-94225-562-0	02	1	1012-		●	●

73 92 110 93 194 110 303 486 64 110 194 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

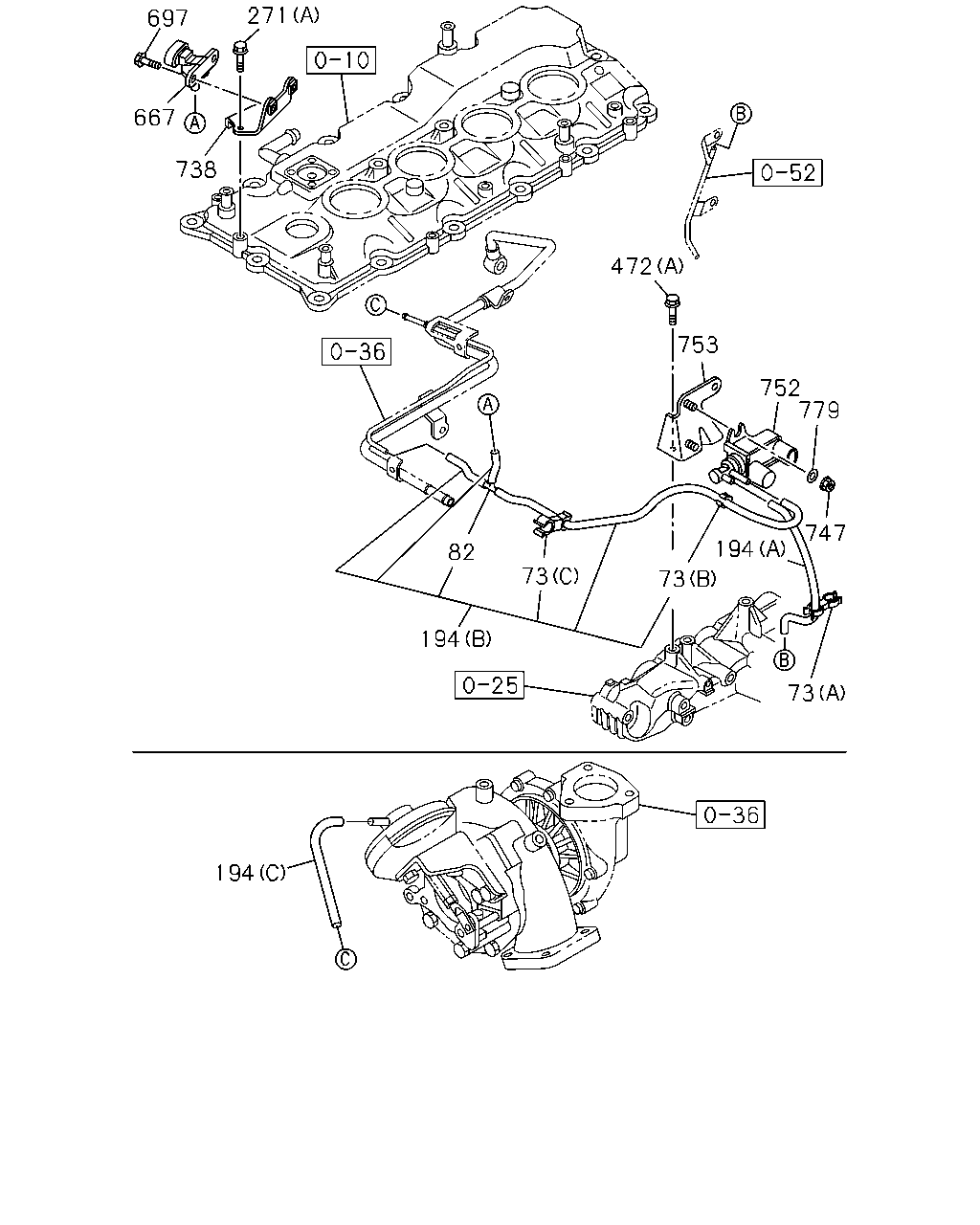

64	03.680 JOINT; 3 WAY,VAC 3WAY	8-94208-695-0	02	1	1012-	●
64	03.680 JOINT; 3 WAY,VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 3WAY	8-94208-695-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) L=350	8-97373-487-0	02	1	1012-			●	●
92	03.675 HOSE; VAC,THROTTLE BODY	8-98169-777-1	01	1	1012-	●
92	03.675 HOSE; VAC,THROTTLE BODY AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>	8-98118-239-2	01	1	1012-		●
93	03.675 HOSE ASM EXHAUST BRAKE<NF8>	8-98118-171-2	01	1	1012-		●
93	03.675 HOSE ASM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98105-295-1	01	1	1012-			●	●
110	03.671 CLIP; VAC HOSE 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 03.680 (A) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE (E) ID=6.8 & 6.8	8-94208-733-0	01	1	1012-	●
110	03.671 CLIP; VAC HOSE 02.559 (B) L=109.5	8-97807-385-0	03	1	1012-	●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.680 (D) ID=7.5 & 7.5	8-97019-084-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 02.559 (B) L=109.5	8-97807-385-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (C) ID=6.8X2	8-94126-636-0	01	1	1012-		●
110	03.671 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-			●	●
194	03.675 HOSE; VAC 08.962 (G) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (F) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-					●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-					●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-					●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-1202	●	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98097-124-0	01	1	1012-			●	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202			●	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-			●	●

577 58 676 58 58 681 17 1 676 2 486 707 708 135 486 303 485 685

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

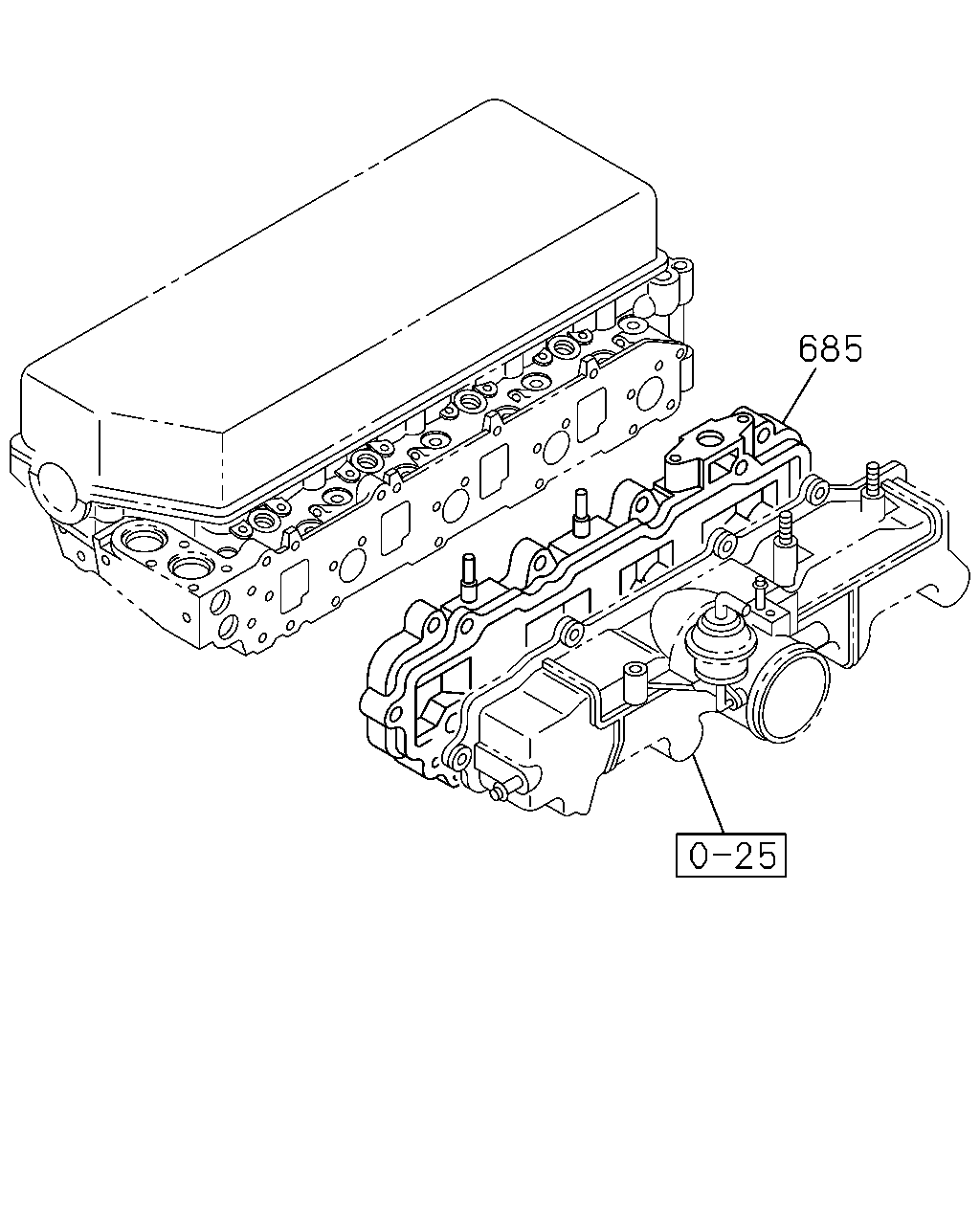

1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1111					●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1112-1403					●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1112-1403						●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-					●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-						●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (C)	8-97377-509-8	01	1	1012-			●	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4) (D)	8-98018-264-6	01	1	1012-			●	●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-1111					●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-						●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-1111					●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-						●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	1012-1111					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1112-						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	1012-1111					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1112-						●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97367-918-0	01	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-97375-980-1	01	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D)	8-97388-919-0	04	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (H)	8-97601-836-0	01	1	1012-			●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (G)	8-98036-507-0	01	1	1012-			●	●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	1012-			●	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-			●	●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1012-	●
135	03.680 BRACKET; EGR EURO4 SPECIFICATION(NT4)	8-98025-253-2	01	1	1012-			●	●
303	03.671 BRACKET; VAC SW EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2)	8-98122-539-0	01	1	1012-1202	●	●
303	03.671 BRACKET; VAC SW EXHAUST BRAKE<NF8>	8-98122-539-0	01	1	1203-		●
303	03.671 BRACKET; VAC SW	8-98122-539-0	01	1	1203-	●
303	03.671 BRACKET; VAC SW EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)	8-98097-124-0	01	1	1012-			●	●
485	03.671 BOLT; VSV EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 00.685 M6X25 FLANGE	0-28650-625-0	01	1	1012-1202	●	●
485	03.671 BOLT; VSV EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	1012-			●	●
486	03.671 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
486	03.671 NUT; BRKT EURO1 SPECIFICATION(NT1),EURO2 SPECIFICATION(NT2) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202	●	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1012-1202			●	●
486	03.671 NUT; BRKT EXHAUST BRAKE<NF8> 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-		●
486	03.671 NUT; BRKT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-	●
486	03.671 NUT; BRKT EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	1203-			●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	1012-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1012-			●	●
577	03.675 PIPE; AIR,EGR EURO4 SPECIFICATION(NT4) (D)	8-98028-113-2	01	1	1012-			●	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (C)	8-98055-858-2	01	1	1012-			●	●
676	03.417 GASKET; PIPE	8-97146-683-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 (C) M8 FLANGE	8-97061-401-1	03	1	1012-			●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111			●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302					●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302						●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302			●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-					●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-						●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-			●	●
685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-	●
685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-		●
707	03.162 STUD; CLIP,INJ PIPE M6X25 L=36	8-97214-234-1	01	1	1012-	●
708	03.162 CLIP; PIPE,INJ	8-97213-481-0	01	1	1012-	●

5 4 271 710 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	F
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1012-1111				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1112-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-98094-528-0	02	1	1112-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-		●	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	1012-		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 (C) M8 FLANGE	8-97061-401-1	03	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111				●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (D)	8-98025-254-1	01	1	1012-		●	●
765	03.670 SPACER; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 03.613	8-94225-562-0	02	1	1012-		●	●

12 2 5 1 4 16 58 1 17 709 577 135 472 17 709 270 677 17 704 17 709 472 238 704 271 58 17 17 270 681 577 780 709 472 769 8 704 703 271 710

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D	E	F
1	03.670 VALVE; EGR (B)	8-97115-533-3	01	1	1012-	●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1012-1111				●
1	03.670 VALVE; EGR (A)	8-97381-560-7	01	1	1112-1403				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-97381-560-7	01	1	1112-1403					●
1	03.670 VALVE; EGR (A)	8-98238-259-1	01	1	1404-				●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (A)	8-98238-259-1	01	1	1404-					●
1	03.670 VALVE; EGR EURO3 SPECIFICATION(NT3) (C)	8-97377-509-8	01	1	1012-		●	●
1	03.670 VALVE; EGR EURO4 SPECIFICATION(NT4) (D)	8-98018-264-6	01	1	1012-		●	●
2	03.670 BOLT; EGR VLV 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-	●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1012-1111				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	1112-					●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1012-1111				●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-				●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3) 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	1112-					●
2	03.670 BOLT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	1012-		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1012-1111				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-0	02	1	1112-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-98094-528-0	02	1	1112-					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-		●	●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO3 SPECIFICATION(NT3) 03.417 (B) M8X28 FLANGE	8-98043-528-0	03	1	1012-		●	●
8	03.670 BOLT; EGR ADAPTER EURO4 SPECIFICATION(NT4) 00.029 (C) M10X40 FLANGE	0-28751-040-0	02	1	1012-		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1012-1111				●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-				●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91180-208-0	04	1	1112-					●
12	03.671 NUT; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-		●	●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (B) M8X25 L=41	0-40210-825-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (B) M8X25 L=41	0-40210-825-0	02	1	1112-					●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1012-1111				●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	1112-				●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3) (A) M8X50 L=62	0-40210-850-0	02	1	1112-					●
16	03.275 STUD; EGR VLV EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97113-023-0	01	1	1012-	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97357-684-3	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97357-684-3	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (A)	8-97357-684-3	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98017-551-0	01	1	1012-1111				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98017-551-0	01	1	1112-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (B)	8-98017-551-0	01	1	1112-					●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (E)	8-97367-918-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (F)	8-97375-980-1	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3) (D)	8-97388-919-0	02	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D)	8-97388-919-0	04	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (H)	8-97601-836-0	01	1	1012-		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (G)	8-98036-507-0	01	1	1012-		●	●
58	03.417 BOLT; PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1012-	●
58	03.417 BOLT; PIPE (B) M8X23 FLANGE	8-97378-077-0	02	1	1012-	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 09.173 (C) M8X45 FLANGE	0-28050-845-0	02	1	1012-		●	●
58	03.417 BOLT; PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.403 (D) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●	●
135	03.680 BRACKET; EGR	8-97221-358-1	01	1	1012-	●
135	03.680 BRACKET; EGR EURO4 SPECIFICATION(NT4)	8-98025-253-2	01	1	1012-		●	●
238	03.330 PROTECTOR; HEAT,EGR EURO4 SPECIFICATION(NT4)	8-97386-177-0	01	1	1012-		●	●
270	03.680 BOLT EURO4 SPECIFICATION(NT4) 00.683 M10X60 FLANGE	0-28151-060-0	03	1	1012-		●	●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-				●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	1012-		●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-		●	●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-				●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M8X25 FLANGE	0-28660-825-0	03	1	1012-		●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X40 FLANGE	0-28751-040-0	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR (A)	8-97200-643-2	01	1	1012-	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3) (B)	8-98063-655-2	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR EURO4 SPECIFICATION(NT4) (D)	8-98028-113-2	01	1	1012-		●	●
577	03.675 PIPE; AIR,EGR EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) (C)	8-98055-858-2	01	1	1012-		●	●
677	03.680 PLATE; DUCT EURO4 SPECIFICATION(NT4)	8-98015-035-0	01	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●
681	03.671 NUT; EGR PIPE EURO4 SPECIFICATION(NT4) 03.613 (C) M8 FLANGE	8-97061-401-1	03	1	1012-		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111				●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1012-1111		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1112-1302		●	●
681	03.671 NUT; EGR PIPE 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-				●
681	03.671 NUT; EGR PIPE EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-					●
681	03.671 NUT; EGR PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.540 (A) M8 FLANGE	0-91180-208-0	02	1	1303-		●	●
703	03.675 DUCT; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-100-2	01	1	1012-		●	●
703	03.675 DUCT; EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-114-0	01	1	1012-		●	●
704	03.337 COOLER ASM; EGR EURO3 SPECIFICATION(NT3) (A)	8-98061-104-0	01	1	1012-		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98028-110-1	01	1	1012-1306		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (B)	8-98244-305-0	01	1	1307-		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (C)	8-98028-112-1	01	1	1012-1204		●	●
704	03.337 COOLER ASM; EGR EURO4 SPECIFICATION(NT4) (D)	8-98212-715-0	01	1	1205-		●	●
709	03.670 BOLT; EGR COOLER EURO4 SPECIFICATION(NT4) 03.604 (B) M10X30 FLANGE	8-98032-158-0	03	1	1012-		●	●
709	03.670 BOLT; EGR COOLER EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 00.029 (A) M10X35 FLANGE	0-28751-035-0	06	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (B)	8-98092-887-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO3 SPECIFICATION(NT3) (C)	8-98092-888-0	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO2 SPECIFICATION(NT2) (A)	8-98079-255-1	01	1	1012-		●	●
710	03.337 BRACKET; EGR COOLER EURO4 SPECIFICATION(NT4) (D)	8-98025-254-1	01	1	1012-		●	●
769	01.750 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.604 M6X12 FLANGE	8-97108-669-0	04	1	1012-1012		●	●
769	01.750 BOLT; HEAT PROTECTOR EURO4 SPECIFICATION(NT4) 03.602 M6X12 W/PL WASHER	8-98054-289-0	04	1	1012-		●	●
780	03.671 WASHER; PROTECTOR EURO4 SPECIFICATION(NT4) 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	1012-1107		●	●

685

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	685	03.680 CASE; INLET,EGR	8-97146-872-1	01	1	1012-	●
	685	03.680 CASE; INLET,EGR	8-97146-873-1	01	1	1012-		●

271 697 667 738 472 753 752 779 747 194 82 73 73 194 73 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
73	03.680 CLIP; VAC HOSE EXHAUST BRAKE<NF8> (D) L=350	8-97373-487-0	01	1	1012-		●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	1012-					●
73	03.680 CLIP; VAC HOSE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) L=350	8-97373-487-0	02	1	1012-			●	●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	1012-					●
194	03.675 HOSE; VAC 08.962 (G) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (D) L=30 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-		●
194	03.675 HOSE; VAC 08.962 (E) L=50 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC 08.962 (F) L=290 SERVICED BY L=3000	0-04730-300-0	01	1	1012-	●
194	03.675 HOSE; VAC (A)	0-04420-270-0	01	1	1012-					●
194	03.675 HOSE; VAC (C)	8-98036-856-0	01	1	1012-					●
194	03.675 HOSE; VAC (B)	8-98085-688-0	01	1	1012-					●
271	03.675 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	01	1	1012-					●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 04.338 (C) M8X20 FLANGE	0-28050-820-0	02	1	1012-			●	●
271	03.675 BOLT; BRKT EURO3 SPECIFICATION(NT3) 06.216 (D) M8X25 FLANGE	0-28650-825-0	02	1	1012-			●	●
271	03.675 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	1012-			●	●
271	03.675 BOLT; BRKT 00.685 (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-			●	●
472	03.671 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	02	1	1012-					●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 02.277 (C) M8X25 FLANGE	0-28660-825-0	03	1	1012-			●	●
472	03.671 BOLT; BRKT EURO4 SPECIFICATION(NT4) 00.029 (B) M10X40 FLANGE	0-28751-040-0	01	1	1012-			●	●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	1012-					●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1012-					●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	1012-					●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-					●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	1012-					●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	1012-					●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	1012-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
