Isuzu WW
▶
TRUCKS
▶
NNR
▶
51293 - NNR/NPR/NQR(LHD)
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶

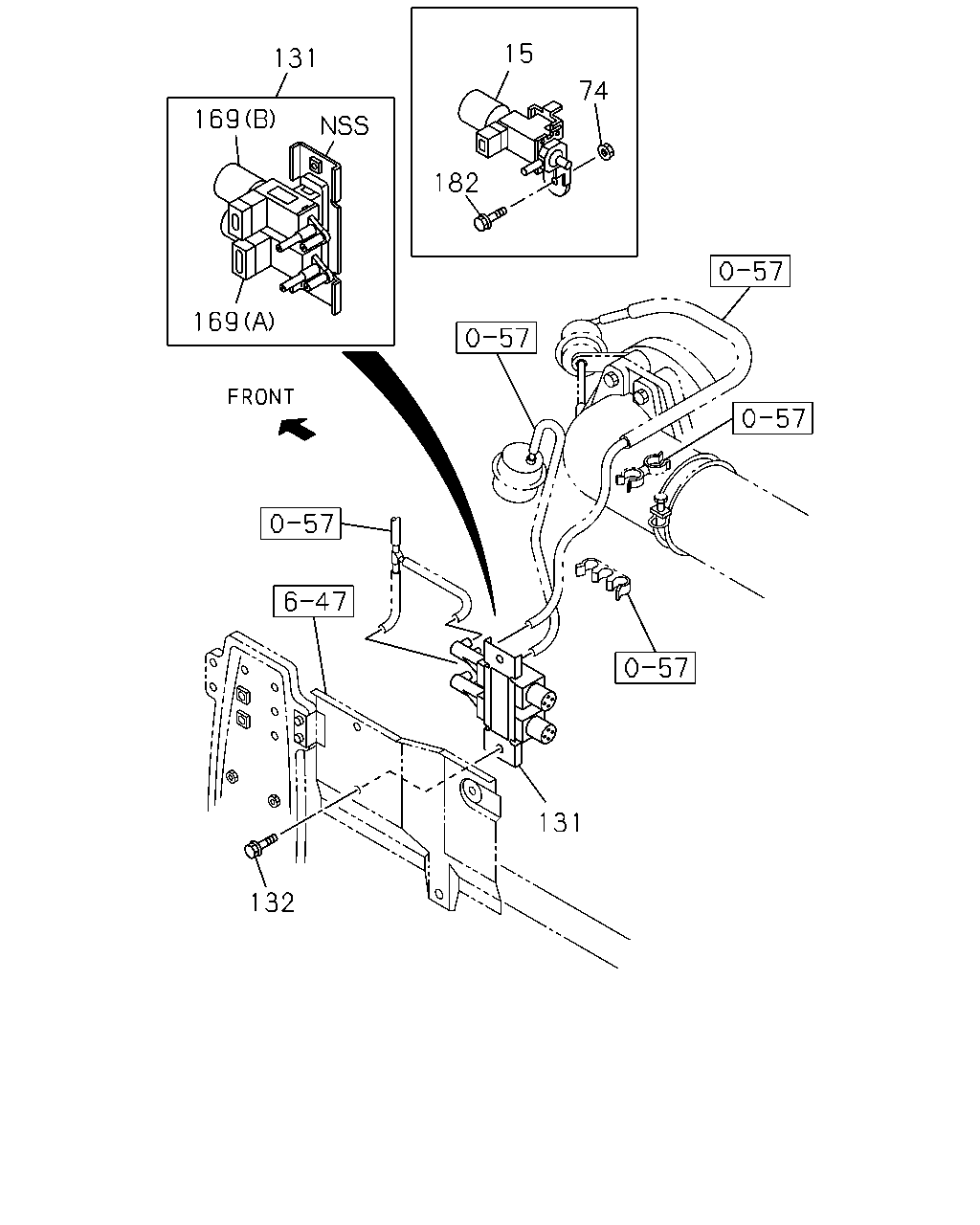

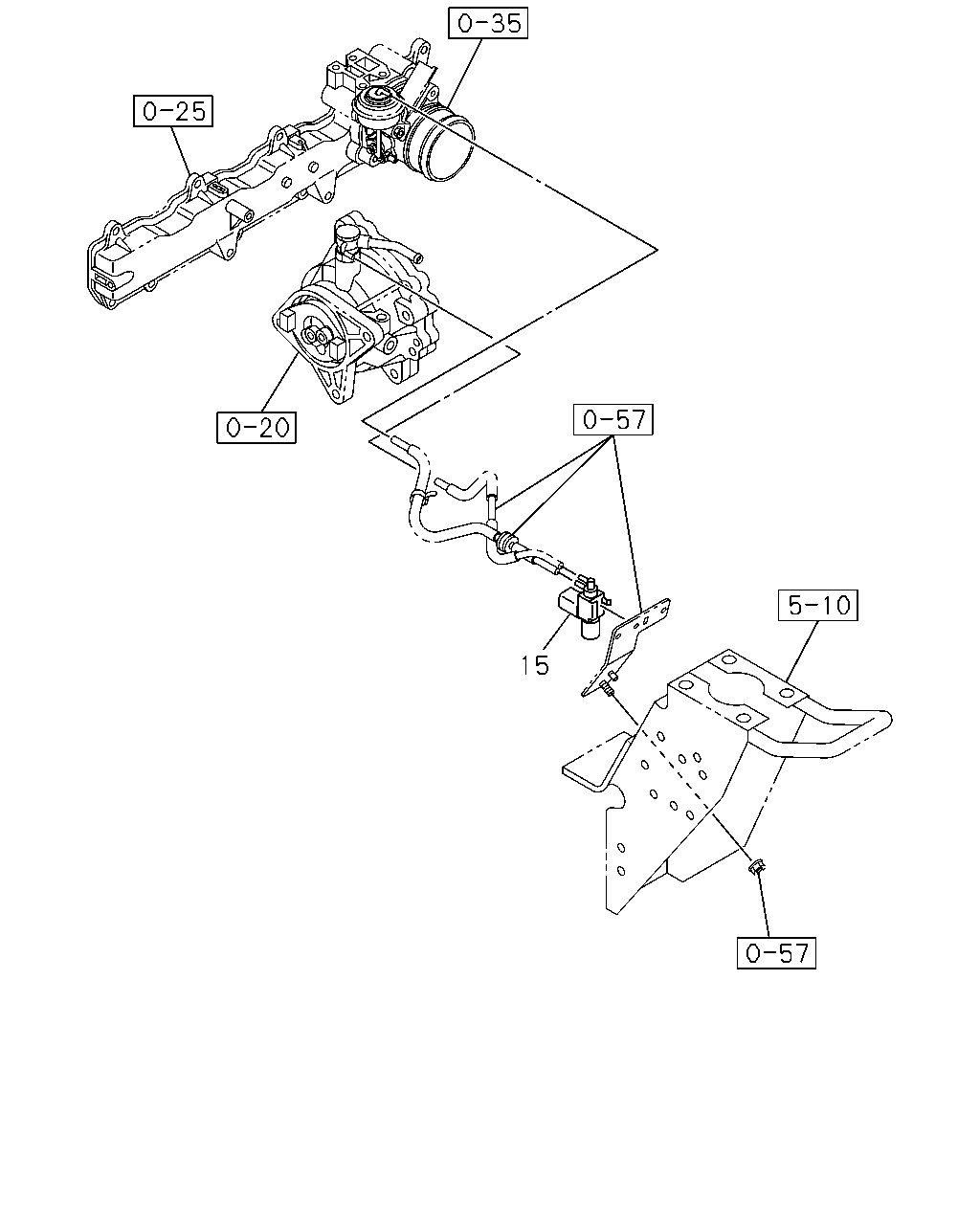

0-56 — EMISSION SYSTEM
(#35940) — 15 parça
Tümü
A - 4HG1-T ENG
B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
D - 4HG1 ENG
◀
[056A] 4HG1 (13 parça)
[056A] 4HK1 (2 parça)
▶
15
131
74
169
182
169
131
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
15
03.670 VALVE; VAC SW
8-97352-151-0
01
1
1012-
●
15
03.670 VALVE; VAC SW
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)
8-97037-165-2
01
1
1012-
●
●
74
03.670 NUT; VSV
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
1012-
●
131
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8>
8-97030-324-1
01
1
1012-
●
131
03.670 VALVE; VAC SWITCHING
8-97030-324-1
01
1
1012-
●
131
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97116-759-0
01
1
1012-
●
132
03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 00.685 M6X25 FLANGE
0-28650-625-0
02
1
1012-
●
132
03.680 BOLT; VSV BRKT
00.685 M6X25 FLANGE
0-28650-625-0
02
1
1012-
●
169
03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A)
8-97012-878-0
01
1
1012-
●
169
03.670 VALVE; VAC SWITCHING
(A)
8-97012-878-0
01
1
1012-
●
169
03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B)
8-97021-705-1
01
1
1012-
●
169
03.670 VALVE; VAC SWITCHING
(B)
8-97021-705-1
01
1
1012-
●
182
03.670 BOLT; VLV
02.343 M8X12 FLANGE
0-28050-812-0
01
1
1012-
●
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
15
03.670 VALVE; VAC SW
8-97352-151-0
01
1
1012-
●
15
03.670 VALVE; VAC SW
EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3)
8-97037-165-2
01
1
1012-
●
●
