3-75 — BRAKE PIPING; AIR,FRONT (#3594) — 114 parça

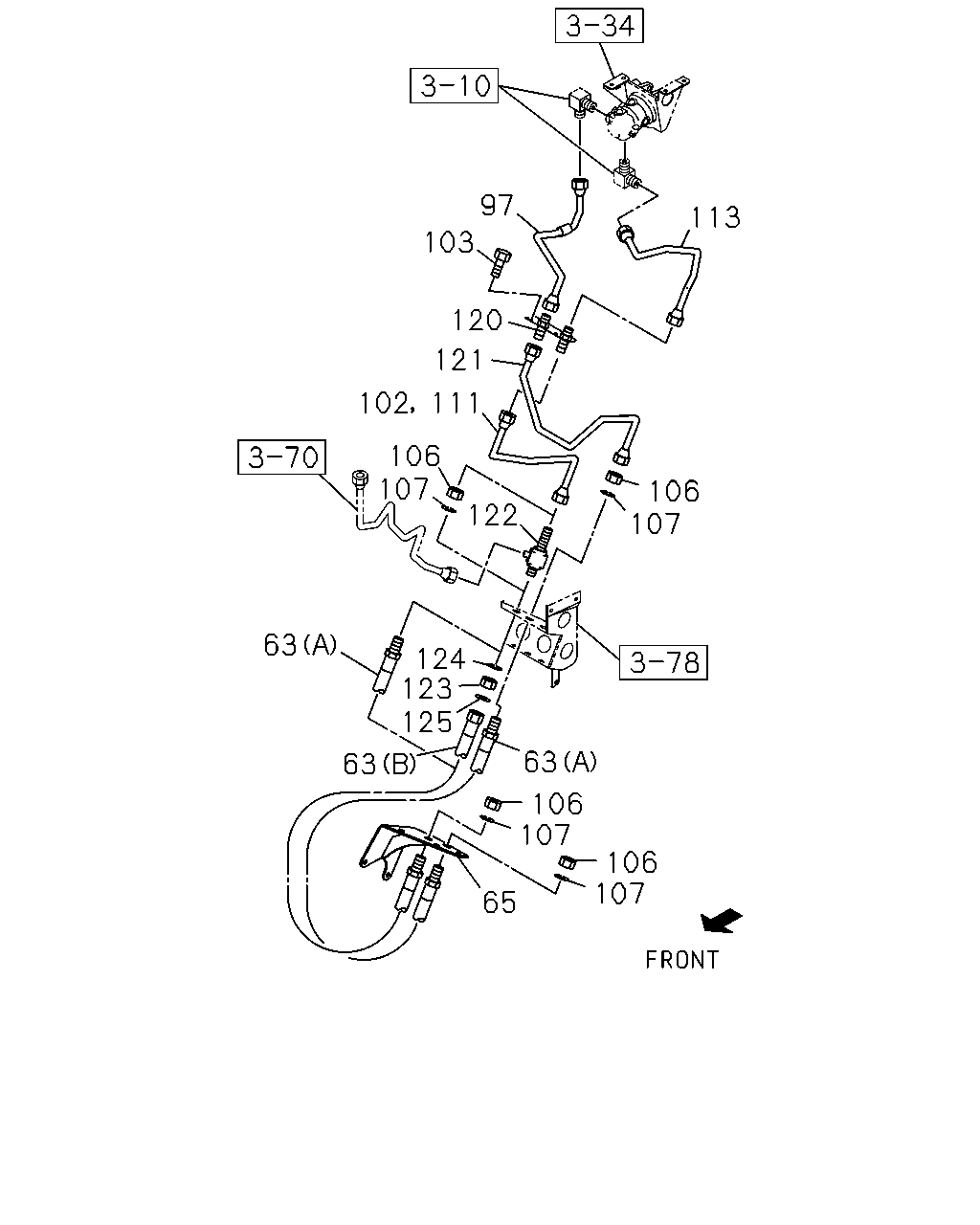

97 113 103 120 121 102 111 106 107 106 107 122 63 124 123 125 63 63 106 107 106 107 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	HOSE; FLEX,BRK LINE,CAB SIDE (A) L=850	0-07706-850-0	01	1	9002-9408
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> (A) L=850	0-07706-850-0	01	1	9002-9408
63	HOSE; FLEX,BRK LINE,CAB SIDE (A) L=830	0-07706-830-0	01	1	9409-
63	HOSE; FLEX,BRK LINE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> (A) L=830	0-07706-830-0	01	1	9409-
63	HOSE; FLEX,BRK LINE,CAB SIDE DUAL AIR GAUGE<UG2> (B) L=770	1-09363-329-4	01	1	9002-
65	BRACKET; FLEX HOSE	1-47475-582-0	01	1	9002-
97	PIPE; AIR,BRK VLV TO UNION L=422 SERVICED BY L=550	1-47437-976-0	01	1	9002-9306
97	PIPE; AIR,BRK VLV TO UNION L=423 SERVICED BY L=500	1-49111-435-0	01	1	9307-
102	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=372	1-47448-184-0	01	1	9002-9306
102	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=373	1-47495-941-0	01	1	9307-
103	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
103	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
103	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
103	BOLT; PIPE UNION M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
103	BOLT; PIPE UNION M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-
106	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-
106	NUT; FLEX HOSE EXC. DUAL AIR GAUGE<UG2> M20	9-99111-420-0	02	1	9002-
106	NUT; FLEX HOSE DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	02	1	9002-
107	WASHER; LK,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	02	1	9002-
107	WASHER; LK,FLEX HOSE DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> L=352	1-47448-196-0	01	1	9002-9306
111	PIPE; AIR,CONN TO UNION DUAL AIR GAUGE<UG2> L=352	1-47495-942-0	01	1	9307-
113	PIPE; AIR,UNION TO BRK VLV L=493	1-47447-681-0	01	1	9002-9306
113	PIPE; AIR,UNION TO BRK VLV L=494	1-47495-943-0	01	1	9307-
120	UNION; AIR PIPE	1-47470-187-2	01	1	9002-
121	PIPE; AIR,UNION TO FLEX HOSE L=675 SERVICED BY L=730	1-47437-979-0	01	1	9002-9306
121	PIPE; AIR,UNION TO FLEX HOSE L=611 SERVICED BY L=660	1-49111-438-0	01	1	9307-
122	CONNECTOR; FLEX HOSE DUAL AIR GAUGE<UG2>	1-09656-359-1	01	1	9002-
123	NUT; HOSE CONNECTOR DUAL AIR GAUGE<UG2> M20	9-99111-420-0	01	1	9002-
124	WASHER; LK,CONNECTOR DUAL AIR GAUGE<UG2> ID=20.2	9-09150-520-0	01	1	9002-
125	GASKET; FLEX HOSE DUAL AIR GAUGE<UG2> ID=11 OD=18	9-09572-510-0	01	1	9002-

21 84 70 5 62 64 72 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B)	9-09233-012-1	01	1	9002-
2	UNION; AIR PIPE (A) M22	9-09233-315-1	01	1	9002-
5	PIPE; AIR,UNION TO UNION (B) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=2018 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9008
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1987 SERVICED BY L=2250	1-47437-987-0	01	1	9009-9306
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1987 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1984 SERVICED BY L=2000	1-49111-450-0	01	1	9405-
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2312 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2417 SERVICED BY L=2800	1-49111-453-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2410 SERVICED BY L=2500	1-49111-452-0	01	1	9405-
21	PIPE; AIR,UNION TO RELAY VLV (A) L=556 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV (A) L=557 SERVICED BY L=600	1-47426-408-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1293 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1161 SERVICED BY L=1200	1-49111-460-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1934 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L) L=1943 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 12PD1 C ENG(43L) L=1889 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2259 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=2259 SERVICED BY L=2500	1-49111-452-0	01	1	9307-
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) L=2008 SERVICED BY L=2250	1-47437-987-0	01	1	9012-9306
62	PIPE; AIR,UNION TO FLEX HOSE 6RB1TC-N ENG(29L) L=2017 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
64	WASHER; LK,FLEX HOSE ID=10.2	9-09150-510-0	03	1	9002-
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1787 SERVICED BY L=1800	1-47434-487-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 10PD1 STD ENG(40L) L=1792 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 12PD1 C ENG(43L) L=1784 SERVICED BY L=1800	1-49111-449-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1999 SERVICED BY L=2000	1-47437-986-0	01	1	9002-9306
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1 STD ENG(07L) L=1999 SERVICED BY L=2250	1-49111-451-0	01	1	9307-
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=1912 SERVICED BY L=2000	1-47437-986-0	01	1	9012-9306
70	PIPE; AIR,FLEX HOSE TO UNION 6RB1TC-N ENG(29L) L=1920 SERVICED BY L=2000	1-49111-450-0	01	1	9307-
72	UNION; AIR PIPE M20 & M16 2 WAY	1-09654-177-1	01	1	9002-
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> L=1515 SERVICED BY L=1700	1-47434-478-0	01	1	9005-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> L=1527 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> FULLER M/T<X9B> L=1527 SERVICED BY L=1700	1-47426-420-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> L=1248 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> L=1251 SERVICED BY L=1400	1-47437-969-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV L TYPE ENG<90L> ISUZU M/T<X9A> L=1251 SERVICED BY L=1400	1-47426-418-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> FULLER M/T<X9B> L=1728 SERVICED BY L=1900	1-47437-971-0	01	1	9005-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> FULLER M/T<X9B> L=1734 SERVICED BY L=1900	1-47437-971-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> FULLER M/T<X9B> L=1741 SERVICED BY L=1900	1-47426-421-0	01	1	9307-
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> ISUZU M/T<X9A> L=1455 SERVICED BY L=1700	1-47434-478-0	01	1	9002-9204
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> ISUZU M/T<X9A> L=1458 SERVICED BY L=1700	1-47434-478-0	01	1	9205-9306
84	PIPE; AIR,UNION TO DBL CHECK VLV V TYPE ENG<91L> ISUZU M/T<X9A> L=1465 SERVICED BY L=1550	1-47426-419-0	01	1	9307-

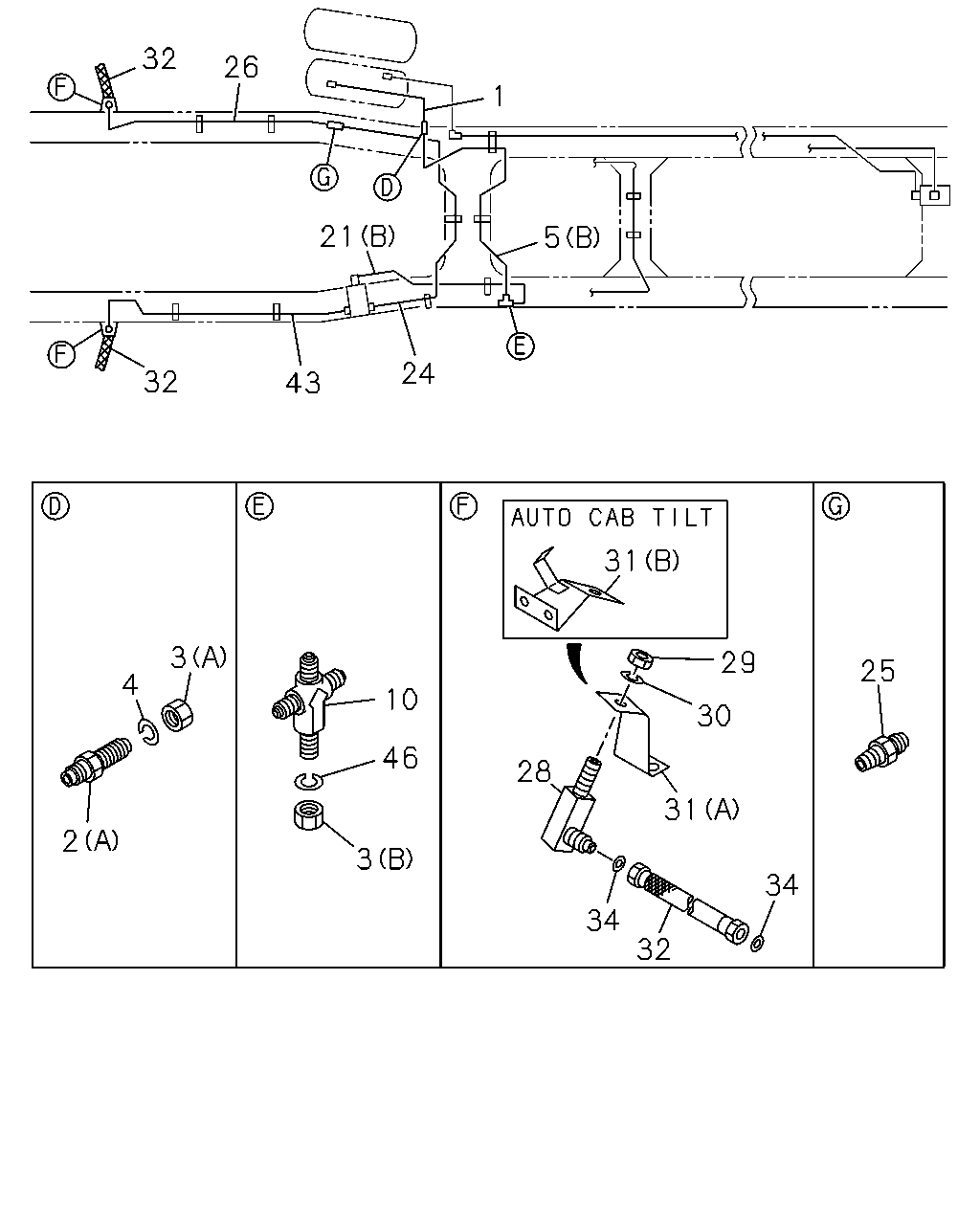

32 26 1 21 5 24 32 43 31 3 29 25 4 10 30 46 28 31 2 3 34 34 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=671 SERVICED BY L=1000	1-47434-491-0	01	1	9002-
2	UNION; AIR PIPE (B)	9-09233-012-1	01	1	9002-
2	UNION; AIR PIPE (A) M22	9-09233-315-1	01	1	9002-
3	NUT; PIPE UNION (A) M22	9-09111-422-0	01	1	9002-
3	NUT; PIPE UNION (B) M14	9-99110-414-0	01	1	9002-
4	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	9002-9312
5	PIPE; AIR,UNION TO UNION (B) L=1824 SERVICED BY L=2000	1-47434-493-0	01	1	9002-
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=2018 SERVICED BY L=2250	1-47437-987-0	01	1	9002-9008
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1987 SERVICED BY L=2250	1-47437-987-0	01	1	9009-9306
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1987 SERVICED BY L=2250	1-49111-451-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION L TYPE ENG<90L> (A) L=1984 SERVICED BY L=2000	1-49111-450-0	01	1	9405-
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2312 SERVICED BY L=2500	1-47434-488-0	01	1	9002-9306
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2417 SERVICED BY L=2800	1-49111-453-0	01	1	9307-9404
5	PIPE; AIR,UNION TO UNION V TYPE ENG<91L> (A) L=2410 SERVICED BY L=2500	1-49111-452-0	01	1	9405-
10	UNION; AIR PIPE	1-09656-390-1	01	1	9002-
21	PIPE; AIR,UNION TO RELAY VLV (A) L=556 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV (A) L=557 SERVICED BY L=600	1-47426-408-0	01	1	9307-
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1293 SERVICED BY L=1350	1-47437-995-0	01	1	9002-9306
21	PIPE; AIR,UNION TO RELAY VLV (B) L=1161 SERVICED BY L=1200	1-49111-460-0	01	1	9307-
24	PIPE; AIR,RELAY VLV TO UNION L=1708 SERVICED BY L=1900	1-47437-971-0	01	1	9002-9306
24	PIPE; AIR,RELAY VLV TO UNION L=1717 SERVICED BY L=1900	1-47426-421-0	01	1	9307-9404
24	PIPE; AIR,RELAY VLV TO UNION L=1715 SERVICED BY L=1900	1-47426-421-0	01	1	9405-
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	01	1	9002-
26	PIPE; AIR,UNION TO FLEX HOSE L=1294 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9306
26	PIPE; AIR,UNION TO FLEX HOSE L=1295 SERVICED BY L=1300	1-47426-417-0	01	1	9307-
28	NIPPLE; AIR PIPE M16	1-09654-174-1	02	1	9002-
29	NUT; NIPPLE M20	9-99111-420-0	02	1	9002-
30	WASHER; LK,NIPPLE ID=20.2	9-09150-520-0	02	1	9002-
31	BRACKET; NIPPLE (A)	1-47475-106-0	02	1	9002-9306
31	BRACKET; NIPPLE EXC. AUTO CAB TILT<WV2> (A)	1-47475-106-0	01	1	9307-
31	BRACKET; NIPPLE (A)	1-47475-106-0	01	1	9307-
31	BRACKET; NIPPLE AUTO CAB TILT<WV2> (B)	1-47476-926-0	01	1	9307-
32	HOSE; FLEX,FRT L=530	0-07847-530-1	02	1	9002-
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	9002-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1394 SERVICED BY L=1400	1-47437-969-0	01	1	9002-9008
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1397 SERVICED BY L=1400	1-47437-969-0	01	1	9009-9306
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9307-9308
43	PIPE; AIR,RELAY VLV TO FLEX HOSE V TYPE ENG<91L> L=1406 SERVICED BY L=1550	1-47426-419-0	01	1	9309-
43	PIPE; AIR,RELAY VLV TO FLEX HOSE L TYPE ENG<90L> L=1397 SERVICED BY L=1550	1-47426-419-0	01	1	9309-
46	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	9002-9312
