Sayfa 0-52 - Isuzu EPC

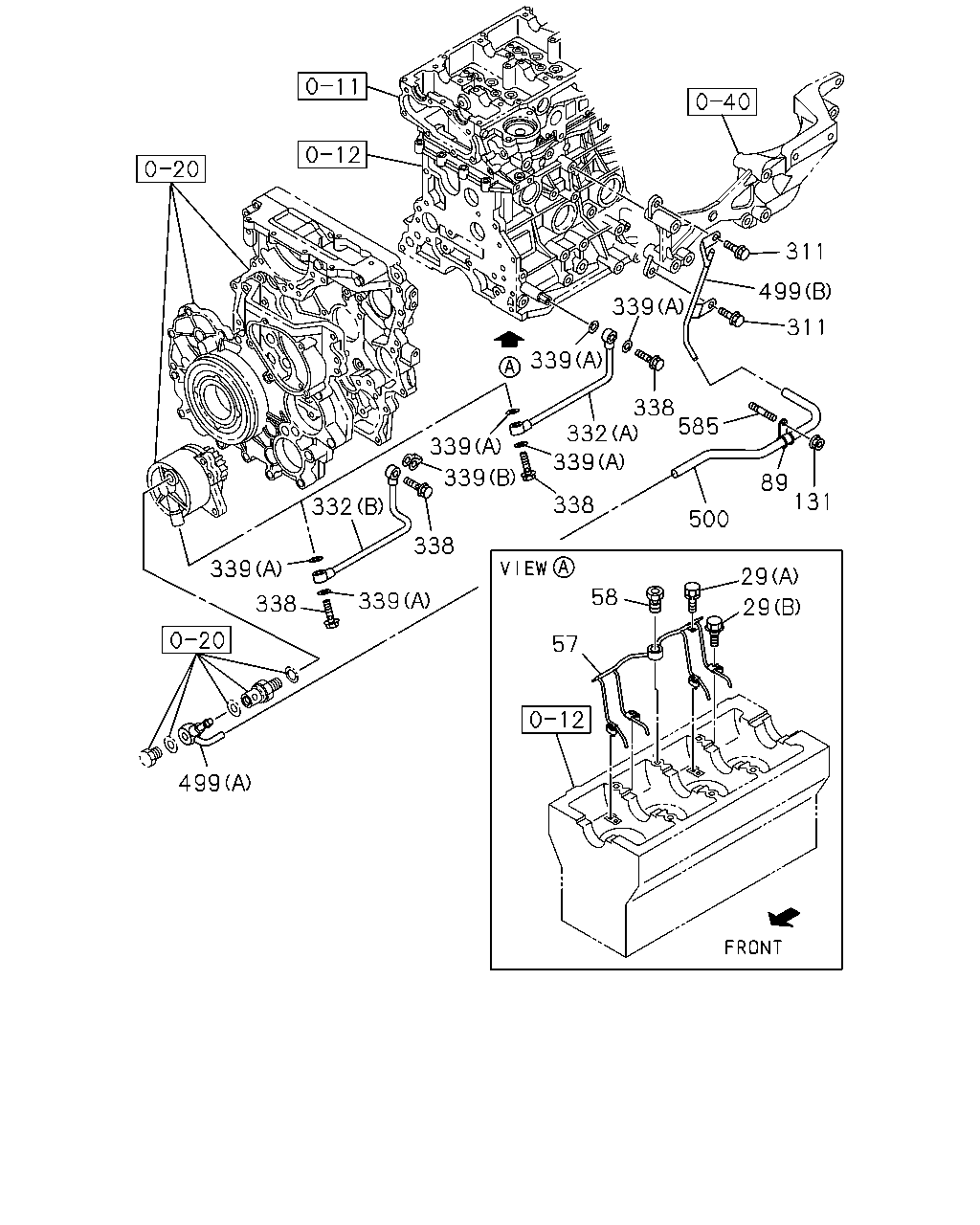

0-52 — OIL AND VACUUM PIPING; ENGINE (#35939) — 367 parça

311 499 311 89 131 500 29 29 58 57 585 338 332 338 338 332 338 499 339 339 339 339 339 339 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
29	01.531 BOLT; OIL PIPE,OIL JET VIETNAM EQUIPMENT<CL0> (B) M6X20 FLANGE	8-97380-673-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1012-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1012-1104	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1105-		●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. VIETNAM EQUIPMENT<CL0> (B) M6X20	8-97117-298-1	04	1	1105-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1012-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO VIETNAM EQUIPMENT<CL0>	8-97379-464-0	01	1	1105-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1012-1104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1105-1407		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT<CL0>	8-97239-048-1	01	1	1105-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT<CL0>	8-98285-334-0	01	1	1408-	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-			●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-			●	●
89	04.681 CLIP; VAC HOSE	9-09520-835-0	01	1	1012-		●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	1012-	●	●
311	01.531 BOLT; PIPE FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98201-785-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1012-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP VIETNAM EQUIPMENT<CL0> (A)	8-98038-929-0	01	1	1301-	●
338	01.531 BOLT; JOINT,OIL PIPE VIETNAM EQUIPMENT<CL0> M8X20 EYE-BOLT	8-97910-296-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1012-1104	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-		●
338	01.531 BOLT; JOINT,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98065-992-0	01	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98065-992-0	02	1	1303-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1012-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-408-0	02	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	1012-		●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	1012-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (E)	8-98040-104-2	01	1	1012-					●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (C)	8-98027-553-0	01	1	1012-1104	●
499	04.681 PIPE; VACUUM (C)	8-98027-553-0	01	1	1105-	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	1012-					●	●
500	04.681 HOSE; VACUUM	8-97369-587-1	01	1	1012-		●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	1012-	●	●

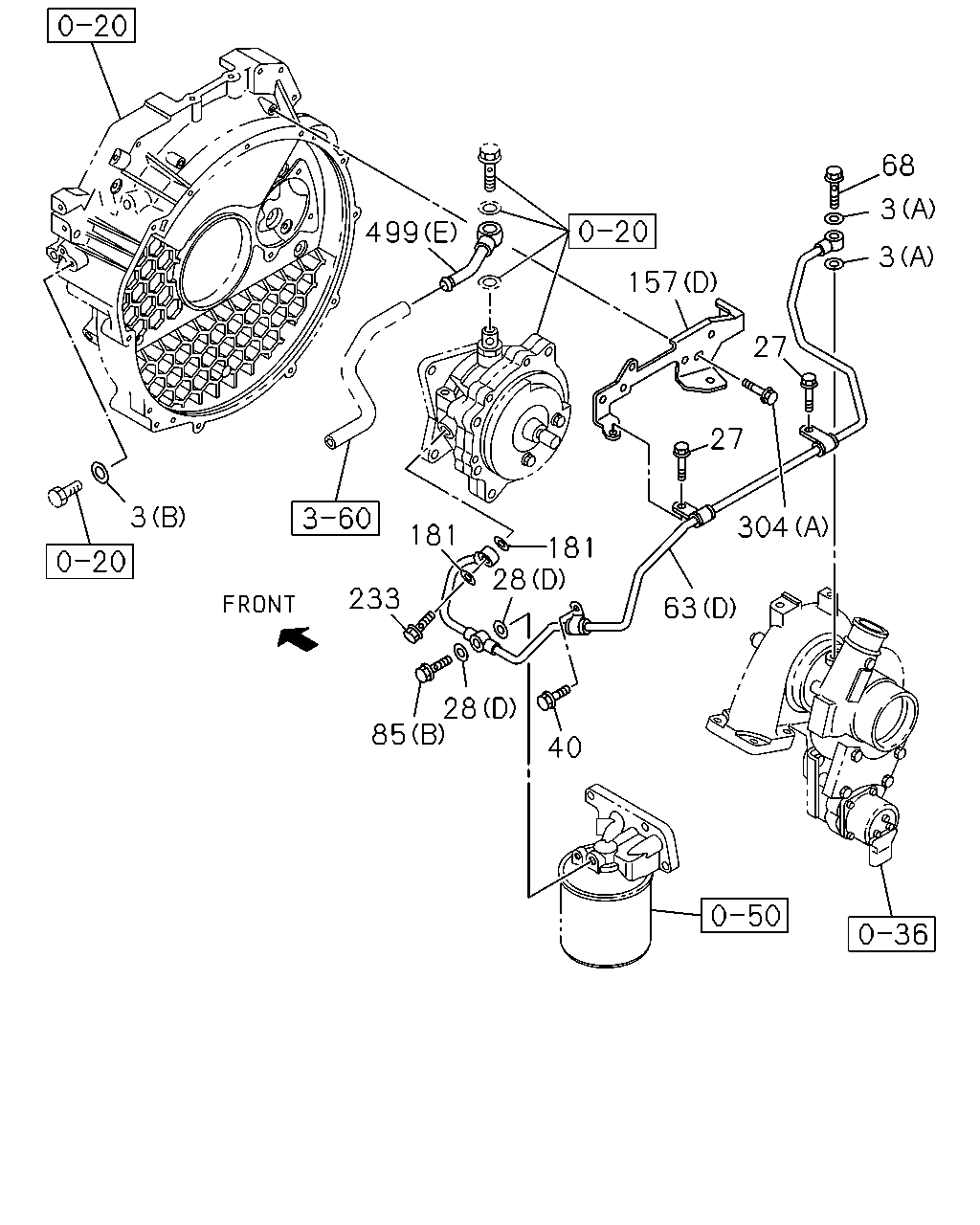

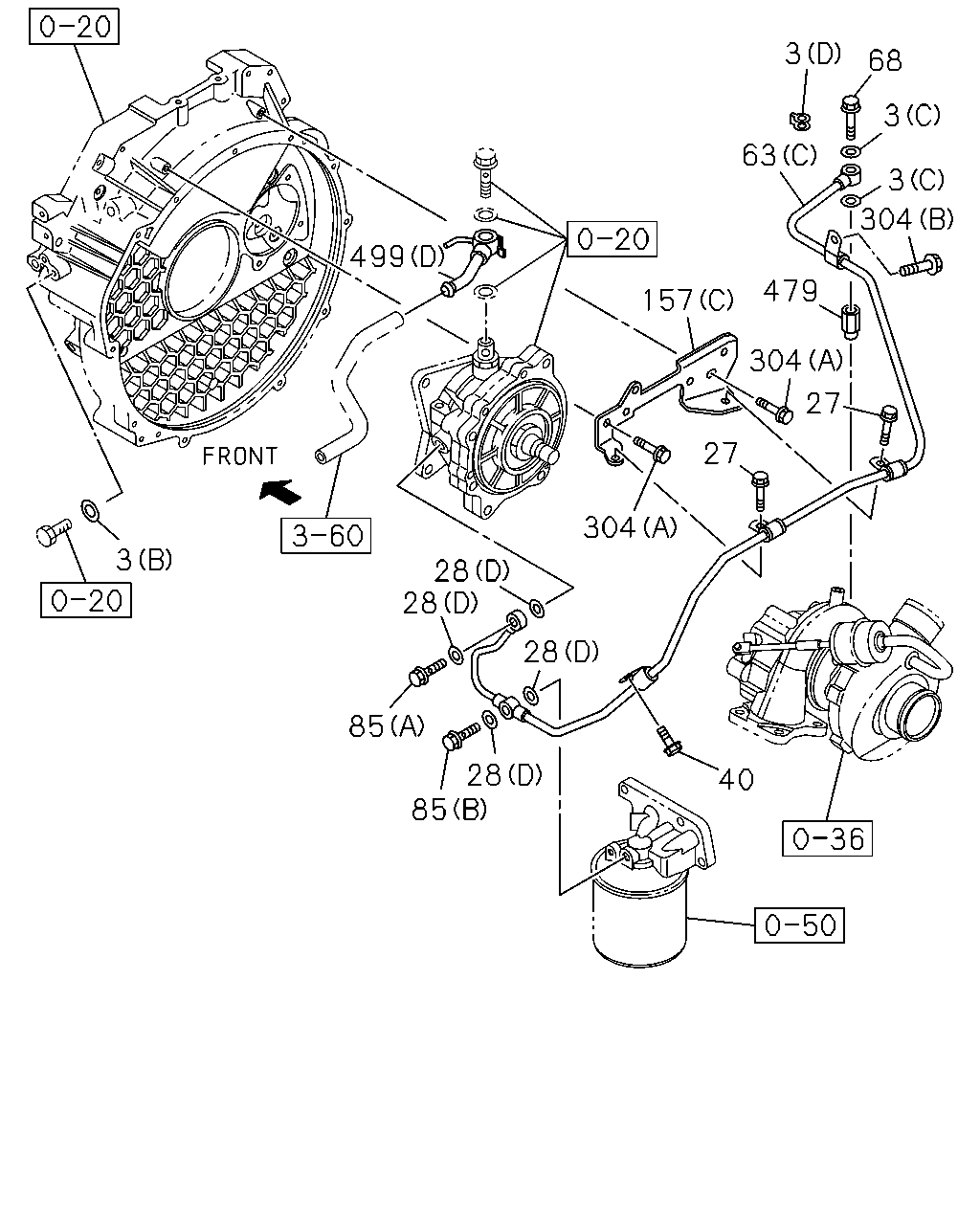

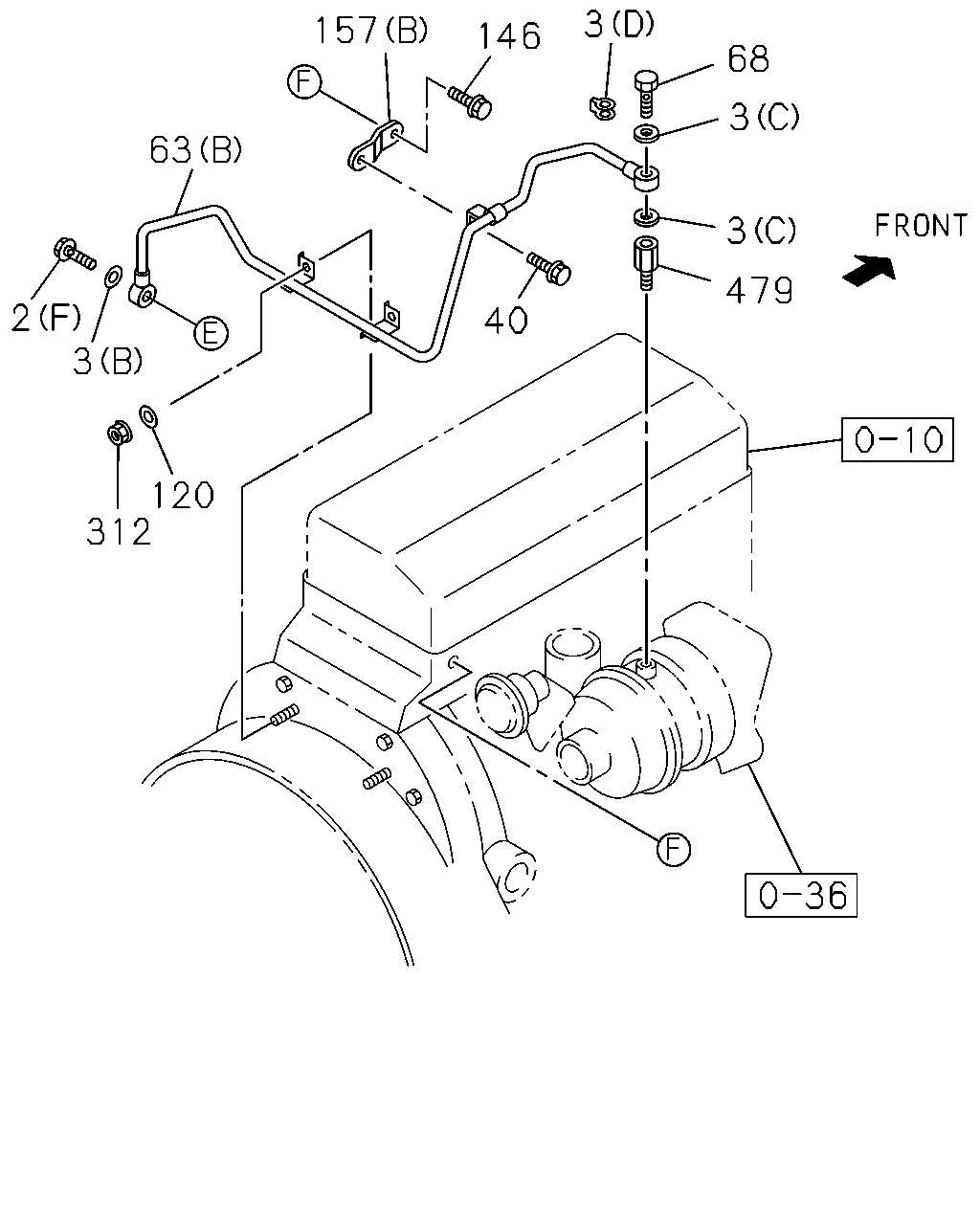

157 146 3 63 2 3 120 312 68 3 3 479 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (C) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE (F) M10X40 FLANGE	8-97182-847-0	01	1	1012-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M10X21 FLANGE	8-97372-238-0	02	1	1012-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-1104	●	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97381-488-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-97386-643-2	01	1	1012-1509					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-98328-013-0	01	1	1510-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98092-070-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	1012-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M12X28 FLANGE	8-97166-518-1	01	1	1012-					●	●
120	01.531 WASHER; PL,PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1310-			●
146	01.531 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (B)	8-97181-586-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	1012-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (D)	8-98036-534-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (C)	8-98153-165-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98077-403-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (C)	8-98077-403-0	01	1	1012-					●	●
312	01.531 NUT; PIPE FIX EXC. HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE	0-91180-108-0	02	1	1310-			●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	1012-			●
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.800	8-94436-891-0	01	1	1012-					●	●

3 3 3 1 2 3 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97200-615-4	01	1	1012-			●
1	01.519 PIPE; OIL,INJ PUMP TO C/BL	8-97093-547-1	01	1	1012-				●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (C) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE (F) M10X40 FLANGE	8-97182-847-0	01	1	1012-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M10X21 FLANGE	8-97372-238-0	02	1	1012-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-1104	●	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●

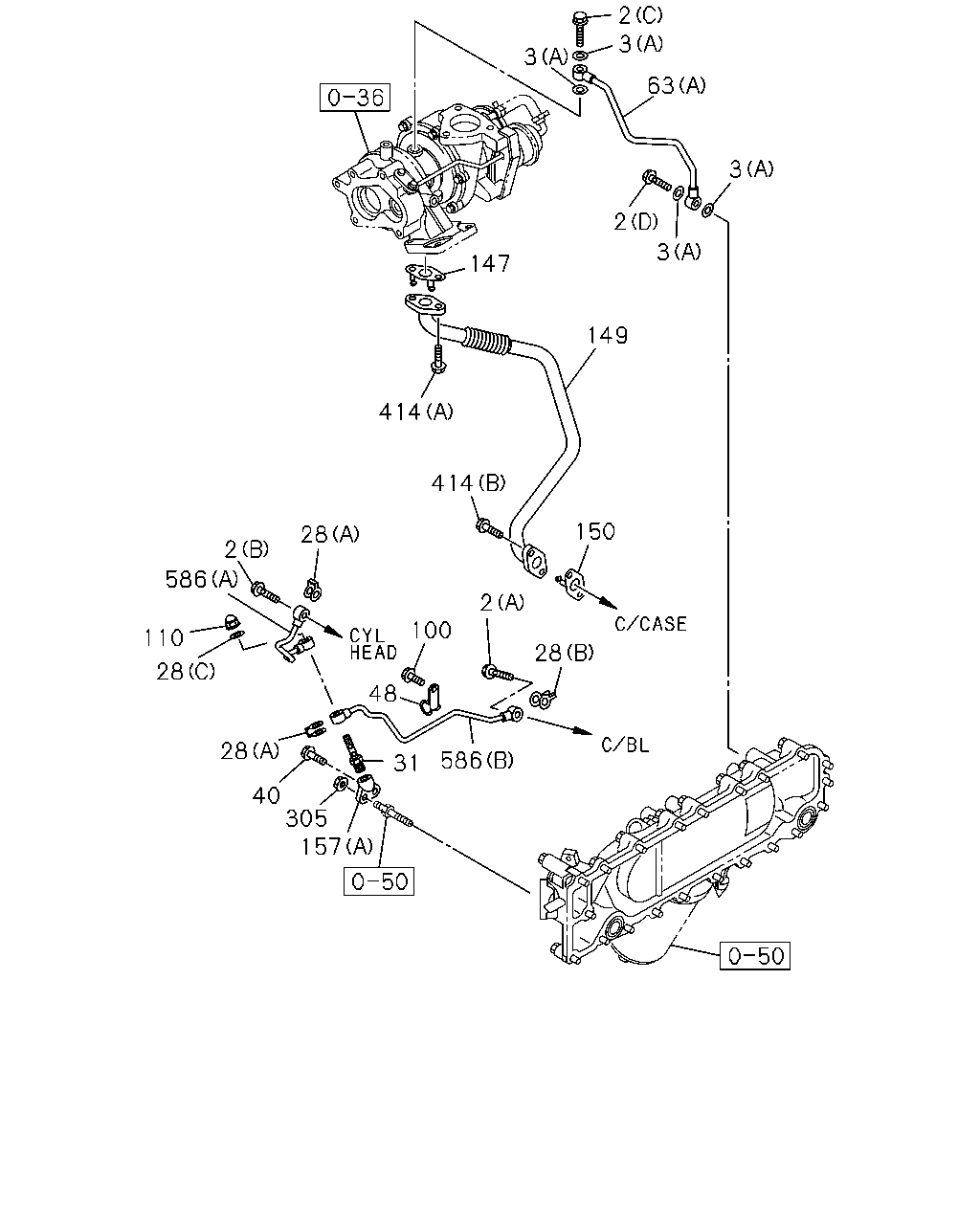

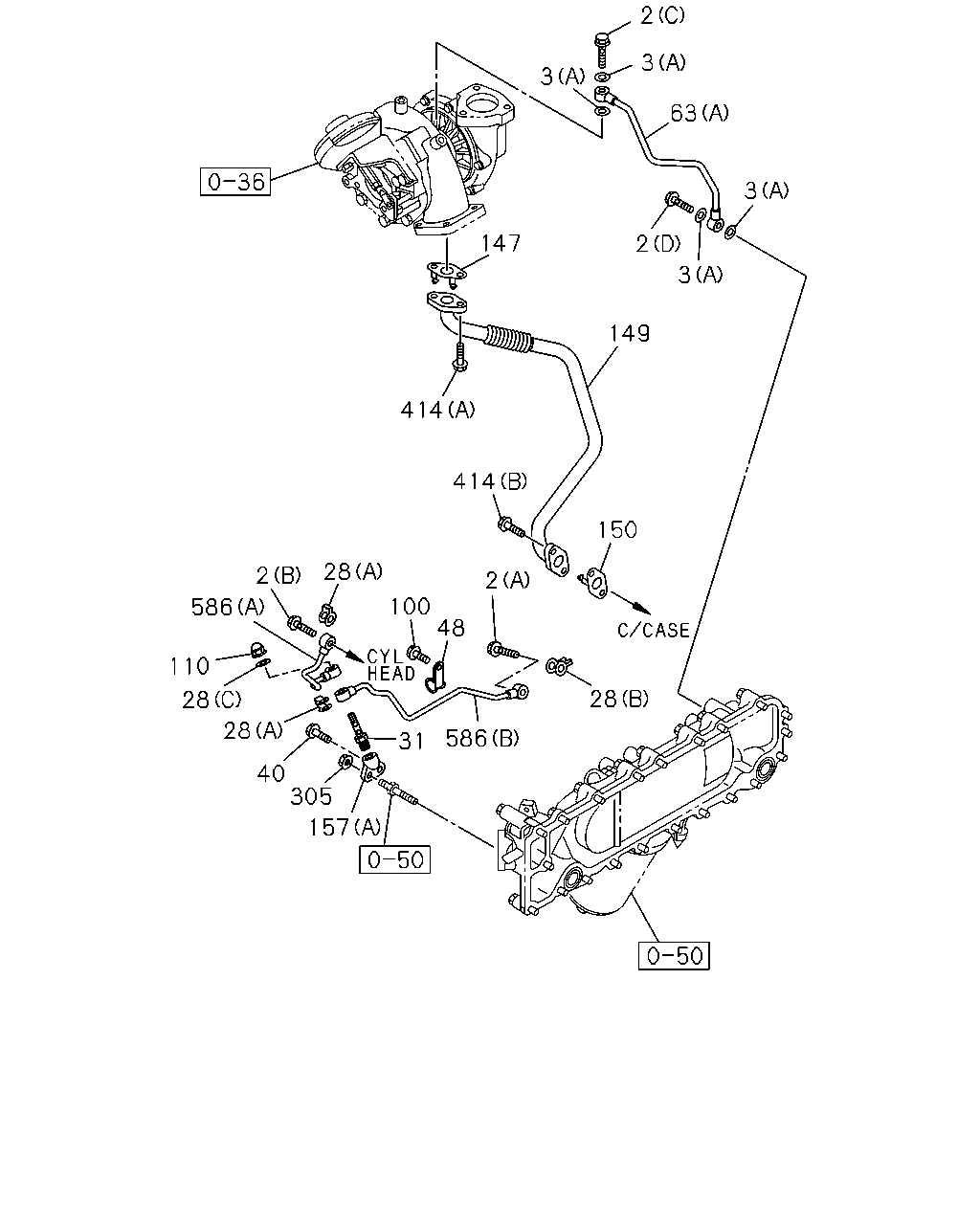

2 3 3 63 3 147 2 3 149 414 414 150 28 2 2 100 48 586 110 28 28 28 586 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (C) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE (F) M10X40 FLANGE	8-97182-847-0	01	1	1012-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M10X21 FLANGE	8-97372-238-0	02	1	1012-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-1104	●	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-					●	●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●		●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97381-488-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-97386-643-2	01	1	1012-1509					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-98328-013-0	01	1	1510-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98092-070-0	01	1	1012-					●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	1012-1309	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0>	8-98132-017-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	1012-1104	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-475-0	01	1	1105-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> ID=16	8-98029-475-0	01	1	1105-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	1012-	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0>	8-98132-018-1	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1012-1104	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1105-1111		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0>	8-98029-476-0	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1112-	●	●
157	01.519 BRACKET; OIL PIPE (B)	8-97181-586-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	1012-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (D)	8-98036-534-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (C)	8-98153-165-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98077-403-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (C)	8-98077-403-0	01	1	1012-					●	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	1012-1107	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1012-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	1012-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	1012-	●	●

2 3 3 63 3 2 3 147 149 414 414 150 28 2 586 2 100 110 28 28 48 28 586 31 40 305 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	8-97910-296-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE VIETNAM EQUIPMENT<CL0> (C) M10X24	8-97944-505-1	01	1	1105-	●
2	01.531 BOLT; EYE,OIL PIPE (F) M10X40 FLANGE	8-97182-847-0	01	1	1012-			●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (E) M10X21 FLANGE	8-97372-238-0	02	1	1012-				●
2	01.531 BOLT; EYE,OIL PIPE 03.162 (A) M14X27 FLANGE	1-09675-086-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1012-1104	●	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111		●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1105-1111	●
2	01.531 BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT	5-09675-018-1	01	1	1112-	●	●
2	01.531 BOLT; EYE,OIL PIPE (C) M10X27 FLANGE	8-94443-535-0	01	1	1012-	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1012-1104	●	●	●
2	01.531 BOLT; EYE,OIL PIPE 03.280 (D) M10X24	9-09906-205-1	01	1	1105-		●	●
2	01.531 BOLT; EYE,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> 03.280 (D) M10X24	9-09906-205-1	01	1	1105-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-					●	●
31	01.540 NIPPLE; OIL PIPE	8-98044-067-1	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●		●	●
48	01.531 CLIP; OIL PIPE ID=7 L=28	8-98121-233-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97381-488-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-97386-643-2	01	1	1012-1509					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-98328-013-0	01	1	1510-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98092-070-0	01	1	1012-					●	●
100	01.531 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
110	01.531 NUT; CAP OIL PIPE 00.349 M8 CAP NUT FLANGE	8-97372-242-0	01	1	1012-1309	●	●
110	01.531 NUT; CAP OIL PIPE M8 CAP NUT FLANGE	8-98251-964-0	01	1	1310-	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0>	8-98132-017-0	01	1	1105-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ID=16	8-98029-475-0	01	1	1012-1104	●	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-475-0	01	1	1105-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> ID=16	8-98029-475-0	01	1	1105-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER	8-97381-489-2	01	1	1012-	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0>	8-98132-018-1	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1012-1104	●	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1105-1111		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0>	8-98029-476-0	01	1	1105-1111	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-98029-476-0	01	1	1112-	●	●
157	01.519 BRACKET; OIL PIPE (B)	8-97181-586-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	1012-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (D)	8-98036-534-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (C)	8-98153-165-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98077-403-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (C)	8-98077-403-0	01	1	1012-					●	●
305	01.540 NUT; BRKT,OIL PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
414	01.531 BOLT; OIL PIPE 03.342 (A) M6X18 HEX SOCKET	0-58330-618-0	02	1	1012-1107	●	●
414	01.531 BOLT; OIL PIPE 00.724 (A) M6X16 HEX SOCKET	0-58330-616-0	02	1	1108-	●	●
414	01.531 BOLT; OIL PIPE 01.758 (B) M8X20 HEX SOCKET	0-58330-820-0	02	1	1012-	●	●
586	01.519 PIPE; OIL,TENSIONER (A)	8-98039-566-0	01	1	1012-	●	●
586	01.519 PIPE; OIL,TENSIONER (B)	8-98039-567-0	01	1	1012-	●	●

499 157 27 27 3 3 68 304 63 181 28 181 233 85 3 28 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-			●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-					●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97381-488-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-97386-643-2	01	1	1012-1509					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-98328-013-0	01	1	1510-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98092-070-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	1012-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M12X28 FLANGE	8-97166-518-1	01	1	1012-					●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1012-					●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X22	1-09675-028-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE (B)	8-97181-586-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	1012-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (D)	8-98036-534-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (C)	8-98153-165-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98077-403-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (C)	8-98077-403-0	01	1	1012-					●	●
181	01.531 GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-					●	●
233	01.531 BOLT; EYE EURO4 SPECIFICATION(NT4) M10X22	1-09675-028-0	01	1	1012-					●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (A) M10X16 FLANGE	0-28151-016-0	02	1	1012-					●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-					●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	1012-		●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	1012-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (E)	8-98040-104-2	01	1	1012-					●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (C)	8-98027-553-0	01	1	1012-1104	●
499	04.681 PIPE; VACUUM (C)	8-98027-553-0	01	1	1105-	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	1012-					●	●

202 89 46 86 202 89 202 83 202 46 27 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E	F
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-		●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-				●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU 03.162 (B) M14X27 FLANGE	1-09675-086-0	01	1	1012-		●	●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU (A) M10X21 FLANGE	8-97372-239-0	01	1	1012-		●	●
83	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97228-671-0	01	1	1012-		●	●
86	01.519 PIPE; OIL,VAC PUMP RETURN 01.430	8-94455-311-1	01	1	1012-		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-		●	●
89	04.681 CLIP; VAC HOSE 03.280 ID=17.1	8-94122-679-0	01	1	1012-		●	●
89	04.681 CLIP; VAC HOSE	9-09520-835-0	01	1	1012-	●
202	01.531 GASKET; OIL PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-		●	●
202	01.531 GASKET; OIL PIPE 03.163 (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1012-1312		●	●
202	01.531 GASKET; OIL PIPE (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●	●
340	03.280 HOSE; VAC PUMP,RETURN 04.681	8-94339-073-3	01	1	1012-		●	●

339 332 339 339 338 338 339 339 338 332 338 339 339 585 131 29 29 57 58 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	E	F
29	01.531 BOLT; OIL PIPE,OIL JET VIETNAM EQUIPMENT<CL0> (B) M6X20 FLANGE	8-97380-673-1	04	1	1105-	●
29	01.531 BOLT; OIL PIPE,OIL JET 03.407 (A) M8X10 FLANGE	0-28050-810-0	01	1	1012-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1012-1104	●	●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	1105-		●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. VIETNAM EQUIPMENT<CL0> (B) M6X20	8-97117-298-1	04	1	1105-	●
57	01.519 PIPE; OIL,OIL JET	8-97312-132-3	01	1	1012-	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO VIETNAM EQUIPMENT<CL0>	8-97379-464-0	01	1	1105-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1012-1104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97239-048-1	01	1	1105-1407		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT<CL0>	8-97239-048-1	01	1	1105-1407	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-98285-334-0	01	1	1408-		●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO EXC. VIETNAM EQUIPMENT<CL0>	8-98285-334-0	01	1	1408-	●
131	01.531 NUT; UNION 06.164 M8 FLANGE	5-09440-010-0	01	1	1012-	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (B)	8-98201-785-0	01	1	1301-		●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP EXC. VIETNAM EQUIPMENT<CL0> (B)	8-98201-785-0	01	1	1301-	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP (A)	8-98038-929-0	01	1	1012-1212	●	●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP VIETNAM EQUIPMENT<CL0> (A)	8-98038-929-0	01	1	1301-	●
338	01.531 BOLT; JOINT,OIL PIPE VIETNAM EQUIPMENT<CL0> M8X20 EYE-BOLT	8-97910-296-1	02	1	1105-	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1012-1104	●	●
338	01.531 BOLT; JOINT,OIL PIPE M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-		●
338	01.531 BOLT; JOINT,OIL PIPE EXC. VIETNAM EQUIPMENT<CL0> M8X20 EYE-BOLT	5-09675-018-1	02	1	1105-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98065-992-0	01	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	01	1	1301-1302	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-98065-992-0	02	1	1303-		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 03.332 (B) ID=8.3 OD=15.0	8-98065-992-0	02	1	1303-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). VIETNAM EQUIPMENT<CL0> 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1301-	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	04	1	1012-1212	●	●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-408-0	02	1	1301-1302		●
339	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. VIETNAM EQUIPMENT<CL0> 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	1301-1302	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	1012-		●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	1012-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (E)	8-98040-104-2	01	1	1012-			●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (C)	8-98027-553-0	01	1	1012-1104	●
499	04.681 PIPE; VACUUM (C)	8-98027-553-0	01	1	1105-	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	1012-			●	●
585	01.531 STUD; CLIP 01.428 M8X18 L=30	0-41010-818-0	01	1	1012-	●	●

85 85 3 499 63 3 68 3 157 479 3 304 304 27 27 304 28 28 28 28 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	05	1	1012-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-				●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	04	1	1012-	●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) 08.955 (A) ID=10.2 OD=16.0	9-09571-410-0	02	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=15.2	1-09630-083-0	01	1	1012-					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-412-0	02	1	1012-1101			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 08.955 (C) ID=12.2	9-09571-412-0	02	1	1012-1101					●	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97331-137-1	01	1	1102-			●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=12.6	8-97331-137-1	01	1	1102-					●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	01	1	1012-			●	●
27	01.531 BOLT; OIL PIPE FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (C) ID=8.2 OD=13.2	1-09630-082-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (A) ID=8.2	8-97251-046-0	02	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0	8-98113-762-0	01	1	1012-	●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION(NT4) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	1012-					●	●
28	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	1012-					●	●
40	01.531 BOLT; OIL PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	1012-	●	●
40	01.531 BOLT; OIL PIPE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-			●		●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (B)	8-97372-936-2	01	1	1012-			●
63	01.519 PIPE; OIL,TURBOCHARGER FEED (A)	8-97381-488-0	01	1	1012-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-97386-643-2	01	1	1012-1509					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO4 SPECIFICATION(NT4) (D)	8-98328-013-0	01	1	1510-					●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (C)	8-98092-070-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO4 SPECIFICATION(NT4) M10X26	8-98037-825-0	01	1	1012-					●	●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER M12X28 FLANGE	8-97166-518-1	01	1	1012-			●
68	01.531 BOLT; EYE,OIL PIPE,TURBOCHARGER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) M12X28 FLANGE	8-97166-518-1	01	1	1012-					●	●
85	01.531 BOLT; EYE,OIL PIPE FIX (B) M10X28	8-98037-823-0	01	1	1012-					●	●
85	01.531 BOLT; EYE,OIL PIPE FIX EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (A) M10X22	1-09675-028-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE (B)	8-97181-586-0	01	1	1012-			●
157	01.519 BRACKET; OIL PIPE (A)	8-98043-093-0	01	1	1012-	●	●
157	01.519 BRACKET; OIL PIPE EURO4 SPECIFICATION(NT4) (D)	8-98036-534-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) FRIGID ZONE(YL3) (C)	8-98153-165-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO2 SPECIFICATION(NT2) (C)	8-98077-403-0	01	1	1012-					●	●
157	01.519 BRACKET; OIL PIPE EURO3 SPECIFICATION(NT3) EXC. FRIGID ZONE(YL3) (C)	8-98077-403-0	01	1	1012-					●	●
304	01.540 BOLT; BRKT,OIL PIPE 00.029 (A) M10X16 FLANGE	0-28151-016-0	02	1	1012-					●	●
304	01.540 BOLT; BRKT,OIL PIPE EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	1012-					●	●
479	01.531 ADAPTER 01.800	8-94436-891-0	01	1	1012-			●
479	01.531 ADAPTER EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) 01.800	8-94436-891-0	01	1	1012-					●	●
499	04.681 PIPE; VACUUM (A)	8-97381-661-3	01	1	1012-		●
499	04.681 PIPE; VACUUM (B)	8-97385-434-1	01	1	1012-		●
499	04.681 PIPE; VACUUM EURO4 SPECIFICATION(NT4) (E)	8-98040-104-2	01	1	1012-					●	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2) (C)	8-98027-553-0	01	1	1012-1104	●
499	04.681 PIPE; VACUUM (C)	8-98027-553-0	01	1	1105-	●
499	04.681 PIPE; VACUUM EURO2 SPECIFICATION(NT2),EURO3 SPECIFICATION(NT3) (D)	8-98075-832-0	01	1	1012-					●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
