Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#3593) — 192 parça

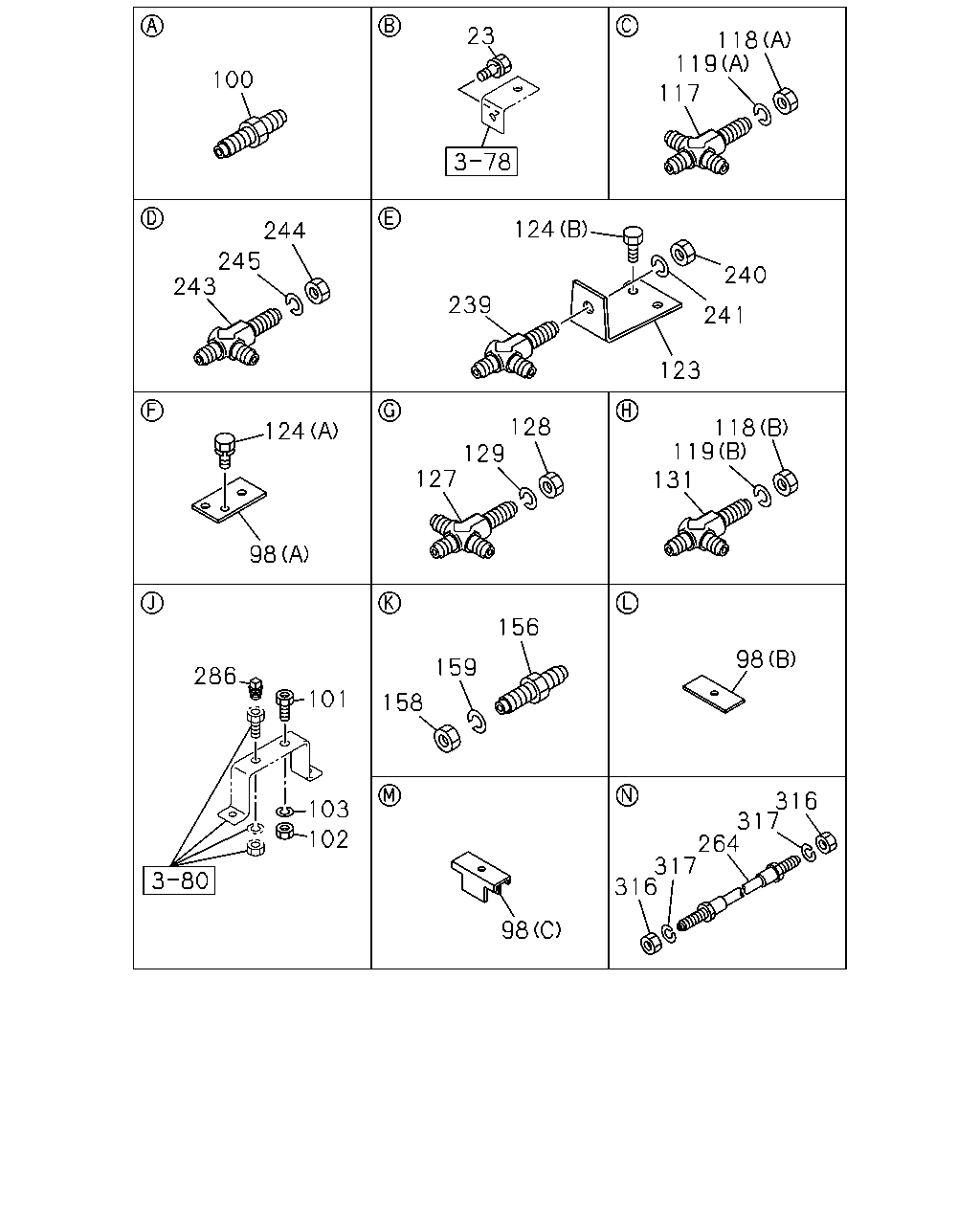

23 118 119 117 100 124 244 245 243 240 239 241 123 128 129 127 118 119 131 124 98 156 98 159 286 101 158 316 317 264 317 316 103 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BOLT; BRKT,AIR PIPE M8X25 W/LK WASHER	9-01910-825-0	01	1	9002-9005
23	BOLT; BRKT,AIR PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9006-9302
23	BOLT; BRKT,AIR PIPE M8X25 FLANGE	0-28080-825-0	01	1	9303-9306
98	BRACKET; AIR PIPE (A)	1-47475-303-1	01	1	9002-
98	BRACKET; AIR PIPE (C)	1-47475-427-1	01	1	9002-9402
98	BRACKET; AIR PIPE EXC. BRAKE REGULATION HONG KONG<TCZ> (C)	1-47475-427-1	01	1	9403-
98	BRACKET; AIR PIPE V TYPE ENG<91L> EXC. AIR DRYER<PS7> (B) L=50	1-47475-299-2	01	1	9002-
100	CONNECTOR; AIR PIPE	1-09650-031-0	01	1	9002-9103
100	CONNECTOR; AIR PIPE	1-09650-332-1	01	1	9104-
101	NIPPLE; AIR PIPE	1-09650-222-1	01	1	9002-
102	NUT; NIPPLE,AIR PIPE M16	9-99111-416-0	01	1	9002-
103	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9002-9312
103	WASHER; LK,NIPPLE ID=16.2	9-09150-516-0	01	1	9307-
117	UNION; AIR PIPE FULLER M/T<X9B>	1-09656-444-1	01	1	9002-
117	UNION; AIR PIPE ISUZU M/T<X9A>	1-09656-426-1	01	1	9002-
118	NUT; UNION (A) M16	9-99111-416-0	01	1	9002-
118	NUT; UNION EXC. DUAL AIR GAUGE<UG2> (B) M12	9-99110-512-0	01	1	9002-
119	WASHER; LK,UNION (A) ID=16.2	9-09150-516-0	01	1	9002-9312
119	WASHER; LK,UNION EXC. DUAL AIR GAUGE<UG2> (B) ID=12.2	9-09150-512-0	01	1	9002-9312
123	BRACKET; UNION TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-47475-432-3	01	1	9002-
123	BRACKET; UNION FULLER M/T<X9B>	1-47475-432-3	01	1	9002-
124	BOLT; BRKT (A) M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204
124	BOLT; BRKT (A) M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9306
124	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	02	1	9307-
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
124	BOLT; BRKT FULLER M/T<X9B> (B) M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
124	BOLT; BRKT FULLER M/T<X9B> (B) M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
124	BOLT; BRKT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-
124	BOLT; BRKT FULLER M/T<X9B> (B) M8X25 FLANGE	0-28080-825-0	02	1	9307-
127	UNION; AIR PIPE FULLER M/T<X9B> DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-
127	UNION; AIR PIPE FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-
127	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> M12	9-09228-306-1	01	1	9002-
128	NUT; PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9002-
128	NUT; PIPE UNION FULLER M/T<X9B> M12	9-99110-512-0	01	1	9002-
129	WASHER; LK,PIPE UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2	9-09150-512-0	01	1	9002-9312
129	WASHER; LK,PIPE UNION FULLER M/T<X9B> ID=12.2	9-09150-512-0	01	1	9002-9312
131	UNION; AIR PIPE EXC. DUAL AIR GAUGE<UG2> M12 2WAY	1-09654-059-2	01	1	9002-
156	UNION; AIR PIPE EXC. AIR DRYER<PS7> M12 L=66.5	9-09223-306-1	01	1	9002-
158	NUT; UNION,AIR PIPE EXC. AIR DRYER<PS7> M12	9-09840-280-0	01	1	9002-
159	WASHER; LK,UNION,AIR PIPE EXC. AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9002-9312
239	UNION; AIR PIPE FULLER M/T<X9B> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09656-392-2	01	1	9002-
239	UNION; AIR PIPE ISUZU M/T<X9A> DUAL AIR GAUGE<UG2> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09654-059-2	01	1	9002-
239	UNION; AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),DUAL AIR GAUGE<UG2>	9-09228-306-1	01	1	9002-
239	UNION; AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09228-906-1	01	1	9002-
240	NUT; UNION,AIR PIPE ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-99110-512-0	01	1	9002-
240	NUT; UNION,AIR PIPE TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	9-09840-280-0	01	1	9002-
240	NUT; UNION,AIR PIPE FULLER M/T<X9B> M12	9-09840-280-0	01	1	9002-
241	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312
243	UNION; AIR PIPE	1-09654-220-1	01	1	9002-
244	NUT; UNION,AIR PIPE M12	9-99110-512-0	01	1	9002-
245	WASHER; LK,UNION,AIR PIPE ID=12.2	9-09150-512-0	01	1	9002-9312
264	HOSE; FLEX L=580	0-07404-580-0	01	1	9002-
286	PLUG; AIR PIPE JUMPER HOSE & CABLE DELETE<SJK> PT1/2	9-09204-521-0	01	1	9311-
316	NUT; FLEX HOSE M14	9-99111-414-0	02	1	9002-
317	WASHER; LK,FLEX HOSE ID=14.2	9-09150-514-0	02	1	9002-

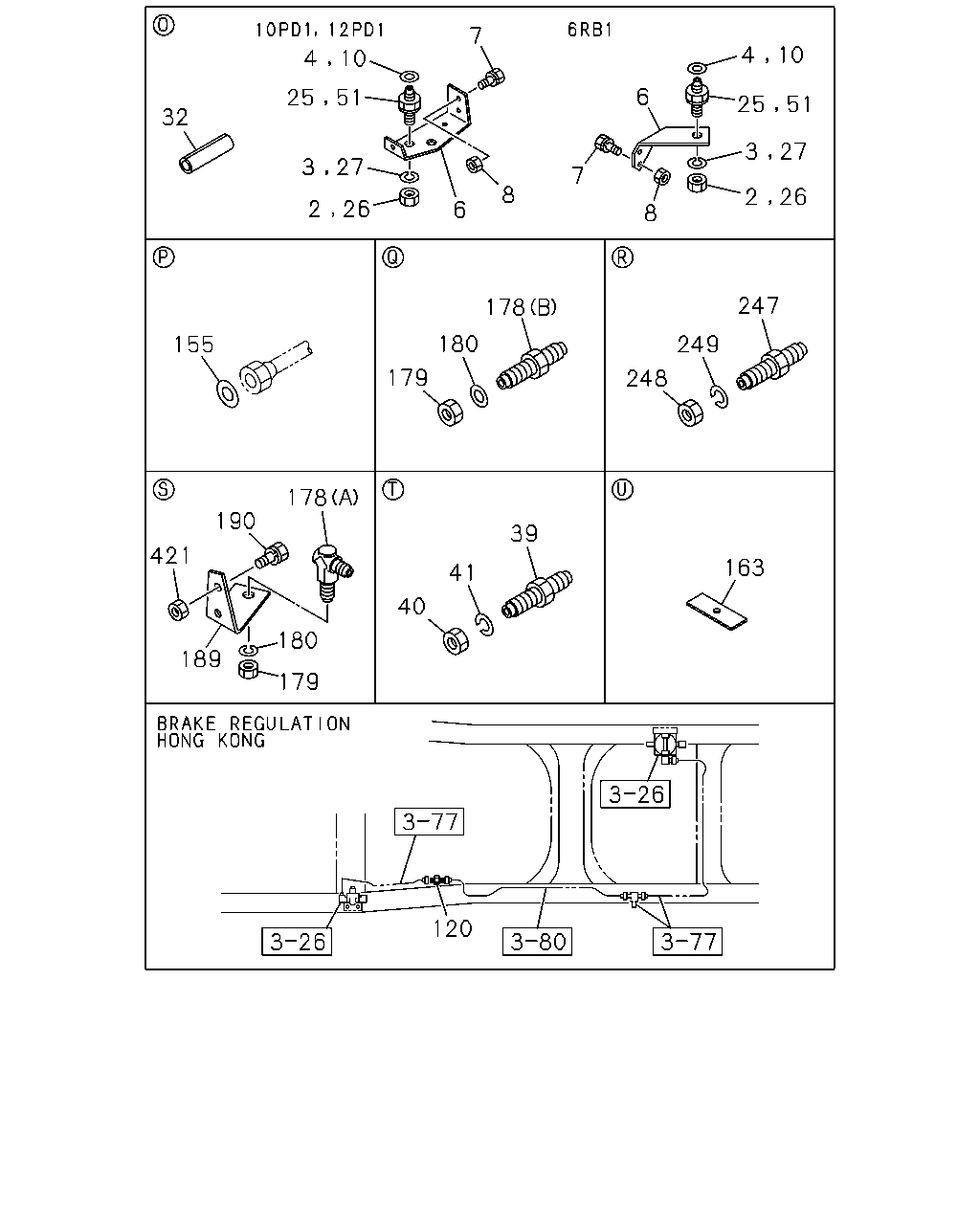

7 10 4 10 4 6 25 51 25 51 32 3 27 3 27 7 8 2 26 2 26 6 8 247 178 180 249 155 179 248 178 190 39 421 163 41 40 180 189 179 120

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	NUT; FLEX HOSE,AIR TANK AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-
3	WASHER; LK,FLEX HOSE,AIR TANK AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-
4	GASKET; FLEX HOSE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	01	1	9002-
4	GASKET; FLEX HOSE EXC. AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	02	1	9002-
6	BRACKET; FLEX HOSE,AIR TANK 10PD1 STD ENG(40L)	1-47476-363-1	01	1	9002-
6	BRACKET; FLEX HOSE,AIR TANK 12PD1 C ENG(43L)	1-47475-969-4	01	1	9307-
6	BRACKET; FLEX HOSE,AIR TANK 6RB1 STD ENG(07L),6RB1TC-N ENG(29L)	1-47475-572-0	01	1	9002-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9306
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X25 FLANGE	0-28080-825-0	02	1	9307-
8	NUT; BRKT,FLEX HOSE,AIR TANK M8	9-09110-408-0	02	1	9002-
10	GASKET; CHECK VLV ID=11 OD=18	9-09572-510-0	01	1	9002-
25	VALVE; CHECK EXC. AIR DRYER<PS7>	1-48410-138-1	01	1	9002-
26	NUT; CHECK VLV EXC. AIR DRYER<PS7> M20	9-99111-420-0	01	1	9002-
27	WASHER; LK,CHECK VLV EXC. AIR DRYER<PS7> ID=20.2	9-09150-520-0	01	1	9002-
32	SLEEVE; RUBBER,AIR PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> ID=17 OD=21 L=40	1-09337-012-0	01	1	9405-9410
32	SLEEVE; RUBBER,AIR PIPE 6RB1TC-N ENG(29L) ANTI NOISE EQUIPMENT<SV9> ID=23 OD=27 L=40	1-09337-015-0	01	1	9405-9410
39	UNION; AIR PIPE SUB AIR TANK<SJD> M20 & M20	9-09233-312-1	01	1	9002-
40	NUT; PIPE UNION SUB AIR TANK<SJD> M20	9-99111-420-0	01	1	9002-
41	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> ID=20.2	9-09150-520-0	01	1	9002-
51	UNION AIR DRYER<PS7> M20 & M22 STRAIGHT	1-09654-166-1	01	1	9002-
120	CONNECTOR; AIR PIPE BRAKE REGULATION HONG KONG<TCZ> M16 L=42	9-09233-010-1	01	1	9402-
155	GASKET; AIR PIPE AIR DRYER<PS7> ID=11 OD=18	9-09572-510-0	03	1	9002-
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	06	1	9002-9005
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	05	1	9006-9306
163	BRACKET; AIR PIPE EXC. AIR DRYER<PS7> L=50	1-47475-299-2	01	1	9002-9009
163	BRACKET; AIR PIPE AIR DRYER<PS7> L=50	1-47475-299-2	02	1	9307-
178	UNION; AIR PIPE AIR DRYER<PS7> (A) M12	1-09654-087-1	01	1	9002-
178	UNION; AIR PIPE AIR DRYER<PS7> (B) M12 L=66.5	9-09223-306-1	01	1	9002-
179	NUT; UNION AIR DRYER<PS7> M12	9-09840-280-0	02	1	9002-
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	02	1	9002-9312
180	WASHER; LK,UNION AIR DRYER<PS7> ID=12.2	9-09150-512-0	01	1	9307-
189	BRACKET; FLEX HOSE AIR DRYER<PS7>	1-47475-874-0	01	1	9002-
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X25 FLANGE	0-28080-825-0	02	1	9303-9306
190	BOLT; FLEX HOSE AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9307-
247	UNION; AIR PIPE SUB AIR TANK<SJD> M20 & M20	9-09233-312-1	01	1	9002-
248	NUT; PIPE UNION SUB AIR TANK<SJD> M20	9-99111-420-0	01	1	9002-
249	WASHER; LK,PIPE UNION SUB AIR TANK<SJD> ID=20.2	9-09150-520-0	01	1	9002-
421	NUT; BRKT AIR DRYER<PS7> M8	9-09110-408-0	02	1	9002-

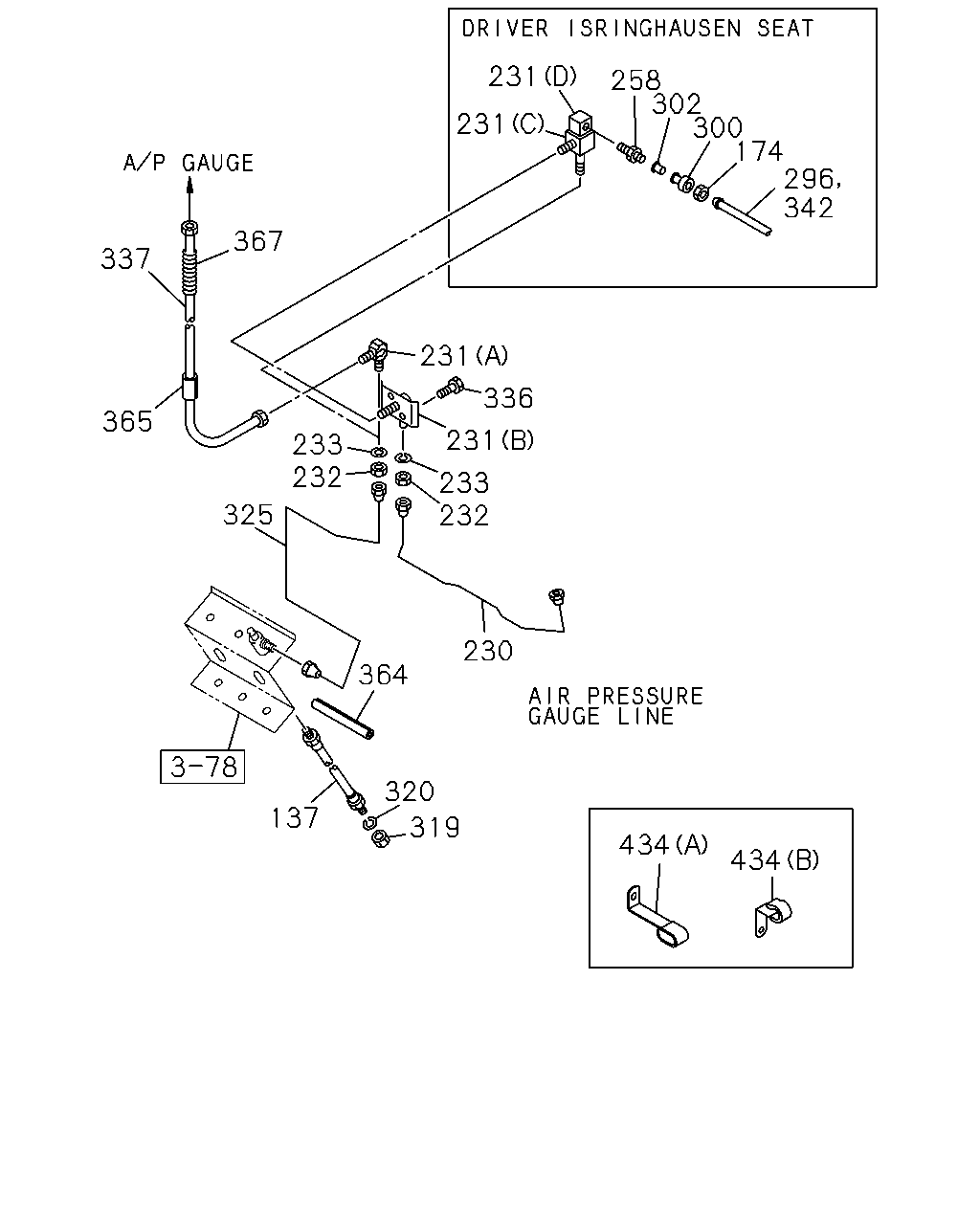

231 258 302 300 174 296 342 231 367 337 231 336 365 231 233 232 233 232 325 230 364 320 137 319 434 434

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	HOSE; FLEX,AIR PRESSURE GAGE EXC. DUAL AIR GAUGE<UG2> L=840	1-09363-368-1	01	1	9002-
174	NUT; SLEEVE,AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-589-0	02	1	9206-
230	PIPE; AIR,UNION TO UNION DUAL AIR GAUGE<UG2> L=964	1-47448-808-0	01	1	9002-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-167-1	01	1	9206-9302
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (C)	1-09656-161-1	01	1	9303-
231	UNION; AIR PIPE DRIVER ISRINGHAUSEN SEAT(SJA) (D)	1-09660-565-0	01	1	9303-
231	UNION; AIR PIPE EXC. DRIVER ISRINGHAUSEN SEAT(SJA) (A)	1-09654-180-3	01	1	9002-
231	UNION; AIR PIPE DUAL AIR GAUGE<UG2> (B)	1-47470-194-1	01	1	9002-
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	9002-
233	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	9002-
258	CONNECTOR; NYLON TUBE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09660-599-1	01	1	9206-
296	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT(SJA) SERVICED BY L=30000 OD=6	1-09366-235-0	01	1	9206-9306
300	SLEEVE; TUBE DRIVER ISRINGHAUSEN SEAT(SJA)	1-09666-064-0	02	1	9206-
302	RING; INSERT DRIVER ISRINGHAUSEN SEAT(SJA)	1-09669-106-0	02	1	9206-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M10	1-09400-029-0	01	1	9002-
319	NUT; FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> M12	9-09840-280-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=10.2	9-09150-510-0	01	1	9002-
320	WASHER; LK,FLEX HOSE,CAB SIDE EXC. DUAL AIR GAUGE<UG2> ID=12.2	9-09150-512-0	01	1	9002-
325	PIPE; AIR,FLEX HOSE TO UNION DUAL AIR GAUGE<UG2> L=577	1-47448-182-0	01	1	9002-
325	PIPE; AIR,FLEX HOSE TO UNION EXC. DUAL AIR GAUGE<UG2> L=720	1-47448-807-1	01	1	9002-
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50000-616-0	02	1	9002-9204
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50080-616-0	02	1	9205-9301
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9302-9302
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 FLANGE	0-28080-616-0	02	1	9303-9306
336	BOLT; PIPE UNION DUAL AIR GAUGE<UG2> M6X16 W/LK WASHER	0-50040-616-0	02	1	9307-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	02	1	9002-
337	HOSE; FLEX,UNION TO AIR PRESS GAGE EXC. DUAL AIR GAUGE<UG2> L=720	1-09363-431-1	01	1	9002-
342	TUBE; CORRUGATE DRIVER ISRINGHAUSEN SEAT(SJA) L=800	1-83129-031-1	01	1	9307-
364	PROTECTOR; AIR GAUGE HOSE DUAL AIR GAUGE<UG2> L=240	5-71997-133-0	01	1	9002-
365	SLEEVE; RUBBER,FLEX HOSE DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	02	1	9002-
365	SLEEVE; RUBBER,FLEX HOSE EXC. DUAL AIR GAUGE<UG2> ID=10 OD=14 L=30	9-09956-682-0	01	1	9002-
367	TUBE; CORRUGATE DUAL AIR GAUGE<UG2> L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	02	1	9307-
367	TUBE; CORRUGATE EXC. DUAL AIR GAUGE<UG2> L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9307-
434	CLIP DUAL AIR GAUGE<UG2> (A) ID=13X2 H=25 L=50	1-09700-777-0	01	1	9307-
434	CLIP EXC. DUAL AIR GAUGE<UG2> (B) ID=14	8-94157-443-0	01	1	9307-

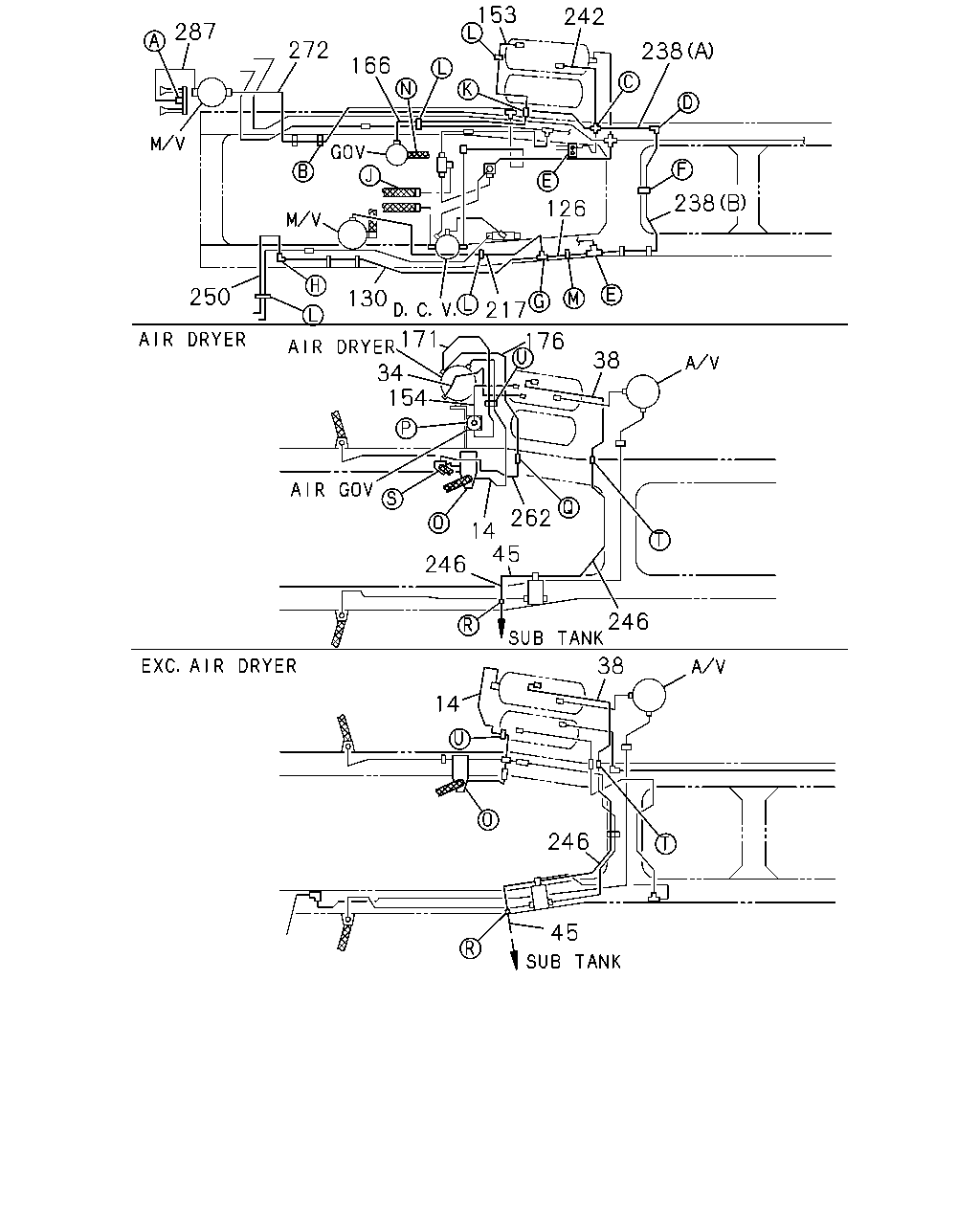

153 242 287 272 238 166 238 126 250 130 217 171 34 154 176 38 262 14 45 246 246 38 14 246 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> L=1417	1-47487-502-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> AIR DRYER<PS7> L=1414	1-47491-429-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=1430	1-47486-149-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK L TYPE ENG<90L> EXC. AIR DRYER<PS7> L=1419	1-47491-427-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1519 SERVICED BY L=1650	1-47437-996-0	01	1	9002-9006
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1526 SERVICED BY L=1650	1-49111-464-0	01	1	9007-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1554 SERVICED BY L=1650	1-47437-996-0	01	1	9002-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 C ENG(43L) AIR DRYER<PS7> L=1513	1-47491-433-0	01	1	9307-
14	PIPE; AIR,FLEX HOSE TO AIR TANK 12PD1 C ENG(43L) EXC. AIR DRYER<PS7> L=1541	1-47491-432-0	01	1	9307-
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-47434-485-1	01	1	9002-9306
34	PIPE; AIR AIR DRYER<PS7> L=973 SERVICED BY L=1000	1-49111-443-0	01	1	9307-
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> L=1317 SERVICED BY L=1450	1-47437-984-0	01	1	9002-9306
38	PIPE; AIR,MAIN TANK TO UNION SUB AIR TANK<SJD> L=1317 SERVICED BY L=1450	1-49111-447-0	01	1	9307-
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> L=762	1-47488-914-0	01	1	9002-9204
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> L=814	1-47494-960-0	01	1	9205-9306
45	PIPE; AIR,UNION TO AIR TANK SUB AIR TANK<SJD> L=814 SERVICED BY L=900	1-49111-442-0	01	1	9307-
126	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> L=471	1-47488-493-0	01	1	9002-
126	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) L=477 SERVICED BY L=500	9-47415-350-0	01	1	9002-
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1242 SERVICED BY L=1250	1-47434-389-0	01	1	9002-9306
130	PIPE; AIR,UNION TO UNION EXC. DUAL AIR GAUGE<UG2> L=1244 SERVICED BY L=1250	1-47426-353-0	01	1	9307-
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=881 SERVICED BY L=900	1-47434-385-0	01	1	9002-9306
153	PIPE; AIR,AIR TANK TO UNION EXC. AIR DRYER<PS7> L=1030 SERVICED BY L=1100	1-47426-351-0	01	1	9307-
154	PIPE; AIR,AIR TANK TO AIR GOV AIR DRYER<PS7>	1-47487-299-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV 10PD1 STD ENG(40L) EXC. AIR DRYER<PS7> L=1147	1-47484-369-0	01	1	9002-
166	PIPE; AIR,UNION TO GOV 12PD1 C ENG(43L) EXC. AIR DRYER<PS7> L=1121	1-47489-252-0	01	1	9307-9307
166	PIPE; AIR,UNION TO GOV 12PD1 C ENG(43L) EXC. AIR DRYER<PS7> L=1125	1-49111-217-0	01	1	9308-
166	PIPE; AIR,UNION TO GOV 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) EXC. AIR DRYER<PS7> L=976	1-47485-192-0	01	1	9002-
171	PIPE; AIR,GOV TO AIR DRYER AIR DRYER<PS7> L=992	1-47487-300-0	01	1	9002-
176	PIPE; AIR,AIR DRYER TO UNION AIR DRYER<PS7> L=1223 SERVICED BY L=1250	1-47434-389-0	01	1	9002-
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1185 SERVICED BY L=1200	1-47434-388-0	01	1	9002-9112
217	PIPE; VAC,UNION TO MAG VLV 10PD1 STD ENG(40L) L=1184 SERVICED BY L=1200	1-47434-388-0	01	1	9201-
217	PIPE; VAC,UNION TO MAG VLV 12PD1 C ENG(43L) L=1332 SERVICED BY L=1370	1-47426-354-0	01	1	9307-
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=1276 SERVICED BY L=1370	1-47434-390-0	01	1	9002-9306
217	PIPE; VAC,UNION TO MAG VLV 6RB1 STD ENG(07L),6RB1TC-N ENG(29L) L=989 SERVICED BY L=1000	1-47426-350-0	01	1	9307-
238	PIPE; AIR,UNION TO UNION (A) L=619 SERVICED BY L=660	1-47437-964-0	01	1	9002-9007
238	PIPE; AIR,UNION TO UNION (A) L=490 SERVICED BY L=500	1-47434-472-0	01	1	9008-9306
238	PIPE; AIR,UNION TO UNION (A) L=497 SERVICED BY L=550	1-47426-407-0	01	1	9307-
238	PIPE; AIR,UNION TO UNION FULLER M/T<X9B> (B) L=1321 SERVICED BY L=1370	1-47434-390-0	01	1	9002-
238	PIPE; AIR,UNION TO UNION ISUZU M/T<X9A> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1882 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
238	PIPE; AIR,UNION TO UNION TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) L=1323 SERVICED BY L=2000	1-47434-395-0	01	1	9002-
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47434-476-0	01	1	9002-9306
242	PIPE; AIR,AIR TANK TO UNION L=964 SERVICED BY L=1000	1-47426-414-0	01	1	9307-
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> L=1532 SERVICED BY L=1600	1-47437-985-0	01	1	9002-9306
246	PIPE; AIR,UNION TO UNION SUB AIR TANK<SJD> L=1533 SERVICED BY L=1600	1-49111-448-0	01	1	9307-
250	PIPE; AIR,UNION TO FLEX HOSE ANTI NOISE EQUIPMENT<SV9> L=1541 SERVICED BY L=1620	1-47426-356-0	01	1	9307-9308
250	PIPE; AIR,UNION TO FLEX HOSE EXC. DUAL AIR GAUGE<UG2> L=1566 SERVICED BY L=1620	1-47426-356-0	01	1	9309-
250	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,DUAL AIR GAUGE<UG2> L=1411 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9003
250	PIPE; AIR,UNION TO FLEX HOSE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9>,DUAL AIR GAUGE<UG2> L=1391 SERVICED BY L=1500	1-47434-391-0	01	1	9002-9308
250	PIPE; AIR,UNION TO FLEX HOSE V TYPE ENG<91L> EXC. ANTI NOISE EQUIPMENT<SV9>,DUAL AIR GAUGE<UG2> L=1401 SERVICED BY L=1500	1-47434-391-0	01	1	9004-9308
262	PIPE; AIR,UNION TO FLEX L TYPE ENG<90L> AIR DRYER<PS7> L=949 SERVICED BY L=1000	1-47434-386-0	01	1	9002-
262	PIPE; AIR,UNION TO FLEX 10PD1 STD ENG(40L) AIR DRYER<PS7> L=1131 SERVICED BY L=1200	1-47434-388-0	01	1	9002-
262	PIPE; AIR,UNION TO FLEX 12PD1 C ENG(43L) AIR DRYER<PS7> L=1105 SERVICED BY L=1200	1-47426-352-0	01	1	9307-
272	PIPE; AIR,MAG VLV TO UNION L TYPE ENG<90L> L=2828 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306
272	PIPE; AIR,MAG VLV TO UNION L TYPE ENG<90L> L=2870 SERVICED BY L=2900	1-47426-364-0	01	1	9307-
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2838 SERVICED BY L=2900	1-47434-400-0	01	1	9002-9306
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2853 SERVICED BY L=2900	1-47426-364-0	01	1	9307-9308
272	PIPE; AIR,MAG VLV TO UNION V TYPE ENG<91L> L=2862 SERVICED BY L=2900	1-47426-364-0	01	1	9309-
287	PIPE; AIR,MAG VLV	1-47488-299-0	01	1	9002-9306
287	PIPE; AIR,MAG VLV	1-47496-264-0	01	1	9307-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
