Isuzu WW
▶
TRUCKS
▶
NLR
▶
51394 - NLR 85(AUST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

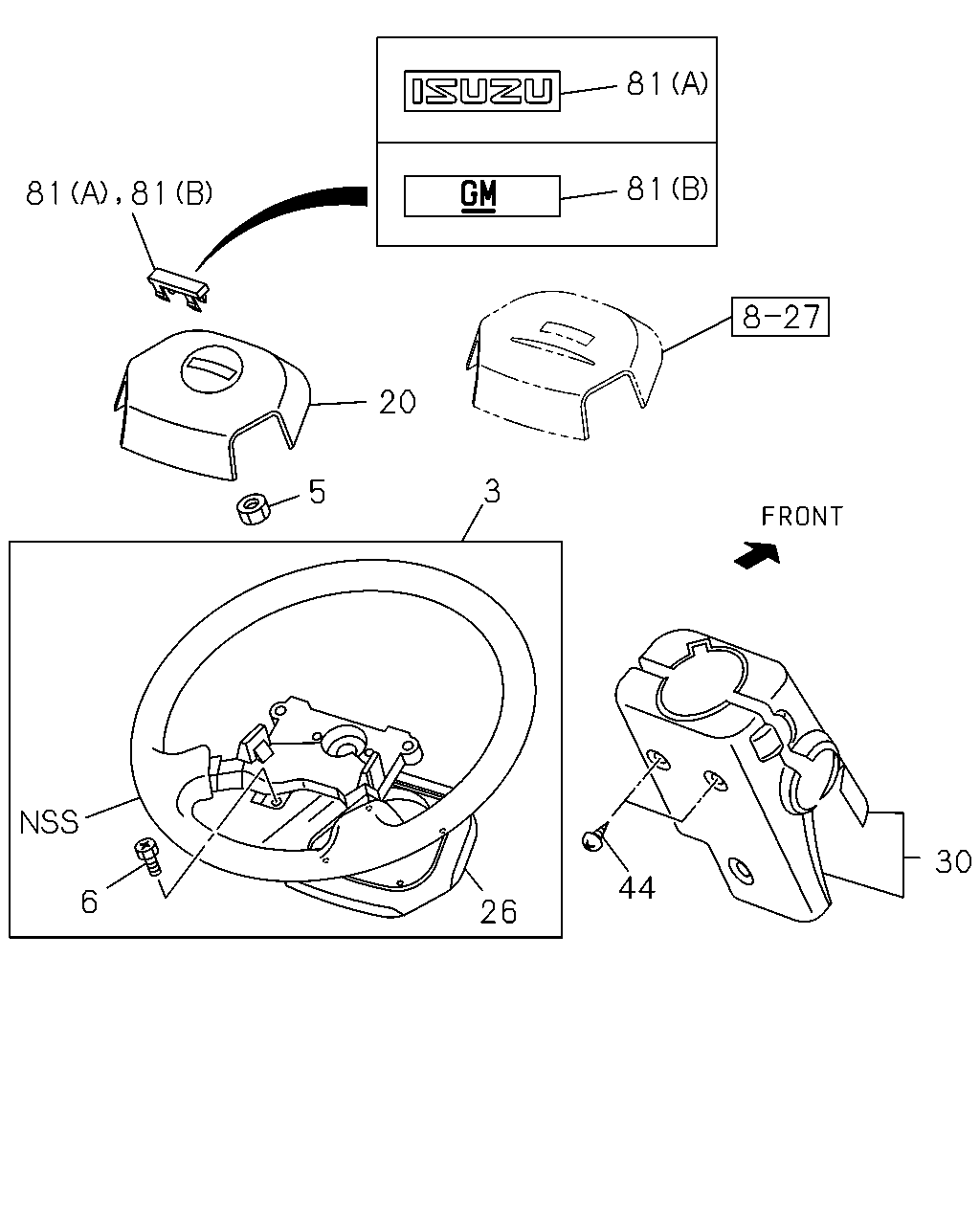

4-30 — STEERING WHEEL AND COWL
(#35927) — 15 parça
81
81
81
81
20
3
5
30
44
6
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97412-556-0
01
1
0710-
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-726-1
01
1
0710-1006
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97421-977-0
01
1
1007-
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0710-
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
0710-
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-985-1
01
1
0710-
26
06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97409-275-2
01
1
0710-
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-841-0
01
1
0710-1006
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97421-978-0
01
1
1007-
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
0710-1110
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
0710-
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
0710-0811
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
0812-
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
0812-
