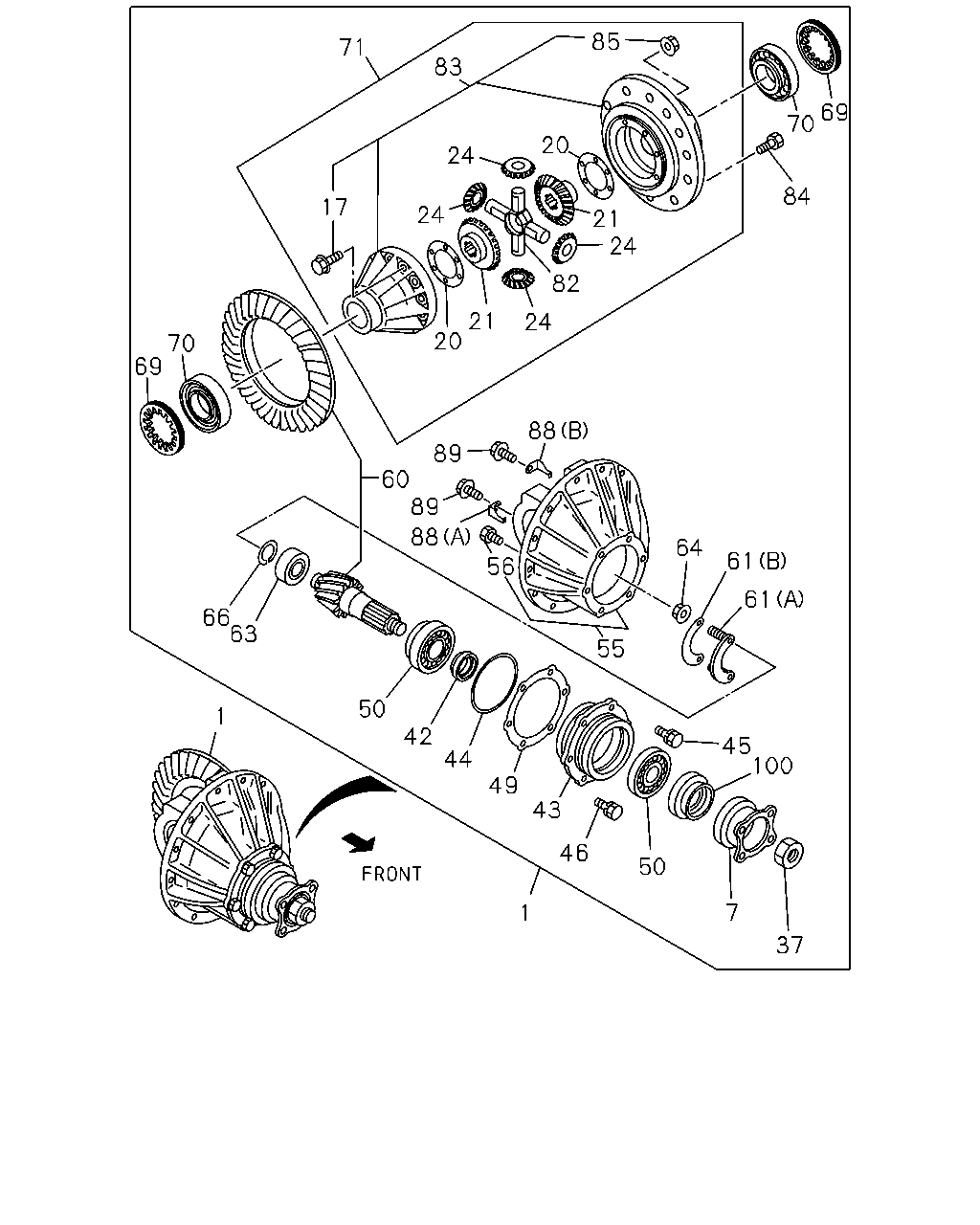

4-25 — REAR FINAL DRIVE (#35926) — 44 parça

85 71 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. DEALER INSTALLED OPTION<6JJ> 41/10	8-98015-135-0	01	1	0710-
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) EXC. DEALER INSTALLED OPTION<6JJ> 41/9	8-98015-137-0	01	1	0710-
7	05.545 FLANGE; FINAL EXC. DEALER INSTALLED OPTION<6JJ>	8-94477-723-4	01	1	0710-
17	05.510 BOLT; DIFF CAGE SETTING EXC. DEALER INSTALLED OPTION<6JJ> M10X75 FLANGE	8-97232-161-0	12	1	0710-
20	05.543 WASHER; THRUST,SIDE GEAR EXC. DEALER INSTALLED OPTION<6JJ> T=1.40	9-41562-601-0	02	1	0710-
21	05.528 GEAR; SIDE,DIFF EXC. DEALER INSTALLED OPTION<6JJ> 05.515 Z=20	8-97362-599-0	02	1	0710-
24	05.526 GEAR; PINION,DIFF EXC. DEALER INSTALLED OPTION<6JJ> Z=10	8-98015-202-0	04	1	0710-
37	05.595 NUT; DRIVING PINION EXC. DEALER INSTALLED OPTION<6JJ> M24 FLANGE	8-94329-526-1	01	1	0710-
42	05.453 COLLAR; DIST,COLLAPSIBLE EXC. DEALER INSTALLED OPTION<6JJ> L=19.6	9-41219-603-1	01	1	0710-
43	05.453 CAGE; FINAL PINION EXC. DEALER INSTALLED OPTION<6JJ>	8-94400-890-0	01	1	0710-
44	05.476 GASKET; PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> 05.458	9-09720-505-0	01	1	0710-
45	05.453 BOLT; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> M12X38 W/LK WASHER	0-50051-238-0	05	1	0710-0909
45	05.453 BOLT; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> M12X38 W/LK WASHER	0-50551-238-0	05	1	0910-
46	05.453 BOLT EXC. DEALER INSTALLED OPTION<6JJ> M14X35 W/LK WASHER	0-50051-435-0	01	1	0710-0909
46	05.453 BOLT EXC. DEALER INSTALLED OPTION<6JJ> M14X35 W/LK WASHER	0-50551-435-0	01	1	0910-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.10	8-94401-335-0	AR	1	0710-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.12	8-94401-336-0	AR	1	0710-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.14	8-94401-337-0	AR	1	0710-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.16	8-94401-338-0	AR	1	0710-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.18	8-94401-339-0	AR	1	0710-
49	05.458 SHIM; FINAL PINION CAGE EXC. DEALER INSTALLED OPTION<6JJ> ID=132 T=0.20	8-94401-340-0	AR	1	0710-
50	05.447 BEARING; FINAL PINION EXC. DEALER INSTALLED OPTION<6JJ> 05.484 JTEKT	5-09812-062-1	02	1	0710-
50	05.447 BEARING; FINAL PINION EXC. DEALER INSTALLED OPTION<6JJ> 05.484 NSK	5-09812-063-0	02	1	0710-
55	05.505 CARRIER; DIFF EXC. DEALER INSTALLED OPTION<6JJ>	8-97307-760-0	01	1	0710-
56	05.506 BOLT; BRG CAP EXC. DEALER INSTALLED OPTION<6JJ> 05.387 M14X80	8-94365-377-3	04	1	0710-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) EXC. DEALER INSTALLED OPTION<6JJ> 41/10	8-97319-153-0	01	1	0710-
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) EXC. DEALER INSTALLED OPTION<6JJ> 41/9	8-97319-156-0	01	1	0710-
61	05.476 RETAINER; PILOT BRG,PINION EXC. DEALER INSTALLED OPTION<6JJ> (A) W/STUD	5-41227-001-0	01	1	0710-
61	05.476 RETAINER; PILOT BRG,PINION EXC. DEALER INSTALLED OPTION<6JJ> (B)	9-41227-601-0	01	1	0710-
63	05.447 BEARING; PINION PILOT EXC. DEALER INSTALLED OPTION<6JJ> NSK	5-09810-008-1	01	1	0710-
63	05.447 BEARING; PINION PILOT EXC. DEALER INSTALLED OPTION<6JJ> JTEKT	8-97107-548-0	01	1	0710-
64	05.476 NUT; RET EXC. DEALER INSTALLED OPTION<6JJ> 01.062 M6 FLANGE	0-91180-106-0	02	1	0710-
66	05.476 RING; SNAP,PILOT BRG EXC. DEALER INSTALLED OPTION<6JJ>	9-09752-002-0	01	1	0710-
69	05.506 NUT; ADJ,DIFF CAGE EXC. DEALER INSTALLED OPTION<6JJ> M110 H=10	5-41121-001-0	02	1	0710-
70	05.536 BEARING; DIFF CAGE EXC. DEALER INSTALLED OPTION<6JJ> NSK	9-00093-602-0	02	1	0710-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. DEALER INSTALLED OPTION<6JJ>	8-98015-181-0	01	1	0710-
82	05.517 SPIDER; DIFF PINION EXC. DEALER INSTALLED OPTION<6JJ> 05.520	5-41521-008-0	01	1	0710-
83	05.510 CAGE ASM; DIFF EXC. DEALER INSTALLED OPTION<6JJ>	8-97319-398-1	01	1	0710-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. DEALER INSTALLED OPTION<6JJ> M14X25	8-97318-938-1	12	1	0710-
85	05.510 NUT; DIFF CAGE SETTING EXC. DEALER INSTALLED OPTION<6JJ> 04.085 M10 FLANGE	0-91180-210-0	12	1	0710-
88	05.506 PLATE; LK,ADJ NUT EXC. DEALER INSTALLED OPTION<6JJ> (A)	8-97027-281-0	AR	1	0710-
88	05.506 PLATE; LK,ADJ NUT EXC. DEALER INSTALLED OPTION<6JJ> (B)	8-97027-282-0	AR	1	0710-
89	05.506 BOLT; LK PLATE EXC. DEALER INSTALLED OPTION<6JJ> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-
100	05.469 SEAL; OIL,FINAL PINION EXC. DEALER INSTALLED OPTION<6JJ> OD=103	8-94408-083-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
