Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#35921) — 389 parça

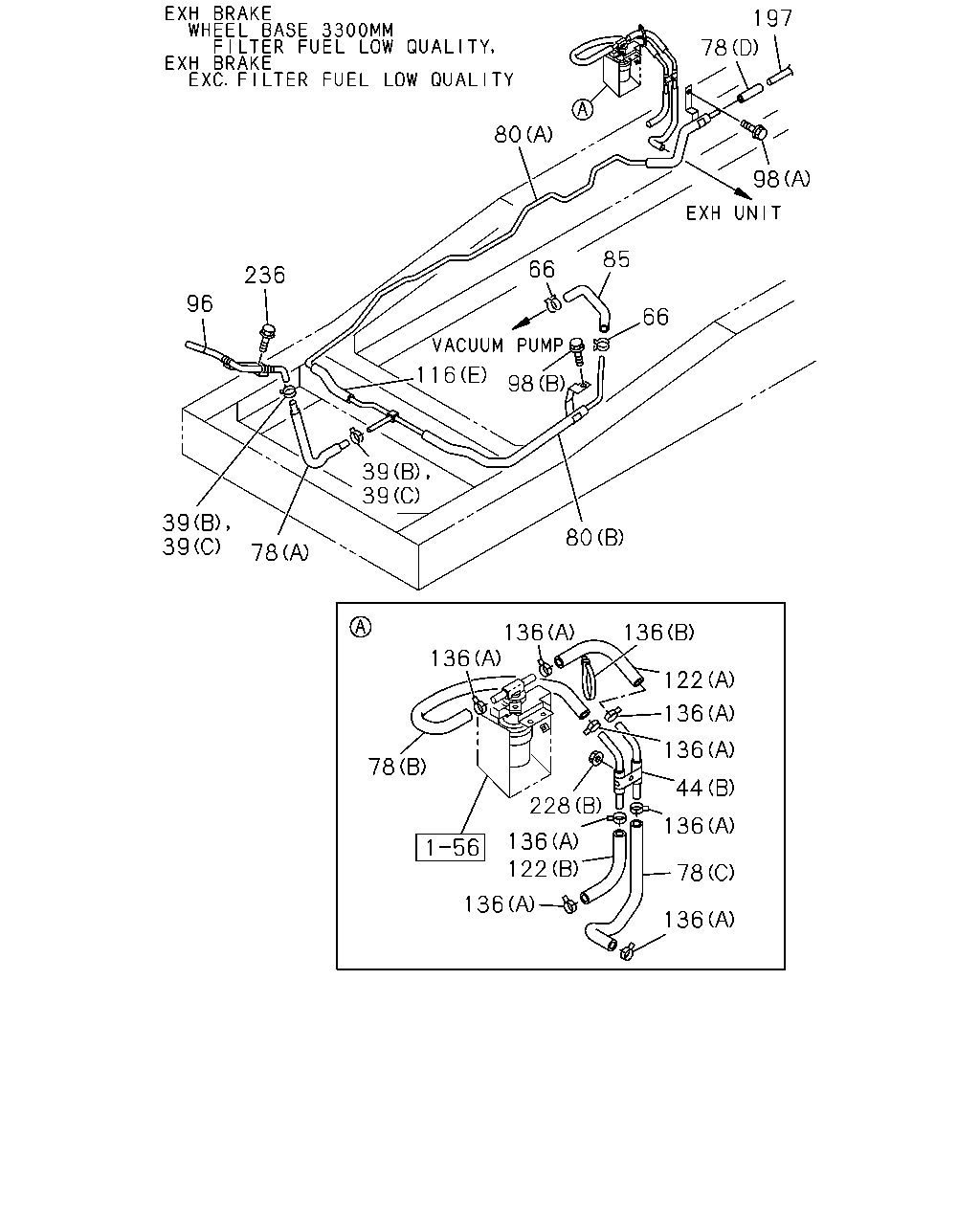

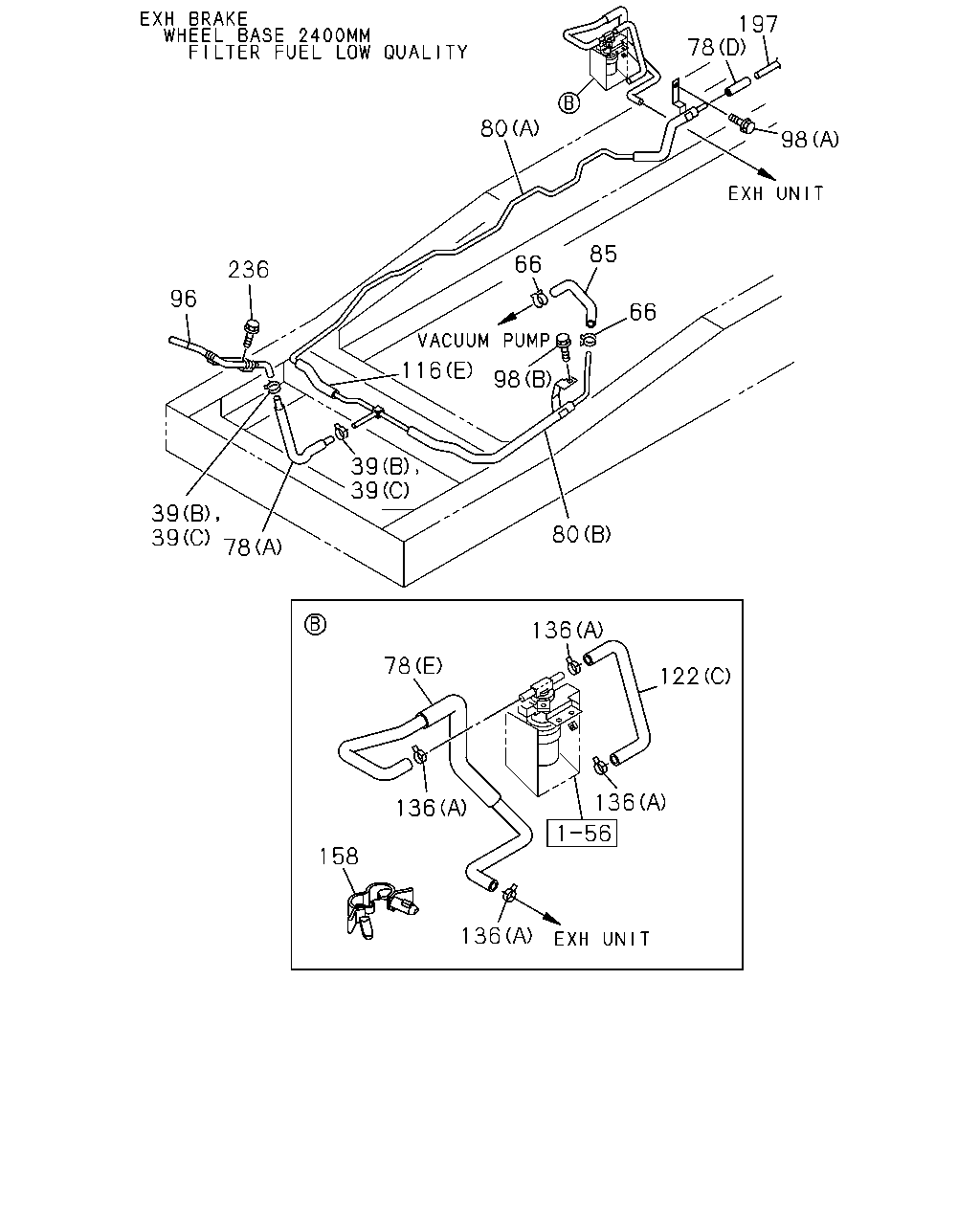

197 78 80 98 85 66 236 96 66 116 98 39 39 39 39 80 78 136 78 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0710-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0710-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0710-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0710-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-223-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-223-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	0710-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98098-174-0	01	1	0911-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	0710-
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0710-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	0710-
85	04.931 HOSE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	0710-
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98092-071-0	01	1	0710-0810
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	0811-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0710-
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
98	04.931 BOLT; VAC PIPE FIX EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0710-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0710-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-226-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-226-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0911-
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0710-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0710-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) ID=18-24 L=14.5	1-09709-298-0	01	1	0911-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	0710-
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-

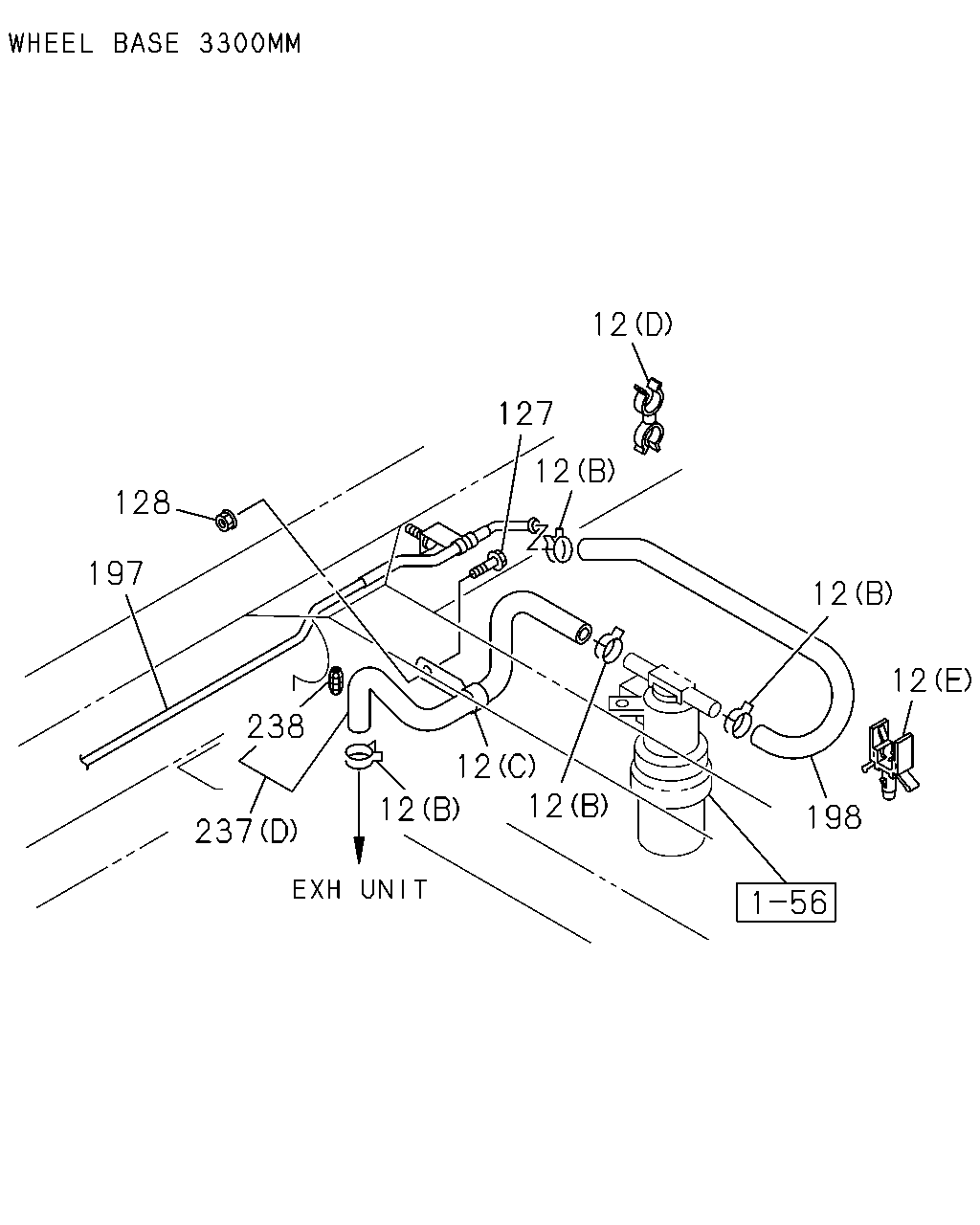

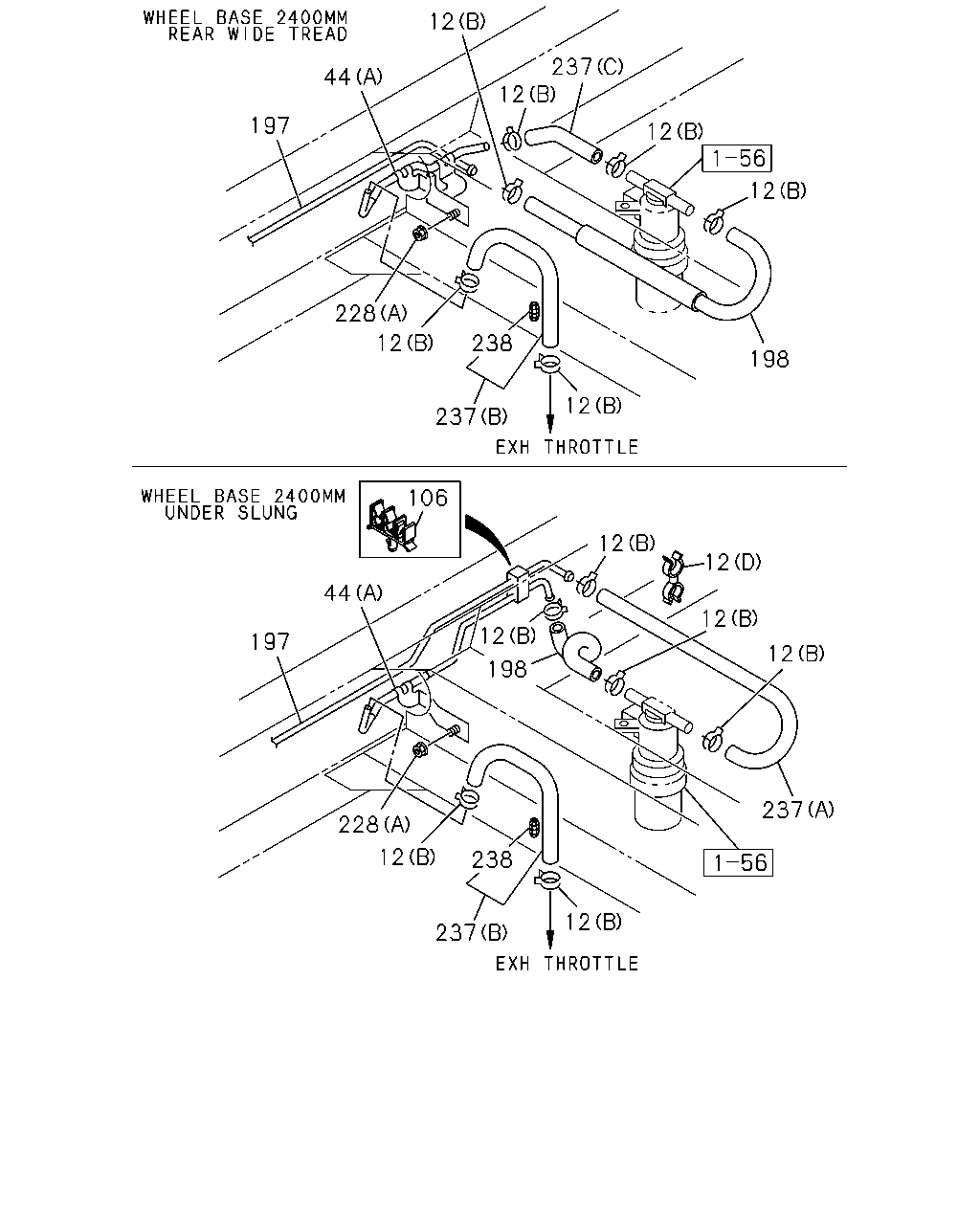

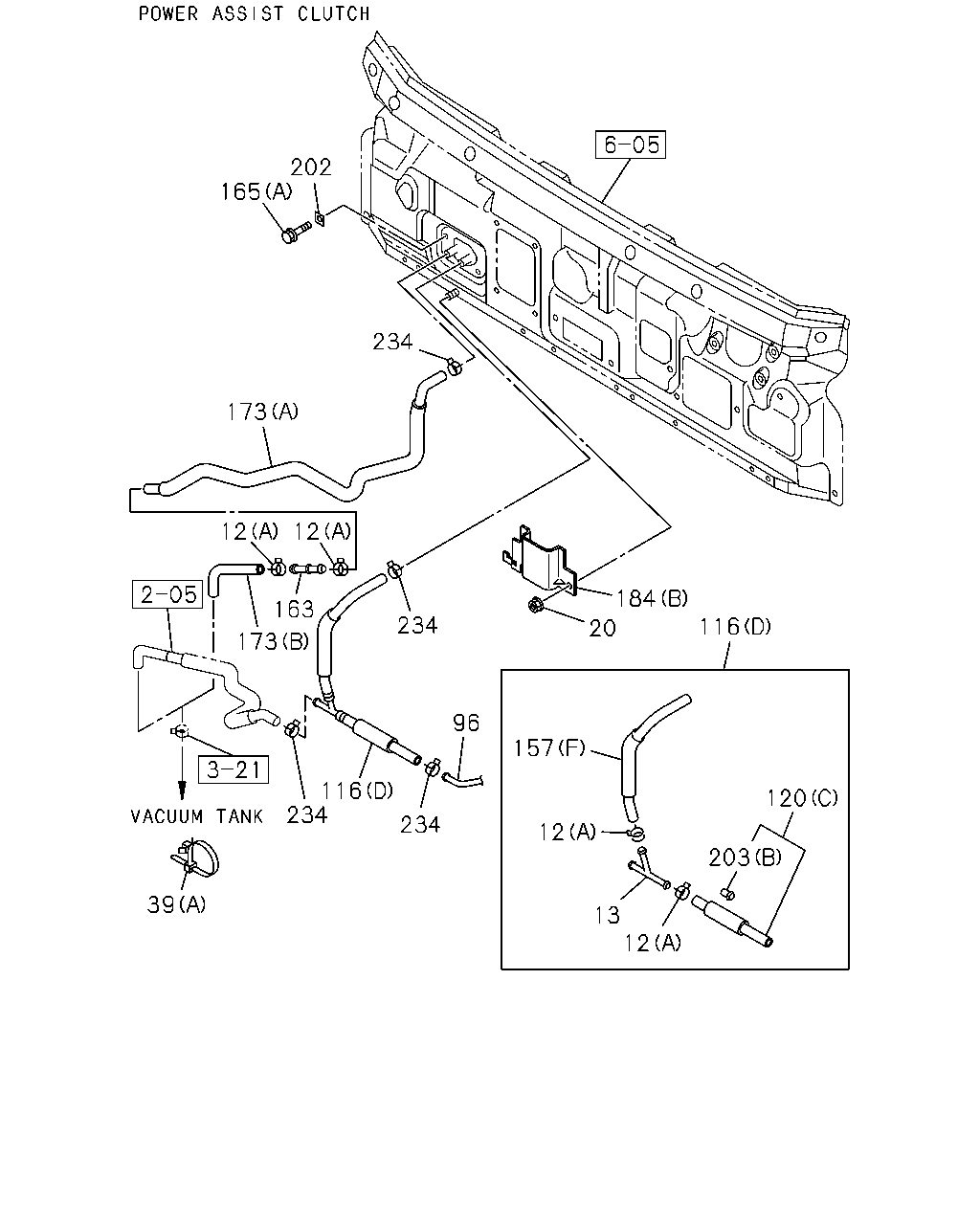

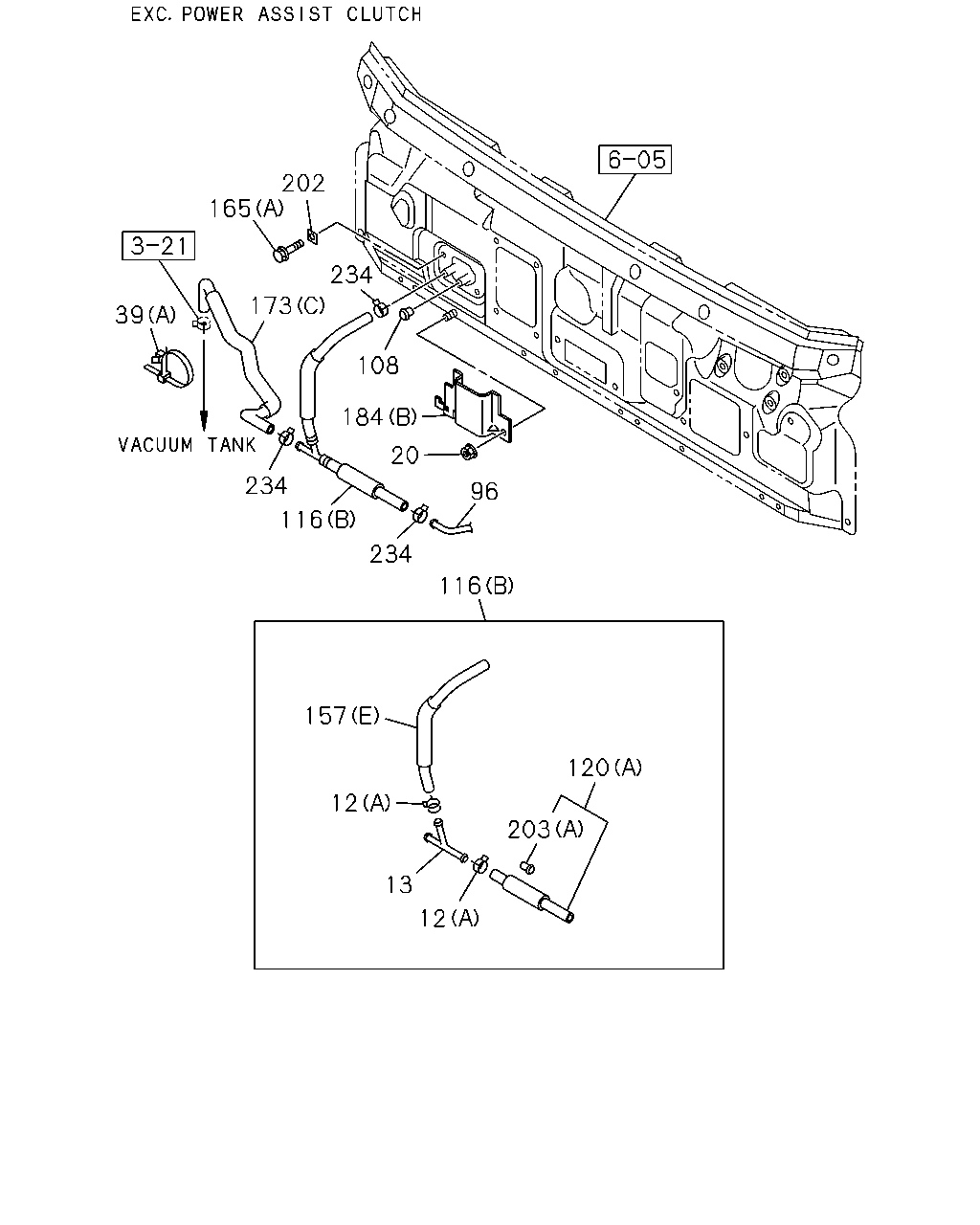

202 165 234 173 39 108 184 20 234 96 116 234 116 157 120 12 203 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0710-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0711
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0710-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-0711
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-
184	04.685 BRACKET; UNION FIX (B)	8-97389-686-1	01	1	0710-1103
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0710-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0802-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0802-

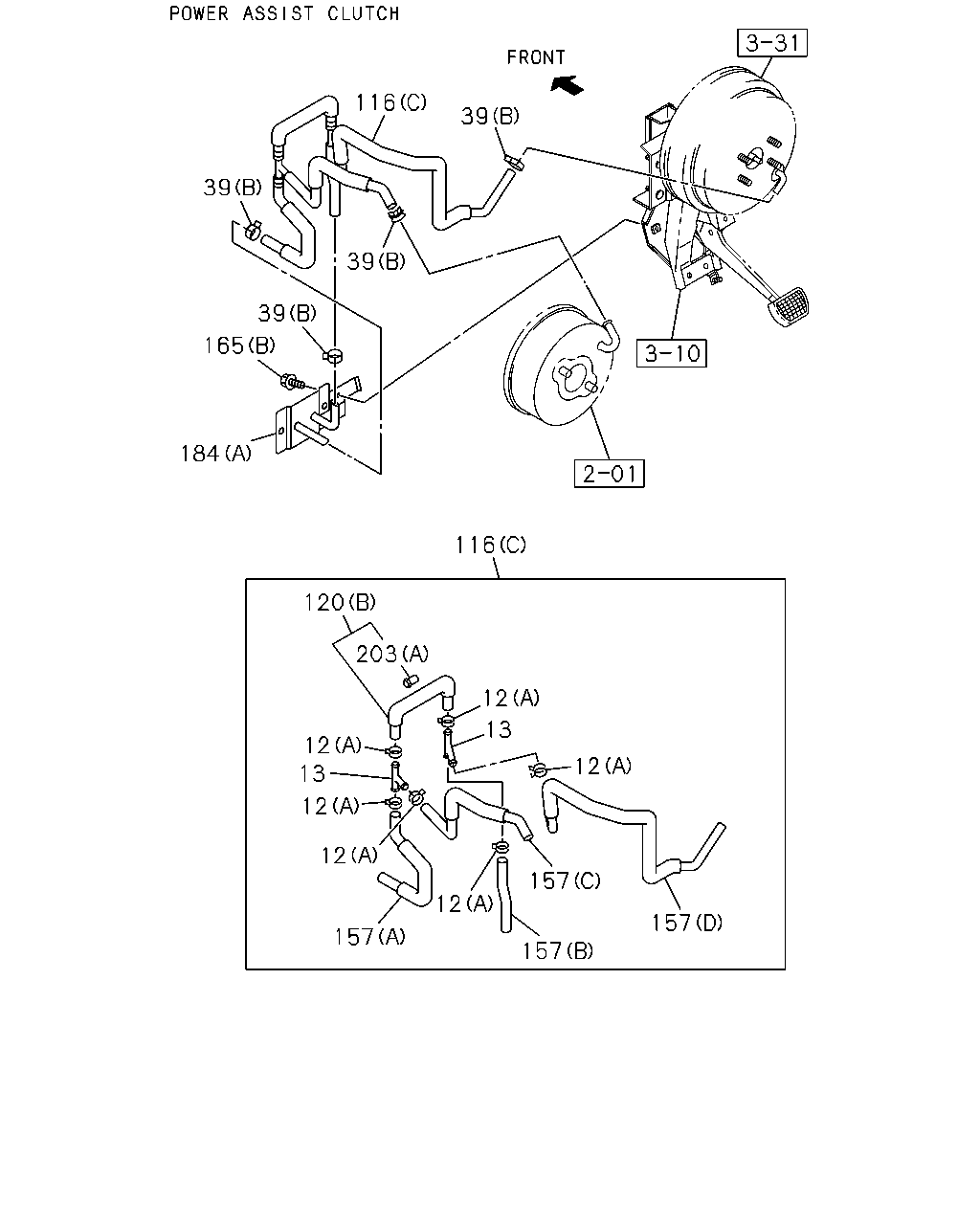

116 39 39 39 39 165 184 116 120 203 12 13 12 13 12 12 12 157 12 157 157 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0710-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-0711
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-
184	04.685 BRACKET; UNION FIX (B)	8-97389-686-1	01	1	0710-1103
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-

202 165 234 173 12 12 184 163 234 116 20 173 96 157 116 234 120 234 12 203 39 13 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0710-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T)	8-98035-106-0	03	1	0710-
13	04.681 JOINT; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98035-106-0	01	1	0710-
20	04.686 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	01	1	0710-0711
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0712-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (C)	8-97389-695-2	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98027-352-3	01	1	0710-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97389-696-2	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (F)	8-98017-168-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (D)	8-98027-350-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98027-351-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98027-353-3	01	1	0710-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98027-354-2	01	1	0710-
157	04.931 HOSE; JOINT EXC. POWER ASSIST CLUTCH(S2T) (E)	8-98022-868-3	01	1	0710-
163	04.681 JOINT; VAC HOSE POWER ASSIST CLUTCH(S2T) 03.163	8-97353-668-0	01	1	0710-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98055-936-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98121-941-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98055-937-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (A)	8-98121-940-0	01	1	1101-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98022-870-1	01	1	0710-1012
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98107-558-0	01	1	1101-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-0711
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-
184	04.685 BRACKET; UNION FIX (B)	8-97389-686-1	01	1	0710-1103
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0710-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0710-
203	04.690 VALVE; CHECK (A)	8-94386-540-0	01	1	0710-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0802-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0802-

12 237 12 44 197 12 12 228 12 238 198 12 237 106 12 12 44 12 12 197 12 198 237 228 12 238 12 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0710-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0710-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-807-1	01	1	0710-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98042-654-0	01	1	0710-0910
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0710-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-
228	04.930 NUT; PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0710-0910
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-789-1	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (D)	8-98039-792-0	01	1	0710-1008
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (D)	8-98171-286-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-

197 78 80 98 85 66 236 96 66 116 98 39 39 39 39 80 78 136 136 136 122 136 136 78 44 228 136 136 122 78 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98039-806-0	01	1	0710-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-807-1	01	1	0710-
44	04.930 PIPE; VAC,MAG VLV (B)	8-98042-654-0	01	1	0710-0910
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-
44	04.930 PIPE; VAC,MAG VLV EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-654-0	01	1	0911-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0710-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	0710-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-97389-745-1	01	1	0710-
78	04.931 HOSE; VAC,PIPE TO PIPE (B)	8-98042-690-1	01	1	0710-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-690-1	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-223-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-223-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98042-691-2	01	1	0710-0910
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98042-691-2	01	1	0911-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (C)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (E)	8-98098-174-0	01	1	0911-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98075-014-0	01	1	0710-
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	0710-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) (B)	8-98064-345-2	01	1	0710-
85	04.931 HOSE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60),FULLAUTO AIR CONDITIONER(C68)	8-98075-176-0	01	1	0710-
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98092-071-0	01	1	0710-0810
85	04.931 HOSE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68)	8-98135-573-0	01	1	0811-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98039-736-1	01	1	0710-
98	04.931 BOLT; VAC PIPE FIX 00.029 (A) M10X30 FLANGE	0-28651-030-0	01	1	0710-
98	04.931 BOLT; VAC PIPE FIX EXC. AIR CONDITIONER MANUAL CONT(C60), FULLAUTO AIR CONDITIONER(C68) 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (B)	8-98042-689-2	01	1	0710-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98042-689-2	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (B)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE (A)	8-98089-657-0	01	1	0710-0910
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98089-657-0	01	1	0911-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-226-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98189-226-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98076-068-1	01	1	0911-
136	04.681 CLIP; VAC HOSE 03.162 (B) L=140	5-09707-031-1	01	1	0710-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (B) L=140	5-09707-031-1	01	1	0911-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	02	1	0710-0910
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 04.930 (A) ID=16	8-94238-568-0	02	1	0911-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXC. POOR QUALITY DIESEL FUEL(KF0) 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE 04.930 (A) ID=16	8-94238-568-0	04	1	0710-0911
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	0710-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-
228	04.930 NUT; PIPE 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0710-0910
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-
228	04.930 NUT; PIPE EXC. POOR QUALITY DIESEL FUEL(KF0) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	0911-
236	04.930 BOLT; PIPE 03.162 M6X12 FLANGE	0-28050-612-0	01	1	0710-

39 116 165 39 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	05	1	0710-0801
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0710-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	08	1	0710-0801
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0802-
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0801
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0802-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97389-674-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (D)	8-97389-689-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC (E) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97389-690-3	01	1	0710-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98094-547-0	01	1	0710-
165	04.686 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	0710-
165	04.686 BOLT; BRKT 02.762 (A) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0710-
184	04.685 BRACKET; UNION FIX (B)	8-98017-628-1	01	1	0710-0711
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (B)	8-98017-628-1	01	1	0712-
184	04.685 BRACKET; UNION FIX (B)	8-97389-686-1	01	1	0710-1103
184	04.685 BRACKET; UNION FIX (A)	8-98183-462-1	01	1	1104-

12 127 12 128 197 12 12 238 12 12 12 198 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	16	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	0710-
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	0710-
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0710-0911
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	0710-0911
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	0912-
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	0710-
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	0710-
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (C) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98039-789-1	01	1	0710-
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (D)	8-98039-792-0	01	1	0710-1008
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (D)	8-98171-286-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 3300MM(33W)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	0710-1008
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
