3-55 — BRAKE PIPING; OIL,REAR
(#35919) — 15 parça
◀
[355A] OTHER PARTS (8 parça)

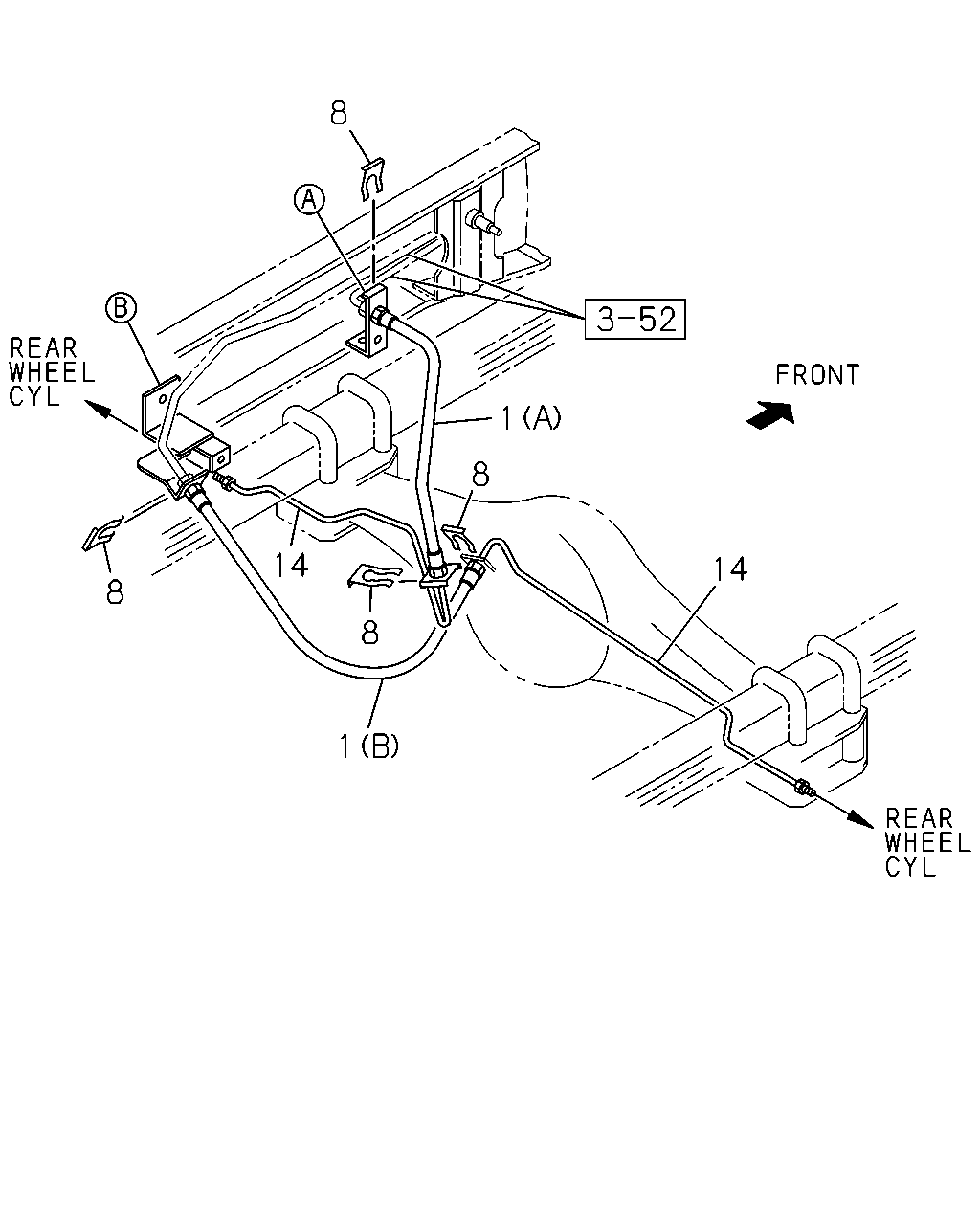

[355A] PIPING (7 parça)
▶
3
3
3
25
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
04.681 BRACKET; FLEX HOSE,RR BRK
(A)
8-97205-198-0
01
1
0710-
3
04.681 BRACKET; FLEX HOSE,RR BRK
(B)
8-97046-936-0
01
1
0710-0903
3
04.681 BRACKET; FLEX HOSE,RR BRK
(C)
8-98117-511-0
01
1
0904-0911
3
04.681 BRACKET; FLEX HOSE,RR BRK
(D)
8-98153-296-0
01
1
0912-
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
0710-
25
04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT
0-92107-005-0
01
1
0710-
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
01
1
0710-
25
04.686 CONNECTOR
M10 STRAIGHT
0-92107-005-0
02
1
0710-
8
1
8
14
14
8
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,RR BRK
(A) L=370
8-97035-574-0
01
1
0710-
1
04.680 HOSE; FLEX,RR BRK
(B) L=430
8-97077-458-0
01
1
0710-
8
04.686 CLIP; RR BRK
8-97360-054-0
04
1
0710-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>
8-98021-871-0
01
1
0710-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>
8-98021-879-0
01
1
0710-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)
8-98034-193-0
01
1
0710-
14
04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)
8-98034-196-0
01
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
