3-55 — BRAKE PIPING; OIL,REAR (#3591) — 54 parça

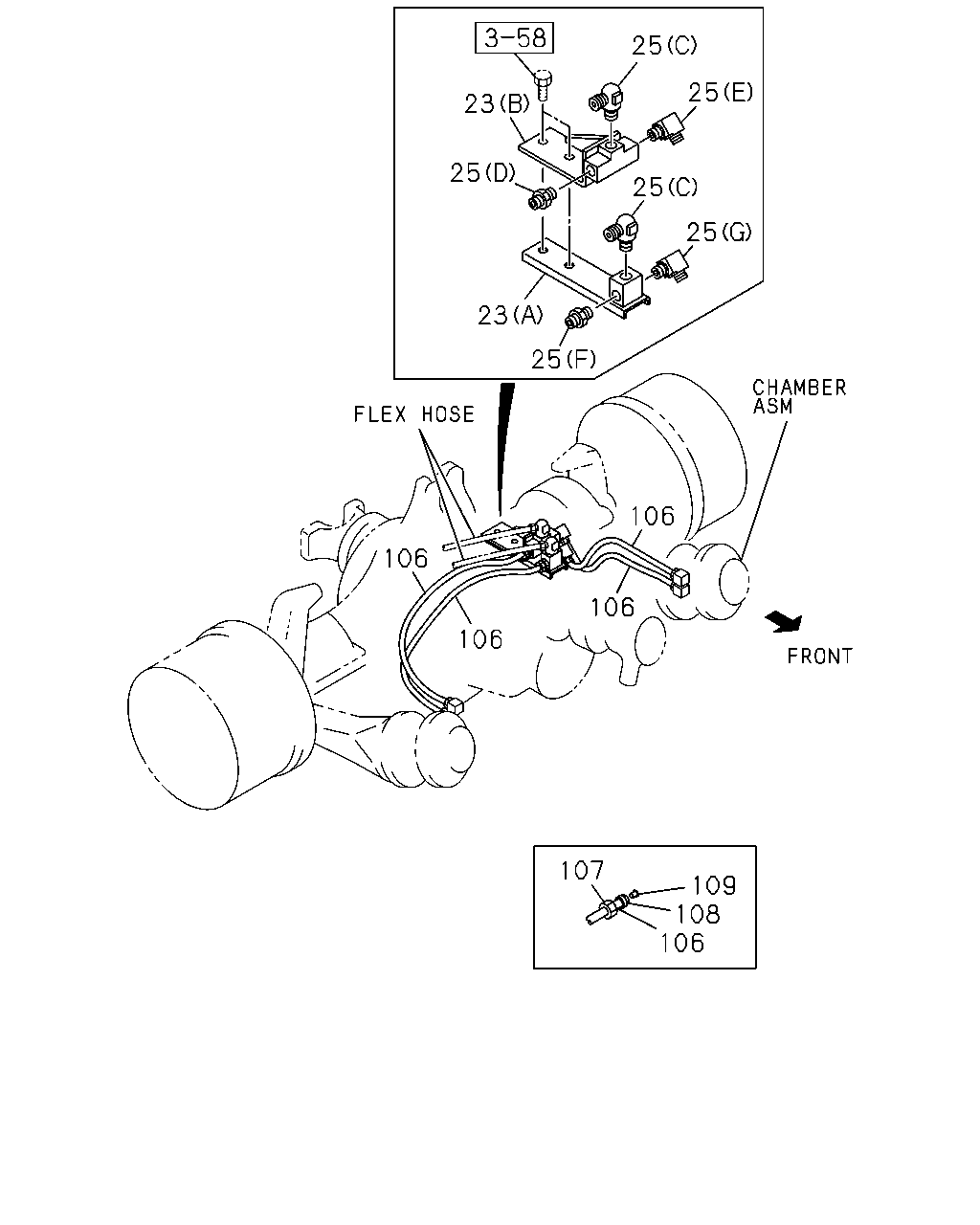

çizim 36536
25 25 23 25 25 25 23 25 106 106 106 106 107 109 108 106
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
(A) 		1-47475-385-0 01 1 9002-9306
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-47470-380-0 01 1 9307-
23 NIPPLE; W/BRKT
(B) 		1-47475-537-0 01 1 9002-9306
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-47475-537-0 01 1 9307-9405
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-47475-537-1 01 1 9406-
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (D) 		1-09660-569-0 01 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (D) 		1-09660-569-0 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (E) 		1-09660-570-0 01 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (E) 		1-09660-570-0 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (F) 		1-09660-572-0 01 1 9307-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (G) 		1-09660-574-0 01 1 9307-
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=30000 OD=3/8" 		1-09368-247-0 02 1 9307-
106 TUBE; NYLON
BRAKE POWER CHAMBER FORWARD<BCQ> SERVICED BY L=30000 OD=1/2" 		1-09368-251-0 02 1 9307-
107 NUT; SLEEVE
BRAKE POWER CHAMBER FORWARD<BCQ> OD=3/8" 		1-09660-557-0 04 1 9307-
107 NUT; SLEEVE
BRAKE POWER CHAMBER FORWARD<BCQ> OD=1/2" 		1-09660-558-0 04 1 9307-
108 SLEEVE; TUBE
BRAKE POWER CHAMBER FORWARD<BCQ> ID=9.75 OD=12.17 L=9.91 		1-09666-060-0 04 1 9307-
108 SLEEVE; TUBE
BRAKE POWER CHAMBER FORWARD<BCQ> ID=12.93 OD=15.85 L=10.92 		1-09666-061-0 04 1 9307-
109 RING; INSERT
BRAKE POWER CHAMBER FORWARD<BCQ> OD=1/2" 		1-09669-107-0 04 1 9307-
109 RING; INSERT
BRAKE POWER CHAMBER FORWARD<BCQ> OD=3/8" 		1-09669-108-0 04 1 9307-

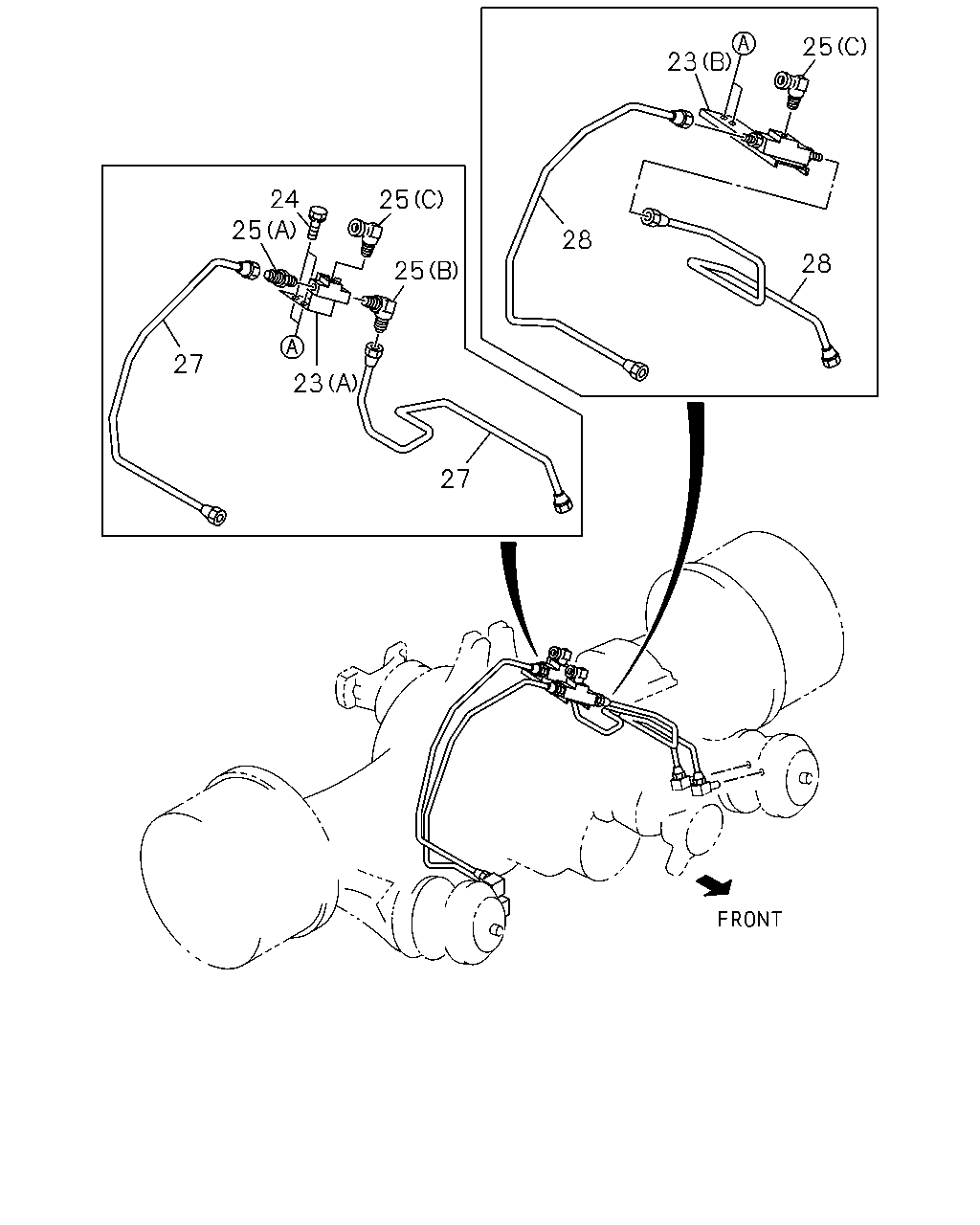

çizim 37467
23 25 24 25 25 28 28 25 27 23 27
BalonParca AdiParca NoAdetTipApplied Date
23 NIPPLE; W/BRKT
(A) 		1-47475-385-0 01 1 9002-9306
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> (A) 		1-47470-380-0 01 1 9307-
23 NIPPLE; W/BRKT
(B) 		1-47475-537-0 01 1 9002-9306
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> (B) 		1-47475-537-0 01 1 9307-9405
23 NIPPLE; W/BRKT
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (B) 		1-47475-537-1 01 1 9406-
24 BOLT; UNION
M8X18 W/LK WASHER 		9-01910-818-0 02 1 9002-9005
24 BOLT; UNION
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9006-9306
25 CONNECTOR
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 9002-9306
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-180-1 01 1 9002-9302
25 CONNECTOR
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 9303-9306
25 CONNECTOR
(C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9002-9306
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-0 02 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (C) M27 & PT3/8 ELBOW 		1-09660-136-1 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (D) 		1-09660-569-0 01 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (D) 		1-09660-569-0 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (E) 		1-09660-570-0 01 1 9307-9405
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ> (E) 		1-09660-570-0 01 1 9406-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (F) 		1-09660-572-0 01 1 9307-
25 CONNECTOR
BRAKE POWER CHAMBER FORWARD<BCQ> (G) 		1-09660-574-0 01 1 9307-
27 PIPE; AIR,3 WAY TO MAXI
BRAKE SYSTEM HEAVY DUTY(J55) L=735 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306
27 PIPE; AIR,3 WAY TO MAXI
BRAKE SYSTEM HEAVY DUTY(J55) L=932 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306
27 PIPE; AIR,3 WAY TO MAXI
EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=774 SERVICED BY L=800 		1-47434-475-0 01 1 9002-9306
27 PIPE; AIR,3 WAY TO MAXI
EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=943 SERVICED BY L=1000 		1-47434-476-0 01 1 9002-9306
28 PIPE; AIR,3 WAY TO POWER CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) L=827 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306
28 PIPE; AIR,3 WAY TO POWER CHAMBER
BRAKE SYSTEM HEAVY DUTY(J55) L=849 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=831 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306
28 PIPE; AIR,3 WAY TO POWER CHAMBER
EXC. BRAKE SYSTEM HEAVY DUTY(J55) L=860 SERVICED BY L=900 		1-47437-966-0 01 1 9002-9306
