◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51394 - NLR 85(AUST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-10 - REPAIR KIT; TRANSMISSION OVERHAUL ▶
2-10 — REPAIR KIT; TRANSMISSION OVERHAUL (#35896) — 10 parça

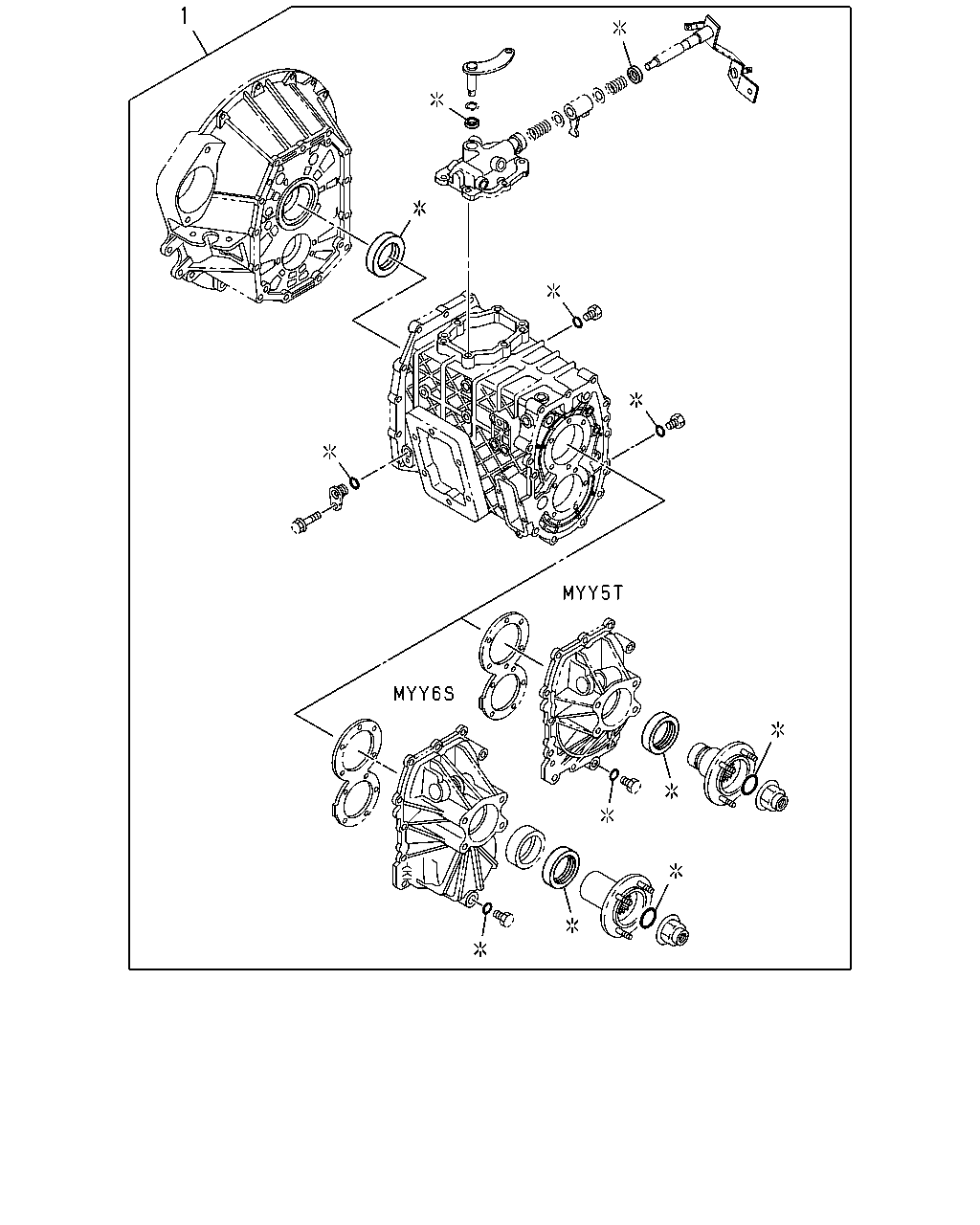

çizim 33283
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0710-0903 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 		5-87832-192-1 01 1 0904- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0710-0903 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0904- ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 		5-87832-128-2 01 1 0904- ●

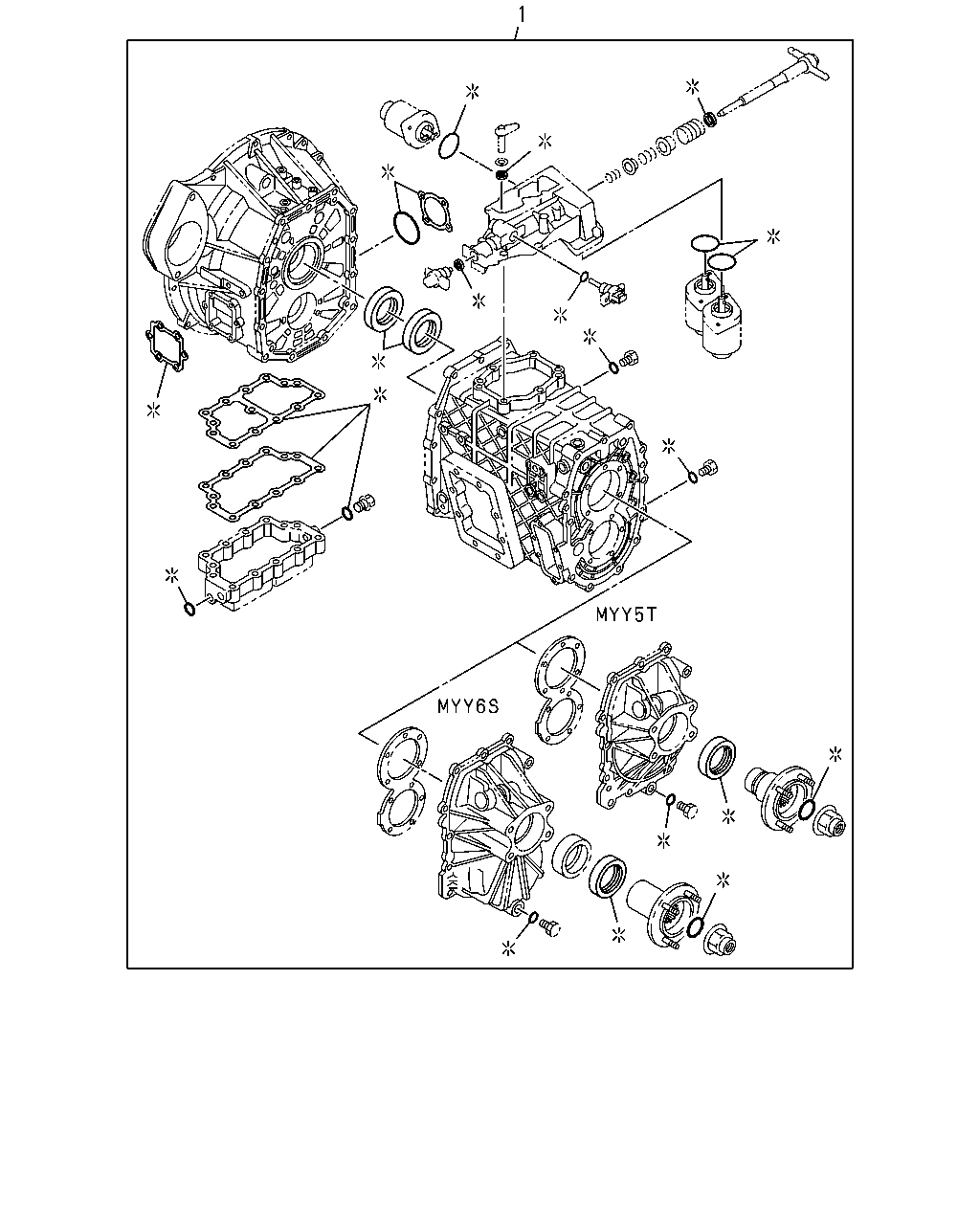

çizim 98875
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		5-87832-192-1 01 1 0710-0903 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 		5-87832-192-1 01 1 0904- ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0710-0903 ● ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		5-87832-128-2 01 1 0904- ●
1 04.005 GASKET SET; TRANS OVERHAUL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO T/M SIDE DIRECT PUMP(8KZ) 		5-87832-128-2 01 1 0904- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
