2-08 — CLUTCH MASTER CYLINDER (#35895) — 54 parça

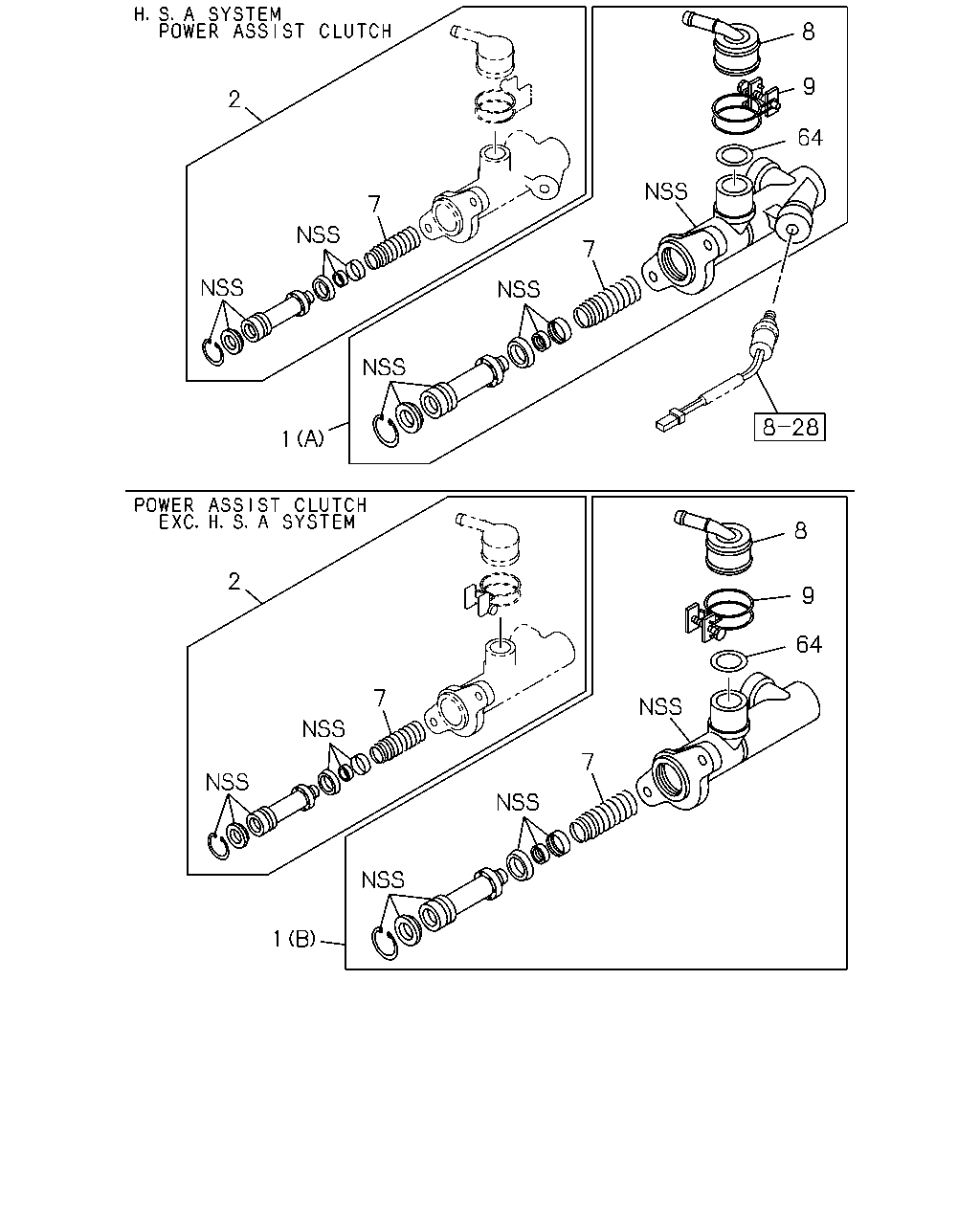

8 1 9 64 7 82 81 2 5 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	0710-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98062-276-0	01	1	0710-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97300-210-0	01	1	0710-0801	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-97300-210-0	01	1	0802-0803	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-98117-641-0	01	1	0804-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-221-0	01	1	0710-	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0710-0801	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87831-597-0	01	1	0802-0803	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	0804-	●	●
3	00.777 JOINT; JAW,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	0710-0801	●	●
3	00.777 JOINT; JAW,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-770-0	01	1	0802-	●	●
4	00.777 NUT; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8	0-91111-508-0	01	1	0710-0801	●	●
4	00.777 NUT; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> M8	0-91111-508-0	01	1	0802-	●	●
5	00.775 ROD; PUSH,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	0710-0801	●	●
5	00.775 ROD; PUSH,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-768-0	01	1	0802-	●	●
6	00.775 BOOT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	0710-0801	●	●
6	00.775 BOOT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-94412-200-0	01	1	0802-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98077-784-0	01	1	0710-	●	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0710-0801	●	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	0802-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	0710-0801	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	0802-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97163-191-0	01	1	0802-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	0710-0801	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	0802-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97167-773-0	01	1	0802-	●	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	0710-0801	●	●
64	00.777 GASKET; CONNECTOR H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	0802-	●	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97167-767-0	01	1	0802-	●	●
81	00.777 DAMPER; MASTER CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97190-913-0	01	1	0710-0801	●	●
81	00.777 DAMPER; MASTER CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97190-913-0	01	1	0802-	●	●
82	00.777 GASKET; DAMPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97191-396-0	01	1	0710-0801	●	●
82	00.777 GASKET; DAMPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97191-396-0	01	1	0802-	●	●

8 9 2 64 7 7 1 8 2 9 64 7 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP> (B)	8-98062-277-0	01	1	0710-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98062-276-0	01	1	0710-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (C)	8-97300-210-0	01	1	0710-0801	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-97300-210-0	01	1	0802-0803	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP> (C)	8-98117-641-0	01	1	0804-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-221-0	01	1	0710-	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	5-87831-597-0	01	1	0710-0801	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87831-597-0	01	1	0802-0803	●	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	5-87832-226-0	01	1	0804-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98077-784-0	01	1	0710-	●	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	0710-0801	●	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T),H.S.A SYSTEM<6EP>	8-97167-780-0	01	1	0802-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	0710-0801	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	0802-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97163-191-0	01	1	0802-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	0710-0801	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	0802-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97167-773-0	01	1	0802-	●	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	0710-0801	●	●
64	00.777 GASKET; CONNECTOR H.S.A SYSTEM<6EP> POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	0802-	●	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-97167-767-0	01	1	0802-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
