0-12 — CYLINDER BLOCK (#35886) — 56 parça

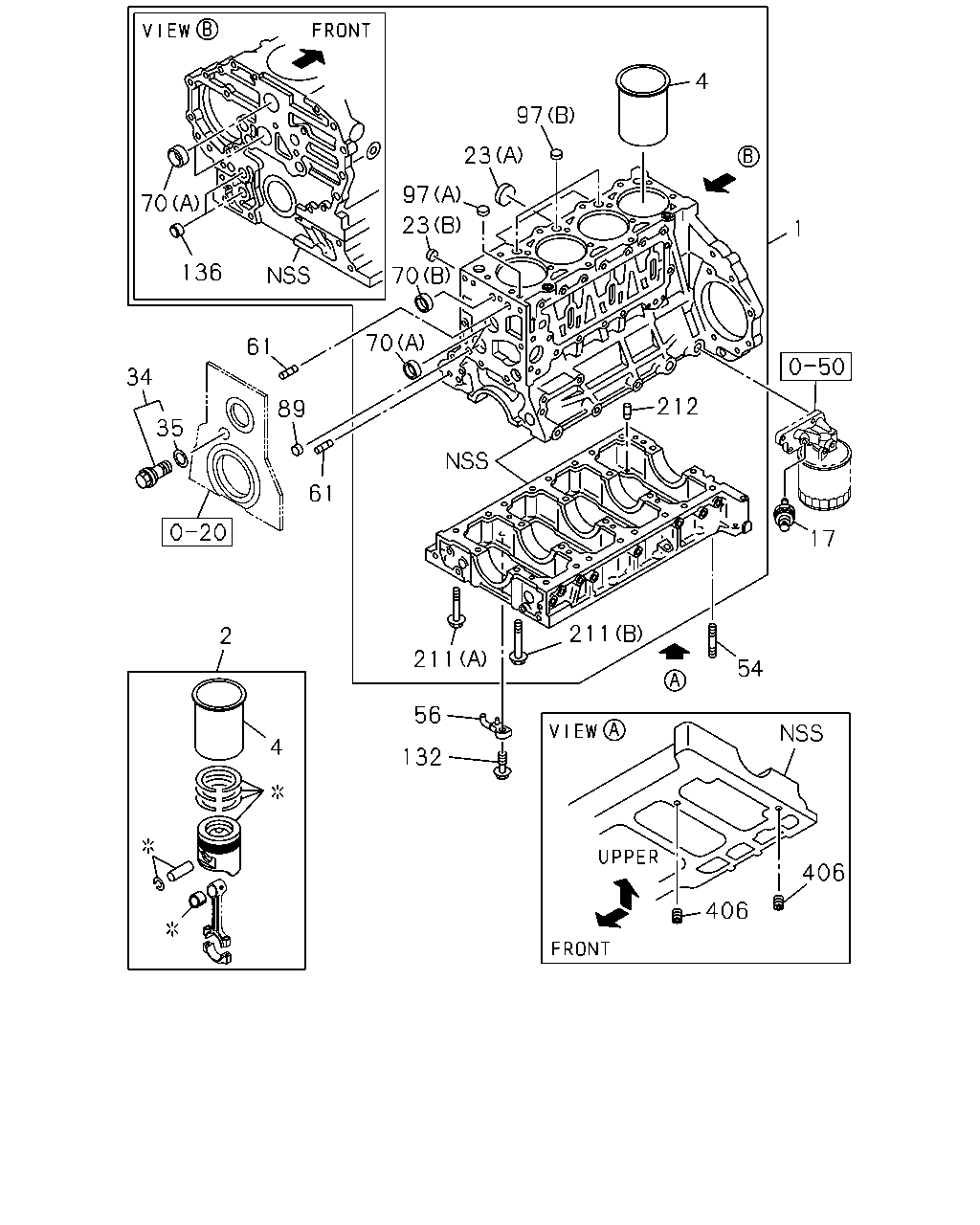

çizim 120748
70 136 34 35 61 89 61 2 4 132 56 211 70 70 23 97 23 97 4 1 212 211 17 54 406 406
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98046-721-3 01 1 0803-1209 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ● ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 04 1 0803-1405 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		1-87814-726-0 04 1 1406- ● ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 04 1 0803-1405 ● ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		1-87814-727-0 04 1 1406- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 04 1 0803-1405 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 1406- ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 04 1 0803-1405 ● ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 1406- ● ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0803- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (B) OD=25 		1-09600-016-0 01 1 0803- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(A) OD=45 		8-97036-550-1 03 1 0803- ● ●
34 01.609 VALVE; OIL RELIEF
EURO2 SPECIFICATION(NT2) 00.213 		8-97328-859-0 01 1 1201- ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 0803-1112 ● ●
34 01.609 VALVE; OIL RELIEF
EURO4 SPECIFICATION(NT4) 00.213 		8-97328-859-0 01 1 1201- ● ●
35 01.609 GASKET; RELIEF VLV
EURO2 SPECIFICATION(NT2) ID=23.3 		8-94173-412-0 02 1 1201- ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 0803-1112 ● ●
35 01.609 GASKET; RELIEF VLV
EURO4 SPECIFICATION(NT4) ID=23.3 		8-94173-412-0 01 1 1201- ● ●
54 01.428 STUD; OIL PAN TO BLOCK
EURO2 SPECIFICATION(NT2) M8X20 L=38 		8-97021-431-0 03 1 1101- ●
56 01.519 JET; OIL,PISTON COOLING 8-98020-649-0 04 1 0803-1007 ● ●
56 01.519 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1008- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0803- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 (B) OD=25 		1-09600-016-0 01 1 0803- ● ●
70 00.034 CUP; SEALING,FRT & RR
(A) OD=40 		8-97096-824-0 04 1 0803- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (C) OD=12 		8-97036-335-1 01 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0803- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0803- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0803-0812 ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ● ●
211 01.428 BOLT; CRANKCASE
(A) M10X82 		8-94399-553-2 17 1 0803- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (B) M14X115 W/FLANGE 		8-97077-638-0 10 1 0803- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0803- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 0803- ● ●

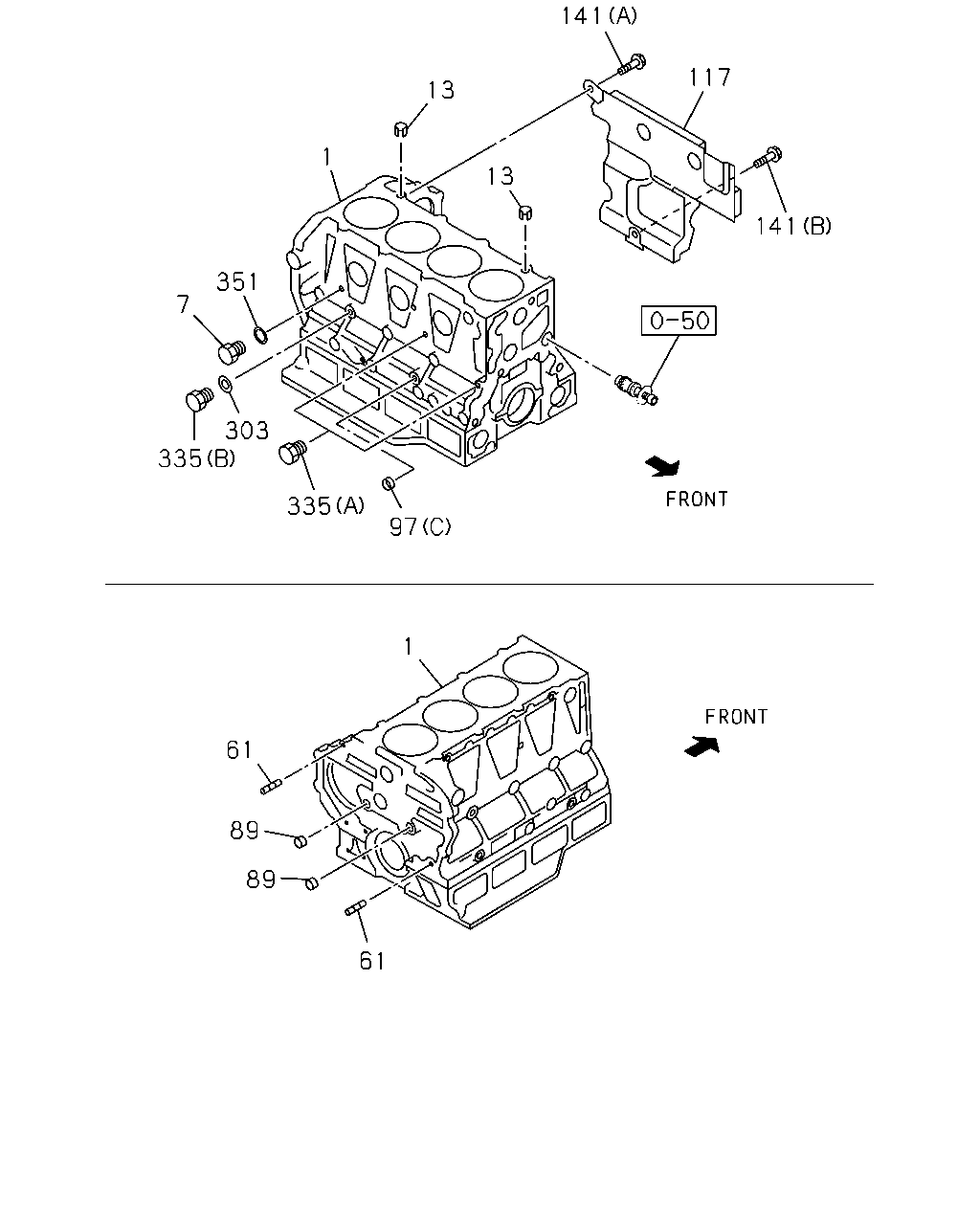

çizim 120750
61 89 89 61 1 97 335 335 303 351 7 1 13 13 141 117 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98046-721-3 01 1 0803-1209 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ● ●
1 00.033 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ● ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0803- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0803- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0803- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (C) OD=12 		8-97036-335-1 01 1 0803- ● ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 0803- ● ●
117 00.030 COVER ASM; C/BL
EURO4 SPECIFICATION(NT4) 		8-98039-564-0 01 1 0803- ● ●
141 01.531 BOLT; COVER
EURO4 SPECIFICATION(NT4) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0803- ● ●
141 01.531 BOLT; COVER
EURO4 SPECIFICATION(NT4) 00.029 (B) M10X16 FLANGE 		0-28151-016-0 01 1 0803- ● ●
303 01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 01 1 0803-1312 ● ●
303 01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ● ●
335 01.531 PLUG; C/BL,SIDE
(B) M14X18 		0-20801-418-0 01 1 0803-0805 ● ●
335 01.531 PLUG; C/BL,SIDE
04.866 (B) M14X18 		8-98038-403-0 01 1 0806- ● ●
335 01.531 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 0803- ● ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0803- ● ●
