0-11 — CYLINDER HEAD (#35885) — 52 parça

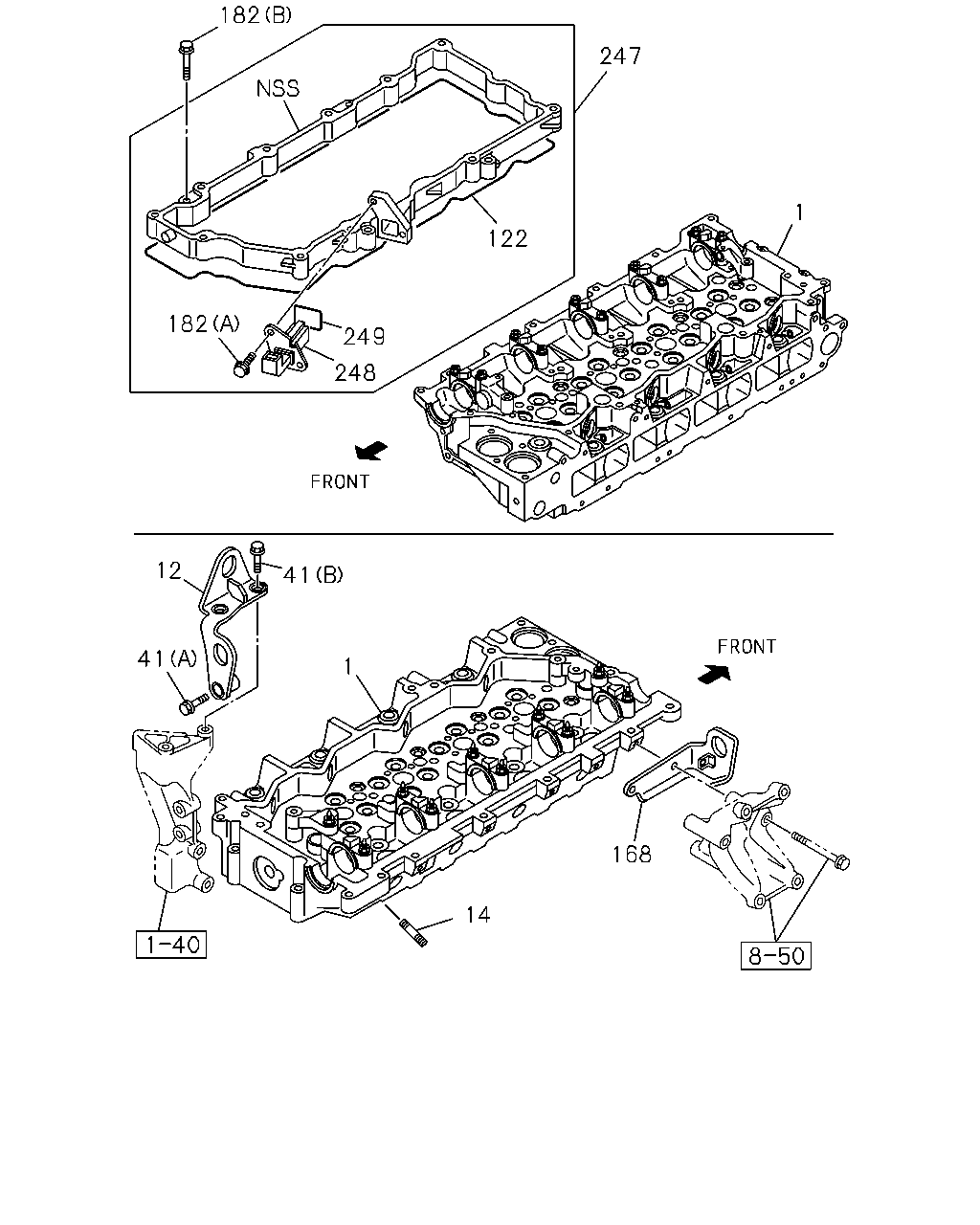

çizim 120749
182 247 1 122 182 249 248 12 41 41 1 168 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0803-1005 ● ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ● ●
12 00.004 HANGER; ENG,RR 8-98074-691-1 01 1 0803- ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0803- ● ●
41 09.181 BOLT; ENG HANGER
03.162 (B) M12X20 FLANGE 		0-28151-220-0 02 1 0803- ● ●
41 09.181 BOLT; ENG HANGER
(A) M12X80 		0-28151-280-0 01 1 0803- ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97331-360-1 01 1 0803- ● ●
168 00.004 HANGER; ENG,FRT 8-98032-250-1 01 1 0803- ● ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0803- ● ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0803- ● ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0803- ● ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0803- ● ●
249 03.300 GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENGINE). 01.152 		8-94391-310-0 01 1 0803- ● ●

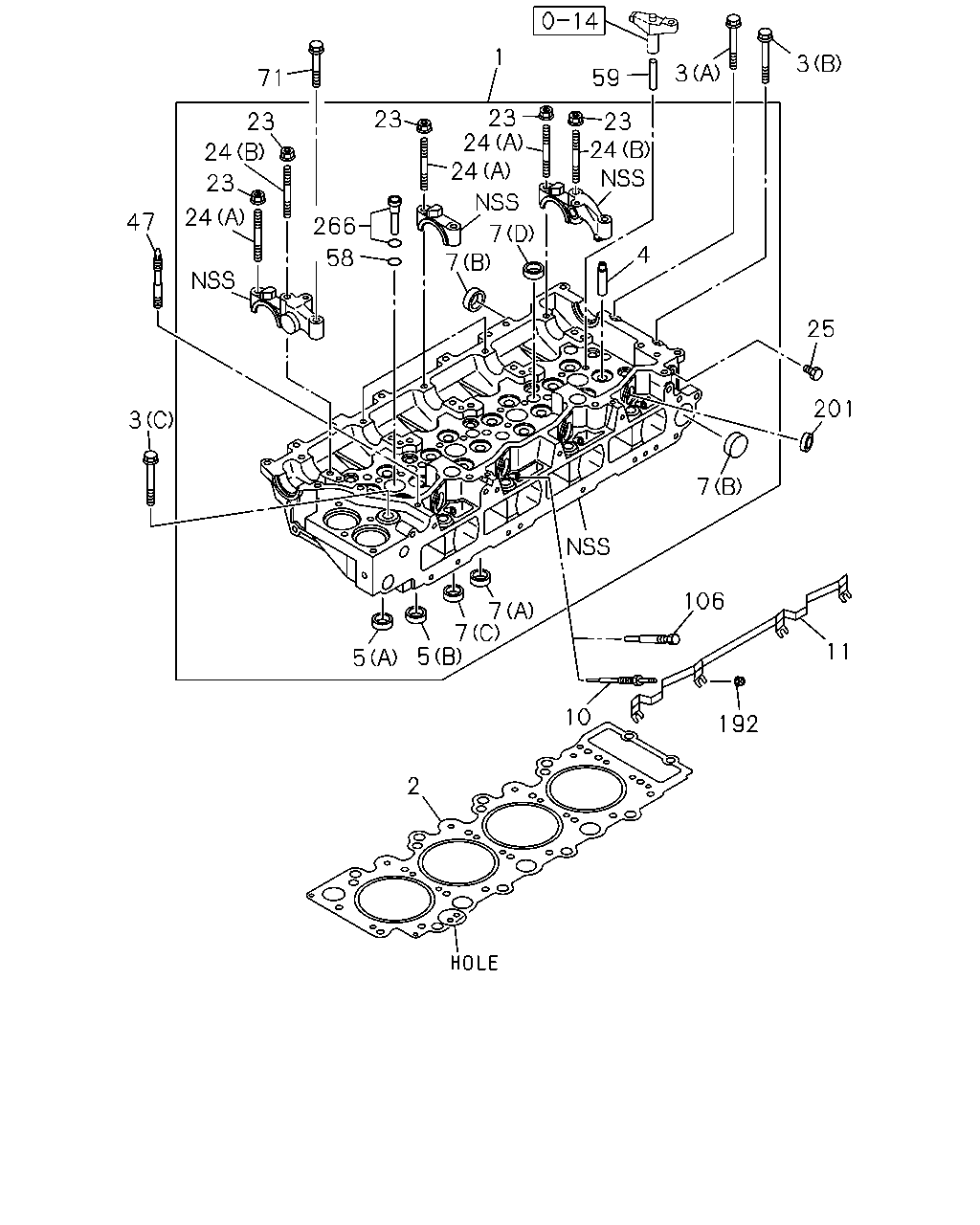

çizim 120760
71 23 24 23 24 47 3 266 58 23 1 23 24 24 7 7 23 24 4 3 59 3 25 201 7 106 10 7 7 5 5 2 192 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0803-1005 ● ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0803-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE 		8-98288-501-0 01 1 1506- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0803-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE 		8-98288-502-0 01 1 1506- ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0803-1505 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE 		8-98288-503-0 01 1 1506- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0803- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0803- ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0803-1503 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-98260-005-0 18 1 1504- ● ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0803- ● ●
5 00.253 SEAT; VLV INSERT
(A) INLET ID=32 OD=38 		8-98028-874-0 08 1 0803- ● ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0803- ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (D) OD=25 		1-09600-016-0 04 1 0803- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=16 		5-11129-006-0 05 1 0803- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(B) OD=32 		8-97096-821-0 05 1 0803- ● ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=20 		9-11129-128-0 07 1 0803- ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0803-1501 ● ●
10 02.270 PLUG; GLOW
EXC. GLOW SYSTEM DELETE<7RK> NGK 		8-94390-777-6 04 1 1502- ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 1502- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0803-1501 ● ●
11 02.251 CONNECTOR; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 		8-97332-358-2 01 1 1502- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 1502- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0803- ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0803- ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0803- ● ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0803- ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0803- ● ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=26.4 		8-97604-916-0 04 1 0803- ● ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 0803- ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0803- ● ●
106 00.293 PLUG; GLOW PLUG HOLE
GLOW SYSTEM DELETE<7RK> 		8-94392-236-0 04 1 1502- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0803-1501 ● ●
192 00.349 NUT; GLOW PLUG
EXC. GLOW SYSTEM DELETE<7RK> 02.559 M4 FLANGE 		8-97368-853-0 04 1 1502- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 1502- ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30 		1-09639-034-0 04 1 0803- ● ●
266 00.293 SLEEVE ASM; NOZZLE HOLDER 8-98018-462-0 04 1 0803- ● ●
