Sayfa 0-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-10 - CYLINDER HEAD COVER ▶

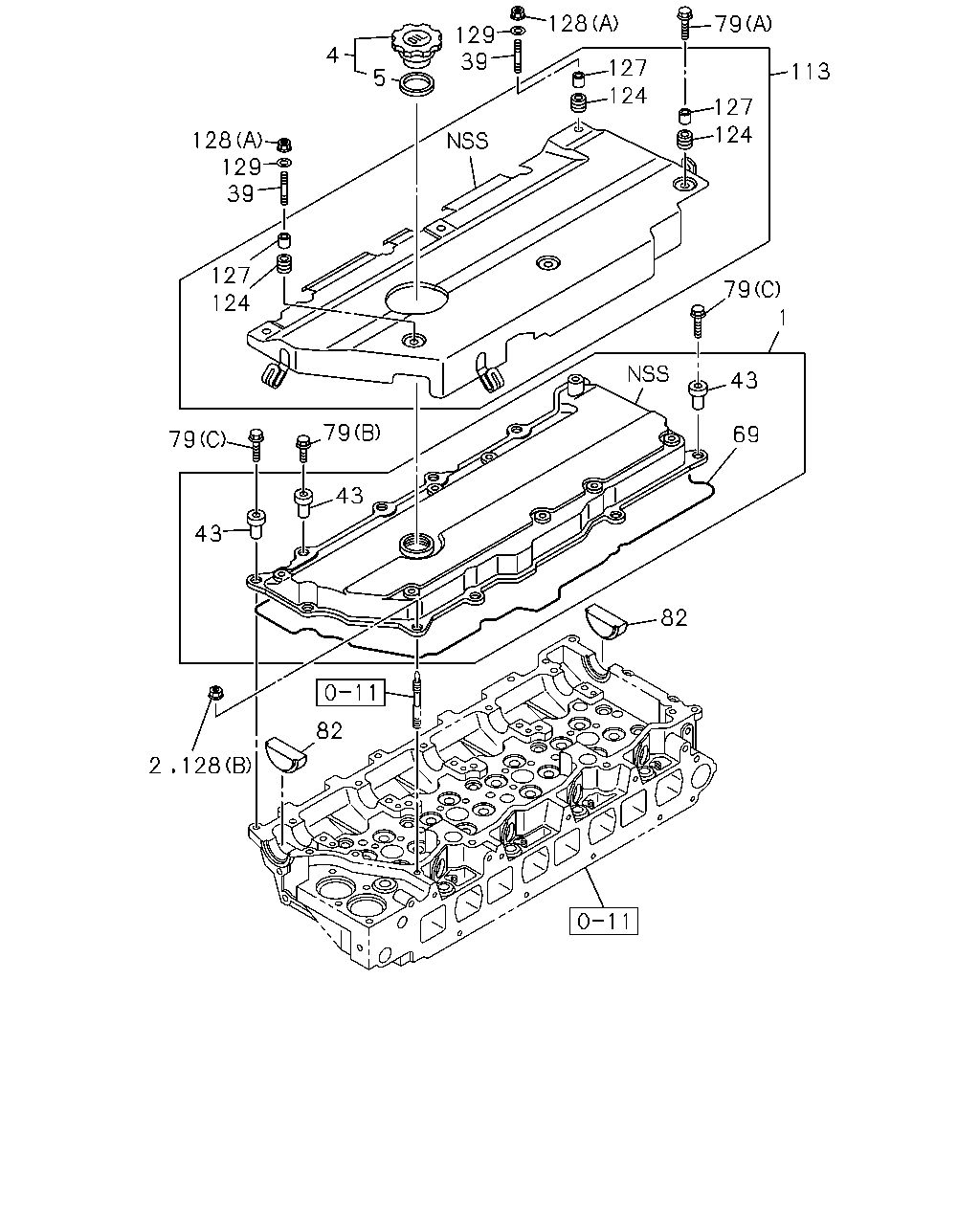

0-10 — CYLINDER HEAD COVER (#35884) — 29 parça

4 5 128 129 39 127 124 79 79 43 43 2 128 82 82 69 43 1 79 124 127 113 79 128 127 124 129 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.386 COVER; CYL HD	8-97331-361-2	01	1	0803-	●	●
2	00.413 NUT; COVER,HD 01.062 M8 FLANGE	0-91180-108-0	02	1	0803-0811	●	●
4	01.758 CAP; OIL FILLER	8-94133-207-5	01	1	0803-	●	●
5	01.758 GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). 00.413 ID=32 OD=40	8-94123-623-1	01	1	0803-	●	●
39	00.413 STUD; COVER,HD 03.275 M6X25 L=34	0-41010-625-0	02	1	0803-0906	●	●
39	00.413 STUD; COVER,HD EURO4 SPECIFICATION(NT4) 03.275 M6X25 L=34	0-41010-625-0	02	1	0907-	●	●
43	00.413 RUBBER; MTG,HD COVER,OUTER OD=22	8-94395-684-0	11	1	0803-	●	●
69	00.423 GASKET; HD TO COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-359-1	01	1	0803-	●	●
79	00.293 BOLT; COVER 01.060 (B) M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●
79	00.293 BOLT; COVER 01.097 (C) M8X65 FLANGE	1-09044-072-1	07	1	0803-	●	●
79	00.293 BOLT; COVER 00.413 (A) M6X20	8-97127-607-0	04	1	0803-0906	●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	04	1	0907-1110	●	●
79	00.293 BOLT; COVER EURO4 SPECIFICATION(NT4) 00.413 (A) M6X20	8-97127-607-0	03	1	1111-	●	●
82	00.386 PLUG; CYL HD COVER	8-94399-605-0	02	1	0803-1005	●	●
82	00.386 PLUG; CYL HD COVER	8-98163-813-0	02	1	1006-	●	●
113	00.386 COVER; CYL HEAD COVER	8-97354-803-3	01	1	0803-0906	●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-97354-803-3	01	1	0907-1110	●	●
113	00.386 COVER; CYL HEAD COVER EURO4 SPECIFICATION(NT4)	8-98115-676-0	01	1	1111-	●	●
124	00.413 RUBBER; MTG,COVER	8-97226-908-0	06	1	0803-0906	●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	06	1	0907-1110	●	●
124	00.413 RUBBER; MTG,COVER EURO4 SPECIFICATION(NT4)	8-97226-908-0	05	1	1111-	●	●
127	00.386 RETAINER; COVER	8-97092-314-0	06	1	0803-0906	●	●
127	00.386 RETAINER; COVER EURO4 SPECIFICATION(NT4)	8-97092-314-0	06	1	0907-1110	●	●
127	00.386 RETAINER; COVER EURO4 SPECIFICATION(NT4)	8-97092-314-0	05	1	1111-	●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0803-0906	●	●
128	00.413 NUT; COVER,CYL HEAD COVER EURO4 SPECIFICATION(NT4) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0907-	●	●
128	00.413 NUT; COVER,CYL HEAD COVER 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
129	00.413 WASHER; COVER,CYL HEAD COVER ID=6.4 OD=18	0-91610-706-0	02	1	0803-0906	●	●
129	00.413 WASHER; COVER,CYL HEAD COVER EURO4 SPECIFICATION(NT4) ID=6.4 OD=18	0-91610-706-0	02	1	0907-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
