◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51156 - NPR BUS(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#35883) — 45 parça

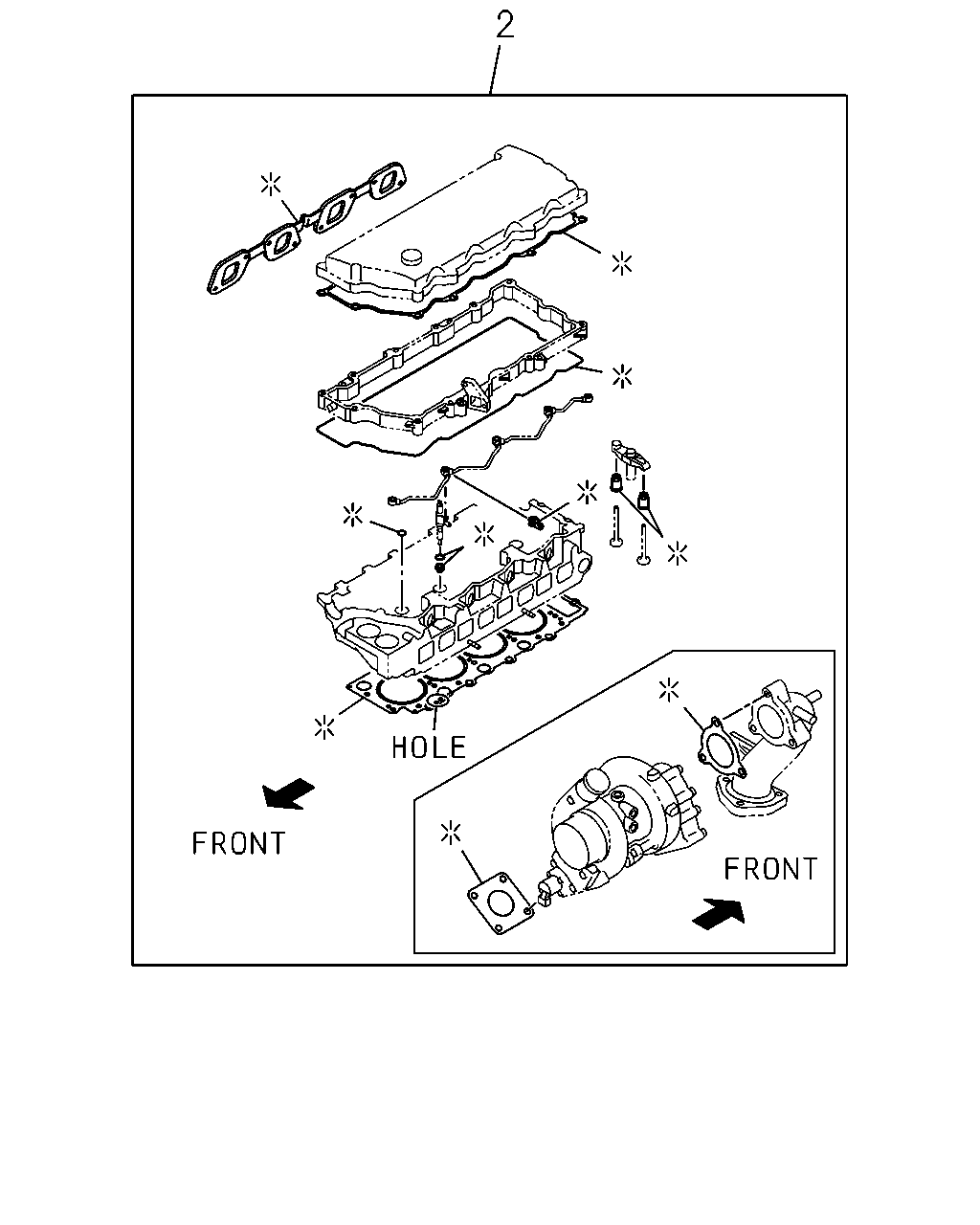

çizim 120743
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-117-1 01 1 0803-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-532-3 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-118-1 01 1 0803-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-533-3 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-119-1 01 1 0803-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-534-3 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-111-1 01 1 0803-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-529-3 01 1 0909- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-112-1 01 1 0803-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-530-3 01 1 0909- ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-113-1 01 1 0803-0908 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-531-3 01 1 0909- ● ●

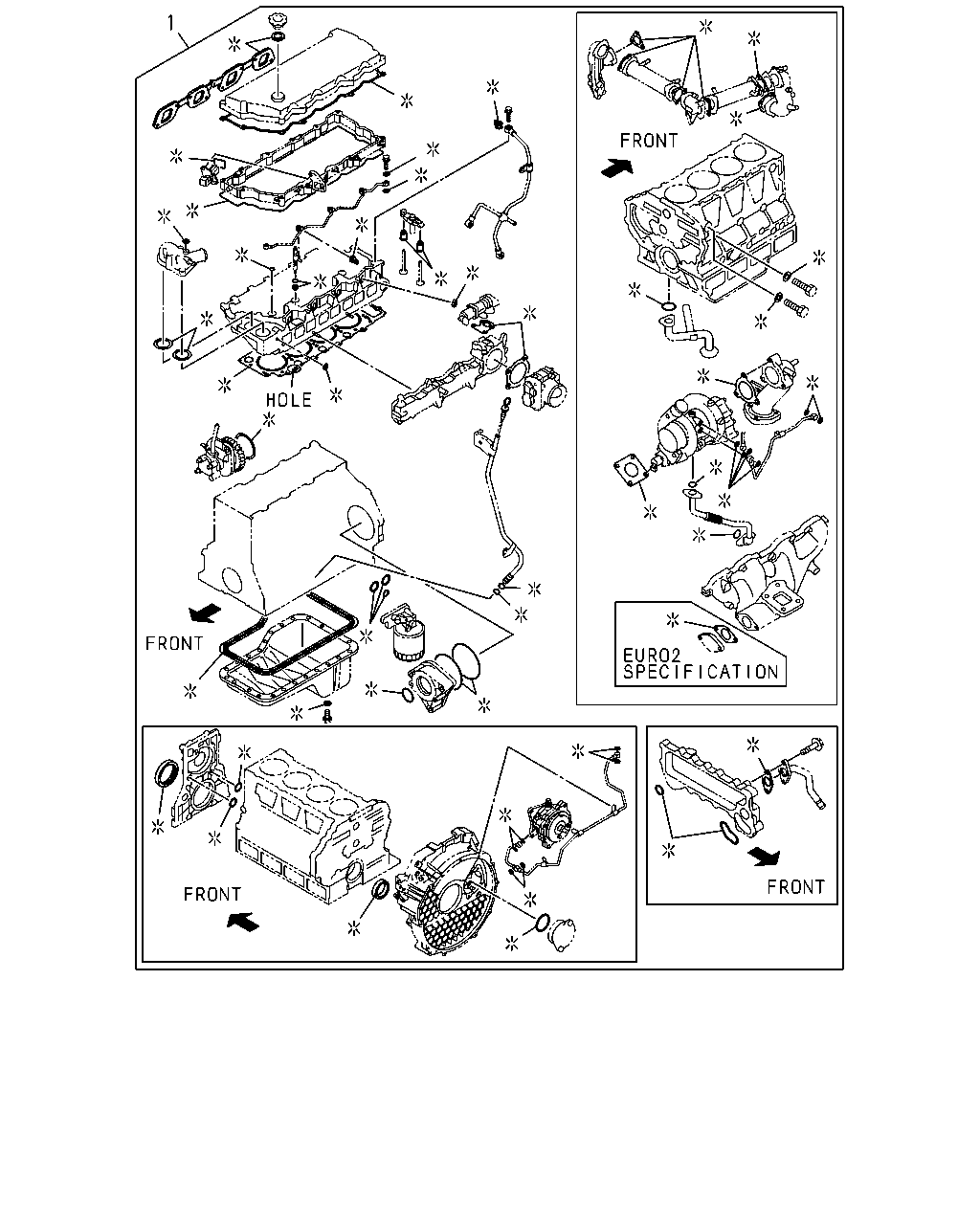

çizim 120745
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-340-3 01 1 0803-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-523-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-810-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87815-952-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-044-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.475 NON-HOLE 		5-87817-762-0 01 1 1502- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-341-3 01 1 0803-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-524-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-811-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87815-953-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-045-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.525 1-HOLE 		5-87817-763-0 01 1 1502- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-342-3 01 1 0803-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-525-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-812-0 01 1 1007-1101 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87815-954-2 01 1 1102-1312 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-046-0 01 1 1401-1501 ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO2 SPECIFICATION(NT2) T=1.575 2-HOLE 		5-87817-764-0 01 1 1502- ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-337-1 01 1 0803-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-520-1 01 1 0909-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87815-807-2 01 1 1007-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-041-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.475 NON-HOLE 		5-87817-759-0 01 1 1502- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-338-1 01 1 0803-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-521-1 01 1 0909-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87815-808-2 01 1 1007-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-042-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.525 1-HOLE 		5-87817-760-0 01 1 1502- ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-339-1 01 1 0803-0908 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-522-1 01 1 0909-1006 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87815-809-2 01 1 1007-1312 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-043-0 01 1 1401-1501 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
EURO4 SPECIFICATION(NT4) T=1.575 2-HOLE 		5-87817-761-0 01 1 1502- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
